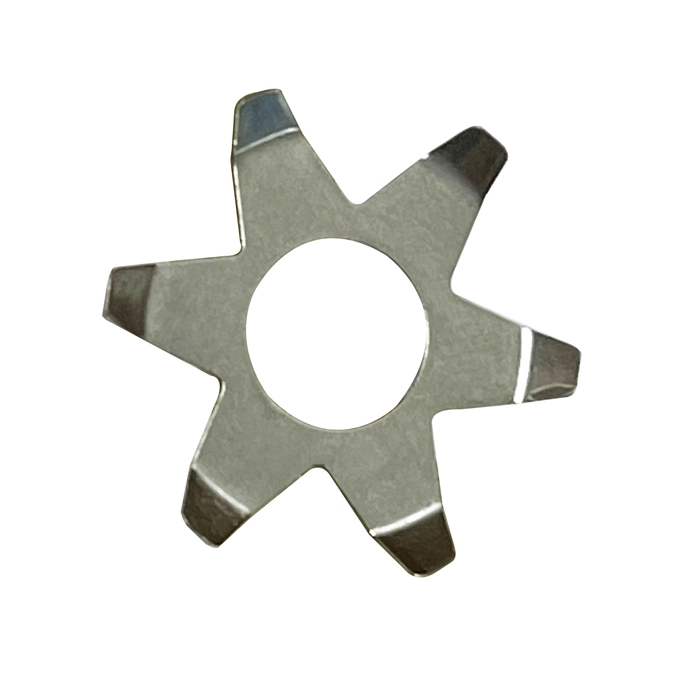

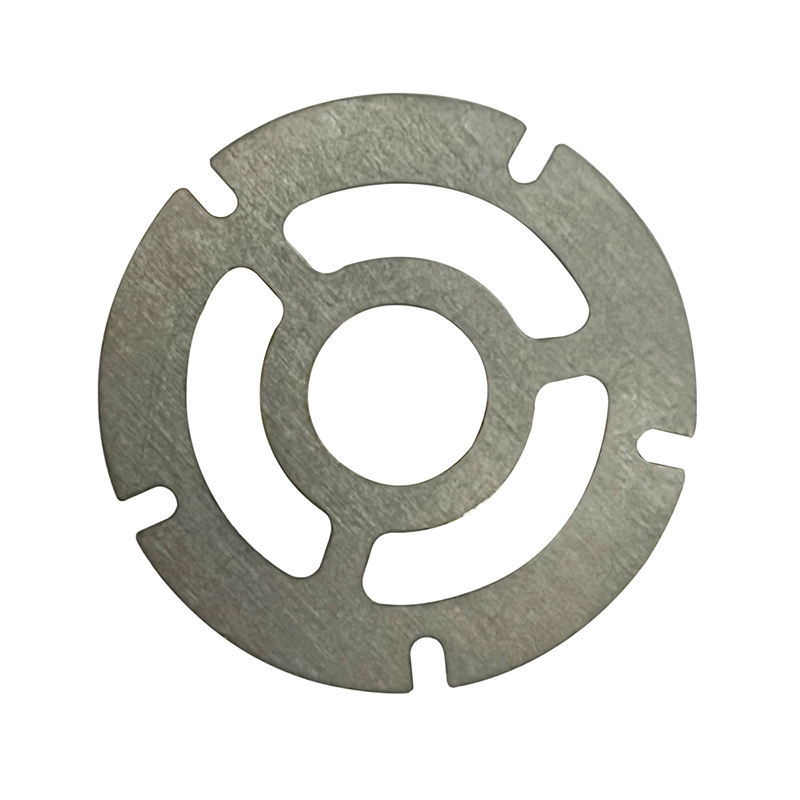

Wear-Resistant Valve Shim

XIAYI Wear-Resistant Valve Shim is a high-performance damping control component developed for automotive shock absorber systems operating under high-frequency vibration, long-cycle friction and variable temperature conditions. Manufactured with high-purity high-strength steel substrate, cryogenic strengthening treatment and precision finishing technology, the product provides improved wear resistance, structural stability and long-term damping consistency.

Designed for passenger vehicles, new energy vehicles, commercial vehicles, motorcycles and engineering machinery, XIAYI Wear-Resistant Valve Shim maintains reliable performance under extreme temperature differences and continuous vibration environments. The optimized material structure and surface treatment technology help extend service life and reduce performance degradation caused by friction wear.

Material Structure Design

The internal structure of a valve shim directly affects its durability during repeated valve opening and closing cycles. XIAYI selects high-quality alloy steel and spring steel materials with excellent toughness, elasticity and wear resistance.

Through strict material screening and metallurgical control, the product achieves stable grain structure and improved resistance against deformation, fatigue and abrasive damage during long-term operation.

High Purity Steel Substrate

XIAYI performs incoming material inspection including spectral analysis, density detection and hardness verification according to automotive quality requirements.

The optimized steel substrate provides reliable mechanical strength and elastic recovery performance, reducing risks of brittle fracture and performance instability under vibration loads.

Cryogenic Strengthening Treatment

Different from conventional heat treatment processes, XIAYI applies ultra-low temperature cryogenic deep treatment at -196℃ after vacuum quenching and tempering.

This process refines internal metal grain structure, eliminates residual stress and improves material density. The enhanced internal stability helps reduce wear and fatigue during repeated operation.

Wear Performance Improvement

Reduced Friction Loss

During shock absorber operation, valve shims continuously contact and move under hydraulic pressure. Excessive friction may accelerate surface wear and affect damping consistency.

XIAYI optimizes surface structure and finishing processes to reduce friction coefficient, improving wear resistance during millions of high-frequency movement cycles.

Extended Fatigue Life

With cryogenic grain refinement and stress relief treatment, XIAYI improves resistance against repeated mechanical stress.

Compared with ordinary shims, the wear resistance is increased by more than 40%, while long-cycle vibration fatigue life is improved by 3 times under tested conditions.

Extreme Temperature Adaptability

Vehicle suspension components may experience significant temperature changes during winter operation, high-speed driving and heavy-load transportation. Material stability under different temperatures directly affects damping performance.

XIAYI Wear-Resistant Valve Shim maintains reliable mechanical properties from -40℃ low-temperature environments to 120℃ high-temperature conditions, preventing low-temperature brittleness and high-temperature softening.

Low Temperature Reliability

In cold regions, ordinary valve shims may experience reduced toughness and unstable damping response.

The refined internal structure of XIAYI products improves low-temperature toughness, helping maintain stable elastic performance during cold starts and winter operation.

High Temperature Stability

Under continuous high-temperature operation, material softening may lead to damping attenuation.

XIAYI improves structural stability through cryogenic treatment and heat treatment combination, allowing the valve shim to maintain consistent damping output during high-temperature driving conditions.

Precision Manufacturing Control

Micron-Level Finishing

After strengthening treatment, XIAYI performs double-sided precision grinding and mirror polishing.

The product achieves flatness ≤0.01mm, thickness tolerance ±0.01mm and surface roughness Ra≤0.02μm, supporting accurate assembly and smooth valve movement.

Burr-Free Edge Processing

All edges undergo rounded and deburring treatment to prevent scratches, stress concentration and assembly interference.

The optimized edge quality improves reliability of valve stack assembly and reduces internal component wear.

Process Quality Assurance

PFMEA Risk Control

XIAYI applies full-process PFMEA analysis covering raw material inspection, precision blanking, vacuum heat treatment, cryogenic strengthening, grinding, polishing and packaging.

The process control system identifies potential risks such as uneven hardness, dimensional deviation, surface defects and edge damage before mass production.

Full Inspection Management

Finished products undergo three-level inspection and five-step quality verification.

With 100% dimensional inspection, batch stability CPK≥1.67 and factory defect rate lower than 0.1%, XIAYI ensures consistent supply quality for automotive customers.

Real Industry Application Cases

Northern Low-Temperature New Energy Vehicle Case

New energy vehicles operating in northern regions face long-term low-temperature conditions and frequent temperature changes. Ordinary valve shims may experience brittleness, wear and unstable damping performance during winter operation.

A northern China new energy vehicle OEM adopted XIAYI cryogenic treated anti-wear valve shims in batches. After three years of market operation, the products maintained stable structure and damping output in -30℃ environments, reducing low-temperature-related shock absorber faults by 96%.

High Temperature Mountain Highway Commercial Vehicle Case

Commercial vehicles running on mountain highways experience continuous vibration, heavy loads and high-temperature working environments.

A professional commercial vehicle supplier replaced conventional shims with XIAYI wear-resistant products. After two years of full-load road tracking, the products maintained stable hardness and wear resistance, reducing annual maintenance costs by 87%.

Engineering Machinery Temperature Difference Application

Outdoor construction machinery operates under seasonal temperature changes and continuous vibration conditions.

A domestic engineering machinery manufacturer selected XIAYI cryogenic treated valve shims. The products maintained stable damping performance under different seasons and reduced replacement frequency caused by temperature-related wear.

Application Range

XIAYI Wear Resistant Valve Shim is suitable for passenger cars, SUVs, new energy vehicles, commercial vehicles, motorcycles, modified vehicles and construction machinery requiring long-life damping components.

XIAYI supports OEM and ODM customization, including substrate materials, cryogenic treatment parameters, hardness requirements and precision tolerances according to different operating environments.

Product Comparison

FAQ

What makes XIAYI Wear Resistant Valve Shim different from standard valve shims?

XIAYI products use high-strength steel substrate, cryogenic strengthening technology and precision finishing processes to improve wear resistance, fatigue durability and temperature adaptability.

How does cryogenic treatment improve valve shim performance?

Cryogenic treatment at -196℃ refines metal grain structure, reduces residual stress and improves internal material stability for long-term operation.

Can XIAYI customize valve shims for extreme environments?

Yes. XIAYI can customize materials, treatment parameters and precision requirements according to customer temperature range, vibration conditions and application needs.

Long-Life Damping Component Solution

XIAYI specializes in manufacturing durable shock absorber components for global automotive customers. Through advanced cryogenic strengthening technology, precision manufacturing and an IATF 16949:2016 compliant quality management system, XIAYI provides reliable valve shim solutions for long-cycle and extreme-condition applications.
