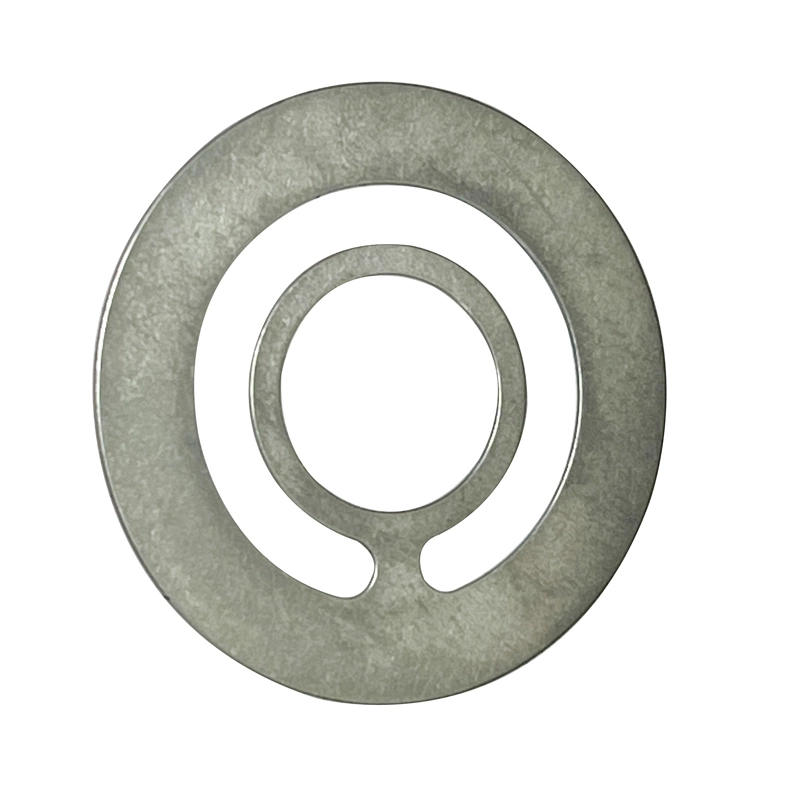

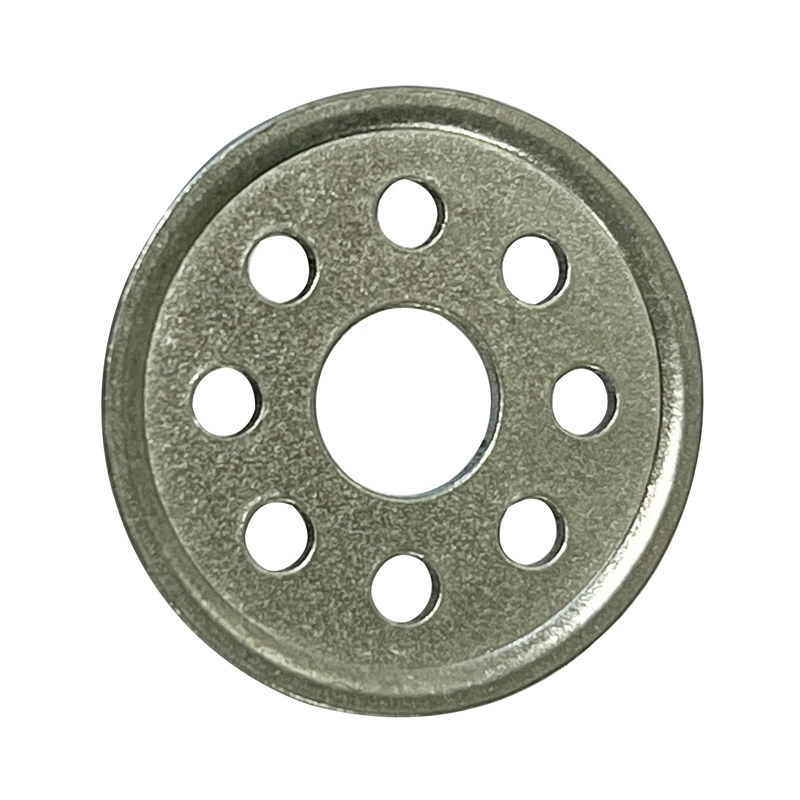

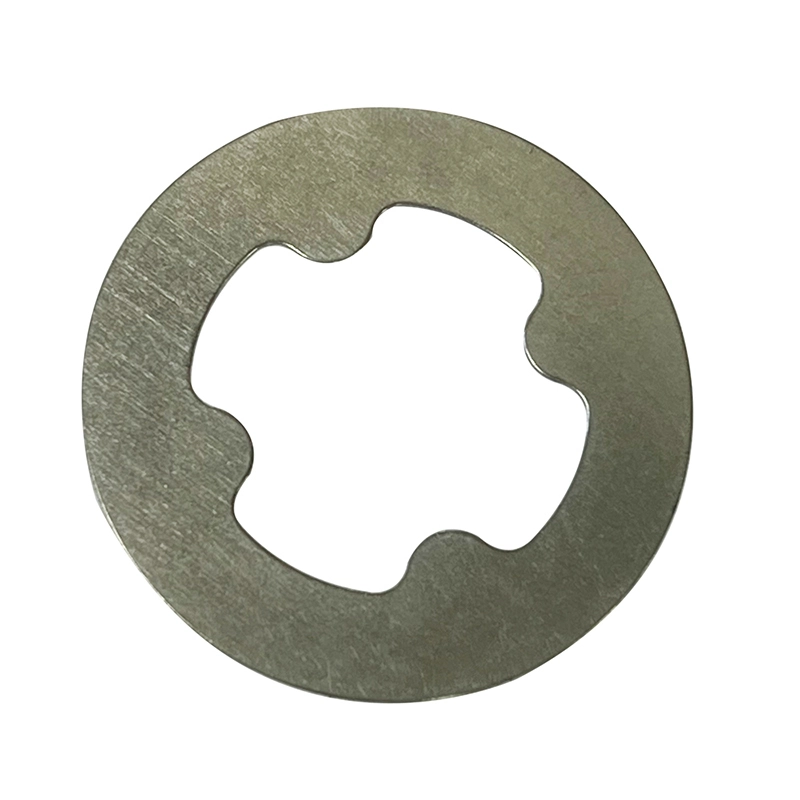

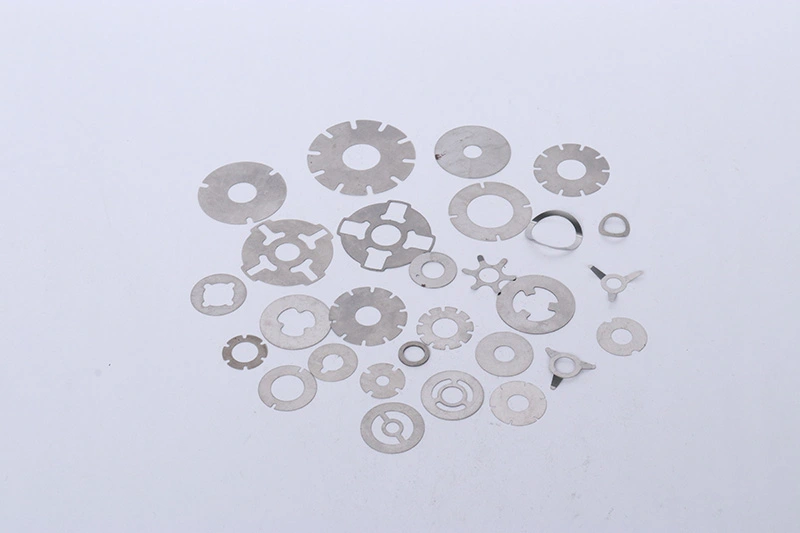

Precision-Flat Valve Shim

XIAYI Precision-Flat Valve Shim is a precision alloy steel component used in automotive shock absorber valve systems for damping adjustment and valve clearance control. Manufactured with high-quality steel materials, precision forming processes and advanced surface finishing technology, it provides stable thickness, smooth contact surfaces and reliable assembly performance for suspension applications.

The product is widely used in passenger vehicles, new energy vehicles, commercial vehicles, motorcycles and industrial shock absorber systems. XIAYI focuses on dimensional consistency, edge quality and structural stability to ensure accurate valve stack assembly and long-term damping performance.

Material and Structure Design

XIAYI selects high-quality alloy steel, spring steel and stainless steel according to different shock absorber requirements. The selected materials provide stable elasticity, wear resistance and mechanical strength during repeated valve movement.

The flat disc structure is optimized for multi-layer valve stack assembly, ensuring accurate contact between individual shims and supporting consistent hydraulic control inside the shock absorber system.

Stable Steel Performance

Before production, XIAYI performs material composition analysis, hardness inspection and mechanical property verification to ensure uniform material performance.

The stable internal structure helps maintain reliable deformation characteristics during long-term compression and rebound cycles.

Optimized Flat Structure

The flat design allows precise stacking and controlled valve opening movement. XIAYI controls thickness and surface condition to minimize assembly deviation between different shim layers.

This design supports predictable damping adjustment and improves suspension response consistency.

Precision Processing Control

Accurate Thickness Control

XIAYI applies precision stamping, grinding and inspection processes to maintain consistent thickness according to customer specifications.

The controlled thickness helps maintain accurate valve clearance and prevents performance variation caused by uneven shim stacking.

Smooth Edge Treatment

XIAYI applies full-edge deburring and rounded edge processing to remove sharp edges and surface defects generated during manufacturing.

The smooth edge design reduces the risk of damaging surrounding components during assembly and improves reliability during long-term vibration operation.

Surface Finishing Technology

The surface is processed through precision finishing technology to achieve low roughness and improved contact quality.

The optimized surface reduces friction between valve components and supports smoother valve movement under high-frequency operating conditions.

Valve Stack Matching Performance

Unlike individual component performance, valve shim systems require accurate matching between multiple layers with different thicknesses and functions. Small dimensional differences may influence opening sequence, oil flow characteristics and damping response.

XIAYI Precision-Flat Valve Shim is manufactured with consistent dimensional control to support accurate valve stack combination and stable hydraulic performance.

Consistent Multi-Layer Assembly

The controlled thickness, flatness and surface quality allow different shim layers to maintain uniform contact during assembly.

This improves valve response consistency and helps manufacturers achieve stable suspension tuning across different production batches.

Reduced Assembly Adjustment

Stable dimensional accuracy reduces additional adjustment requirements during shock absorber assembly.

For OEM customers, consistent valve shim performance helps improve production efficiency and reduce variation during suspension calibration.

Long-Term Operating Reliability

Fatigue Resistance During Repeated Movement

Inside shock absorber systems, valve shims continuously experience repeated bending and pressure changes. XIAYI controls material properties and manufacturing processes to maintain stable mechanical performance during long-term operation.

Stable Performance Under Vibration

The product maintains reliable structure under continuous vibration conditions, supporting suspension systems used in urban vehicles, commercial transportation and industrial equipment.

Quality Inspection Process

Dimensional Verification

XIAYI performs inspection of thickness, diameter, flatness, edge condition and surface quality to ensure each batch meets customer requirements.

Process Stability Control

Through standardized production procedures and process monitoring, XIAYI maintains consistent quality for large-volume automotive supply programs.

The company operates under an IATF 16949:2016 compliant quality management system to ensure reliable manufacturing control.

Application Cases

New Energy Vehicle Suspension System

New energy vehicles require stable suspension performance and low operating noise. A domestic new energy vehicle manufacturer selected XIAYI Precision-Flat Valve Shim for shock absorber assemblies.

After long-term vehicle testing, the products maintained stable valve response and reliable assembly performance, helping improve suspension consistency.

Commercial Vehicle Shock Absorber System

Commercial vehicles operate under long-distance and heavy-load conditions, requiring durable valve components.

A commercial vehicle supplier adopted XIAYI valve shims for batch production. The stable thickness control and edge finishing improved assembly consistency and reduced maintenance-related issues.

Motorcycle Suspension Application

Motorcycle suspension systems require accurate damping adjustment and fast response.

XIAYI Precision-Flat Valve Shim provides stable valve stack matching and smooth movement performance for motorcycle shock absorber applications.

Application Range

XIAYI Precision-Flat Valve Shim is suitable for passenger vehicles, SUVs, electric vehicles, commercial vehicles, motorcycles and industrial shock absorber systems.

XIAYI supports OEM and ODM customization including material selection, thickness specifications, dimensional requirements and surface treatment according to customer applications.

Product Comparison

FAQ

What applications use Precision-Flat Valve Shims?

They are widely used in automotive shock absorbers, including passenger vehicles, new energy vehicles, commercial vehicles and motorcycles.

Why is edge treatment important for valve shims?

Proper edge finishing reduces assembly damage risks and improves reliability during long-term vibration operation.

Can XIAYI customize valve shim specifications?

Yes. XIAYI provides customized solutions including material, thickness, size and surface treatment according to customer shock absorber designs.

Precision Suspension Component Supply

XIAYI specializes in manufacturing precision shock absorber components for global automotive customers. With advanced processing technology, strict inspection procedures and an IATF 16949:2016 compliant quality management system, XIAYI provides reliable valve shim solutions for stable suspension performance.
