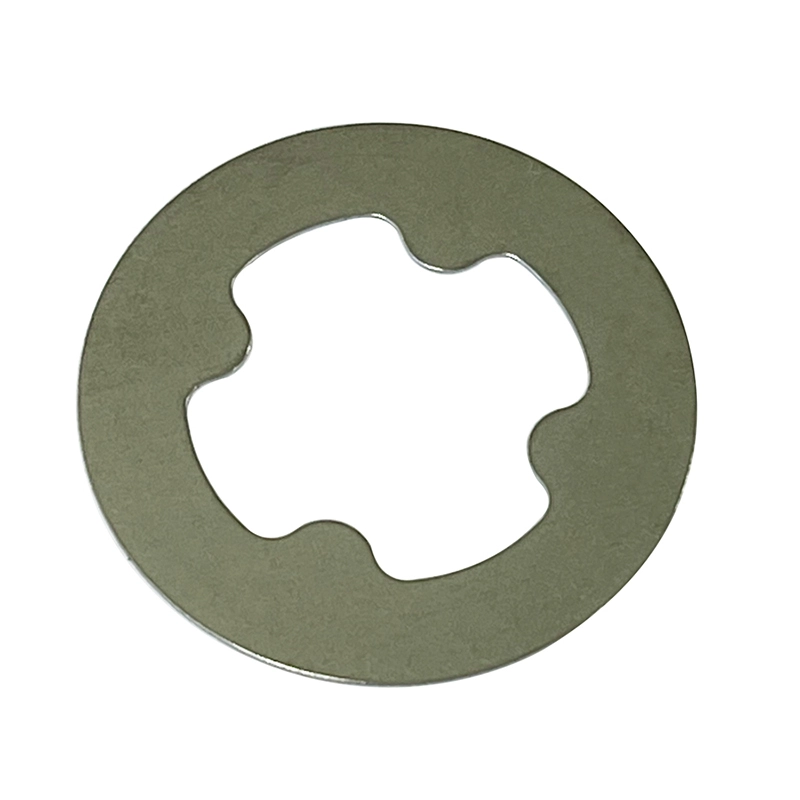

High-Flatness Precision-Cut Valve Shim

XIAYI High-Flatness Precision-Cut Valve Shim is developed for shock absorber manufacturers requiring stable damping output and high precision matching. Through strict material selection, vacuum heat treatment, double-sided precision grinding and burr-free cutting technology, XIAYI achieves excellent flatness control, dimensional consistency and surface quality for passenger vehicles, commercial vehicles and high-performance suspension systems.

Damping Stability Challenges

The valve shim controls the opening and closing movement of the shock absorber valve system. During vehicle operation, it repeatedly experiences high-frequency movement and pressure changes. Small dimensional deviations may affect oil flow balance and create inconsistent damping performance.

Traditional valve shims produced with ordinary stamping methods may experience thickness variation, surface burrs, uneven stress distribution and insufficient flatness. These problems can result in unstable soft and hard damping transition, suspension noise, vibration feedback and reduced shock absorber service life.

XIAYI focuses on improving damping consistency through micron-level precision manufacturing and strict process control.

Precision Manufacturing Process

High Quality Material Selection

XIAYI selects high-performance materials including spring steel, stainless steel and beryllium copper according to different damping requirements.

All incoming materials undergo hardness inspection, spectral analysis and flatness verification to ensure stable elasticity, fatigue resistance and mechanical consistency before precision processing.

Vacuum Heat Treatment Control

XIAYI applies vacuum quenching and tempering technology to improve material stability while reducing oxidation and internal stress.

The hardness range is controlled at HRC 42-48 according to application requirements, ensuring consistent elastic recovery and reducing risks of deformation, fatigue attenuation and early failure during repeated valve movement.

Double-Sided Precision Grinding

The double-sided synchronous grinding process ensures uniform thickness distribution and high flatness performance.

XIAYI controls thickness tolerance within ±0.01mm and overall flatness within ≤0.01mm, helping each shim achieve consistent stress distribution and stable valve opening characteristics.

Burr-Free Cutting Treatment

Through precision die cutting, laser trimming and edge rounding technology, XIAYI eliminates sharp edges and burr defects.

The edge radius is controlled within ≤0.02mm, reducing risks of seal scratching, assembly interference and local stress concentration during shock absorber operation.

Surface Quality Control

Mirror Surface Finishing

XIAYI applies advanced polishing technology to achieve surface roughness of Ra≤0.02μm.

The ultra-smooth surface reduces friction between valve components, minimizes wear particles and helps improve suspension quietness during high-frequency operation.

Full Dimensional Inspection

Every finished valve shim undergoes 100% dimensional inspection covering thickness, inner diameter, outer diameter, flatness, parallelism and surface quality.

With CPK≥1.67 batch stability control, XIAYI ensures consistent precision performance for large-volume OEM production.

Improved NVH Performance

For modern vehicles, especially new energy vehicles, suspension quietness and driving comfort are important purchasing requirements. Small precision differences in valve shims may create uneven oil flow and abnormal suspension noise.

XIAYI High-Flatness Precision-Cut Valve Shim improves damping response consistency through accurate thickness control and ultra-flat surfaces, helping reduce vibration feedback, metallic noise and unstable damping characteristics.

Real Industry Application Cases

New Energy Vehicle Comfort Optimization

New energy vehicles have higher requirements for suspension quietness because electric power systems reduce traditional vehicle noise. A domestic new energy vehicle OEM experienced chassis rattle and inconsistent damping caused by low-precision valve shims.

After adopting XIAYI precision valve shims, the ultra-flat surface and consistent thickness improved oil flow stability and damping uniformity. After three years of market operation, damping consistency-related failures were reduced by 96%, improving vehicle comfort performance.

Commercial Vehicle Long-Distance Operation

Commercial vehicles operate under continuous load and long-distance driving conditions. Ordinary valve shims may experience elastic fatigue and flatness reduction after extended high-frequency operation.

A commercial vehicle component supplier adopted XIAYI valve shims in batches. Through vacuum heat treatment and micron-level flatness control, the products maintained stable damping output after two years of full-load tracking, reducing annual shock absorber maintenance costs.

High Performance Motorcycle Application

High-end motorcycles require sensitive damping response and precise handling feedback. Poor valve shim flatness may cause unstable valve movement and irregular damping changes.

A professional motorcycle manufacturer selected XIAYI precision cut valve shims. The burr-free edge design and precision dimensions improved valve response consistency and provided smoother damping transition during road and track testing.

Application Range

XIAYI High-Flatness Precision-Cut Valve Shim is widely used in passenger cars, SUVs, new energy vehicles, commercial vehicles, motorcycles, modified vehicles and small engineering machinery requiring high-precision damping control.

XIAYI provides OEM and ODM customization services, including material selection, thickness specifications, hardness adjustment and precision tolerance according to customer damping requirements.

Product Comparison

FAQ

Why does valve shim flatness affect shock absorber performance?

Valve shim flatness determines stress distribution and oil flow consistency during valve opening and closing. Poor flatness may cause uneven damping response, vibration and suspension noise.

What precision level can XIAYI achieve?

XIAYI controls flatness within ≤0.01mm and thickness tolerance within ±0.01mm through double-sided precision grinding and full dimensional inspection.

Can XIAYI customize valve shims for different damping requirements?

Yes. XIAYI can customize materials, thickness, hardness and precision parameters according to customer shock absorber designs and damping requirements.

Precision Damping Solution

XIAYI focuses on high-precision shock absorber components that improve damping consistency, driving comfort and long-term reliability. Through precision machining, strict inspection and IATF 16949:2016 quality management, XIAYI provides stable valve shim solutions for global automotive manufacturers.
