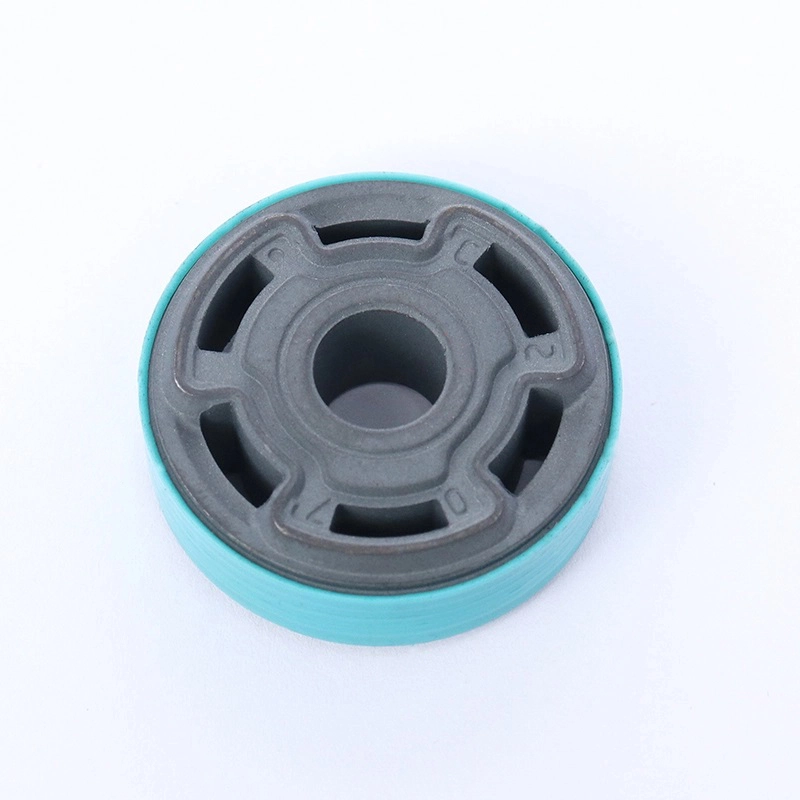

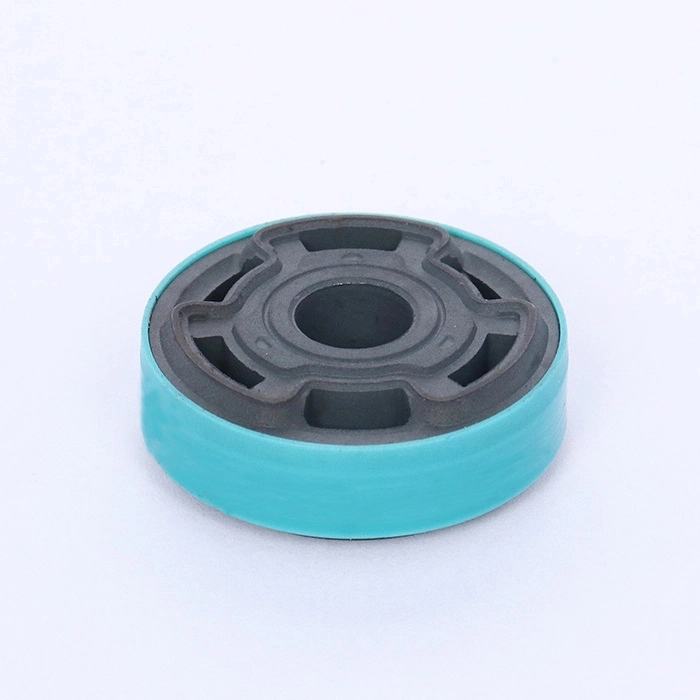

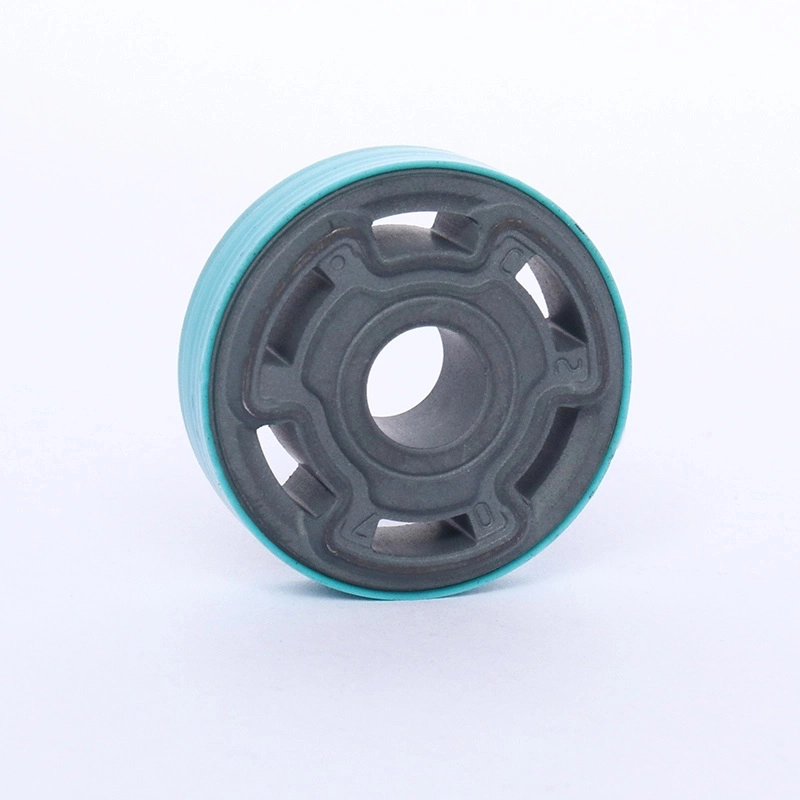

Self-Lubricated PTFE Banded Piston

XIAYI Self-Lubricated PTFE Banded Piston is a precision damping component designed for shock absorber systems, combining powder metallurgy substrate technology with reinforced PTFE sealing band integration. The piston controls hydraulic oil flow and supports stable damping force output during repeated compression and rebound movements, directly affecting vehicle comfort, vibration control and shock absorber service life.

Different from traditional pistons using simple adhesive bonding methods, XIAYI adopts heat-press interlock composite technology to integrate modified PTFE bands with high-precision powder metallurgy substrates. The structural bonding method improves resistance against band lifting, peeling and displacement under high temperature oil immersion, high pressure and continuous reciprocating friction.

PTFE Band Integration Technology

The sealing performance of a shock absorber piston depends greatly on the stability of the PTFE band. During vehicle operation, the piston continuously experiences hydraulic pressure changes, oil temperature variation and repeated friction.

XIAYI improves the connection between PTFE material and powder metallurgy substrate through heat-press interlock composite technology, creating a stronger integrated structure compared with conventional adhesive bonding solutions.

Interlocking Composite Structure

The modified reinforced PTFE band is mechanically locked and thermally fused with the piston substrate during production.

This structure reduces the risk of band movement, peeling and separation caused by long-term oil immersion and pressure fluctuation.

Stable Sealing Performance

The integrated PTFE band maintains consistent contact with the cylinder wall during piston movement.

This helps reduce hydraulic leakage, maintain damping force accuracy and improve shock absorber durability.

Self-Lubricating Material Performance

PTFE material is widely used in damping applications because of its low friction characteristics and wear resistance.

XIAYI combines modified reinforced PTFE materials with precision powder metallurgy substrates to achieve smooth piston movement and long-term friction stability.

Low Friction Operation

The self-lubricating PTFE band reduces direct friction between piston components and cylinder surfaces.

This helps minimize wear during high-frequency reciprocating movement and supports consistent damping performance.

Wear Resistance Under Long-Term Use

The reinforced PTFE material maintains stable mechanical properties during continuous operation.

The piston can withstand repeated movement cycles while maintaining sealing reliability and friction performance.

Precision Powder Metallurgy Manufacturing

The piston substrate provides the structural foundation for hydraulic control performance. XIAYI uses precision powder metallurgy technology to achieve stable density, strength and dimensional accuracy.

High Accuracy Substrate Processing

The powder metallurgy substrate uses FC-0208 material according to MPIF standards.

Combined with precision machining and grinding processes, the piston achieves dimensional accuracy within ±0.01mm.

Consistent Hydraulic Performance

Accurate piston geometry ensures stable oil flow control inside the shock absorber.

The controlled structure supports consistent damping characteristics across different operating conditions.

Performance Verification Testing

XIAYI applies multiple verification methods to evaluate bonding reliability, temperature resistance and long-term operating stability.

Pull-Out Force Inspection

Each production batch undergoes pull-out force testing to verify PTFE band bonding reliability.

Temperature Adaptability

The product supports a working temperature range of -40℃~120℃.

After high-temperature oil aging testing, the PTFE band maintains stable bonding performance without peeling or detachment.

Customer Application Benefits

By improving PTFE band stability and friction performance, XIAYI helps shock absorber manufacturers reduce common quality risks during vehicle operation.

Application Cases

European Automotive Shock Absorber Application

A European automotive component supplier experienced repeated complaints caused by traditional bonded piston bands loosening after long-term vehicle operation.

In 2023, the customer adopted XIAYI Self-Lubricated PTFE Banded Piston for mass production. After 12 months of road verification, no PTFE band peeling, oil leakage or abnormal damping failure occurred. The shock absorber failure rate was reduced below 0.1%, and after-sales maintenance costs were reduced by 65%.

New Energy Vehicle Damping System Application

New energy vehicles require lower noise levels and stable damping performance due to higher passenger comfort requirements.

XIAYI PTFE banded pistons were applied in new energy vehicle shock absorber systems, improving friction stability and reducing abnormal chassis noise caused by unstable piston movement.

Application Range

XIAYI Self-Lubricated PTFE Banded Piston is widely used in automotive shock absorbers, commercial vehicles, motorcycles and new energy vehicle damping systems.

XIAYI supports OEM and ODM customization, including piston dimensions, PTFE material formulation, substrate specifications and performance requirements according to customer drawings.

Product Comparison

FAQ

What is the advantage of a self-lubricated PTFE banded piston?

The reinforced PTFE band provides low friction, wear resistance and stable sealing performance, helping shock absorbers maintain consistent damping characteristics.

Can the piston work under high temperature oil conditions?

Yes. XIAYI products are tested under high-temperature oil aging conditions and maintain reliable bonding performance within -40℃~120℃ working environments.

Does XIAYI provide customized piston solutions?

Yes. XIAYI provides OEM and ODM services including material selection, dimensional optimization and performance customization according to customer requirements.

Precision Damping Component Manufacturing

XIAYI specializes in precision shock absorber components with nearly 20 years of manufacturing experience. Through advanced powder metallurgy processing, PTFE composite technology and IATF 16949:2016 quality management, XIAYI provides reliable damping solutions for global automotive customers.
