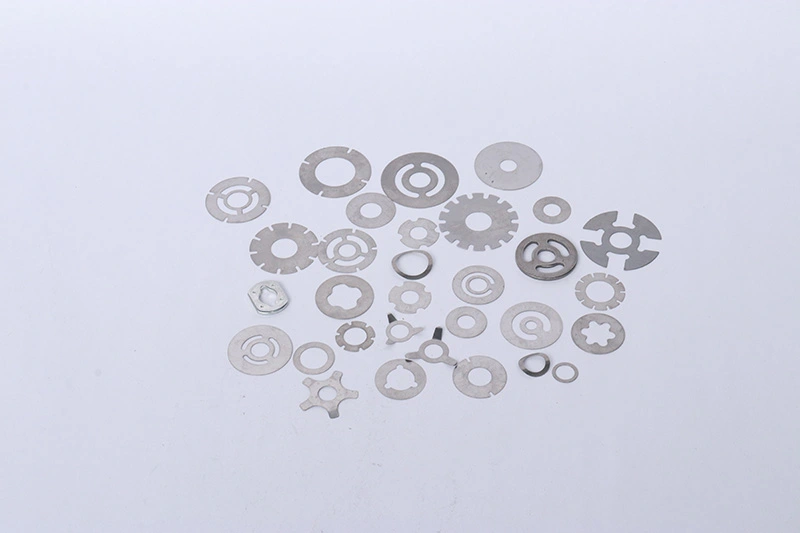

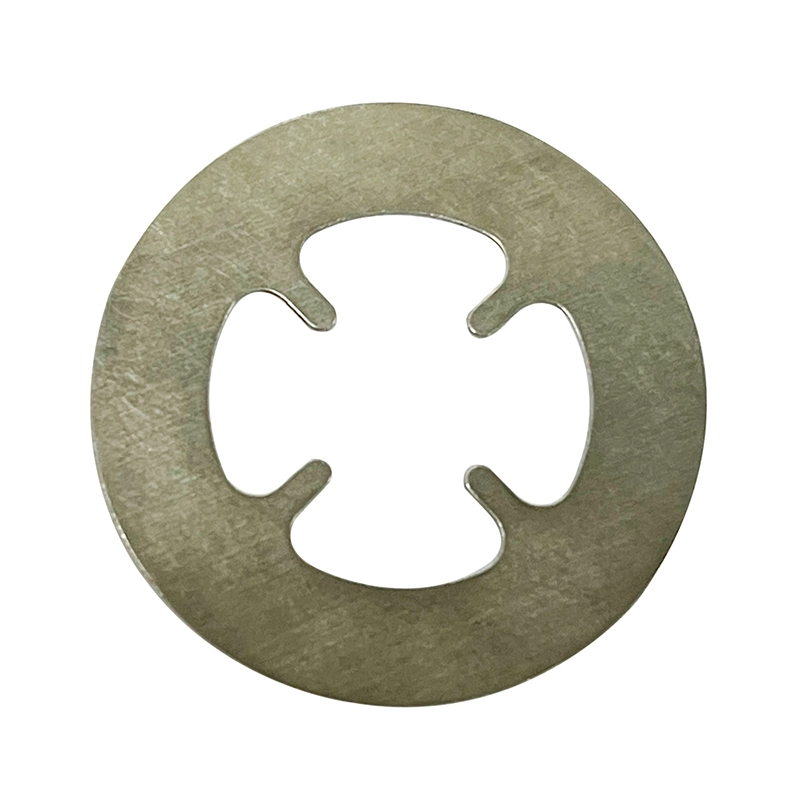

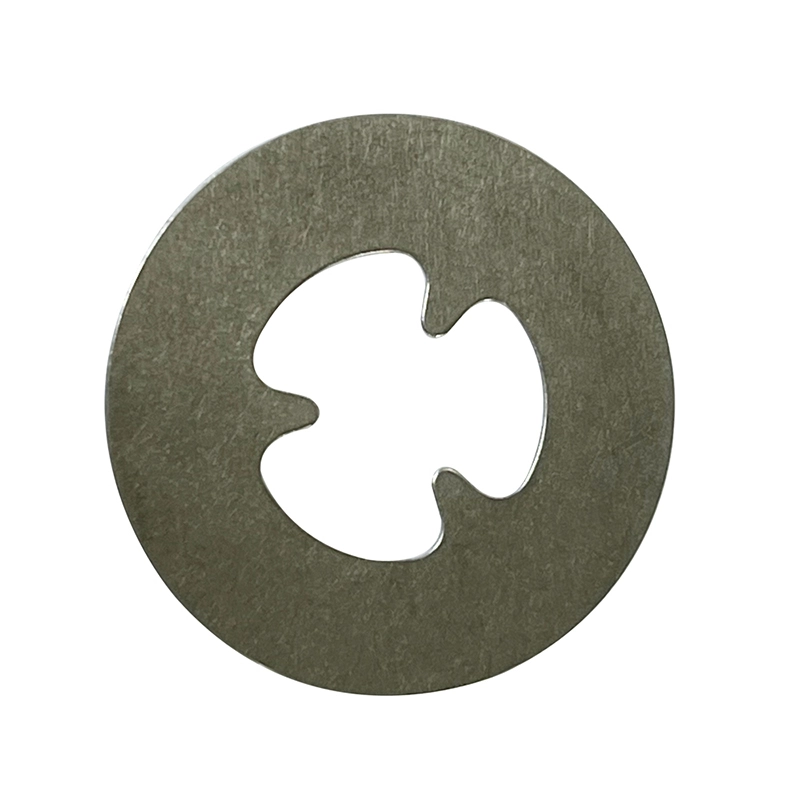

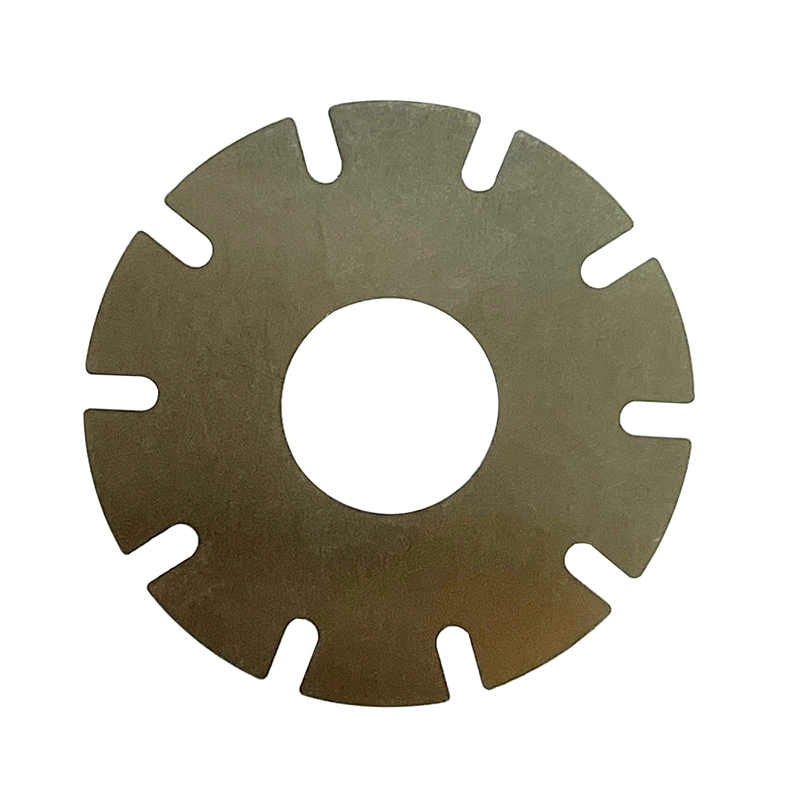

High Strength Steel Valve Shim

XIAYI High Strength Steel Valve Shim is designed for applications requiring long-cycle durability and stable damping performance. By combining high-purity steel substrates, vacuum nitriding surface strengthening, stress relief treatment and precision finishing technology, XIAYI improves fatigue resistance, wear resistance and thermal stability for demanding automotive suspension systems.

Fatigue Problems in Valve Systems

Inside a shock absorber, valve shims repeatedly move under hydraulic pressure changes. Millions of opening and closing cycles create continuous stress on the shim surface and internal structure.

Conventional valve shims may gradually lose elasticity due to repeated vibration, resulting in damping fading, reduced ride comfort, abnormal chassis vibration and shortened shock absorber service life.

For electric vehicles, commercial vehicles and high-load applications, improving material strength and fatigue durability has become an important requirement for stable suspension performance.

High Strength Material Structure

High Purity Steel Substrate

XIAYI selects high-performance spring steel, stainless steel and beryllium copper substrates according to different working conditions.

Strict material inspection, including spectral analysis and hardness verification, ensures stable internal structure, excellent elasticity and impact toughness. The optimized grain structure helps prevent brittle fracture and permanent deformation during long-term alternating loads.

Strengthened Surface Layer

XIAYI applies low-temperature vacuum nitriding technology to form a dense hardened layer on the valve shim surface.

The nitrided surface hardness reaches HV1200-1500, which is significantly higher than ordinary heat-treated valve shims. The metallurgical bonding between hardened layer and substrate prevents peeling while improving wear resistance and scratch resistance.

Stress Relief Treatment

During stamping and heat treatment, internal stress may affect long-term dimensional stability. XIAYI applies vacuum stress relief treatment to reduce residual stress and improve structural stability.

This process helps maintain consistent elastic performance after millions of vibration cycles.

Long Cycle Performance

High Frequency Vibration Resistance

The valve shim is designed for continuous high-frequency movement inside shock absorbers. After professional fatigue simulation testing and real vehicle verification, XIAYI products maintain stable structure after 1.2 million vibration cycles without deformation, abnormal wear or damping attenuation.

Wear Resistant Surface Performance

The dense nitriding layer reduces friction during repeated valve opening and closing movement. With a friction coefficient controlled between 0.05-0.1, the surface reduces wear particles and improves component durability.

High Temperature Stability

In high-temperature driving conditions, ordinary valve shims may experience material softening and unstable damping output.

XIAYI High Strength Steel Valve Shim maintains stable mechanical properties under continuous heat and heavy-load operation, supporting consistent damping performance in demanding environments.

Damping Consistency Improvement

The performance of a shock absorber depends not only on initial damping settings but also on maintaining stable valve movement throughout the vehicle life cycle. During millions of compression and rebound cycles, material fatigue and elastic performance changes of valve shims may gradually affect damping characteristics.

XIAYI High Strength Steel Valve Shim is designed to maintain consistent elastic response under repeated loading conditions. Through high-strength steel selection, controlled heat treatment and surface strengthening technology, XIAYI reduces performance variation caused by material fatigue and long-term stress accumulation.

Stable Elastic Response

Valve shims require accurate elastic deformation during valve opening and closing. If the material loses elasticity after repeated cycles, the shock absorber may experience damping deviation, uneven response and reduced ride comfort.

XIAYI optimizes steel composition and heat treatment processes to maintain stable mechanical properties, helping the valve system achieve consistent response under different driving conditions.

Reduced Damping Variation

For mass-produced vehicles, small differences in valve shim performance can affect suspension tuning consistency between vehicles.

XIAYI controls material properties, hardness distribution and manufacturing parameters to minimize performance differences between batches, supporting stable damping calibration for OEM suspension systems.

Better Vehicle Comfort Control

Modern vehicles, especially electric vehicles, have higher requirements for suspension refinement and driving comfort. Stable valve shim performance helps maintain smooth damping transition during acceleration, braking and uneven road conditions.

By improving long-term damping stability, XIAYI High Strength Steel Valve Shim supports quieter operation, more predictable suspension response and improved driving experience.

Precision Processing Control

Mirror Surface Finishing

XIAYI applies double-sided ultra-precision grinding and mirror finishing technology. The surface roughness reaches Ra≤0.02μm, reducing friction loss and preventing surface defects from affecting valve movement.

Edge Quality Management

Burr-free processing and rounded edge treatment prevent sharp edges from damaging oil seals or creating stress concentration points.

The controlled edge radius improves assembly reliability and long-term operation stability.

Full Inspection Process

All finished products undergo complete dimensional inspection. Flatness is controlled within ≤0.01mm, with batch stability reaching CPK≥1.67 and factory defect rate below 0.1%.

Application Cases

Urban New Energy Vehicle Application

New energy vehicles frequently operate under start-stop conditions and uneven urban roads, creating repeated loads on shock absorber valve systems.

A domestic new energy vehicle OEM adopted XIAYI high-strength nitrided valve shims in batches. After three years of real vehicle operation, the products maintained stable damping performance without surface wear, fatigue attenuation or NVH abnormal noise. Fatigue-related shock absorber failures were reduced by 95%.

Commercial Vehicle Heavy Load Application

Commercial vehicles operating under full-load transportation conditions require valve components with high durability and wear resistance.

A professional commercial vehicle supplier replaced conventional valve shims with XIAYI solutions. After two years of road tracking, the valve shims maintained surface integrity and elastic stability, reducing annual shock absorber maintenance and replacement costs by 87%.

High Temperature Mountain Road Application

Vehicles operating in mountainous areas experience continuous braking, high temperature and frequent vibration conditions.

A regional automotive service company applied XIAYI valve shims for high-temperature operating environments. The nitriding surface layer maintained stable damping output, achieving reliable performance without high-temperature fatigue failure.

Application Range

XIAYI High Strength Steel Valve Shim is widely used in sedans, SUVs, new energy vehicles, light and heavy commercial vehicles, taxis, motorcycles and modified suspension systems requiring high durability.

XIAYI supports OEM and ODM customization, including substrate selection, nitriding layer thickness adjustment, hardness requirements and structural specifications according to customer operating conditions.

Product Comparison

FAQ

What makes high strength steel valve shims different from ordinary valve shims?

High strength steel valve shims use stronger substrate materials and advanced surface strengthening technology to improve fatigue resistance, wear resistance and long-term stability under repeated loads.

How does nitriding treatment improve valve shim performance?

Vacuum nitriding creates a dense hardened surface layer, increasing hardness, reducing wear and improving stability during high-frequency vibration operation.

Can XIAYI customize valve shims for heavy-duty applications?

Yes. XIAYI can customize substrate materials, nitriding parameters and performance requirements according to vehicle type, load conditions and operating temperature.

Anti-Fatigue Performance Assurance

XIAYI focuses on developing durable shock absorber precision components for global automotive manufacturers. Through high-strength materials, vacuum nitriding technology, precision finishing and IATF 16949:2016 quality management, XIAYI provides reliable valve shim solutions for long-cycle and demanding suspension applications.
