We supply full-category shock absorber components, including pistons, stampings, rubber seals, piston rods, springs, and self-developed banding/grooving machines.

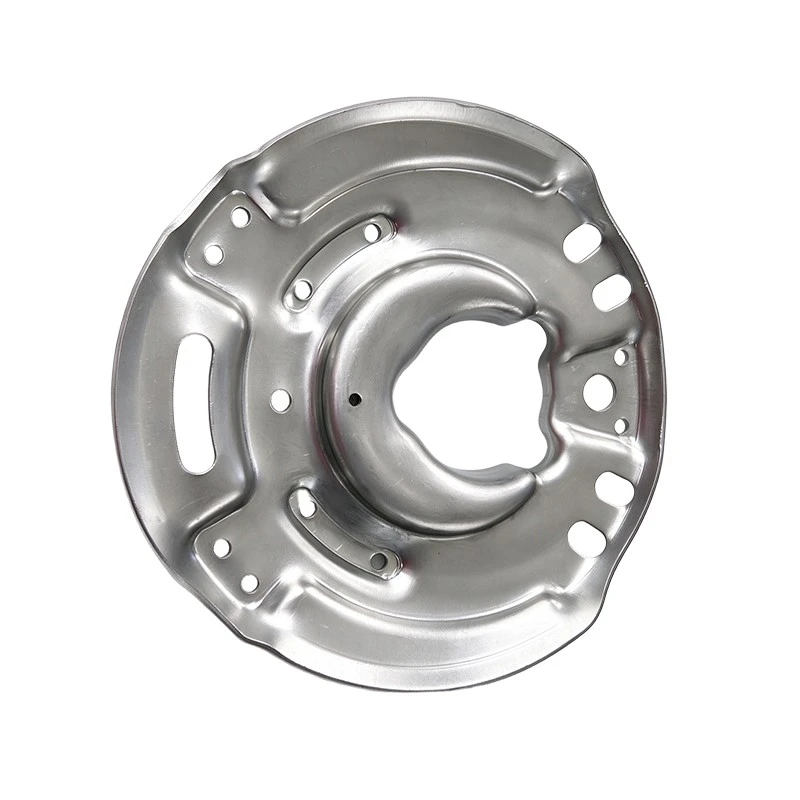

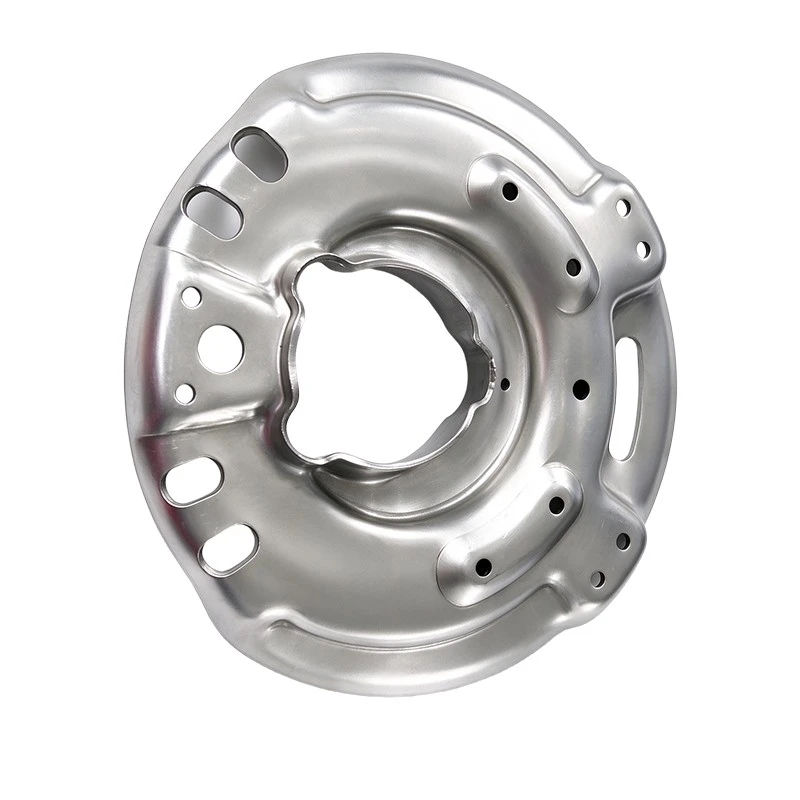

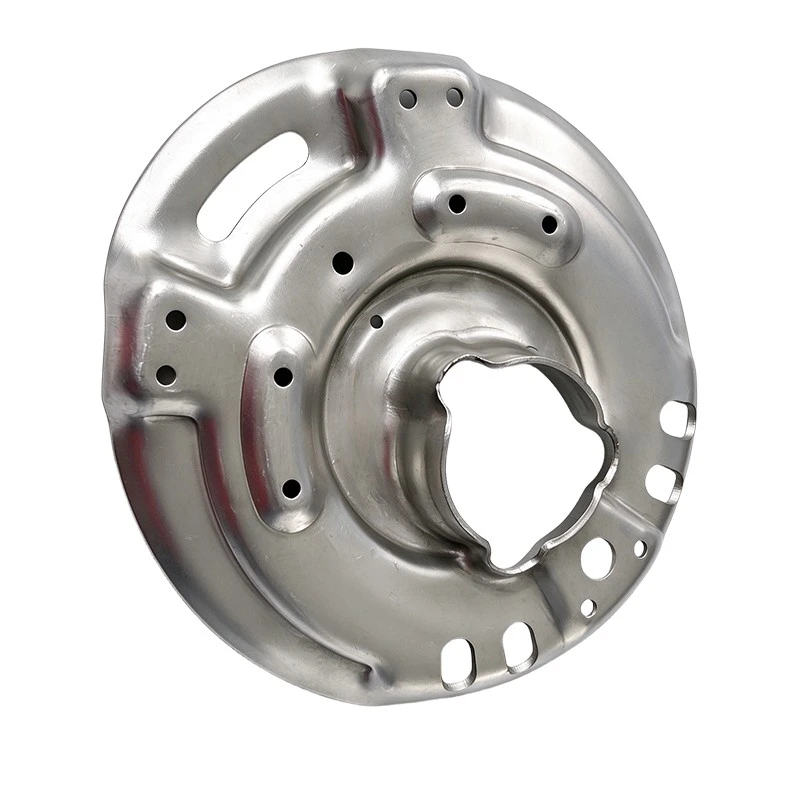

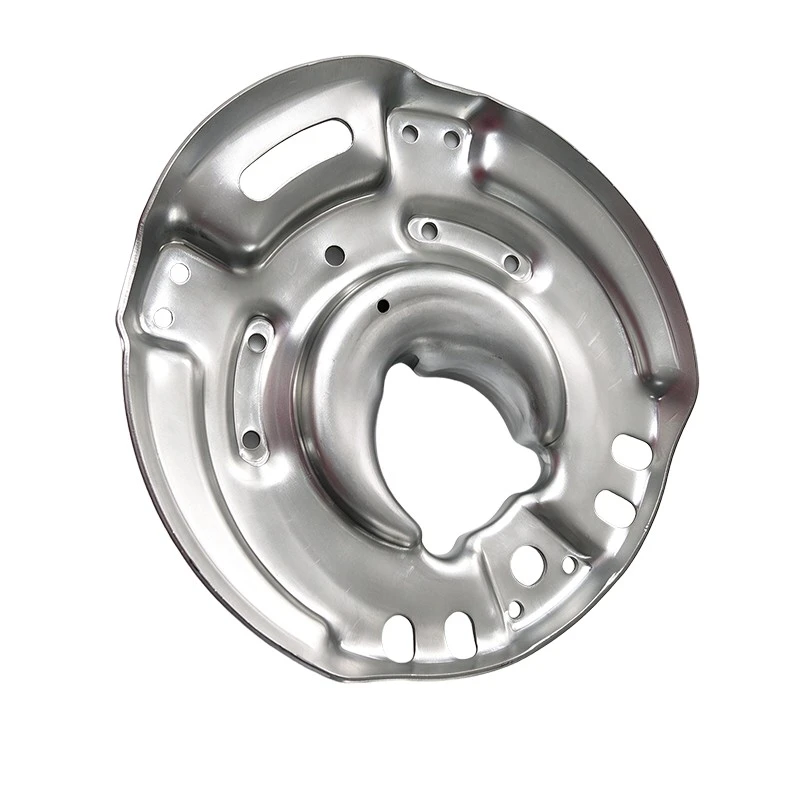

Vibration-Proof Stamping Spring Seat
Vibration-Proof Stamping Spring Seat from XIAYI turns surface quality into silence: a honed mirror contact finish, R2.5 rounded edges and triple coating calm NVH while rust stays away for 10 years. This supplier's mirror-finish seats are the quiet upgrade your suspension program has been looking for.
Surface is where vibration is won or lost. A mirror contact finish, R2.5 crack-proof edges and triple-layer coating combine to deliver 1.2M+ wear-free cycles and 10-year rust protection.
Ra≤0.3μm contact finish
R2.5crack-proof edge radius
500hsalt spray resistance
1.2M+wear-free cycles
Product Overview
The Vibration-Proof Stamping Spring Seat is engineered around a simple truth: on a coil spring seat, the surface is the friction surface, the sealing surface and the visible quality of your product all at once. A rough contact face generates noise; a sharp edge cuts the spring coating and starts corrosion; a thin or bubbled coating lets rust in within two winters.
XIAYI applies a complete surface engineering system to this stamped seat: honed and polished contact surfaces at Ra≤0.3μm, fully rounded R2.5 edges, and a triple-layer protective coating — verified defect-free at 100% inspection. The result is a seat that runs over 1.2 million cycles without perceptible wear and stays rust-free for 10 years, keeping NVH performance stable for the life of the vehicle.
What a poor surface costs: noise, wear, rust, oil leakage and spring sticking — the five most common warranty complaints traced back to seat surfaces. This product is designed to close every one of those paths.
Mirror Surface System
1) Contact Finish
| Process | XIAYI | Industry Standard | Value Delivered |
|---|---|---|---|
| Honing | Ra≤0.3 μm | Ra≥1.0 μm | Low noise |
| Polishing | Scratch-free | Minor scratches | Even load distribution |
| Burnishing | Dense surface | Loose burrs | +30% service life |
2) Edge Treatment
| Process | XIAYI | Industry Standard | Problem Solved |
|---|---|---|---|
| R2.5 edge radius | No sharp edge | Sharp edge | Crack initiation |
| Deburring | Burr-free | Residual burrs | Spring coating scratch |
| Surface smoothing | No step | Visible step | Spring sticking |
3) Triple Coating System
| Layer | XIAYI | Industry Standard | Life Contribution |
|---|---|---|---|
| Cathodic E-coat | 20–30 μm | 10–20 μm | Base rust protection |
| Powder topcoat | 40–60 μm | 20–40 μm | 500h salt spray |
| Sealer layer | 5–10 μm | None | Seals pinholes |
Zero Defect Appearance Standard
| Inspection Item | XIAYI Standard | Industry Standard | Risk Eliminated |
|---|---|---|---|
| Contact surface | Mirror finish | Minor roughness | Noise |
| Edges | Fully rounded | Chipped edges | Crack |
| Coating | Uniform, no bubbles | Bubbles allowed | Rust |
| Surface cleanliness | Clean, oil-free | Dirt traces | Sticking |
| Identification mark | Laser marked | Ink print, fades | Lost traceability |
Performance Impact
| Performance | Mirror Surface (XIAYI) | Normal Surface | Customer Pain Avoided |
|---|---|---|---|
| Wear life | 1.2M+ cycles | ~600k cycles | Early noise |
| Rust protection | 10 years | 2–3 years | Corrosion claims |
| Spring fit | Smooth, no sticking | Sticking | Assembly rework |
| Sealing | Tight | Leak path | Oil leak |
| NVH | Quiet | Harsh | Ride complaints |
Common Failures We Eliminate
| Customer Pain Point | Root Cause | XIAYI Solution |
|---|---|---|
| Suspension noise | Rough contact surface | Honed mirror finish, Ra≤0.3μm |
| Premature rust | Thin, porous coating | Triple coating system, 500h salt spray |
| Spring sticking | Sharp edges and burrs | R2.5 rounded, deburred, smooth surface |
| Oil leakage | Uneven sealing surface | Full polishing, scratch-free finish |
| Poor appearance quality | Fading ink marks, dirt | Laser marking, zero-defect appearance standard |
Applications
- Passenger cars and SUVs — NVH-sensitive suspension assemblies
- Electric vehicles — where quiet operation is a brand requirement
- Commercial vehicles — corrosion-critical duty environments
- Off-road vehicles — combined vibration and mud/salt exposure
Surface specification, coating thickness and marking can be customized to your standard — send your drawing for a quote within 24 hours.
Frequently Asked Questions
How does a spring seat reduce vibration and noise?
Noise comes from micro-friction between the spring coil and a rough seat surface. With a honed mirror finish at Ra≤0.3μm and smooth R2.5 edges, the coil slides instead of chattering — keeping NVH performance quiet over the full 1.2M+ cycle life.
What does the triple coating consist of?
Three layers: 20–30μm cathodic e-coat for base protection, 40–60μm powder topcoat for 500h salt spray resistance, and a 5–10μm sealer that closes pinholes — a system standard seats simply do not have.
Why is edge rounding important?
Sharp edges cut through the spring's own coating, creating corrosion initiation points and stress concentrations that lead to cracks. The R2.5 radius eliminates both risks.
How is appearance quality controlled?
Every seat passes a five-item zero-defect appearance standard — mirror contact, rounded edges, uniform coating, cleanliness and laser marking — checked at 100% rate.
About XIAYI — Trusted Shock Absorber Parts Supplier Since 2006
Ningbo XiaYi Electromechanical Tech Co., Ltd. is a premier shock absorber parts manufacturer based in Ningbo, China's strategic port city. Certified to IATF 16949:2016, XIAYI delivers precision stamping, powder metallurgy and rubber components, and self-developed automated assembly equipment to the global automotive industry.
- In-house coating line running e-coat, powder and sealer stages under one roof
- Surface engineering team tunes finish, edge radius and coating thickness to your spec
- 20+ years of NVH-oriented stamping experience for global suspension brands
- Exporting to 30+ countries with batch-traceable quality records
