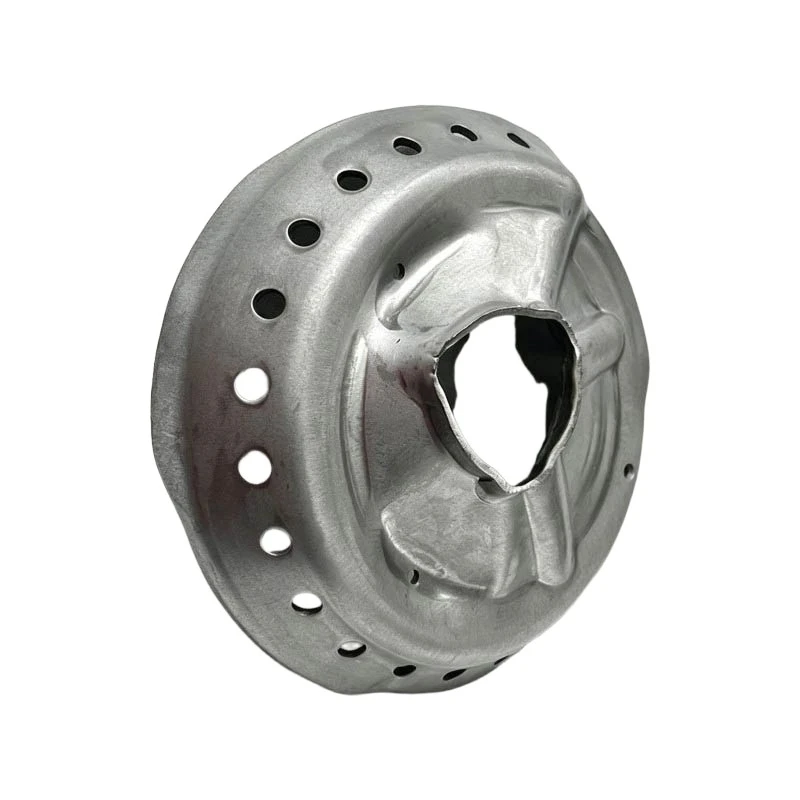

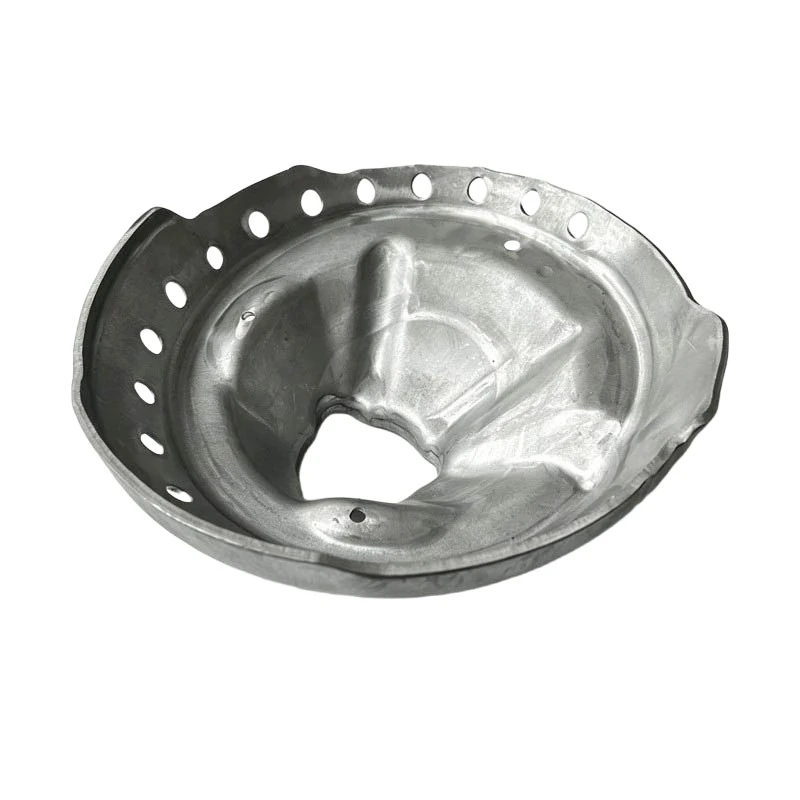

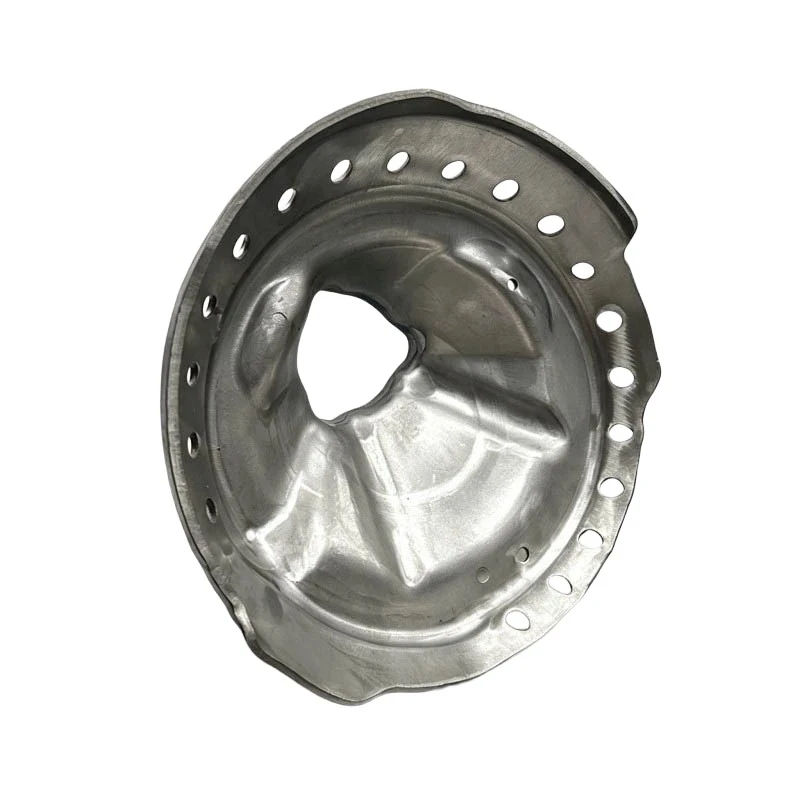

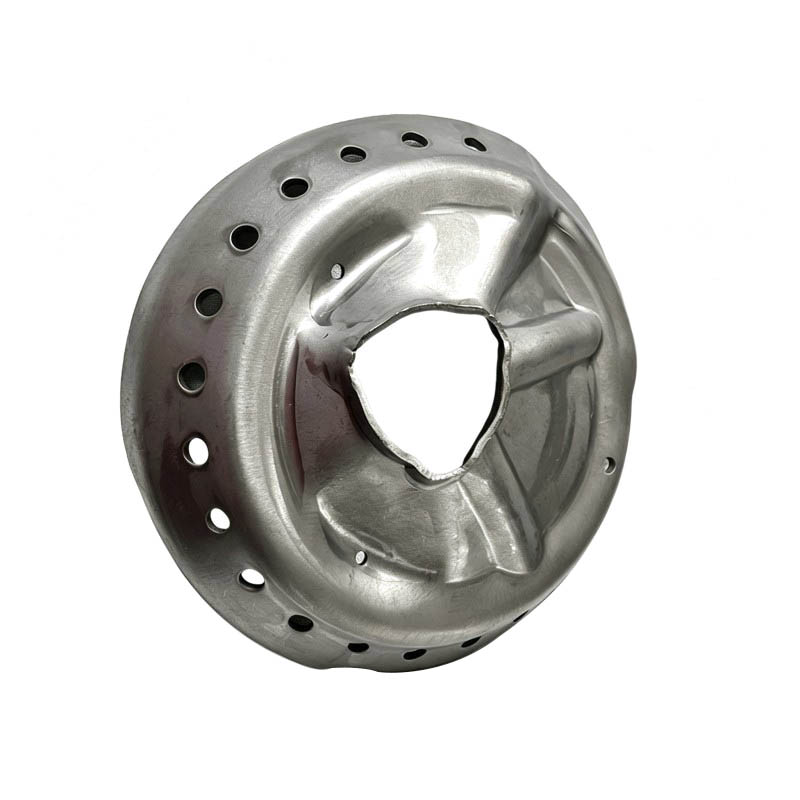

High Fatigue-Resistance Coil Spring Seat

The suspension system continuously experiences repeated compression, vibration and impact during vehicle operation. Over time, spring seats may suffer from fatigue cracks, permanent deformation, abnormal noise and reduced shock absorber performance caused by cyclic loading. XIAYI High Fatigue-Resistance Coil Spring Seat is specially developed for long-term vibration environments, focusing on fatigue durability, structural stability and consistent performance under repeated stress conditions.

Through optimized structural design, precision manufacturing processes and strict durability testing, XIAYI provides reliable spring support components for passenger vehicles, new energy vehicles, commercial vehicles and machinery applications. The company has established a quality management system complying with IATF 16949:2016 standards, ensuring automotive-grade quality control throughout the production process.



Fatigue Problems in Suspension

In daily driving and commercial operation, suspension components are exposed to thousands of vibration cycles caused by road conditions, vehicle weight changes and continuous impact. Traditional spring seats may gradually develop stress concentration, edge cracking or shape distortion after long-term operation.

XIAYI High Fatigue-Resistance Coil Spring Seat is designed to reduce these failure risks by improving stress distribution, contact stability and structural durability, helping extend suspension component service life and reduce maintenance frequency.

Structure Optimization

Stress Relief Design

The product adopts optimized edge transition design with R2-R3 arc treatment, reducing local stress concentration areas during repeated loading. This structure helps prevent crack initiation and improves resistance against long-cycle fatigue damage.

Stable Spring Contact

The contact surface is processed with fine finishing technology, achieving surface roughness Ra≤0.4μm. The smoother contact area reduces friction and uneven wear between the spring and seat, helping maintain stable suspension performance and reducing abnormal noise.

Uniform Load Distribution

Through precision forming and dimensional control, the spring seat maintains accurate positioning during assembly. The optimized structure helps distribute load evenly, preventing local overload caused by installation deviation or spring displacement.

Fatigue Test Results

XIAYI verifies product durability through professional fatigue testing procedures. The High Fatigue-Resistance Coil Spring Seat achieves more than 900,000 vibration cycles without cracking or permanent deformation, demonstrating reliable performance under repeated operating conditions.

The product also provides 400-hour salt spray resistance performance, combining fatigue durability with basic environmental protection capability for different vehicle applications.

Manufacturing Accuracy

Precision Forming Process

Multi-stage stamping and CNC calibration processes are applied to control critical dimensions. The product achieves contact diameter tolerance of ±0.15mm, groove depth tolerance of ±0.1mm, coaxiality ≤0.03mm and flatness ≤0.04mm.

Accurate manufacturing dimensions ensure proper spring installation and reduce fatigue problems caused by uneven loading or assembly deviation.

Batch Consistency Control

XIAYI applies SPC production monitoring and strict inspection procedures during manufacturing. With process capability index CPK≥1.67 and 100% finished product inspection, every production batch maintains stable dimensional accuracy and performance consistency.

Application Cases

New Energy SUV Application

A domestic new energy vehicle OEM required suspension components capable of handling frequent urban start-stop conditions and road vibration. After adopting XIAYI High Fatigue-Resistance Coil Spring Seats, the products achieved reliable performance through 900,000+ cycle fatigue resistance and precise positioning capability.

After three years of market operation, no fatigue cracking, deformation or abnormal noise problems occurred. Suspension vibration-related failure rates were reduced by 93%, improving vehicle comfort and long-term stability.

Commercial Vehicle Application

A Southeast Asian commercial vehicle manufacturer needed spring seats for long-distance transportation with continuous vibration and variable loading conditions.

After two years of full-load operation, XIAYI products maintained structural integrity and dimensional stability without fatigue sagging or spring displacement issues. Shock absorber component service life increased by 3.2 times, while maintenance costs were reduced by 85%.

Passenger Vehicle Application

For vehicles operating on uneven urban and rural roads, a domestic auto parts supplier selected XIAYI High Fatigue-Resistance Coil Spring Seats to improve suspension durability.

The stress-relief structure and high-cycle fatigue performance effectively reduced long-term vibration damage and helped decrease after-sales quality complaints.

Customization Support

XIAYI provides OEM and ODM services according to different vehicle models, load conditions and vibration requirements. Customers can provide drawings, technical specifications or application conditions, and XIAYI engineers can optimize product structure, material selection and manufacturing parameters.

The customization service is suitable for passenger cars, SUVs, new energy vehicles, commercial vehicles and engineering machinery requiring long-term vibration resistance.

FAQ

How does XIAYI improve spring seat fatigue performance?

XIAYI improves fatigue resistance through optimized stress distribution, precision manufacturing, smooth contact surfaces and durability verification. These technologies help reduce cracking, deformation and performance loss caused by repeated loading.

How many cycles can the product withstand?

The product has passed professional durability testing with more than 900,000 fatigue cycles without cracking or deformation, providing reliable performance for long-term vehicle operation.

Can XIAYI customize products for special vibration conditions?

Yes. XIAYI supports customized development according to vibration frequency, load conditions, installation dimensions and service environments. Engineering teams can provide solutions for special high-cycle applications.

XIAYI Quality System

Founded in 2006, XIAYI specializes in the research, development and production of precision shock absorber components. The company operates a 5000-square-meter standardized production facility equipped with advanced manufacturing and testing equipment.

XIAYI has established a quality management system complying with IATF 16949:2016 standards. All products follow strict quality inspection procedures, including process monitoring, performance testing and final inspection, with product defect rates controlled below 0.1%.

With more than 20 years of global export experience, XIAYI products are supplied to customers in over 30 countries and regions, providing reliable suspension component solutions for automotive and machinery industries.
