We supply full-category shock absorber components, including pistons, stampings, rubber seals, piston rods, springs, and self-developed banding/grooving machines.

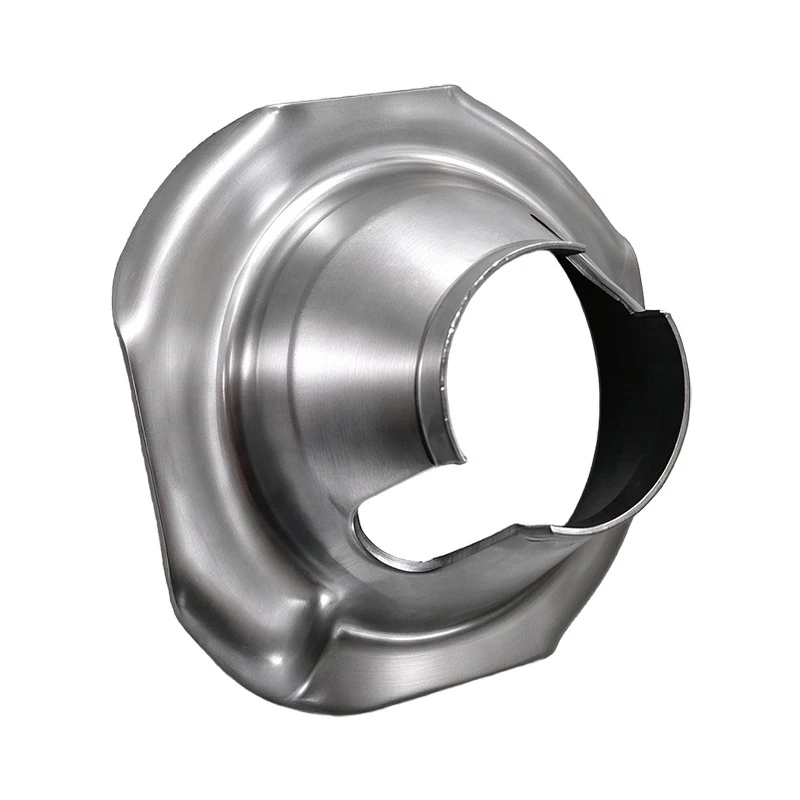

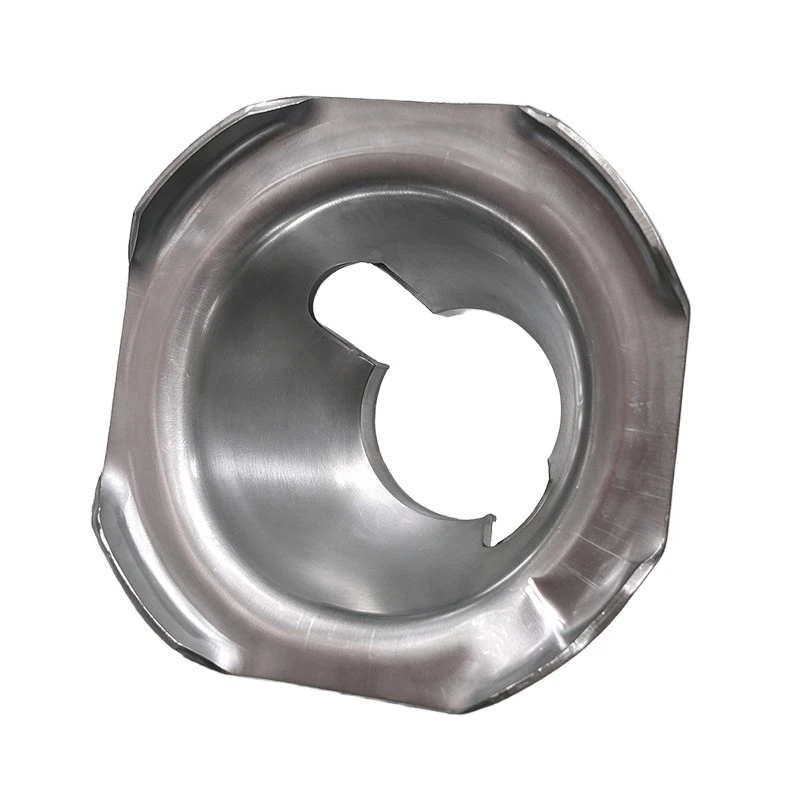

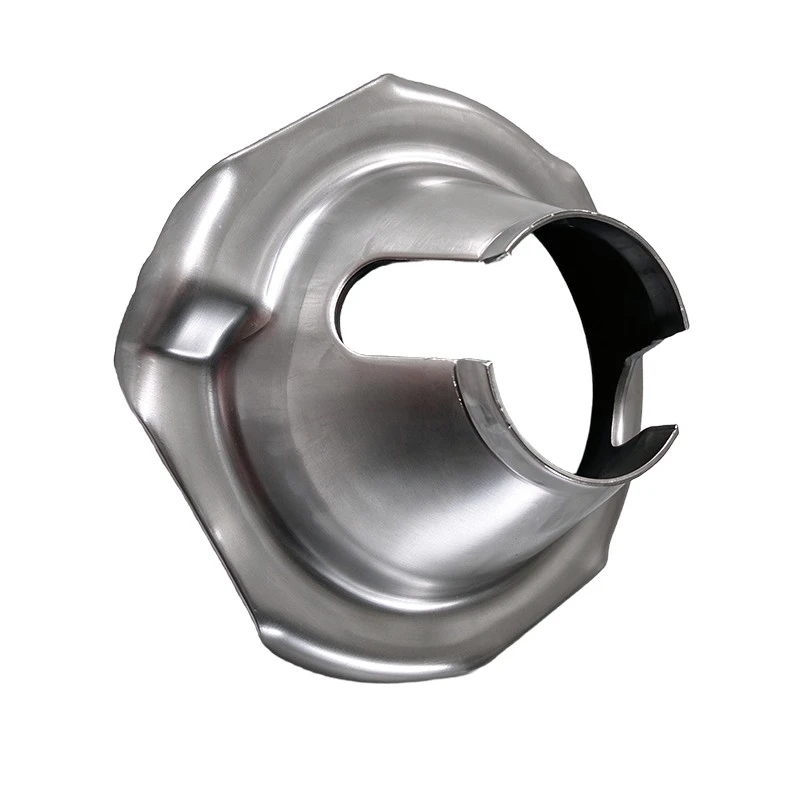

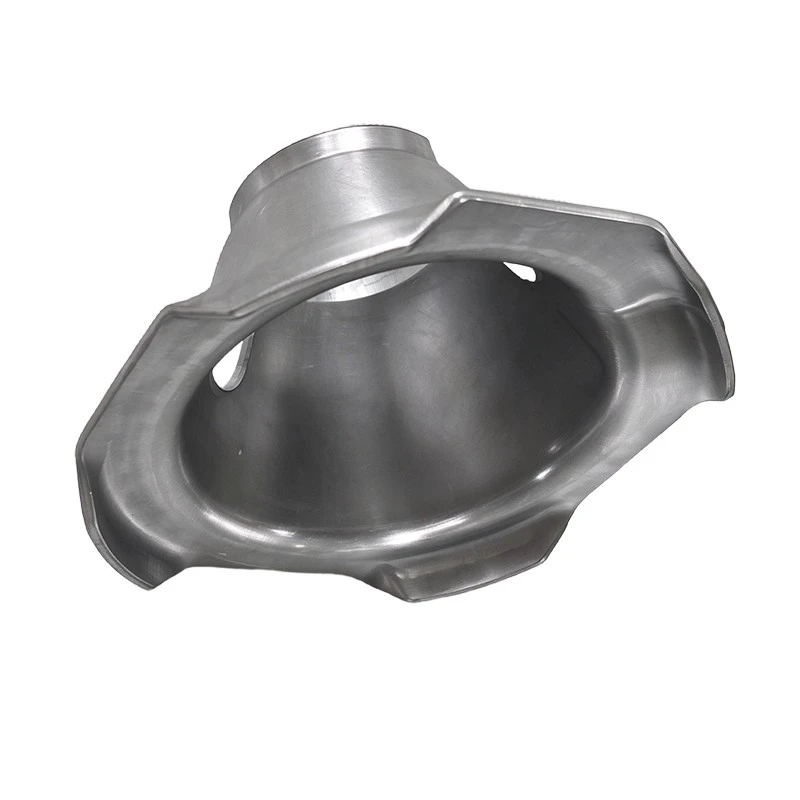

High Load Bearing Shock Spring Seat
High Load Bearing Shock Spring Seat by XIAYI proves that size decides fit: five critical dimensions held to ±0.1mm stop spring jump, shift and eccentric wear at the source. Every seat leaves our factory through full vision inspection, batch after batch, ready to drop into your shock absorber line.
Performance decides life, size decides fit. Five verified performance indicators and five micron-controlled critical dimensions — engineered to double the service life of your shock absorber assembly.
900k+combined-life cycles
≥580MPa tensile strength
±0.1mm critical dimensions
≤0.03mm coaxiality
Product Overview
The High Load Bearing Shock Spring Seat is engineered around one principle: a shock absorber is only as durable as its weakest component. The spring seat carries the entire coil load into the damper — if its strength, fatigue resistance or geometry falls short, the whole assembly cracks, shifts, leaks or fails early, no matter how good the damper is.
XIAYI combines extreme mechanical performance with micron-level dimensional control. The result: when both performance and size are held to XIAYI standards, validated combined assembly life reaches 900,000+ cycles with stable damping and near-zero warranty claims — versus under 300,000 cycles when either parameter is left uncontrolled.
The chain effect: oversized contact diameter → spring jump. Undersized → cracking. Warped seat → seal leak. Misaligned → uneven wear. Every dimension on this seat is controlled to eliminate one specific failure mode.
Five Core Performance Indicators
| Indicator | XIAYI | Industry Standard | Life Gain | Failure Prevented |
|---|---|---|---|---|
| Tensile strength | ≥580 MPa | ≥450 MPa | +80% | Crack |
| Fatigue life | ≥1,000,000 cycles | ~600,000 cycles | +50% | High-cycle failure |
| Wear hardness | HV240–280 | HV200–240 | +40% | Groove wear / noise |
| Stiffness | ≥35 kN/mm | ~25 kN/mm | +60% | Sag |
| Impact energy | ≥25 J | ~20 J | +70% | Breakage |
What Weak Performance Costs You
- Low impact strength → assembly life cut in half
- Poor fatigue resistance → warranty claims
- Low wear hardness → noise and groove wear
- Insufficient stiffness → vehicle sag
Five Critical Dimensions
| Dimension | XIAYI | Industry Standard | Fit Risk Eliminated |
|---|---|---|---|
| Contact diameter | ±0.15 mm | ±0.3 mm | Spring jump |
| Groove depth | ±0.1 mm | ±0.2 mm | Spring shift |
| Flatness | ≤0.04 mm | ≤0.1 mm | Uneven wear |
| Coaxiality | ≤0.03 mm | ≤0.06 mm | Eccentric load |
| Thickness | ±0.1 mm | ±0.2 mm | Sag |
Combined Impact on Assembly Life
| Component State | Life (cycles) | Damping | Warranty Rate |
|---|---|---|---|
| XIAYI performance + XIAYI precision | 900,000+ | Stable | ≤1% |
| Good performance + poor size | 600,000–800,000 | Unstable | 5–8% |
| Poor performance + good size | 400,000–600,000 | Decaying | 10–15% |
| Poor + poor | <300,000 | Failed | >20% |
How We Hold These Numbers
MATERIAL
Qualified Incoming Steel
SPFH540 / 22MnB5 verified at ±0.1mm thickness and HB210–250 hardness before any forming begins.
FORMING
6-Station Precision Pressing
CPM-200 progressive pressing holds ≤0.03mm flatness and ≤0.02mm coaxiality at production speed.
HEAT TREATMENT
810–830°C Controlled
Hardness stabilized to HB220–260 with Rockwell verification to ±1HRC per batch.
INSPECTION
100% Vision + CPK≥1.67
Vision measurement to ±0.008mm on 100% of parts; process capability monitored at CPK≥1.67.
Common Failures We Eliminate
| Customer Pain Point | Performance Cause | Dimension Cause | XIAYI Solution |
|---|---|---|---|
| Seat cracking | <450 MPa tensile | Undersize | ≥580 MPa + ±0.15mm contact diameter |
| Spring shift | Soft, sagging seat | Groove depth drift | ≥35 kN/mm + ±0.1mm groove depth |
| Noise | Low wear hardness | Warp | HV240–280 + ≤0.04mm flatness |
| Oil leak at seal | Poor fatigue life | Misalignment | ≥1M cycles + ≤0.03mm coaxiality |
| Batch variation | Process drift | Dimensional drift | CPK≥1.67 closed-loop control |
Applications
- Front strut and rear shock assemblies built to OE seat geometry
- Performance and tuning suspensions running stiffer, higher-rate springs
- Shock absorber rebuilders needing exact-fit replacements without rework
- Fleet maintenance programs where warranty claims must stay near zero
All five critical dimensions can be adapted to your spring and damper interface — send your drawing for a fitment review within 24 hours.
Frequently Asked Questions
Why do both performance and dimensions matter on a spring seat?
Performance (strength, fatigue, wear) determines how long the seat survives; dimensions determine how correctly the spring sits. Either one failing cuts assembly life — our data shows combined life drops from 900k+ cycles to under 600k when only one is controlled.
What dimensional tolerances can you hold?
Contact diameter ±0.15mm, groove depth ±0.1mm, flatness ≤0.04mm, coaxiality ≤0.03mm, thickness ±0.1mm — each verified with 100% vision inspection.
How do you guarantee batch consistency?
Closed-loop process control with CPK≥1.67, 100% automated dimension screening, and batch-traceable heat treatment and coating records.
Can you test against our spring specification?
Yes. Share your spring rate, travel and load data — our engineering team performs a fitment and life analysis before sampling.
About XIAYI — Certified Shock Absorber Component Manufacturer
Founded in 2006 and headquartered in Ningbo, China, Ningbo XiaYi Electromechanical Tech Co., Ltd. is an IATF 16949:2016 certified high-tech manufacturer of precision shock absorber components and custom automated assembly equipment, serving global OEMs and aftermarket distributors as a Tier-2/Tier-3 supplier.
- 100 qualification certificates covering materials, processes and testing methods
- Quality culture built on full vision inspection and CPK≥1.67 process monitoring
- Batch-traceable heat treatment and coating records attached to every order
- Defect rate under 0.1%, audited year after year under IATF 16949:2016
Get High Load Bearing Spring Seats with Verified Data
Send your drawing to sales@xiayiparts.com or call +86-13586885132 — quote and fitment review within 24 hours.
