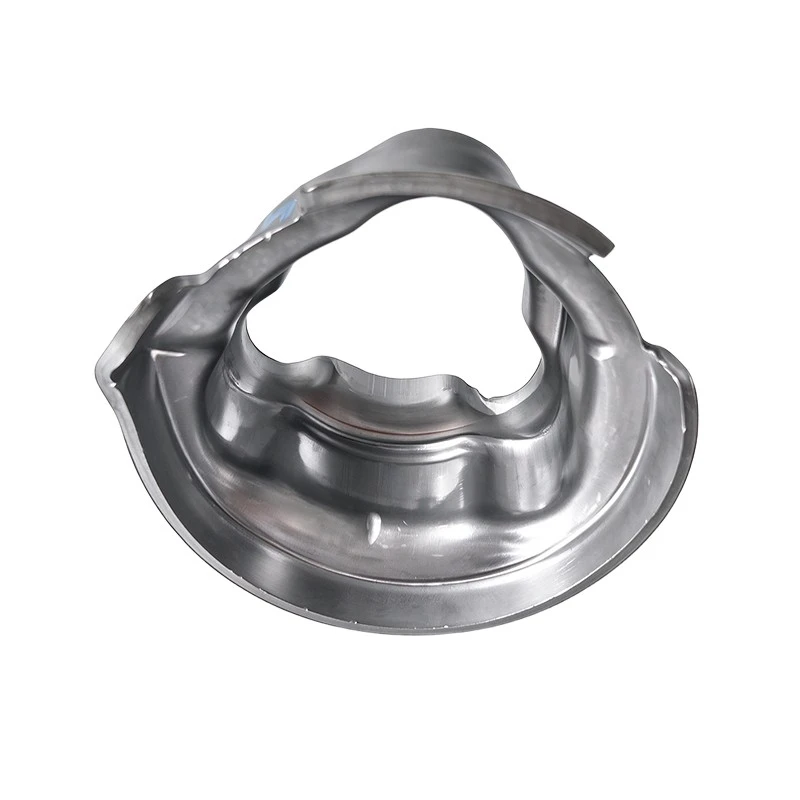

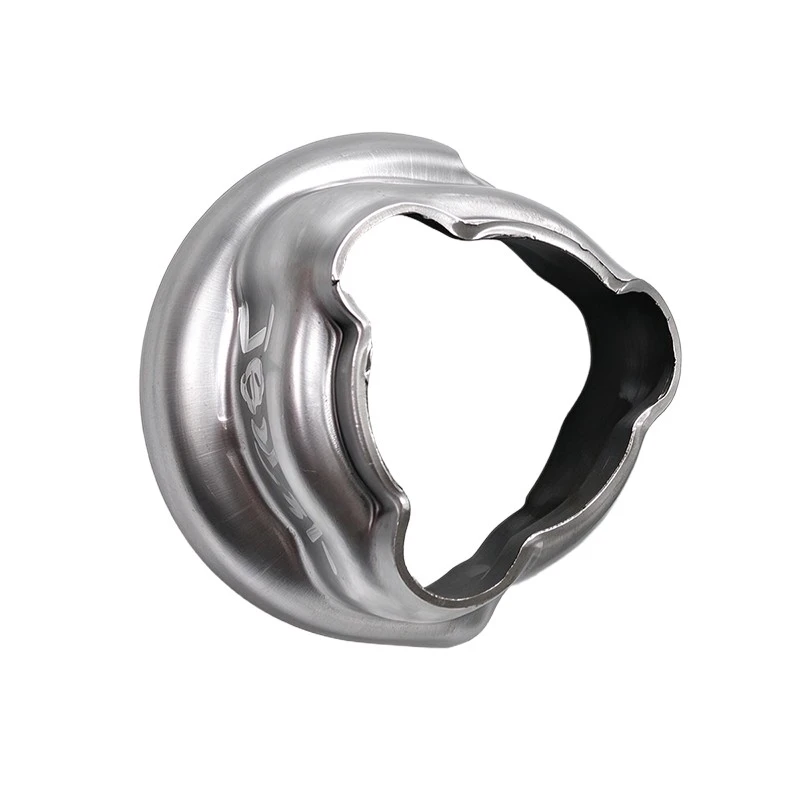

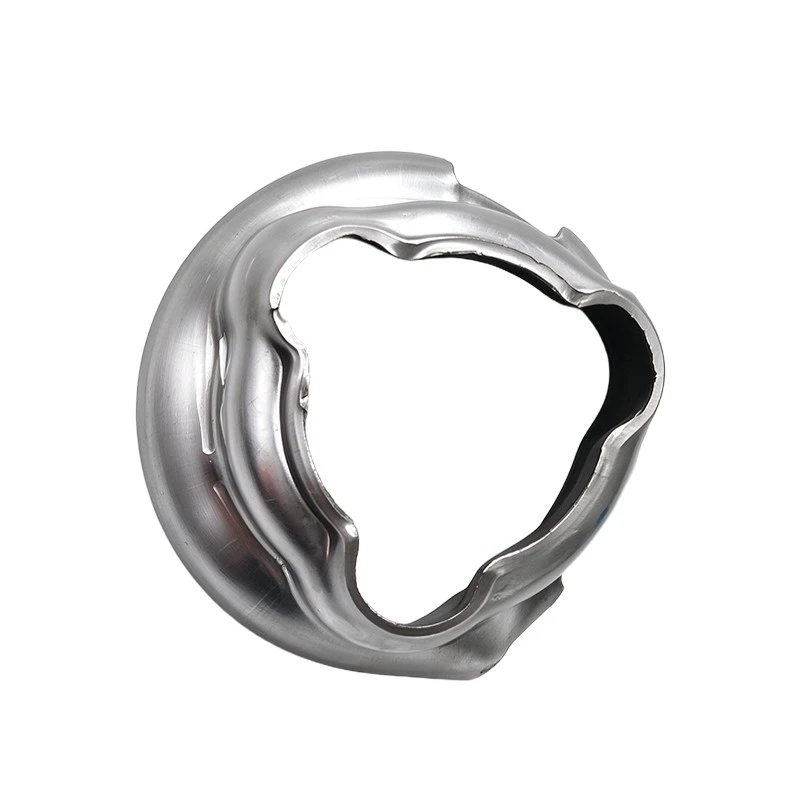

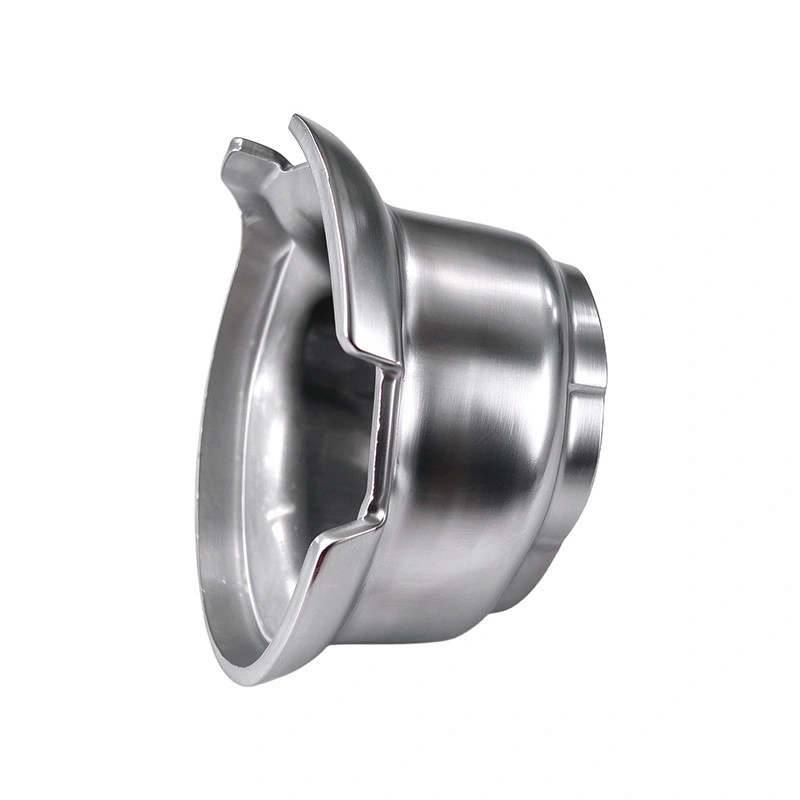

Heavy Duty Coil Spring Seat
Heavy Duty Coil Spring Seat from XIAYI pairs a rib-reinforced 42CrMo+ body with a deep anti-jump groove, so full payloads and rough roads no longer crack or collapse ordinary seats. This supplier builds it to ≥580MPa tensile strength for truck, construction and off-road suspensions that cannot afford downtime.
Built for maximum load: a deep-groove, rib-structured 42CrMo+ spring seat engineered for trucks, construction machinery and off-road suspensions where standard seats deform or fail.
≥580MPa tensile strength
1.2Mfatigue cycles
≥25Jimpact resistance
Maxload class
Product Overview
The Heavy Duty Coil Spring Seat is XIAYI's maximum-load spring seat, developed from our heavy-duty deep groove platform. A rib-reinforced 42CrMo+ alloy steel body — through hardened to HB220–260 — carries the full coil spring load into the shock absorber body without sag, deformation or eccentric wear.
Where a standard stamped seat fatigues under repeated impact from rough terrain and full payloads, this seat's deep groove locks the spring end coil in position, the ribs stiffen the shell against collapse, and the impact-toughened structure absorbs the shock that would crack ordinary seats. It is the specified choice for truck, trailer, construction equipment and off-road vehicle suspension programs.
Design intent: structure decides fit, load decides strength. The heavy-duty deep groove + rib architecture converts the worst-case impact loads of commercial and off-road use into controlled, distributed stress — extending seat life beyond 1.2 million cycles.
Key Features & Engineering Advantages
MATERIAL
42CrMo+ Alloy Steel, HB220–260
Through-hardened alloy steel delivers ≥580MPa tensile strength versus the ≥450MPa of industry-standard seats — an 80% margin against crack initiation.
STRUCTURE
Deep Groove + Reinforcing Ribs
The deep groove prevents spring end jump under rebound; radial ribs brace the shell against collapse under maximum static and dynamic load.
FATIGUE
1.2 Million Cycle Life
Validated on high-cycle fatigue testing to 1,200,000 cycles at maximum load class — 2× the life of standard flat seats in comparable conditions.
PROTECTION
≥500h Salt Spray Coating
Heavy 20–30μm cathodic coating resists mud, water and de-icing salt exposure typical of truck and construction duty cycles.
Load Validation & Field Testing
Before a Heavy Duty Coil Spring Seat ships, it survives a validation program that reproduces the worst day of a truck's working life:
| Validation Test | Method | Result | What It Proves |
|---|---|---|---|
| Static overload | Twice rated load held for 24h | No permanent set | No sag under full payload |
| Impact at groove | Swing hammer on loaded seat | No crack | Survives potholes and job sites |
| High-cycle fatigue | Continuous cycling at max load class | 1,200,000 cycles passed | Roughly double flat-seat life |
| Corrosion | Neutral salt spray chamber | No red rust | Withstands mud, slush and de-icing salt |
| Fitment trial | Assembled on customer springs | Zero wobble | True drop-in replacement |
Vehicle Matching Guide
| Vehicle Type | Recommended Seat | Material | Key Benefit |
|---|---|---|---|
| Truck / Trailer | Heavy-Duty Deep Groove | 42CrMo+ | Impact absorption |
| Construction machinery | Heavy-Duty Deep Groove | 42CrMo+ | Max load, anti-collapse |
| Off-road SUV | Heavy-Duty / Reinforced Boss | 42CrMo | Heavy load stability |
| Coastal fleet | Heavy-Duty + corrosion package | Q355NH option | Rust protection |
| Sedan / city SUV | Standard or Deep Drawn seat | SPFH540 | Cost-optimized |
Common Failures We Eliminate
| Customer Pain Point | Root Cause | XIAYI Heavy Duty Solution |
|---|---|---|
| Seat deformation under full payload | Insufficient stiffness | Ribbed 42CrMo+ structure, ≥35kN/mm stiffness — no sag |
| Cracking on rough roads | Low impact toughness | ≥25J impact resistance, stress-relieved heat treatment |
| Spring jump / misalignment | Shallow or worn groove | Deep anti-jump groove, ≤0.03mm coaxiality |
| Early fatigue failure | Soft material, sharp edges | 1.2M cycle validation, R2.5 crack-free edges |
| Rust in muddy / salty duty | Thin coating | ≥500h salt spray heavy coating system |
Applications
- Heavy trucks, trailers and commercial vehicle suspensions
- Construction machinery and agricultural equipment
- Off-road vehicles and 4×4 suspension upgrades
- Special-purpose vehicles with high payload requirements
Custom bore diameters, groove depths and mounting patterns are manufactured to your drawing — OEM and aftermarket welcome.
Frequently Asked Questions
What load class is this seat rated for?
The Heavy Duty Coil Spring Seat is our maximum-load platform, with ≥580MPa tensile strength and ≥35kN/mm stiffness. Share your spring rate and payload data and we will confirm the fit within 24 hours.
How does it differ from a standard spring seat?
Standard seats use SPFH540 flat or single-groove designs for sedans. This seat uses deep-groove, rib-reinforced 42CrMo+ construction for trucks, construction machinery and off-road vehicles where impact and payload are far higher.
What is the fatigue life?
Validated to 1,200,000 load cycles at maximum load class — roughly double the service life of standard stamped seats under comparable conditions.
Do you supply both OEM and aftermarket?
Yes. XIAYI is an IATF 16949:2016 certified Tier-2/Tier-3 supplier exporting to 30+ countries, serving both OEM programs and aftermarket distributors.
About XIAYI — Your Shock Absorber Stamping Parts Manufacturer
Ningbo XiaYi Electromechanical Tech Co., Ltd., established in 2006 in Ningbo, China, is an IATF 16949:2016 certified high-tech enterprise specializing in precision shock absorber components — powder metallurgy parts, stamping parts, rubber parts and custom automated assembly equipment.
- One of the few suppliers covering powder metallurgy, stamping, rubber, piston rods and springs
- Trusted Tier-2 / Tier-3 partner for global OEM and heavy aftermarket programs
- Patented self-developed banding, grooving and automated assembly equipment
- Every heavy duty seat validated in-house before shipment — no third-party testing delays
Request a Heavy Duty Spring Seat Quote
Email your drawing to sales@xiayiparts.com or call +86-13586885132 — tailored quote within 24 hours, free samples for evaluation.
