Multi-Hole Designed Base Valve: Supporting More Consistent Shock Absorber Performance

As automotive and motorcycle suspension systems continue to develop, shock absorber manufacturers are paying increasing attention to the precision and consistency of individual internal components. Among these components, the shock absorber base valve plays an important role in controlling fluid flow inside twin-tube shock absorber systems and therefore contributes to the overall damping characteristics of the suspension.

For manufacturers looking for a precision-engineered Multi-Hole Designed Base Valve, XIAYI combines powder metallurgy manufacturing, precision sizing, surface finishing, and dimensional inspection to provide stable components for shock absorber production.

Why the Base Valve Matters in a Shock Absorber

A base valve, also known as a foot valve in some shock absorber applications, is installed at the lower section of a twin-tube shock absorber. Its valve structure controls the movement of damping oil between chambers as the shock absorber operates.

The flow characteristics of the valve can affect how the shock absorber responds to compression and rebound movements. For this reason, the geometry, hole configuration, dimensional accuracy, and surface condition of the base valve are important considerations for shock absorber manufacturers.

A multi-hole design provides multiple flow passages within the valve structure. The exact hole quantity, diameter, position, and overall geometry can be configured according to the requirements of a particular shock absorber system.

Multi-Hole Designed Base Valve for Precision Shock Absorber Manufacturing

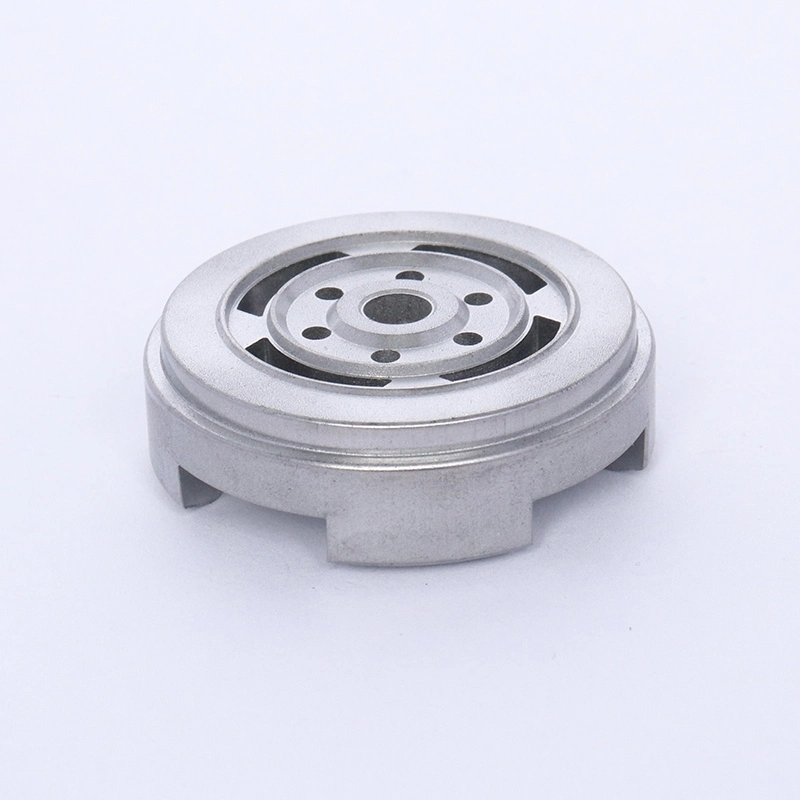

XIAYI's Multi-Hole Designed Base Valve is a powder metallurgy component developed with a focus on dimensional consistency, smooth edge finishing, and reliable batch production.

The component is manufactured using FC-0208 iron-copper powder metallurgy material. According to the current production specification, the material has a controlled density of approximately 6.66–6.68 g/cm³ and a hardness of approximately 80–82 HRB.

Typical reference dimensions include a diameter of φ28 mm, hole diameter of φ3.1 mm, and overall height of 10.5 ± 0.15 mm. Actual dimensions can be produced according to customer drawings, samples, and technical requirements.

Controlled Manufacturing Process from Pressing to Inspection

For powder metallurgy shock absorber components, stable production parameters are important for maintaining repeatable dimensions and material properties. XIAYI controls the manufacturing process through multiple stages rather than relying on final inspection alone.

1. Precision Pressing: The powder mixture is compacted into the required multi-hole geometry while controlling forming weight, density, and production parameters.
2. High-Temperature Sintering: The pressed components are sintered under controlled temperature and atmosphere conditions to achieve the required material structure and strength.
3. Precision Sizing: After sintering, sizing is used to improve dimensional accuracy and maintain the relationship between critical functional surfaces.
4. Edge Finishing and Cleaning: Dedicated finishing and ultrasonic cleaning processes help remove residual powder and unwanted sharp edges from the component.
5. Final Inspection: Finished parts are inspected for dimensions, appearance, hardness, surface condition, and other customer-defined requirements before shipment.

Why Smooth Edge Finishing Is Important

For shock absorber manufacturers, the quality of the component surface is not simply an appearance issue. Sharp edges, residual powder, or inconsistent surface conditions can create difficulties during downstream assembly.

XIAYI applies dedicated finishing and ultrasonic cleaning processes to the Multi-Hole Designed Base Valve. The process focuses on the outer edges as well as the multi-hole areas to improve surface cleanliness and consistency.

For automated or semi-automated assembly lines, predictable component geometry and surface condition can help support smoother feeding, positioning, and installation processes.

Dimensional Consistency for OEM Shock Absorber Assembly

In mass production, maintaining consistent dimensions from batch to batch is often more important than simply producing one qualified sample. Variations in hole position, outer diameter, height, or surface geometry may affect downstream fitting and assembly.

XIAYI uses precision measurement equipment to monitor critical characteristics. Depending on the required feature, inspection can include CMM measurement, vision measurement, profile inspection, flatness measurement, hardness testing, and visual inspection.

This multi-dimensional inspection approach allows different characteristics of the base valve to be evaluated independently and provides additional production data for OEM customers.

OEM and ODM Base Valve Manufacturing

Different automotive, motorcycle, commercial vehicle, and new energy vehicle shock absorbers may require different base valve configurations. Hole quantity, hole diameter, hole position, outer diameter, height, material, and finishing requirements can vary between applications.

XIAYI provides OEM and ODM manufacturing services based on customer drawings, samples, or technical specifications. Before mass production, the technical team can evaluate the required dimensions and manufacturing process, followed by sample development and dimensional verification.

Once the sample and specifications are approved, the corresponding production and inspection requirements can be applied to subsequent batches to improve manufacturing consistency.

Applications of Multi-Hole Designed Base Valve

The XIAYI Multi-Hole Designed Base Valve can be supplied for different shock absorber applications, including:

• Automotive shock absorbers
• Motorcycle shock absorbers
• Commercial vehicle suspension systems
• Passenger vehicle suspension components
• New energy vehicle shock absorber systems
• OEM and aftermarket shock absorber manufacturing

As a precision internal component, the base valve works together with other shock absorber components such as pistons, valve shims, rod guides, seals, and piston rods. Proper dimensional matching between these components is important for consistent shock absorber assembly.

XIAYI: Precision Shock Absorber Component Manufacturing

XIAYI specializes in the manufacturing of shock absorber components and powder metallurgy automotive parts. Its product range includes shock absorber pistons, base valves, rod guides, valve shims, brackets, rubber components, piston rods, and other suspension-related parts.

With powder metallurgy production, precision sizing, finishing, and multiple inspection capabilities, XIAYI supports customers requiring stable specifications and repeatable production for large-volume orders. The company's quality management system conforms to IATF 16949:2016.

For shock absorber manufacturers seeking a reliable Multi-Hole Designed Base Valve supplier, XIAYI can provide customized production based on drawings, samples, and application requirements.

Looking for a customized shock absorber base valve for your next project? Contact XIAYI to discuss your drawings, specifications, and production requirements.
