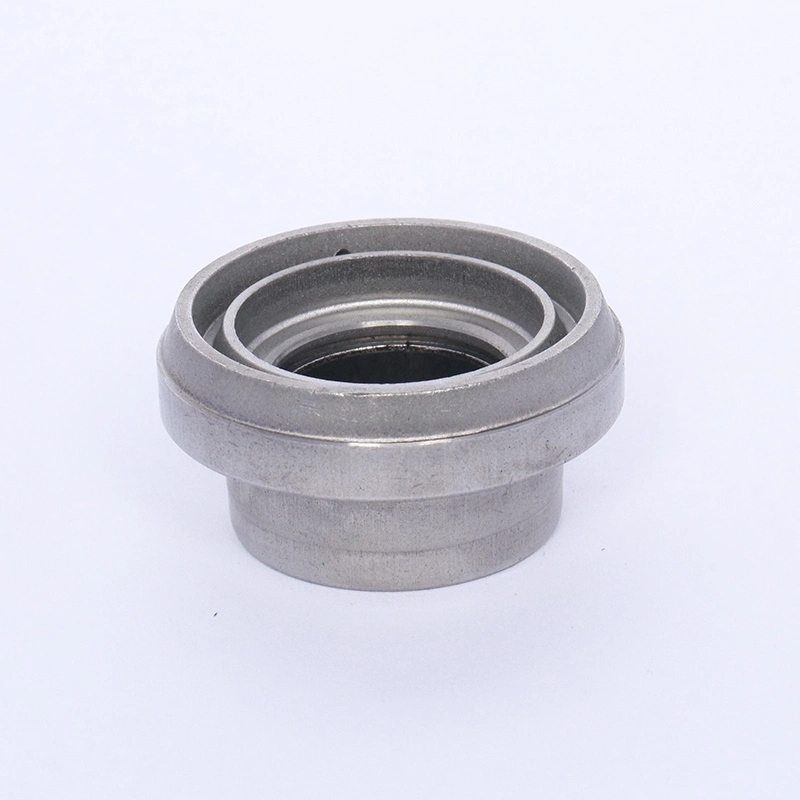

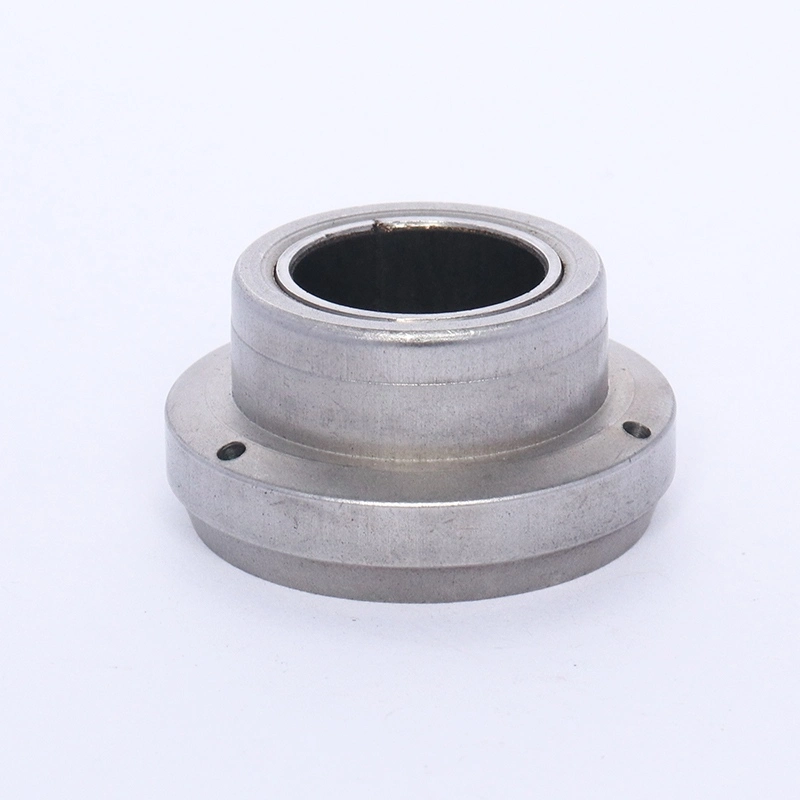

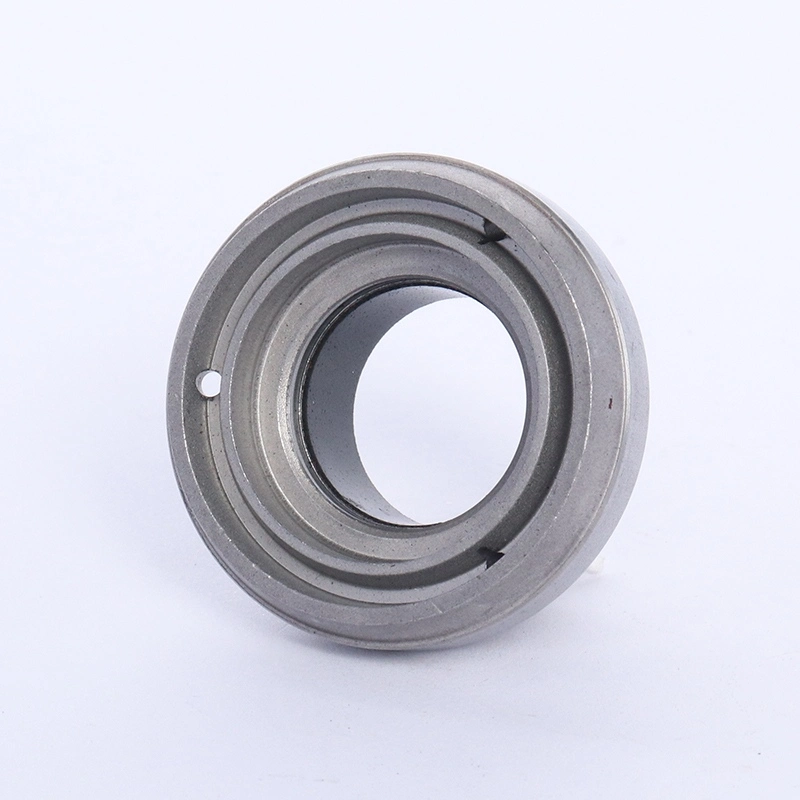

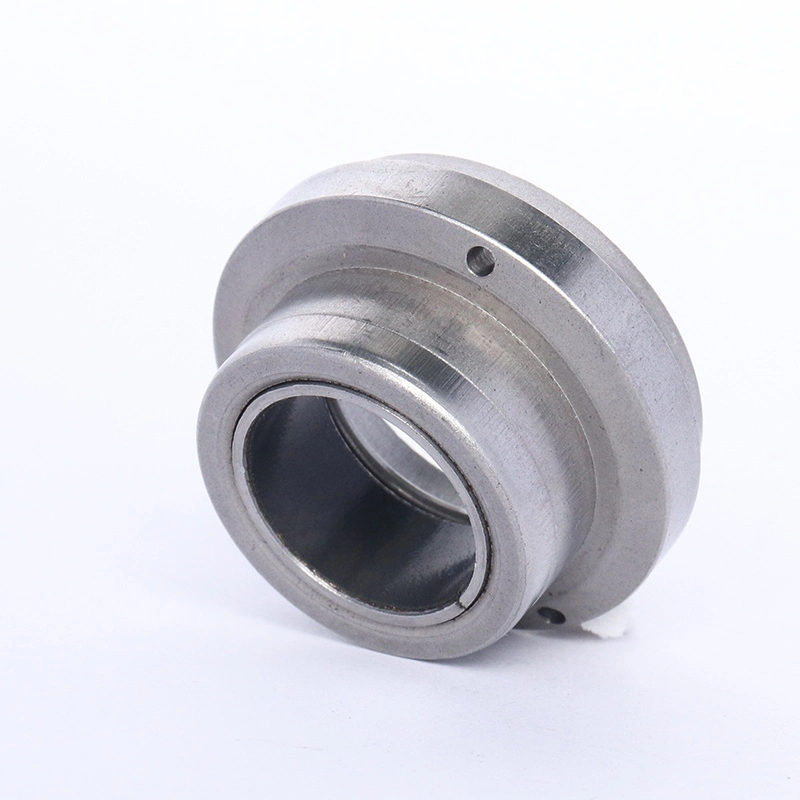

Uniform Hardness Sintered Rod Guide

A rod guide is exposed to continuous friction, vibration and alternating loads during shock absorber operation. If hardness varies significantly between different areas, softer sections may wear faster and gradually affect working clearance, piston rod guidance and damping stability.

XIAYI focuses on uniform material performance rather than simply increasing surface hardness. The Uniform Hardness Sintered Rod Guide uses FC0208 alloy powder with controlled sintering and uniform hardening processes to create a stable internal structure. This helps maintain a more consistent wear rate during long-term reciprocating movement.

For OEM buyers, consistency between batches is as important as individual component performance. XIAYI controls material composition, sintering temperature, holding time and hardening conditions through standardized production and PFMEA risk management. This supports predictable performance across large-volume orders.

Key Performance Features

Uniform Hardness Distribution

The component achieves an overall hardness of 70--90HRB with reduced local hardness variation. More consistent hardness helps prevent isolated soft areas from becoming premature wear points during repeated operation.

FC0208 Powder Metallurgy Material

FC0208 material provides a dense sintered structure and a balanced combination of strength, toughness and wear resistance. With a sintered density above 6.6g/cm³, it is suitable for demanding shock absorber applications.

Controlled Batch Consistency

XIAYI locks critical process parameters and applies SPC monitoring to reduce batch-to-batch variation. This is particularly useful for OEM customers requiring stable assembly and predictable service performance.

Precision Finishing

The finished surface can reach Ra≤0.4μm, while concentricity is controlled within ≤0.05mm. These specifications support smooth piston rod movement and help reduce unnecessary friction during operation.

Material & Performance Comparison

The material grade and thermal processing have a direct influence on hardness distribution and wear behavior.

Performance Parameters

Main Technical Specifications

Dimensional & Installation Parameters

Solving Wear-Related Customer Problems

Reducing Localized Wear

Uneven hardness can cause specific areas to wear faster than others. XIAYI uses FC0208 material and uniform hardening to improve hardness consistency throughout the working area, helping maintain more even wear during repeated piston movement.

Improving Batch Stability

Material variation and unstable thermal processing can create differences between production batches. XIAYI uses parameter locking and SPC monitoring to maintain consistent hardness and material properties for mass production.

Supporting Longer Service Life

A dense sintered structure combined with stable hardness helps the component withstand repeated friction and vibration. This reduces the possibility of premature local wear and supports longer shock absorber operating life.

Real Application Case

A professional European high-end motorcycle shock absorber manufacturer had long faced quality instability caused by inconsistent hardness of sintered rod guides. The ordinary FC0205 rod guides used previously showed differences between internal and surface hardness, together with significant batch variation. Under frequent vibration and rough road conditions, local soft wear often appeared within half a year, causing reduced damping elasticity, abnormal chassis noise and slow oil leakage. The after-sales failure rate reached 2.6%.

After switching to the Uniform Hardness Sintered Rod Guide from XIAYI, the problem was substantially improved. Using FC0208 alloy material and controlled constant-temperature sintering, the component achieved more consistent hardness throughout the working area. Combined with PFMEA risk prevention and process parameter control, batch hardness consistency reached 100%.

After 150,000 high-frequency fatigue vibration tests and 240-hour salt spray verification, no obvious wear deviation or hardness attenuation was observed. The customer's after-sales failure rate decreased to 0.05%, while product service life increased by 2.8 times. XIAYI subsequently became its long-term supplier, with an annual order volume of 180,000 pieces.

Product FAQ

Q1: Why is hardness consistency important for a sintered rod guide?

Uneven hardness can cause localized wear during repeated piston movement. Consistent hardness helps maintain a more stable wear rate and reduces the risk of premature clearance changes.

Q2: Why does XIAYI use FC0208 material?

FC0208 provides a dense and stable sintered structure with a good balance of strength, toughness and wear resistance. It is suitable for applications requiring consistent long-term performance.

Q3: Where can this component be used?

The Uniform Hardness Sintered Rod Guide is suitable for motorcycle, passenger vehicle, commercial vehicle and new energy vehicle shock absorbers, as well as selected industrial damping systems requiring stable wear performance.

XIAYI Manufacturing Capability

With nearly 20 years of experience in precision shock absorber components, XIAYI operates a standardized 5,000-square-meter production facility equipped with automated sintering equipment and precision inspection systems. The company has established a quality management system compliant with IATF 16949:2016 and ISO 9001 standards. Through material control, process monitoring and finished-product inspection, XIAYI provides consistent powder metallurgy components for global automotive and damping system manufacturers.
