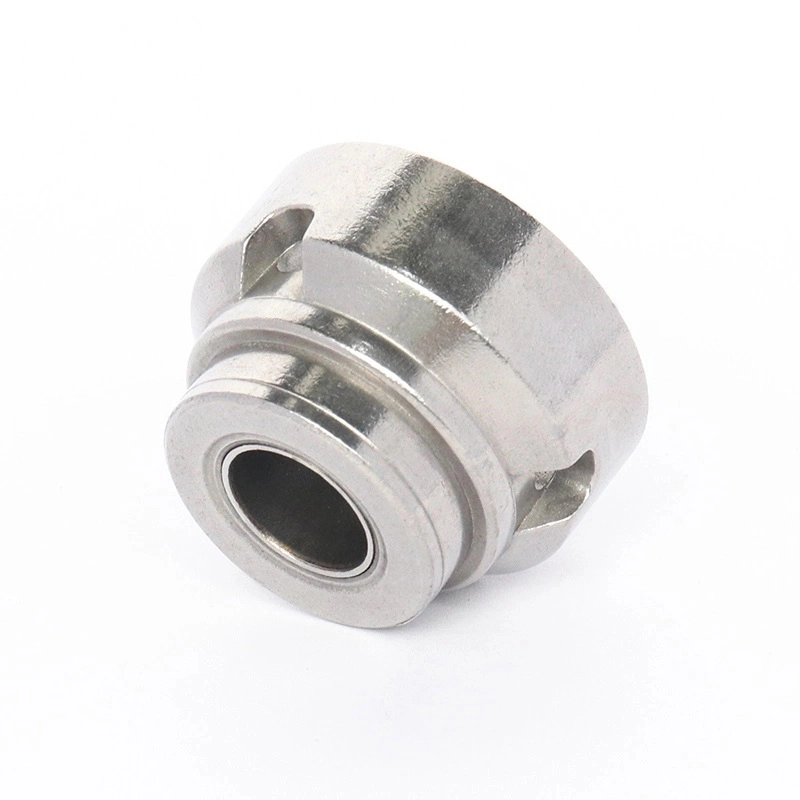

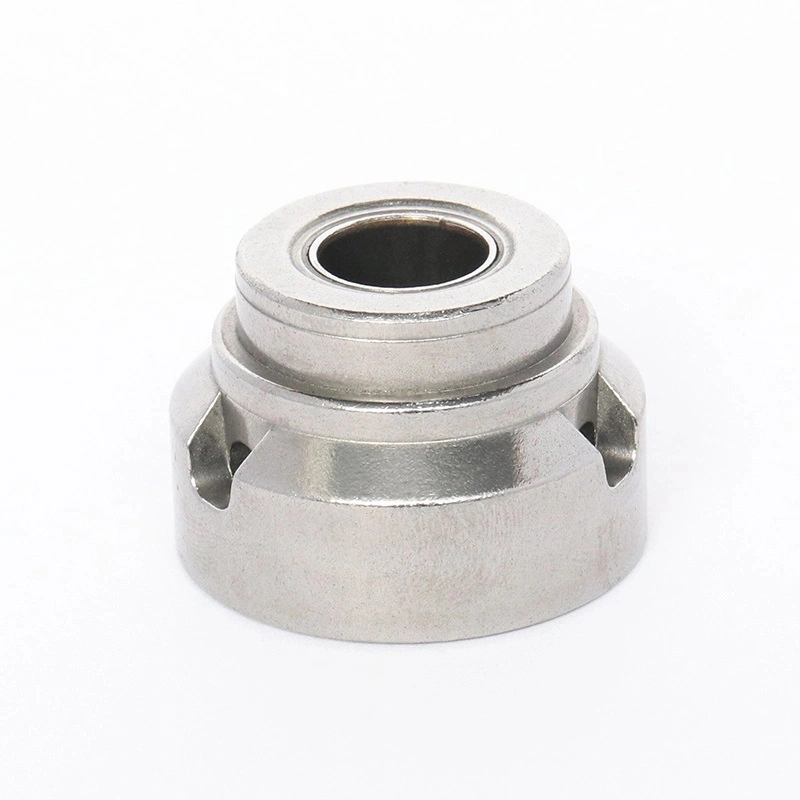

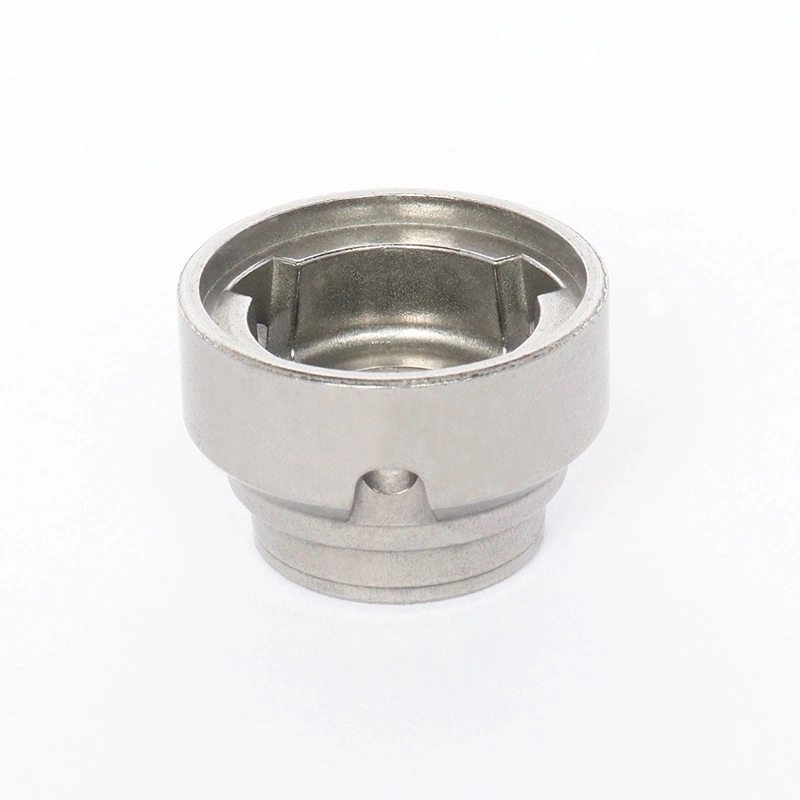

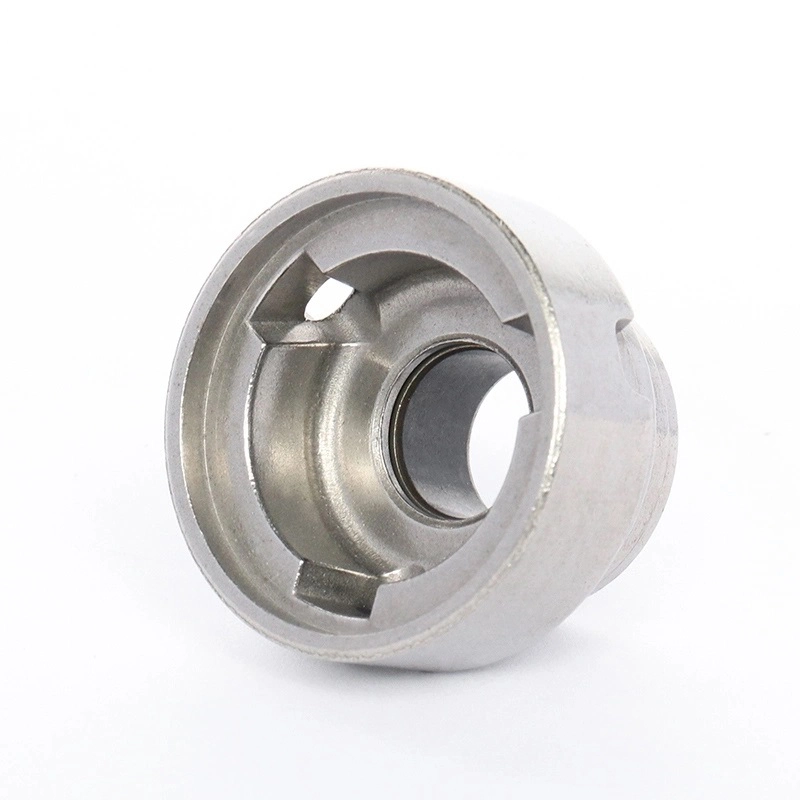

Burr-Free Precision One-Shot-Formed Rod Guide

The Burr-Free Precision One-Shot-Formed Rod Guide from XIAYI is developed around these long-term reciprocating motion requirements. Instead of focusing only on basic dimensional accuracy, the manufacturing process considers the relationship between guiding geometry, surface finish and material performance. One-shot forming establishes the main structure, followed by precision sizing, grinding and surface treatment to create a controlled component for shock absorber assembly.

One-Shot Forming for Structural Consistency

Reducing Accumulated Processing Errors

Traditional rod guides may require separate forming, trimming and secondary processing operations. Each additional operation can introduce dimensional deviation or slight deformation, particularly when several processes affect the same functional area.

The Burr-Free Precision One-Shot-Formed Rod Guide uses integrated forming to establish the main profile and structural features in one controlled operation. Precision sizing and grinding are then used to achieve the specified final dimensions.

This manufacturing route helps reduce the accumulation of errors between multiple forming stages and provides a more consistent starting geometry for subsequent finishing.

Maintaining Stable Guiding Geometry

The rod guide needs to maintain a controlled relationship between its inner and outer functional surfaces. Excessive deviation may influence piston rod alignment and increase localized contact during reciprocating movement.

XIAYI controls critical dimensions during the sizing stage. The supplied specification includes an ID of φ12±0.02 mm and an OD of φ28±0.03 mm. Where required, thread accuracy can be controlled to grade 6H.

Such dimensional control helps manufacturers maintain compatibility between the rod guide, piston rod and surrounding shock absorber components.

Surface and Wear Control

Precision Grinding for the Guiding Interface

Grinding directly affects the condition of the functional surface. A rough or inconsistent surface may increase friction and accelerate wear during repeated piston rod movement.

XIAYI applies precision grinding with a specified surface roughness of Ra≤0.4 μm and parallelism of ≤0.02 mm. The process is followed by cleaning and inspection to control surface condition before shipment.

For applications involving frequent reciprocating movement, controlled surface roughness provides a more predictable interface and helps support consistent operating performance.

Material Density and Surface Hardness

The product uses high-purity iron-carbon-copper powder metallurgy material with a molding density of ≥6.5 g/cm³. A compact internal structure helps provide the mechanical foundation required for repeated loading.

After steam surface treatment, the specified surface hardness can reach HV800±50, while neutral salt spray resistance is rated at ≥48 hours. These characteristics support applications exposed to vibration, moisture and changing road conditions.

The combination of material density, surface treatment and controlled finishing is intended to improve resistance to wear and environmental exposure without relying on a single performance factor.

12-Step Manufacturing and Quality Control

From Raw Powder to Precision Forming

The Burr-Free Precision One-Shot-Formed Rod Guide is produced through a 12-step process covering raw material screening, batching and mixing, compaction, pre-sintering, initial sizing and high-temperature sintering.

Raw material purity is controlled at ≥99.5%, while alloy element deviation during batching is limited to ±0.1%. During compaction, molding density is controlled at ≥6.5 g/cm³.

Pre-sintering is performed at 900±10°C for 60±5 minutes, followed by high-temperature sintering at 1120±15°C under a controlled protective atmosphere with H₂ purity of ≥99.99%.

Final Sizing and Surface Treatment

After sintering, precision sizing is used to control the critical ID and OD dimensions. Drilling and tapping operations can be applied where required, with the supplied thread specification reaching grade 6H.

Steam treatment is then used to improve surface hardness and corrosion resistance. Precision grinding controls roughness and parallelism, followed by cleaning and drying to reduce residual oil and moisture.

The final inspection stage checks dimensions and functional requirements, with 100% inspection specified for the finished product.

Common Rod Guide Problems and Solutions

Reducing Uneven Piston Rod Wear

Uneven piston rod wear can occur when the guiding geometry is inconsistent or when the rod experiences excessive lateral contact during repeated movement.

XIAYI addresses this through one-shot forming, precision sizing and controlled grinding. According to the supplied production data, guiding eccentricity can be reduced to below 0.2%, helping maintain a more consistent relationship between the guide and piston rod.

Protecting Sealing Components

Sharp edges and residual burrs can create problems during manual or automated assembly, particularly when the rod guide is installed close to sealing components.

The finishing process combines ultrasonic cleaning and precision grinding to control burrs, residual powder and surface irregularities. The supplied specification targets Ra≤0.4 μm for the finished surface.

Improving Long-Term Operating Reliability

Shock absorbers used in vehicles are exposed to repeated vibration, moisture and frequent reciprocating movement. Material density, surface hardness and corrosion resistance therefore become important factors in long-term component selection.

With density ≥6.5 g/cm³, optional steam treatment and specified surface hardness of HV800±50, XIAYI provides a component configuration intended for demanding operating environments.

Real Application Case

Quality Problems with Traditional Rod Guides

A well-known Asian new energy vehicle shock absorber manufacturer had experienced recurring quality problems with traditional multi-process rod guides. The conventional components used separate forming and secondary trimming processes, resulting in residual burrs and dimensional variation.

During actual assembly and operation, burrs could damage sealing components and contribute to oil leakage, while guiding eccentricity caused uneven piston rod wear. The customer's assembly defective rate had reached 4.2%, while the after-sales damping failure rate was as high as 2.1%.

Results After Process Improvement

After switching to the Burr-Free Precision One-Shot-Formed Rod Guide, the customer achieved improved guiding consistency and surface quality.

The one-shot forming process reduced accumulated forming errors, while burr-free finishing and precision grinding helped protect the sealing interface. After 100,000 high-frequency reciprocating fatigue cycles and 240-hour salt spray durability tests, the product maintained stable guiding performance without reported wear, deformation or oil leakage.

The assembly defective rate fell to 0.2%, while the after-sales failure rate decreased to 0.08%. XIAYI subsequently became the customer's fixed supplier for new energy vehicle shock absorber guiding components, with an annual supply volume of approximately 180,000 pieces.

Performance Under Repeated Reciprocating Motion

Stable Guidance in Continuous Operation

Shock absorbers experience thousands of compression and rebound cycles during service. The Burr-Free Precision One-Shot-Formed Rod Guide uses controlled forming, sizing and precision grinding to maintain a consistent guiding interface, helping reduce uneven piston rod wear and unnecessary friction.

Resistance to Vibration and Moisture

With a density of ≥6.5 g/cm³ and optional steam surface treatment, the product provides good structural strength and surface protection. Surface hardness can reach HV800±50, with neutral salt spray resistance of ≥48 hours, supporting demanding automotive, motorcycle and industrial damping environments.

Supporting Sealing Reliability

Ultrasonic cleaning and burr-free finishing help prevent residual particles and sharp edges from affecting nearby sealing components. With surface roughness controlled to Ra≤0.4 μm, the guide provides a cleaner and more controlled contact surface for long-term operation.

Frequently Asked Questions

What is the main function of a rod guide?

A rod guide supports and guides the piston rod during repeated reciprocating movement. Its geometry and surface condition can influence rod alignment, friction, wear and the surrounding sealing system.

Why is burr-free finishing important?

Residual burrs may interfere with assembly or damage nearby sealing components. Removing burrs and residual powder helps provide a cleaner and more controlled installation interface.

Why use one-shot forming?

One-shot forming establishes the primary geometry in a single controlled forming operation. It helps reduce accumulated errors associated with multiple forming stages, while subsequent sizing and grinding establish the final specifications.

What surface roughness can be achieved?

The supplied production specification provides a precision grinding target of Ra≤0.4 μm, with parallelism controlled to ≤0.02 mm.

Can XIAYI customize the rod guide?

Yes. XIAYI supports OEM and ODM manufacturing based on customer drawings, samples and technical specifications, including dimensions, threads, surface treatment and material requirements.

Application and XIAYI Manufacturing Capability

Applications in Damping Systems

The Burr-Free Precision One-Shot-Formed Rod Guide is suitable for passenger vehicles, commercial vehicles, new energy vehicles, motorcycles and industrial damping equipment. It is particularly suited to applications requiring controlled piston rod guidance, reliable sealing interfaces and resistance to repeated reciprocating movement.

XIAYI as a Precision Component Supplier

With nearly 20 years of powder metallurgy manufacturing experience, a standardized 5,000-square-meter factory and a quality management system conforming to IATF 16949:2016, XIAYI provides shock absorber precision components for international OEM customers.

Its manufacturing capabilities cover integrated forming, sintering, sizing, steam treatment, precision grinding, cleaning and final inspection, supporting both customized development projects and stable mass production.
