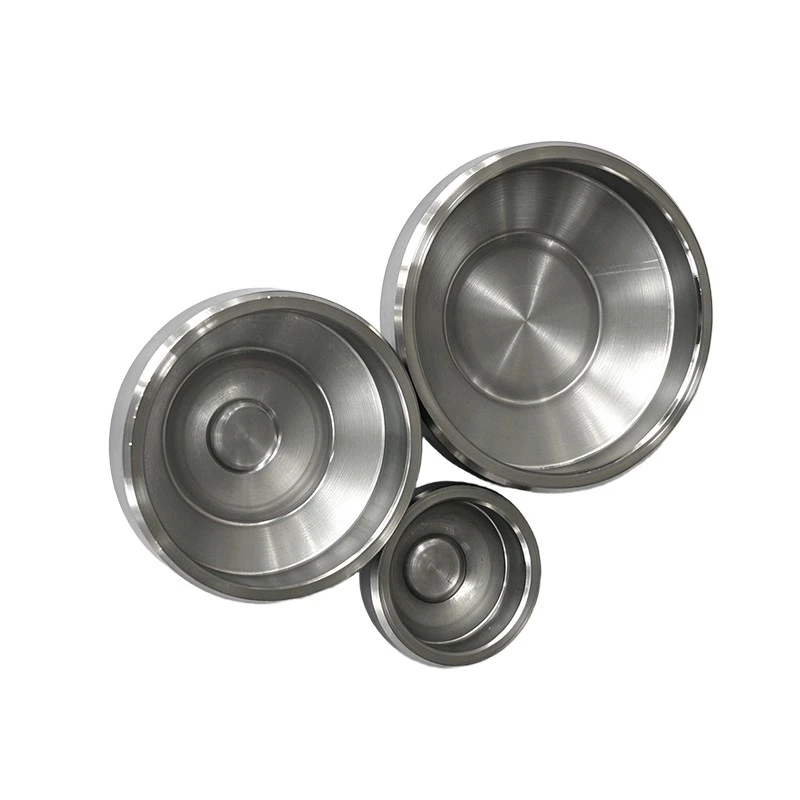

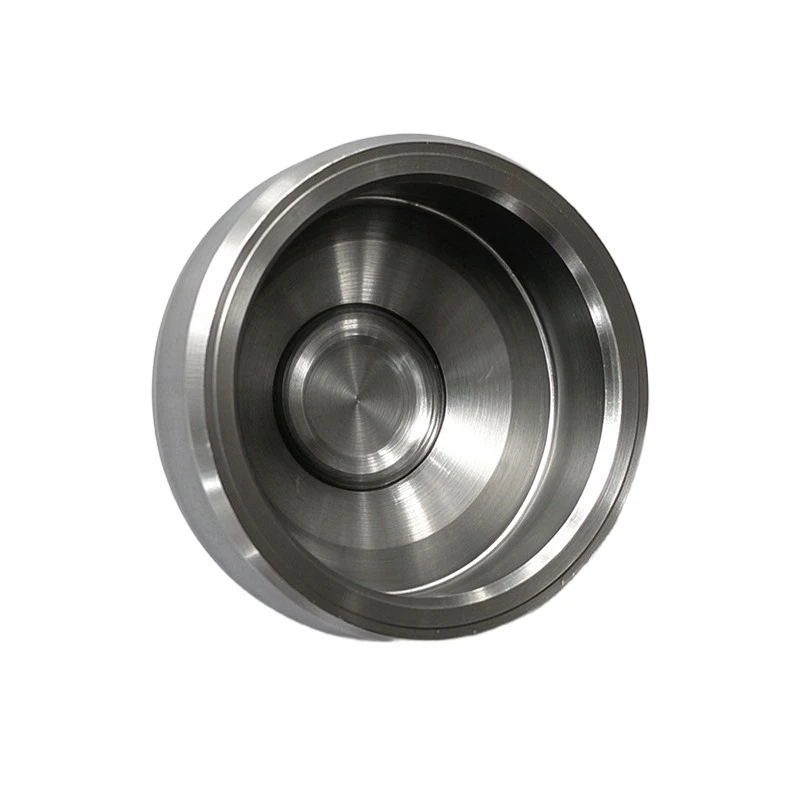

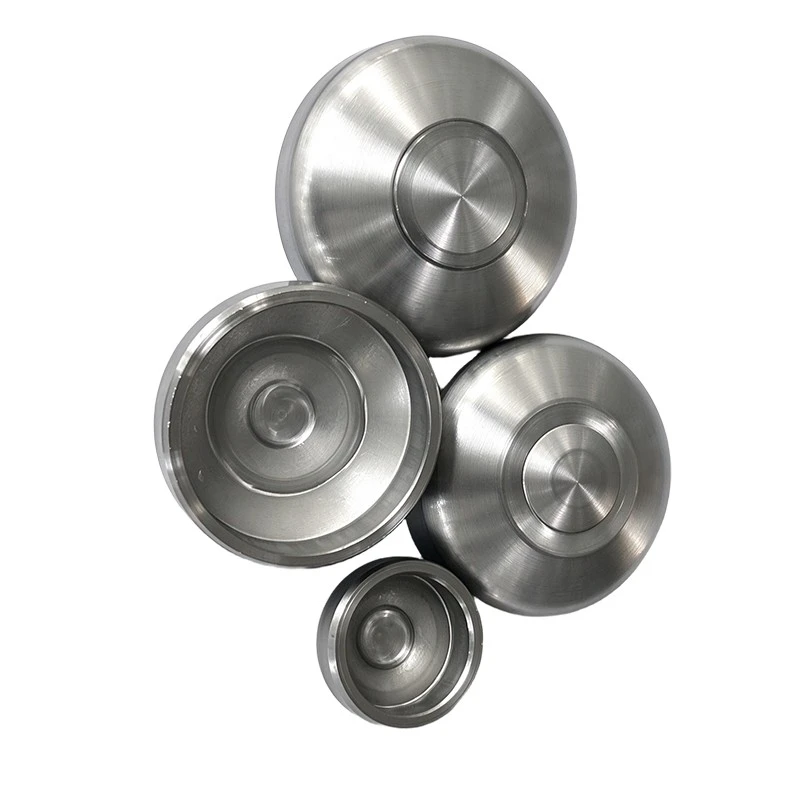

Heavy Duty Steel End Cap
Heavy Duty Steel End Cap by XIAYI is graded the way your vehicles really work: the heavy-duty grade takes static pressure up to 60 bar and 1,250,000 impact cycles, tuned for loaded trucks and machinery. This supplier matches each cap to its true duty cycle, so nothing bulges early and nothing is overpaid for.
A spring seat that carries the coil and a tube cap that holds oil pressure are two very different jobs. The Heavy Duty Steel End Cap is designed for the worst of them: sustained oil pressure, continuous reciprocating impact, and months of mud, rain and de-icing salt. Instead of one compromise grade, XIAYI manufactures three performance grades — Standard for passenger cars, Reinforced for SUV/MPV, and Heavy-Duty for commercial vehicles and machinery — so you match the part to the working condition instead of overpaying or under-specifying.
Under-specifying is expensive: a cap rated below its real load gradually bulges under oil pressure, the sealing interface opens up, and the shock loses fluid — cutting total service life by over 40%. Choosing the right grade is the cheapest durability decision you can make.
Graded Performance Data
| Performance | Standard (Passenger Car) | Reinforced (SUV / MPV) | Heavy-Duty (CV / Machinery) |
|---|---|---|---|
| Static pressure strength | ≥ 32 bar | ≥ 50 bar | ≥ 60 bar |
| Reciprocating impact cycles | ≥ 850,000 | ≥ 1,050,000 | ≥ 1,250,000 |
| Weld tensile strength | ≥ 320 MPa | ≥ 410 MPa | ≥ 500 MPa |
| Neutral salt spray | ≥ 320 h | ≥ 480 h | ≥ 650 h |
What Happens When the Grade Is Wrong
| Weak Point | Field Consequence |
|---|---|
| Insufficient static pressure | Gradual bottom bulge, sealing interface damaged, service life down 40%+ |
| Low impact durability | Metal fatigue under constant vibration — crack or detachment within 1–2 years |
| Poor weld strength | Micro cracks grow under long-time vibration into continuous oil leakage |
| Weak corrosion resistance | Rapid rust and perforation in humid or saline regions, total seal failure |
Verified by Life Simulation
| Configuration | Total Service Life | Sealing Condition | Avg. Warranty Rate |
|---|---|---|---|
| Correct grade + full dimension in tolerance | 100% design life | Zero leakage throughout | ≤ 0.8% |
| Correct grade + slight dimension deviation | 25–30% life reduction | Intermittent late-stage leakage | 4–6% |
| Low grade + full dimension in tolerance | 35–45% life reduction | Stable first, sudden failure later | 7–11% |
| Low grade + large deviation | 55%+ life reduction | Frequent leakage & deformation | ≥ 18% |
Built From Heavy-Load Steel, Not Just Heavy Words
Heavy-Duty grade units use thickened material with even wall distribution to resist stress concentration, and the flange radius is tuned (R1.8–R2.4) to remove edge stress exactly where weld cracks start. Combined with graded weld reinforcement, the cap withstands both the static oil column and the shock pulses of fully loaded trucks on rough roads.
FAQ
Q: Which grade should I choose for a mixed fleet?
A: Tell us the vehicle types and typical payloads. As a rule: passenger cars take Standard, full-size SUV/MPV take Reinforced, and anything with commercial payloads or machinery duty cycles takes Heavy-Duty. We confirm the recommendation with your oil pressure and road-load data.
Q: Is the Heavy-Duty grade compatible with mono-tube and dual-tube shocks?
A: Yes. The platform covers mono-tube and dual-tube cylinders; geometry is matched to your inner diameter and flange layout per drawing.
Q: Can we get third-party or in-house test reports for the graded data?
A: Yes — static pressure, impact endurance and salt spray reports are issued per batch and can be included with your first article inspection package.
Tell us your working condition — we will recommend the right grade
Ningbo XiaYi Electromechanical Tech Co., Ltd. supplies graded shock absorber end caps to OEM and aftermarket customers across 30+ countries. Send your load data and drawings for a graded selection proposal.
About XIAYI graded standards: XIAYI's grading system grew out of long-term OEM supporting experience — every performance tier in the table above corresponds to a real customer duty cycle we have validated, from city commuting to fully loaded mountain routes, so the grade you buy is the grade that was tested for that condition.
