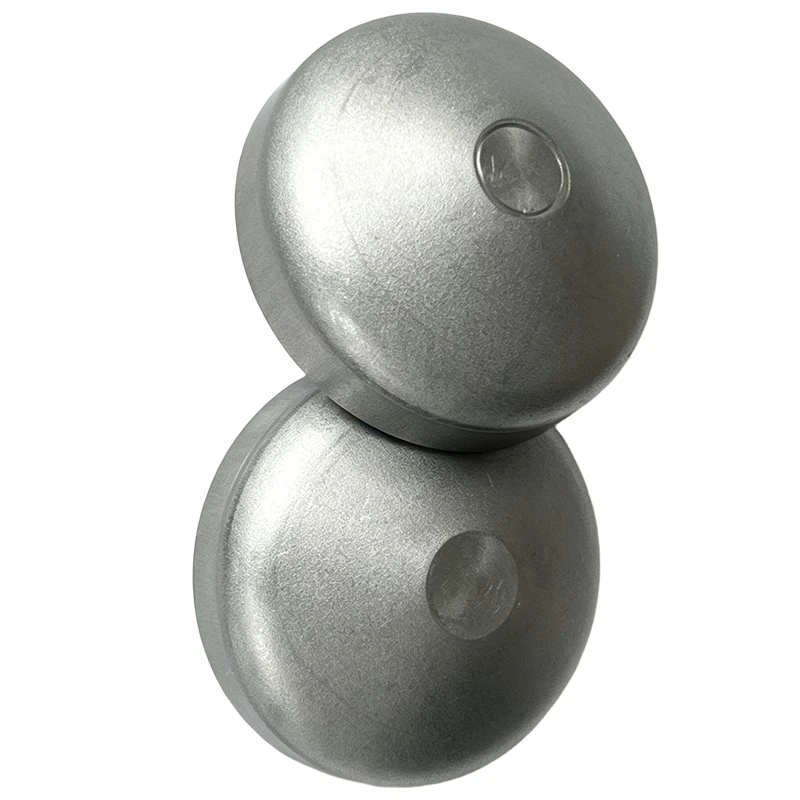

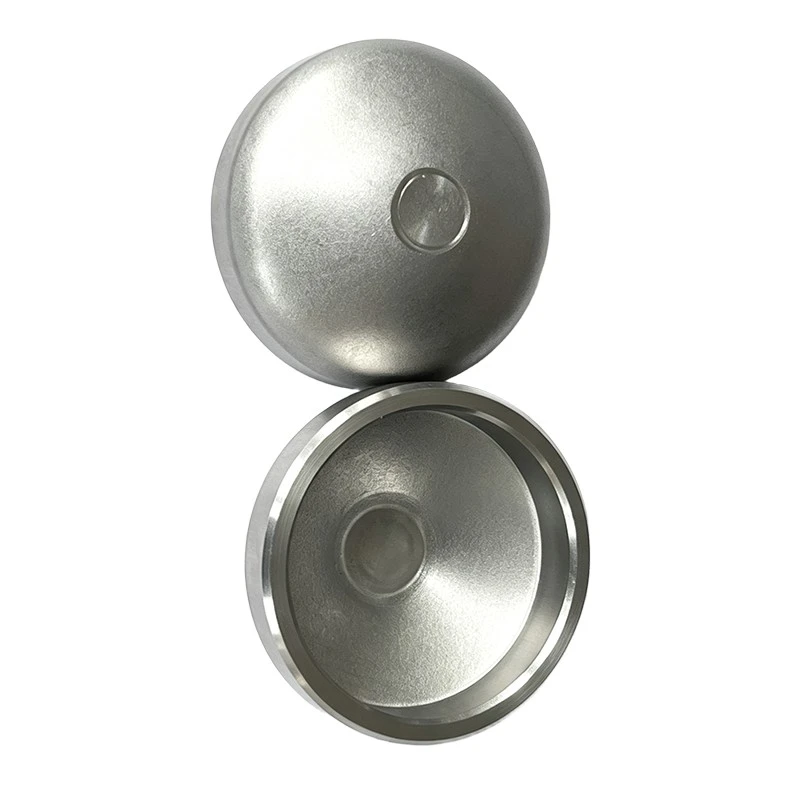

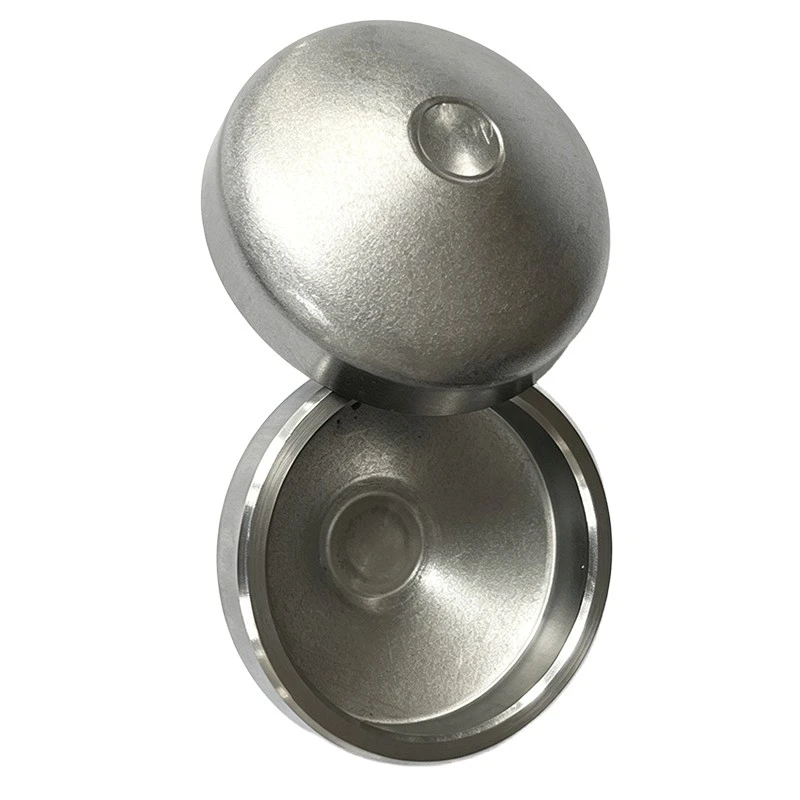

Anti-Vibration Welded End Cap

XIAYI Anti-vibration Welded End Cap is designed for applications requiring stable performance under continuous vibration and variable load conditions. Through high-toughness material selection, optimized welding structure, stress-controlled forming technology and strict quality management, XIAYI improves vibration fatigue resistance, connection reliability and long-term sealing stability for automotive and industrial shock absorber systems.

Vibration Failure Challenges

Shock absorber end caps operate under repeated vibration from uneven roads, vehicle acceleration, braking and heavy-load working conditions. These repeated forces create fatigue stress around forming areas and welded joints.

Common problems include weld loosening, micro leakage, structural deformation and abnormal chassis noise caused by vibration-induced dimensional changes. For vehicles and machinery with long operating hours, vibration resistance directly affects component reliability and maintenance frequency.

XIAYI focuses on improving vibration durability through optimized material toughness, welding control and manufacturing process stability.

Welded Structure Optimization

Stable Weld Connection

Welding areas are critical load transfer points in the shock absorber assembly. XIAYI optimizes welding preparation and joining processes to improve connection strength and reduce risks caused by vibration loosening.

The controlled welded structure maintains stable connection performance during repeated vibration cycles, helping prevent leakage and structural separation.

High Toughness Material Support

XIAYI uses specially optimized high-toughness carbon steel with tensile strength ≥480MPa, yield strength ≥350MPa and impact resistance ≥40J.

The refined material structure improves impact absorption capability and prevents brittle cracking or local deformation caused by repeated vibration loading.

Stress Controlled Forming

Instead of traditional one-step forming methods that may create concentrated internal stress, XIAYI applies multi-stage progressive forming technology to improve stress distribution.

The controlled forming process reduces residual stress, improves structural uniformity and enhances long-cycle vibration stability.

Precision Matching Control

Accurate Assembly Interface

The end cap requires precise matching with shock absorber tubes and related components. XIAYI controls key dimensions including inner diameter ±0.1mm, outer diameter ±0.12mm, flatness ≤0.03mm and coaxiality ≤0.025mm.

The accurate structure reduces assembly stress, vibration eccentric wear and abnormal noise caused by poor component matching.

Mirror Weld Surface Treatment

XIAYI applies CNC precision turning and surface polishing technology to improve welding surface quality. The surface roughness reaches Ra≤0.6μm with burr-free finishing.

The optimized surface condition improves welding consistency and reduces leakage risks caused by uneven contact surfaces.

Durability Verification

High Cycle Vibration Test

XIAYI verifies long-term vibration performance through durability simulation. The product maintains stable structure after 1 million high-frequency vibration cycles without cracking, bulging or leakage failure.

Batch Quality Stability

All finished products undergo air tightness testing and professional inspection procedures. Batch stability reaches CPK≥1.67, ensuring consistent vibration performance for mass production requirements.

Manufacturing Risk Control

XIAYI applies PFMEA failure mode analysis throughout the manufacturing process, covering blanking, forming, welding preparation, surface coating, inspection and packaging.

Potential risks including burr defects, forming wrinkles, welding porosity, end face deformation and coating defects are identified and controlled before delivery.

Real Industry Application Cases

Urban New Energy Vehicle Application

Urban electric vehicles experience frequent start-stop cycles and continuous vibration from uneven roads, creating long-term fatigue loads on shock absorber components.

A domestic new energy vehicle OEM adopted XIAYI Anti-vibration Welded End Caps in batches. After three years of real vehicle operation, the products maintained stable structure without vibration deformation, weld leakage or chassis noise failure. Shock absorber vibration-related faults were reduced by 94%.

Commercial Vehicle Long-Distance Operation

Commercial vehicles operating under full-load conditions experience continuous impact vibration and variable pressure loads.

A professional commercial vehicle supplier replaced conventional end caps with XIAYI anti-vibration solutions. After two years of road tracking, the components maintained structural stability with zero fatigue damage and zero oil leakage, reducing annual suspension component maintenance costs by 88%.

Construction Machinery Vibration Application

Excavators, loaders and other engineering machinery operate under strong vibration, impact loads and outdoor conditions.

A construction machinery manufacturer selected XIAYI Anti-vibration Welded End Caps for shock absorber systems. Long-term field operation verified stable performance under severe vibration environments, supporting continuous equipment operation.

Application Range

XIAYI Anti-vibration Welded End Cap is suitable for passenger vehicles, SUVs, new energy vehicles, light and heavy commercial vehicles, urban operating vehicles and construction machinery requiring reliable vibration resistance.

XIAYI supports OEM and ODM customization according to vibration frequency, load conditions and application requirements, including material adjustment, welding structure optimization and surface protection solutions.

Product Comparison

FAQ

Why does vibration resistance matter for shock absorber end caps?

The end cap continuously experiences vibration and alternating loads during vehicle operation. Poor fatigue resistance may cause cracks, deformation and leakage. XIAYI improves durability through high-toughness materials and optimized manufacturing processes.

How does XIAYI prevent welding failure?

XIAYI controls welding preparation, surface finishing and production parameters to improve connection reliability and reduce risks caused by vibration loosening.

Can XIAYI customize end caps for high vibration environments?

Yes. XIAYI provides customized solutions according to vibration frequency, load intensity and equipment requirements, including material selection, structure optimization and process adjustment.

Vibration Reliability Assurance

For shock absorber components, long-term vibration performance is a key factor affecting vehicle safety, comfort and maintenance costs. XIAYI focuses on vibration reliability verification throughout product development and mass production to ensure stable performance under continuous impact and alternating loads.

XIAYI Anti-vibration Welded End Cap undergoes comprehensive validation including material performance analysis, welding quality inspection, dimensional verification and high-frequency vibration simulation. These procedures help identify potential fatigue risks before mass production and ensure consistent product reliability.

Engineering Verification Before Production

Before mass production, XIAYI evaluates product structure, welding areas and stress distribution through process analysis and performance verification. Potential risks such as weld fatigue, deformation and sealing failure are identified and optimized during the development stage.

Stable Performance in Long-Cycle Operation

The product is designed to maintain structural integrity under repeated vibration, impact loads and changing pressure conditions. Through 1 million-cycle vibration durability verification, XIAYI ensures stable operation without cracking, bulging or leakage problems.

Consistent Quality for Batch Supply

XIAYI applies standardized inspection procedures and production monitoring to maintain consistent anti-vibration performance between batches. With CPK≥1.67 process stability control and IATF 16949:2016 compliant quality management, XIAYI supports reliable long-term supply for automotive and industrial customers.
