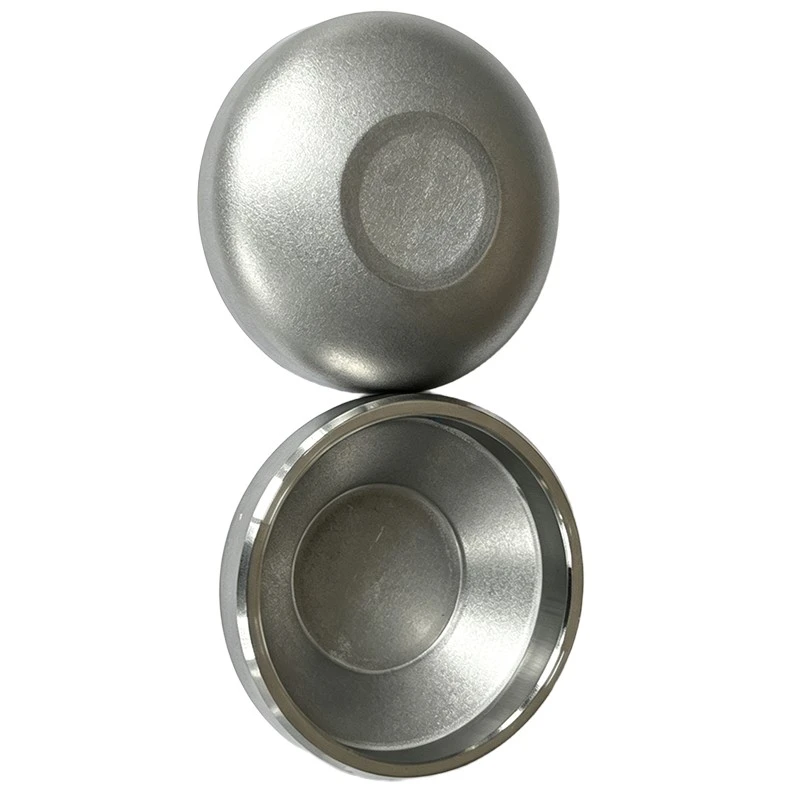

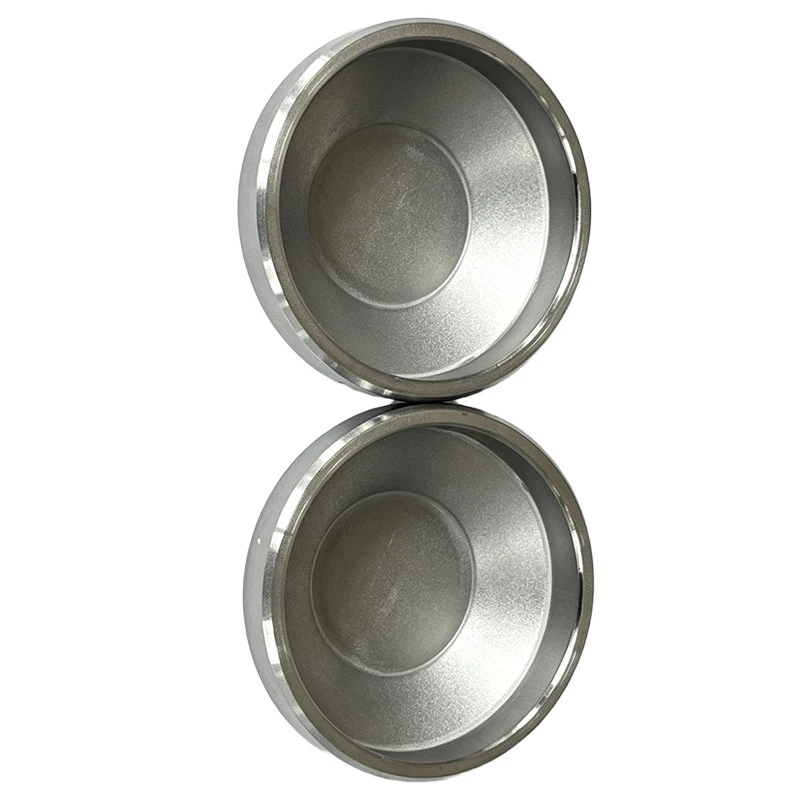

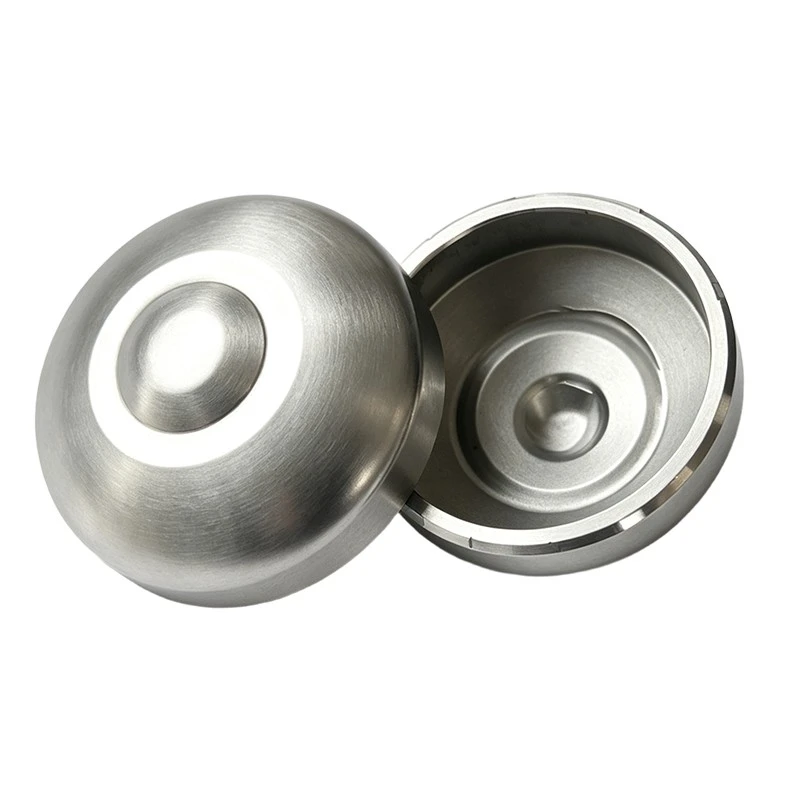

High Strength Steel End Cap

XIAYI High Strength Steel End Cap is designed for applications requiring higher structural stability and long service life. By using customized high-strength steel materials, multi-stage precision forming technology and strict dimensional control, XIAYI improves deformation resistance, pressure-bearing capability and long-cycle reliability for passenger vehicles, commercial vehicles and heavy-duty applications.

Structural Deformation Problems

Shock absorber end caps work under repeated hydraulic pressure, road vibration and axial impact. If the material strength or forming accuracy is insufficient, the component may experience permanent deformation, seal displacement and pressure loss.

Common failure risks include local bulging, dimensional changes, welding cracks and internal stress release after long-term operation. These problems may reduce shock absorber efficiency and increase vehicle maintenance requirements.

XIAYI focuses on improving structural stability through high-strength material selection and optimized forming processes.

Material Strength Design

High Strength Steel Selection

XIAYI selects suitable high-strength steel grades according to different application requirements. Materials such as SPH440, 42CrMo, 22MnB5 and Q355NH can be applied for passenger vehicles, heavy-duty applications, off-road conditions and corrosive environments.

All raw materials undergo strict inspection with thickness tolerance controlled within ±0.05mm, helping prevent structural weakness caused by inconsistent material properties.

Reinforced Load Bearing Structure

The optimized structure improves resistance against deformation under continuous pressure and vibration. Compared with conventional low-strength end caps, XIAYI designs the product to maintain stable dimensions during long-cycle operation.

Stress Control After Forming

XIAYI applies controlled forming and stress relief processes to reduce residual stress generated during manufacturing. This helps improve structural stability and prevent deformation during vehicle operation.

Precision Manufacturing Process

Multi-Stage Forming Technology

XIAYI uses multi-stage deep drawing technology to achieve uniform material flow and stable wall thickness. The wall thickness difference is controlled within ≤0.03mm, reducing stress concentration and local deformation risks.

Edge Reinforcement Treatment

The edge area is optimized through precision finishing processes to improve welding matching and connection reliability. The controlled edge structure helps reduce cracking risks caused by vibration and repeated loading.

Performance Testing

Pressure Resistance Verification

XIAYI performs pressure-related testing to verify structural reliability under demanding working conditions. The product is designed to maintain stable performance under high pressure and repeated impact environments.

Long Cycle Durability Test

Through durability simulation and vibration verification, XIAYI evaluates deformation resistance and structural stability during long-term operation. The product achieves stable performance in extended cycle testing.

Application Cases

New Energy Vehicle Application

A domestic new energy vehicle manufacturer required shock absorber components with improved structural stability and reduced after-sales failure risks.

After adopting XIAYI High Strength Steel End Cap, the products maintained stable dimensions through high-strength material matching and precision forming technology. The solution improved shock absorber durability during long-term vehicle operation.

Heavy Duty Vehicle Application

Commercial vehicles operating under heavy loads require end caps with strong deformation resistance and reliable pressure support.

XIAYI provides customized material solutions and structural optimization according to vehicle load conditions, helping improve suspension system reliability.

Construction Machinery Application

Construction machinery faces strong vibration, impact loads and complex outdoor environments. XIAYI High Strength Steel End Cap provides stable structural support for shock absorber systems used in demanding applications.

Application Range

XIAYI High Strength Steel End Cap is widely used in passenger cars, SUVs, new energy vehicles, commercial vehicles, off-road vehicles and construction machinery requiring high structural stability.

XIAYI supports OEM and ODM customization according to customer requirements, including material grade selection, structural dimensions, thickness specifications and performance requirements.

Product Comparison

FAQ

Why choose high strength steel for end caps?

High strength steel provides better resistance against deformation and structural damage under repeated pressure and vibration. XIAYI selects suitable materials according to different application conditions.

How does XIAYI reduce end cap deformation problems?

XIAYI combines high-strength materials, multi-stage forming technology and precision inspection to improve dimensional stability and reduce deformation risks during long-term operation.

Can XIAYI customize different steel grades?

Yes. XIAYI provides customized solutions based on vehicle type, load requirements and operating environments.

XIAYI Manufacturing Capability

Founded in 2006, XIAYI specializes in the development and production of shock absorber components. The company operates a standardized manufacturing facility equipped with advanced forming equipment and professional testing systems.

With an IATF 16949:2016 compliant quality management system, XIAYI applies full-process quality control covering material inspection, production monitoring and finished product testing. With global export experience, XIAYI provides reliable shock absorber component solutions for customers worldwide.
