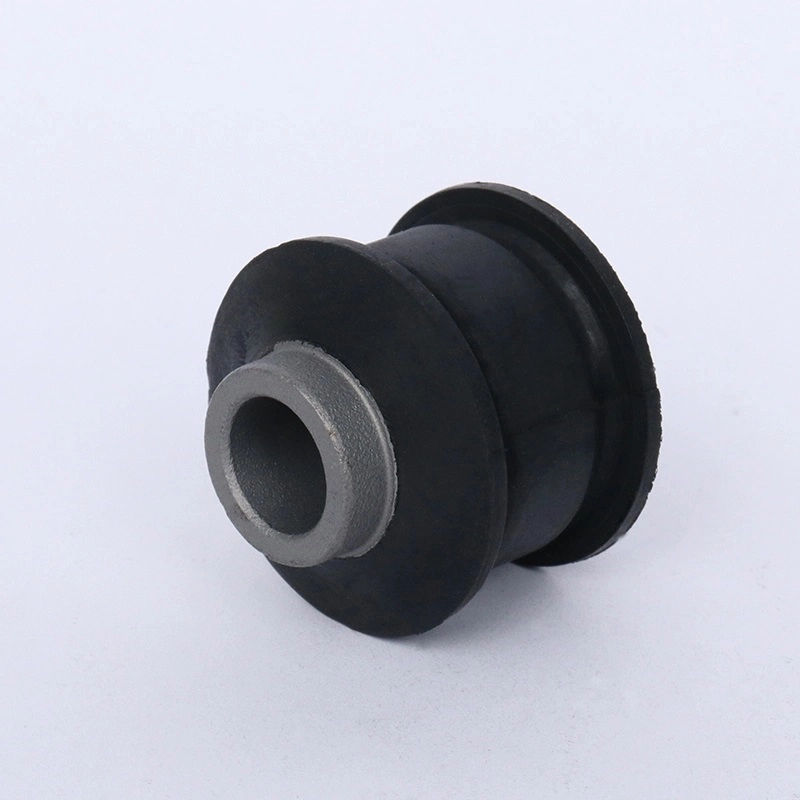

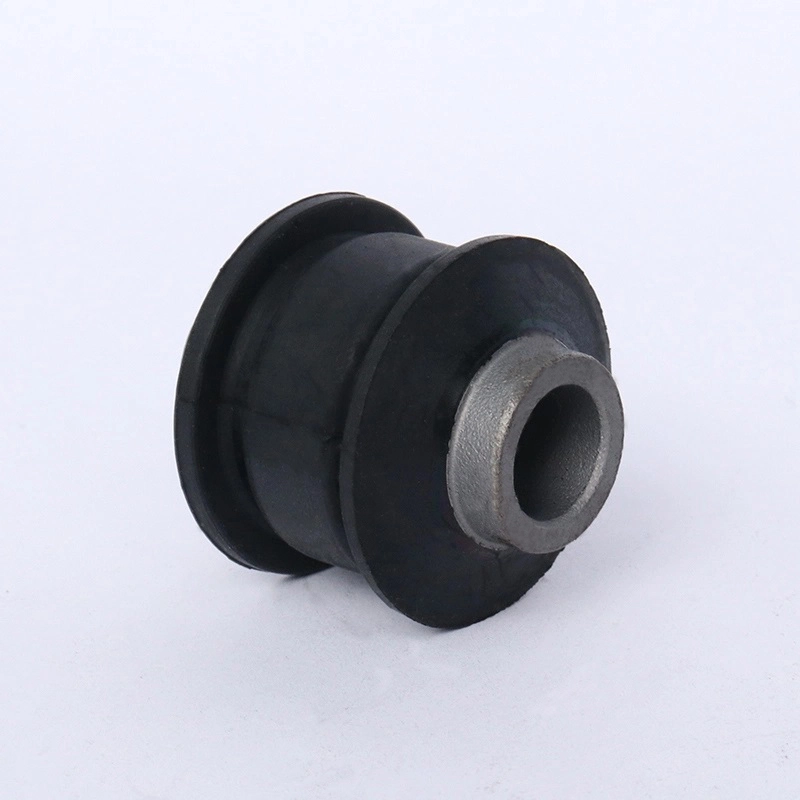

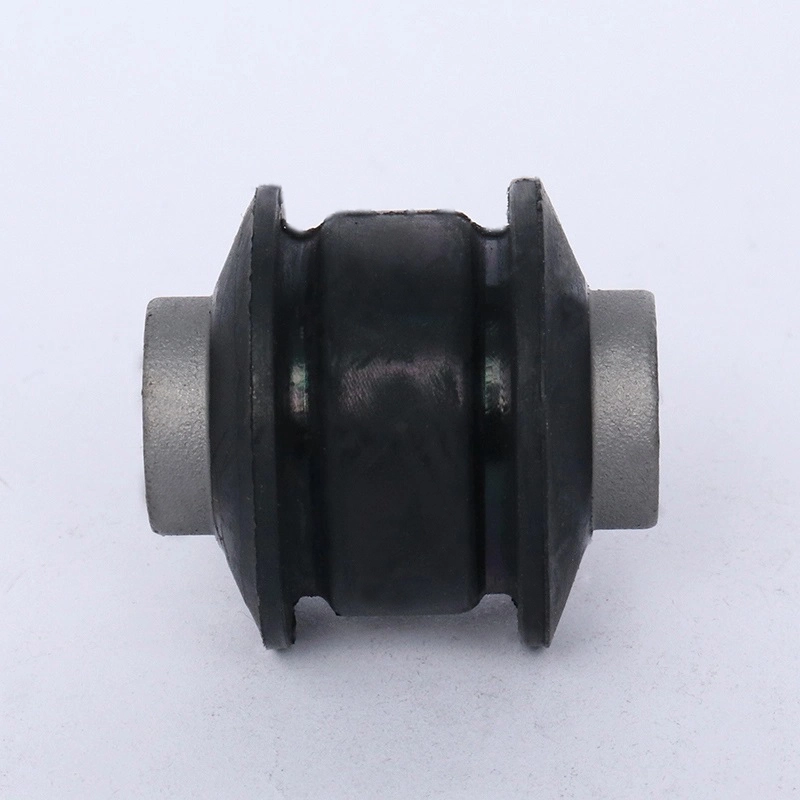

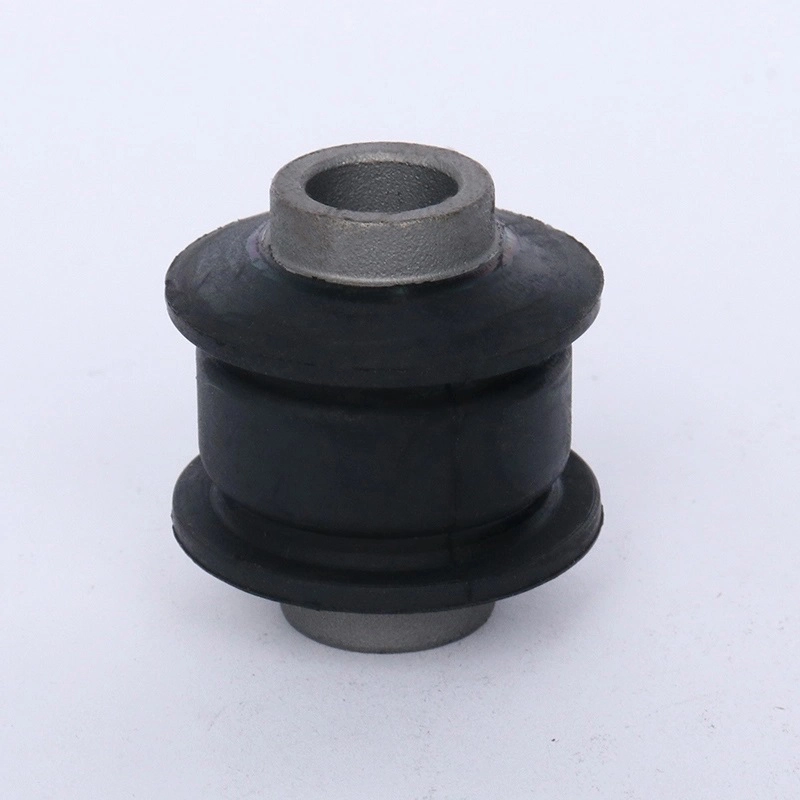

Vulcanized Bonded Metal-Rubber Bushing

A metal-rubber bushing must do more than absorb vibration. During actual vehicle operation, it continuously experiences compression, torsion, impact and temperature changes. If the rubber compound is inconsistent or the bonding interface is weak, the bushing may gradually lose elasticity, generate abnormal chassis noise or separate from the metal sleeve.

XIAYI approaches the Precisely Vulcanized Bonded Metal-Rubber Bushing from the perspective of dynamic vibration behavior. The rubber formulation, metal surface preparation, mold structure and vulcanization parameters are coordinated to create a stable bonded interface and predictable elastic response. This allows the bushing to absorb vibration while maintaining the positioning function of the suspension assembly.

For OEM buyers, this approach helps reduce variations between batches and provides more consistent performance during vehicle assembly and road operation.

Designed for Dynamic Load and NVH Control

The Precisely Vulcanized Bonded Metal-Rubber Bushing uses a controlled elastic rubber formulation to balance flexibility and structural support. This is important because excessive softness can cause deformation and delayed rebound, while excessive hardness may transmit more road vibration into the chassis.

During vulcanization, temperature, pressure and time are controlled through programmed equipment to promote consistent rubber cross-linking. The resulting structure provides stable compression and rebound behavior, helping reduce vibration transmission and unwanted suspension noise.

The metal substrate is also professionally treated before bonding to improve adhesive compatibility. This reduces the risk of interface separation when the bushing experiences repeated torsional and radial loads.

Reliable Metal-Rubber Interface

For bonded bushings, the interface between rubber and metal is often more important than rubber hardness alone. Poor surface preparation or insufficient bonding can create microscopic separation that gradually develops under repeated loading.

XIAYI therefore controls metal cleaning, surface treatment, adhesive application, molding and vulcanization as a connected process. This creates a more stable transition between the metal sleeve and elastic rubber layer.

The design is particularly useful in suspension locations exposed to frequent vibration, road impacts and alternating loads, where bonding stability directly affects the service life of the assembly.

Controlled Elastic Recovery

Permanent deformation is a common concern when rubber bushings remain under compression for extended periods. A high compression set can gradually change the original installation position and increase clearance within the suspension system.

XIAYI uses an optimized EPDM-based formulation and controlled vulcanization conditions to maintain elastic recovery after repeated compression. The compression set is controlled at ≤10%, while fatigue verification is conducted to evaluate long-term deformation and elasticity retention.

This helps maintain stable suspension geometry and reduce the risk of looseness, vibration and abnormal contact during extended operation.

Production and Quality Control

XIAYI integrates material preparation, molding, vulcanization, finishing and inspection into a controlled production workflow. Rather than relying on final inspection alone, key parameters are monitored throughout production to reduce process-related variation.

The production process includes accurate rubber compound preparation, internal mixing, precision molding, programmed vulcanization, deburring, dimensional inspection and durability verification. Finished components are also checked for hardness, compression behavior, surface condition and fatigue performance before shipment.

This process is supported by XIAYI's IATF 16949:2016 quality management system, providing a traceable manufacturing framework for automotive component buyers.

Core Process Control Standard

Critical Dimension and Performance Data

Where It Solves Common Suspension Problems

Real Application Case

A domestic new energy vehicle shock absorber manufacturer had long experienced unstable quality with conventional metal-rubber bushings. Random vulcanization processes and inconsistent formula ratios resulted in different hardness and elasticity between batches. During actual vehicle operation, chassis abnormal noise, rubber aging and slight shock absorber oil leakage frequently appeared after 4--6 months, with the after-sales failure rate reaching 2.8%.

After replacing the conventional components with Precisely Vulcanized Bonded Metal-Rubber Bushing supplied by XIAYI, the manufacturer optimized its rubber formulation and vulcanization parameters together with the bushing structure. The improved bonding stability and elastic consistency significantly reduced vibration-related failures. After vehicle road testing, the after-sales failure rate decreased to 0.07%, while assembly yield increased from 96.2% to 99.8%. The average service life of shock absorber components increased by 2.6 times. XIAYI subsequently became its long-term fixed supplier for new energy vehicle shock absorber bushing accessories.

Product FAQ

What makes this bushing different from conventional bonded bushings?

The main difference is the integrated control of rubber formulation, metal surface preparation, bonding and vulcanization. Instead of relying mainly on final dimensional inspection, XIAYI focuses on maintaining stable elastic behavior and interface reliability throughout the manufacturing process.

How does the bushing help reduce vehicle noise?

The rubber layer absorbs part of the vibration generated by road impacts and suspension movement. Consistent rubber elasticity and controlled vulcanization help prevent excessive stiffness variation, deformation and loose bonding, which can otherwise contribute to chassis noise.

Can XIAYI customize the bushing for different suspension systems?

Yes. XIAYI can adjust rubber formulation, metal sleeve dimensions, bonding structure and molding parameters according to customer drawings, samples and application requirements. OEM and ODM development is available for automotive and engineering equipment applications.

XIAYI Manufacturing and Quality Assurance

XIAYI has nearly 20 years of experience in precision shock absorber components and operates a standardized modern factory equipped with automated production and testing equipment. Its quality management system complies with IATF 16949:2016, with controlled material inspection, process monitoring and finished-product verification.

By focusing on vibration isolation, bonding reliability and long-term elastic recovery, XIAYI provides metal-rubber component solutions for passenger vehicles, new energy vehicles, motorcycles and engineering machinery. Its products are supplied to customers in more than 30 countries and regions, supporting applications where consistent NVH performance and structural durability are essential.
