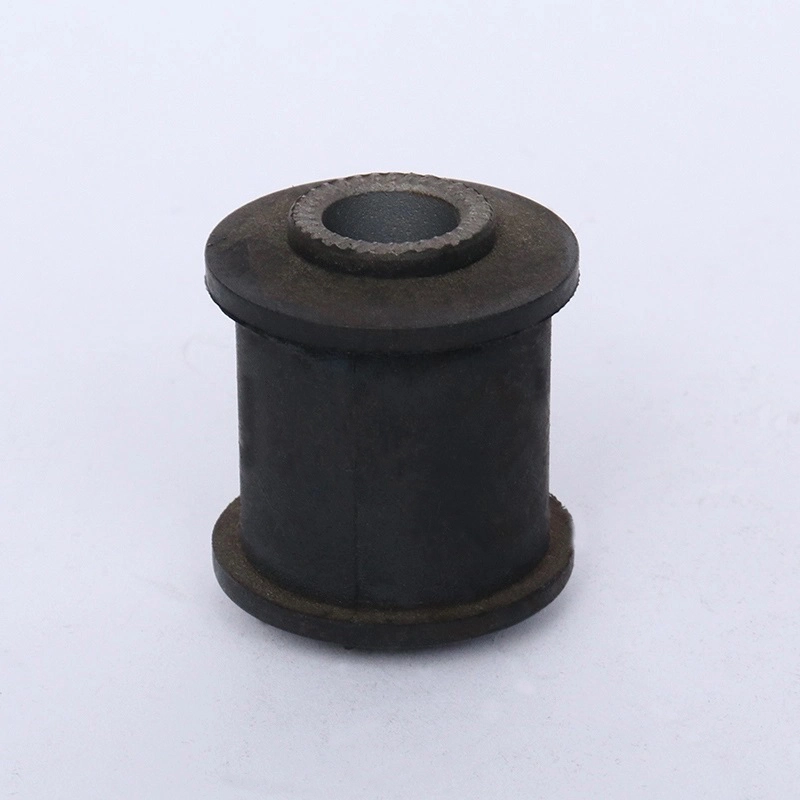

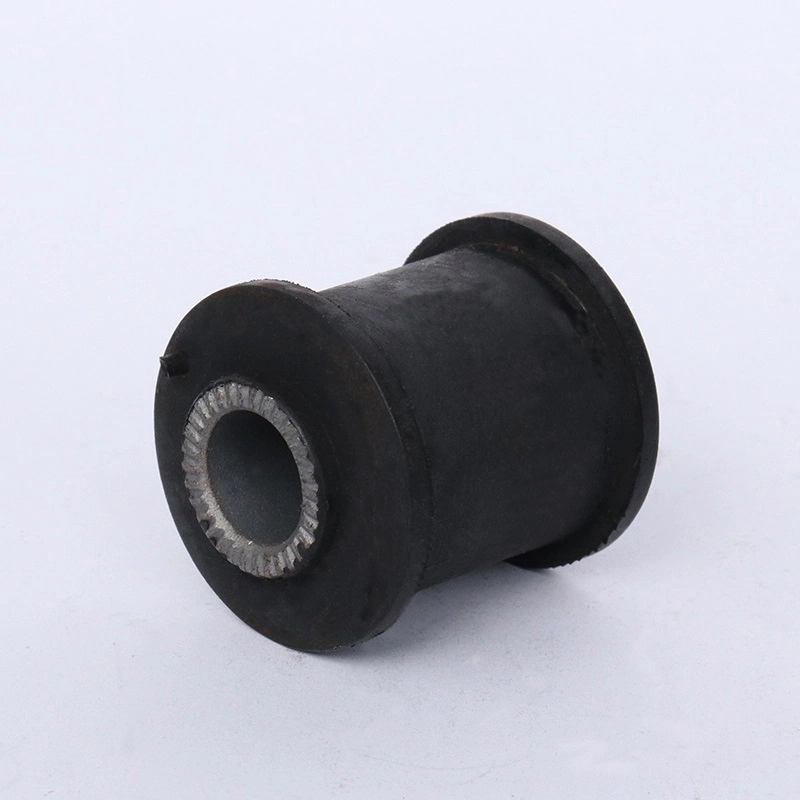

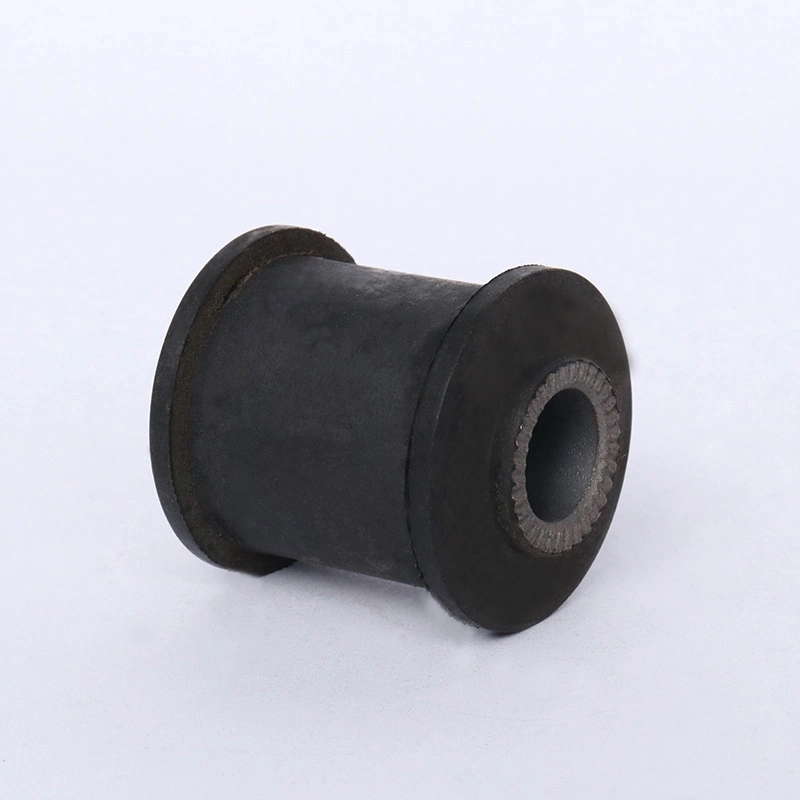

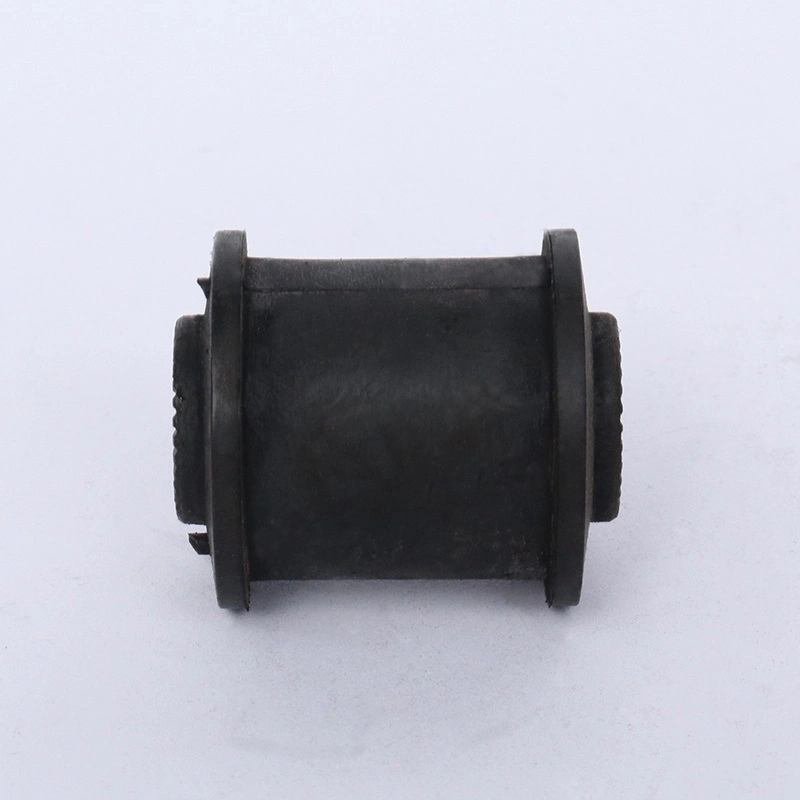

Low-Compression Modified NBR Rubber Bushing

NBR rubber is widely used in damping components because of its natural resistance to petroleum-based oils, wear and repeated mechanical loads. However, conventional NBR bushings may gradually lose elasticity when exposed to continuous compression, elevated temperatures and oil contamination. Permanent deformation can then lead to reduced vibration isolation, abnormal noise and shortened component life.

Low-Compression Modified NBR Rubber Bushing from XIAYI is developed specifically for these long-term load conditions. Instead of relying only on conventional NBR formulations, XIAYI uses a modified rubber compound with anti-compression and anti-aging additives, combined with controlled vulcanization to improve molecular stability. The result is lower compression set, better resistance to oil-induced aging and more stable elastic recovery during extended operation.

Low Compression Performance for Long-Term Loads

The main advantage of this Low-Compression Modified NBR Rubber Bushing is its ability to maintain shape and elasticity after prolonged compression. The modified rubber structure reduces permanent deformation and helps the bushing recover after repeated loading.

The compression set is controlled at ≤15% at 72h/100°C, helping prevent collapse, excessive clearance and gradual loss of damping performance. This makes it suitable for components exposed to continuous vibration, static compression and frequent load changes.

Compared with conventional NBR formulations, the modified material provides more stable elastic recovery over the service cycle, helping reduce the need for premature bushing replacement.

Oil and Temperature Resistance

Oil exposure can accelerate swelling, hardening and cracking in unsuitable rubber compounds. XIAYI optimizes the acrylonitrile balance and incorporates anti-aging components to improve resistance to petroleum-based fluids.

The material supports an operating temperature range of approximately -30°C to 120°C and is designed for applications involving engine oil, hydraulic oil and other oil-contact environments. This makes it particularly useful for shock absorbers and machinery components operating under combined heat, vibration and oil exposure.

Modified Material for Improved Fatigue Life

The material modification focuses on maintaining rubber elasticity rather than simply increasing hardness. A more stable internal structure allows the bushing to absorb repeated vibration while reducing excessive deformation.

After up to 1.2 million fatigue cycles, the material is designed to maintain stable damping characteristics. The combination of improved fatigue resistance and low compression set can help extend component replacement intervals and reduce maintenance requirements.

Metal-Rubber Bonding and Assembly Stability

For bonded versions, the rubber element is combined with a metal framework through surface pretreatment and controlled bonding. This integrated structure helps resist separation and displacement under alternating loads.

Precision molding also maintains consistent dimensions, with typical inner and outer diameter tolerances controlled around ±0.05 mm, depending on the application. This supports reliable installation and helps prevent excessive clearance, uneven loading and abnormal vibration.

Material Performance Comparison

Performance depends on application conditions, rubber formulation and actual operating environment.

Core Performance Parameters

Solutions for Harsh Working Conditions

Real Application Case

A professional engineering machinery shock absorber manufacturer had experienced unstable performance from conventional NBR bushings. Its equipment operated under high temperature, dust and hydraulic oil exposure, and the bushings gradually developed permanent deformation and elasticity loss after several months of high-load operation. The resulting vibration isolation deterioration and abnormal noise contributed to an after-sales maintenance rate of 3.2%.

After replacing the conventional components with Low-Compression Modified NBR Rubber Bushing from XIAYI, the customer achieved significantly better performance under the same operating conditions. The modified NBR formulation and controlled vulcanization process reduced permanent deformation while improving resistance to high-temperature oil exposure.

Following 1.2 million fatigue cycles and 120-hour high-temperature oil immersion testing, no obvious deformation, swelling or aging cracks were observed. After equipment operation verification, the customer's after-sales failure rate decreased to 0.06%, while component service life increased by approximately 2.8 times. XIAYI subsequently became a long-term supplier of rubber bushing components for the customer's engineering machinery shock absorber systems.

Product FAQ

What is the difference between modified NBR and ordinary NBR?

Conventional NBR provides good basic oil resistance, but its compression set and aging resistance may become limiting factors under continuous load and elevated temperatures. XIAYI modifies the NBR formulation with anti-compression and anti-aging components to improve elastic recovery and long-term dimensional stability.

What working conditions is this product suitable for?

The Low-Compression Modified NBR Rubber Bushing is designed for applications involving oil exposure, repeated compression, vibration and elevated temperatures. Typical applications include engineering machinery shock absorbers, commercial vehicle suspension components, automotive damping systems and hydraulic equipment vibration isolation.

How does the modified material improve service life?

The modified formulation helps maintain the stability of the rubber molecular structure during repeated loading. Combined with controlled vulcanization, it reduces permanent deformation and elasticity loss, allowing the bushing to maintain its damping function for a longer period.

Brand Strength and Product Guarantee

XIAYI has nearly 20 years of experience in precision shock absorber and damping component manufacturing. Its standardized 5,000-square-meter modern factory is equipped with automated production and testing equipment for rubber and metal-rubber components.

The company operates under an IATF 16949:2016 quality management system and applies controlled procedures covering raw material inspection, formulation, molding, vulcanization, dimensional inspection and performance verification. XIAYI focuses on material modification and application-specific damping solutions, supplying automotive and engineering machinery customers in more than 30 countries and regions.

For projects requiring specific hardness, dimensions, rubber formulation or bonding structures, OEM and ODM customization can be developed according to customer drawings, samples and operating conditions.
