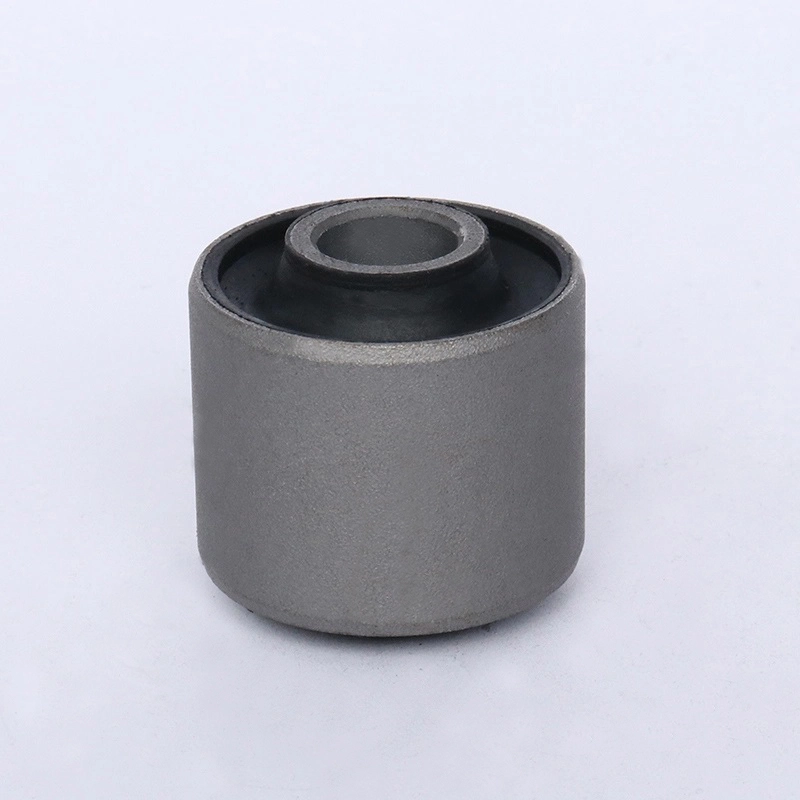

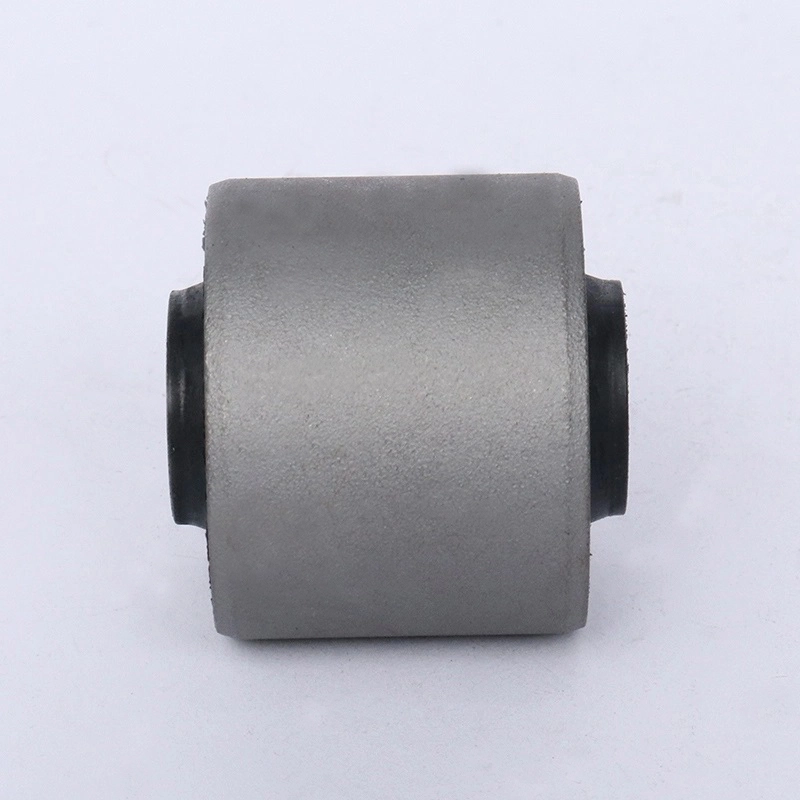

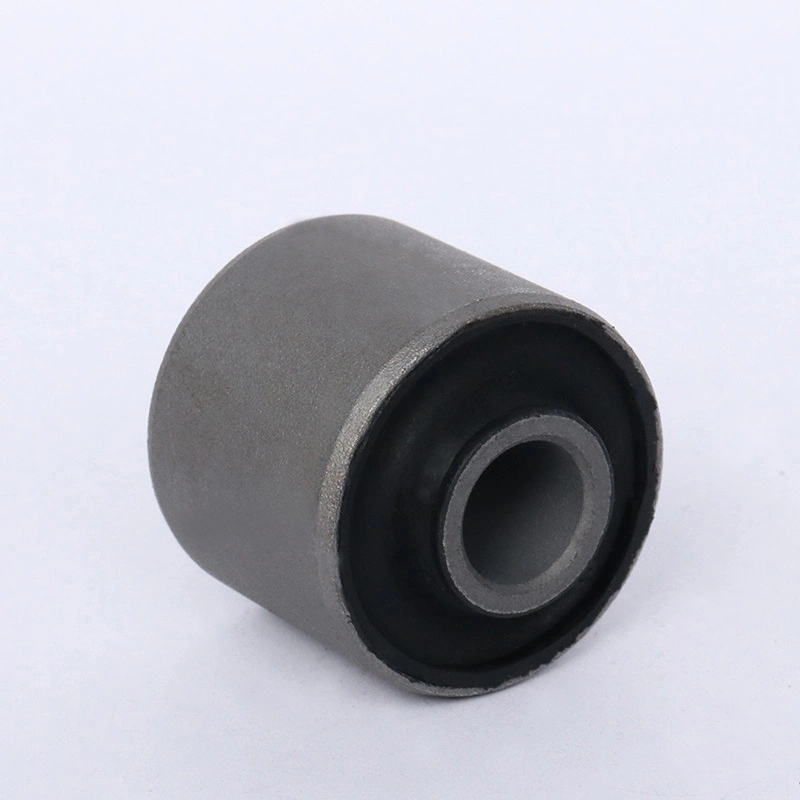

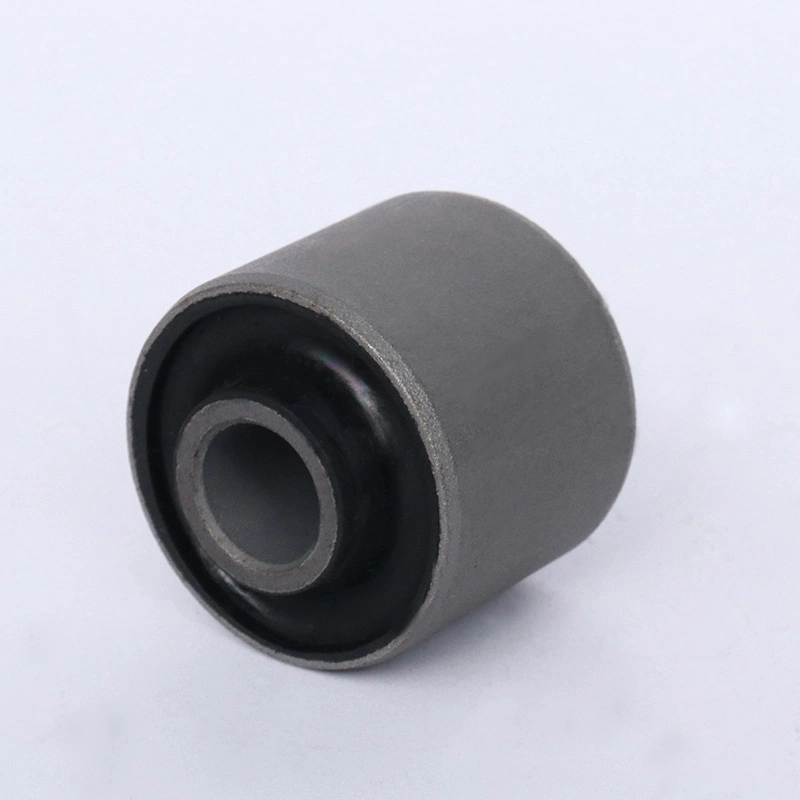

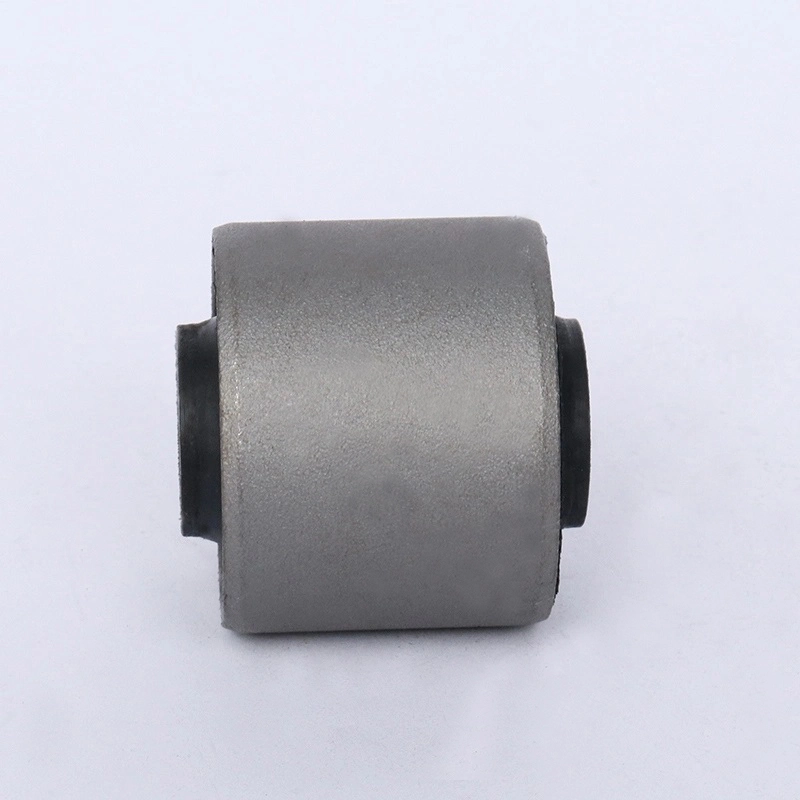

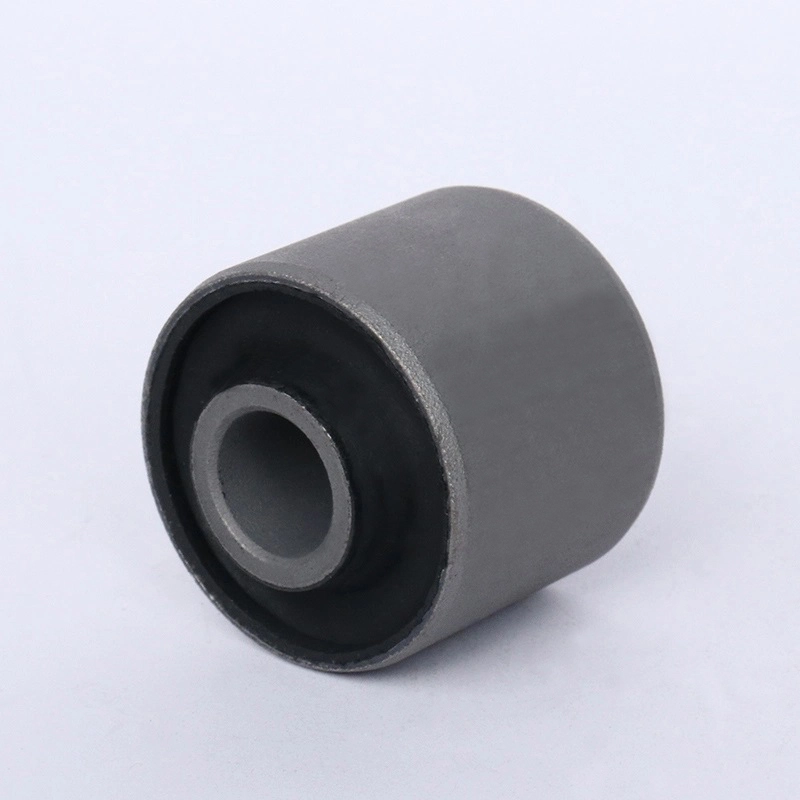

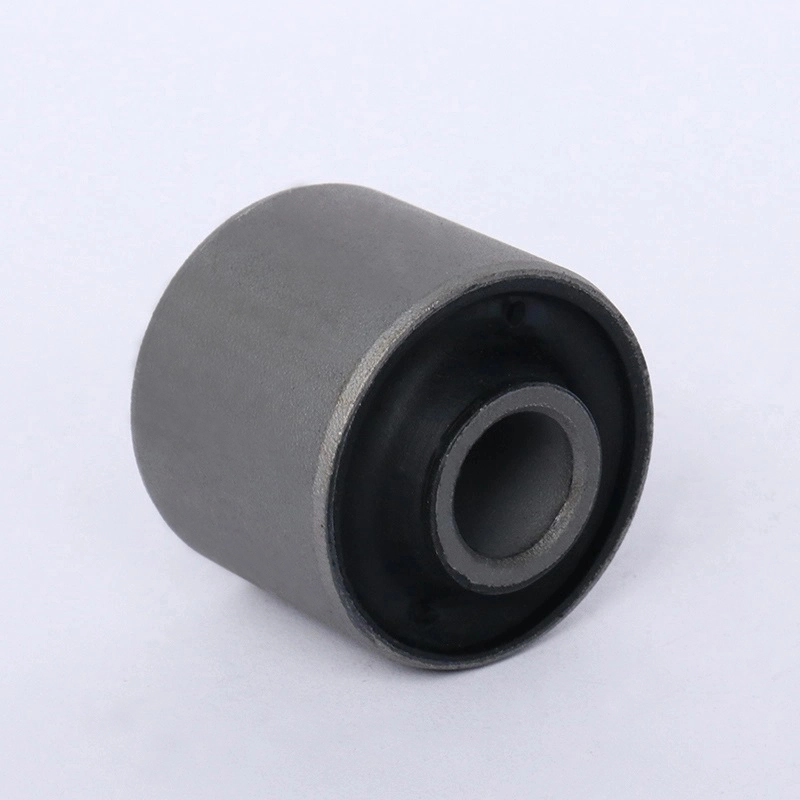

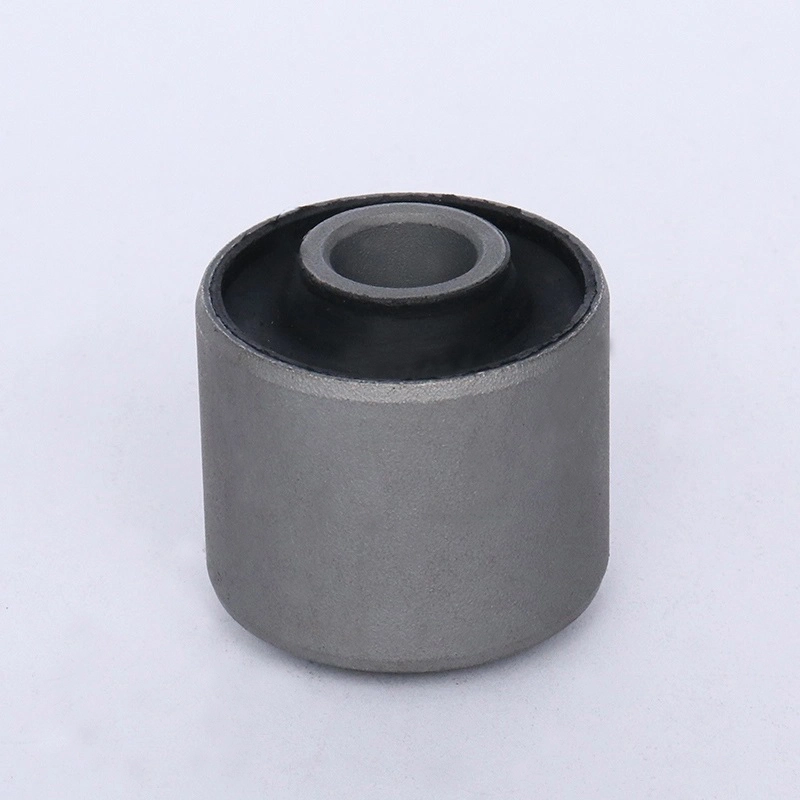

Uniform Rubber Layer Concentric Molding Bushing

In bonded rubber bushings, geometric consistency directly affects how loads are transferred between the rubber element and metal core. Uneven rubber thickness can create localized deformation, eccentric movement and inconsistent damping behavior during repeated vibration.

The Uniform Rubber Layer Concentric Molding Bushing from XIAYI is developed around structural symmetry rather than simply increasing material hardness or changing the rubber formula. Through symmetrical mold positioning and integrated concentric molding, the rubber is distributed evenly around the metal core, creating a more balanced 360° structure.

360° Uniform Rubber Layer for Balanced Loading

Consistent Thickness Around the Metal Core

The molding process controls rubber distribution around the complete circumference, with typical rubber layer thickness deviation maintained within 0.05 mm. This reduces differences in local deformation and helps the bushing respond more consistently when subjected to radial and alternating loads.

Balanced Stress Distribution

A Uniform Rubber Layer Concentric Molding Bushing reduces localized stress concentration during compression. Instead of allowing one section to carry excessive deformation, the load is distributed more evenly throughout the rubber element, helping reduce premature wear and fatigue in demanding suspension applications.

Concentric Structure for Better NVH Performance

Improved Coaxial Accuracy

The metal core and rubber body are positioned through a symmetrical integrated molding process. Overall concentricity can be controlled to ≤0.05 mm, helping minimize eccentric movement after installation.

Reduced Vibration and Chassis Noise

Poor concentricity can create uneven movement and secondary vibration during repeated suspension operation. The concentric structure helps maintain smoother movement, reducing vibration-related noise and supporting more consistent NVH performance in passenger vehicles and new energy vehicles.

Consistent Assembly Across Production Batches

Stable Dimensional Performance

Dimensional consistency is controlled through precision molds and finished-product inspection. Typical inner and outer diameter tolerance is maintained at approximately ±0.05 mm, according to the customer's drawing and application requirements.

This allows manufacturers to maintain more predictable installation conditions across different production batches.

Reduced Assembly Variation

Consistent geometry helps reduce installation adjustment, rework and variation between individual suspension components. For OEM production lines, this can contribute to more stable assembly efficiency and more consistent vehicle damping characteristics.

Durability Under Repeated Vibration

Reduced Local Fatigue

Uneven rubber thickness can cause thinner sections to deform more heavily than surrounding areas. Over time, this may accelerate fatigue and aging. The uniform structure of XIAYI products helps distribute repeated deformation more evenly and reduce localized fatigue.

Long-Term Elastic Stability

Combined with an OE-matched rubber compound and controlled vulcanization process, the product achieves a compression set of ≤8% and is designed for up to 1.2 million vibration fatigue cycles. These characteristics help maintain structural stability during long-term operation.

Core Precision and Performance Parameters

Concentric Molding Compared with Conventional Molding

Solutions for Common Bushing Problems

Real Application Case

A domestic new energy passenger vehicle parts supporting enterprise had experienced repeated quality complaints with conventional shock absorber rubber bushings. The open-molded components showed uneven rubber layer thickness and poor concentricity. After installation, some vehicles developed eccentric vibration and noticeable chassis noise on rough roads. Batch variation also caused differences in left and right suspension damping feel, with the after-sales complaint rate reaching 2.6%.

After switching to the Uniform Rubber Layer Concentric Molding Bushing from XIAYI, the customer achieved more consistent rubber distribution and concentricity through symmetrical integrated molding and controlled vulcanization. Real-vehicle road testing and fatigue verification showed stable operation without obvious eccentric wear.

The assembly yield increased from 95.8% to 99.7%, while noise and vibration-related failures decreased to 0.05%. The comprehensive service life of the shock absorber components increased by approximately 2.7 times. XIAYI subsequently became a core component supplier for the customer's new energy vehicle suspension applications.

Product FAQ

Why is rubber layer uniformity important for a bonded bushing?

An uneven rubber layer can cause different areas of the bushing to deform at different rates. This creates local stress concentration and may lead to uneven wear, vibration or premature fatigue. A uniform layer distributes deformation more evenly and provides more predictable damping performance.

How does concentric molding reduce vibration and noise?

Concentric molding keeps the rubber layer and metal core aligned more accurately. This reduces eccentric movement during compression and repeated vibration, helping the suspension component operate more smoothly and reducing vibration-related noise.

Is this Uniform Rubber Layer Concentric Molding Bushing suitable for customized OEM applications?

Yes. XIAYI can customize rubber hardness, dimensions, rubber formulation, metal structure and molding parameters according to customer drawings, samples and application requirements. This makes the component suitable for passenger vehicles, new energy vehicles, commercial vehicles and engineering machinery.

Brand Strength and Product Guarantee

XIAYI has nearly 20 years of experience in precision shock absorber and damping component manufacturing. Its standardized 5,000-square-meter modern factory is equipped with precision molding, vulcanization and inspection equipment.

The company operates under an IATF 16949:2016-compliant quality management system, with quality controls covering raw materials, molding, vulcanization, dimensional inspection and finished-product verification. By focusing on concentric molding and structural consistency, XIAYI provides OEM customers with stable, repeatable and application-specific rubber-metal damping components.

The company's products are supplied to customers in more than 30 countries and regions, supporting automotive, new energy vehicle and engineering machinery applications.
