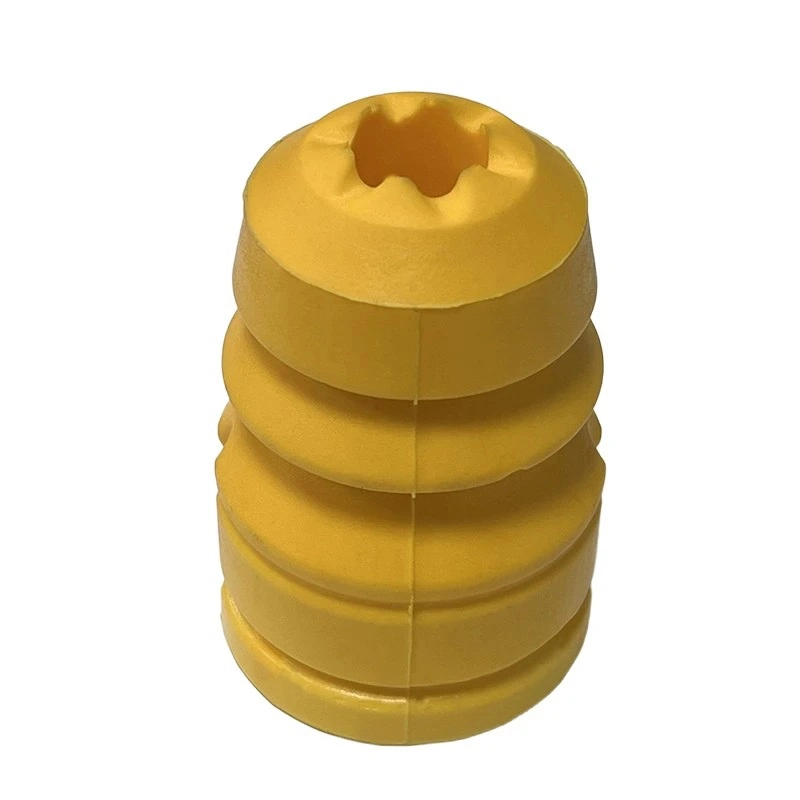

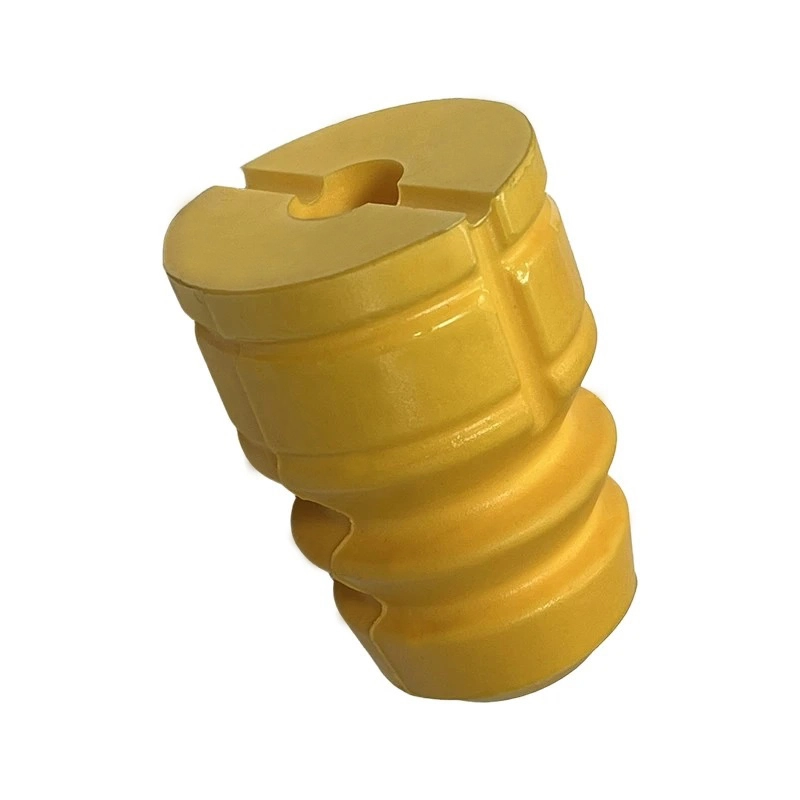

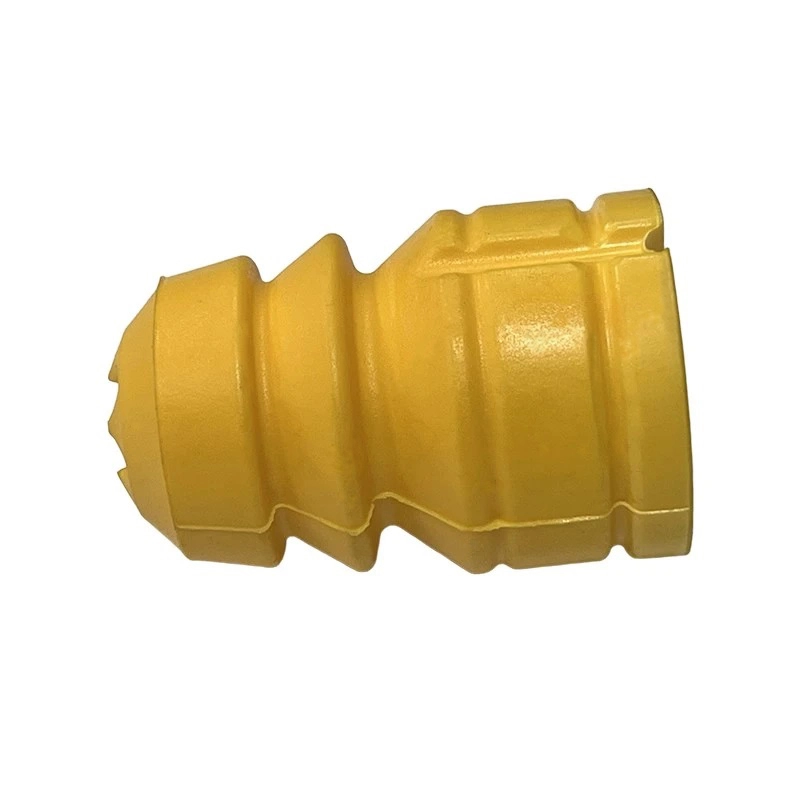

Uniform Density Precision Injection Molded Stop

XIAYI developed the Uniform Density Precision Injection Molded Stop with a focus on repeatable fitment and predictable suspension response. Instead of emphasizing complex structural layering, the product uses a precision injection-molded body with controlled material distribution, allowing the complete component to maintain a more consistent density and mechanical response.

This approach is particularly valuable for customers purchasing suspension components in volume. When products from different batches maintain similar dimensions and compression characteristics, vehicle assembly becomes more predictable and the risk of field complaints caused by inconsistent replacement parts can be reduced.

Consistent Dimensions for Easier Vehicle Matching

Inner Diameter and Shock Absorber Fit

The inner diameter determines how the component interacts with the shock absorber rod. Excessive clearance may allow unwanted movement, while an undersized opening can make installation difficult and increase friction during suspension movement.

XIAYI controls the internal geometry according to application requirements, with a reference tolerance of ID ±0.08 mm for applicable specifications. This dimensional consistency helps create a stable interface between the buffer stop and shock absorber assembly while reducing the possibility of eccentric movement during repeated compression.

Height and Suspension Travel

The overall height of a buffer stop affects when progressive resistance begins as the suspension approaches its maximum travel. Inconsistent height can therefore change the actual suspension response from one component to another.

By maintaining a reference height tolerance of ±0.3 mm, XIAYI helps customers achieve more predictable suspension travel limitation. For OEM development projects, the height and compression characteristics can be adjusted according to vehicle-specific suspension geometry.

Outer Profile and Dust Cover Clearance

The outer diameter and surface profile also need to maintain sufficient clearance from the dust cover and surrounding components. A poorly matched profile may create friction, wear marks or abnormal noise during compression.

Precision molding and controlled finishing allow XIAYI to produce smooth and dimensionally consistent external surfaces, helping minimize unnecessary contact with adjacent suspension components.

Uniform Density for Predictable Compression

Stable Mechanical Response

A suspension component should not behave significantly differently from one section to another. Local soft spots can compress prematurely, while excessively hard areas may create uneven resistance and impact loading.

The Uniform Density Precision Injection Molded Stop uses controlled injection molding to distribute the elastomer more consistently throughout the component. The target density variation can be controlled within ±3 kg/m³, supporting a more uniform compression response across the working area.

This makes the component particularly suitable for applications where consistent suspension behavior is more important than simply achieving basic impact absorption.

Reduced Local Deformation

Uneven density can also contribute to localized deformation after repeated loading. Once one section begins to collapse faster than another, the component may no longer maintain its intended shape.

The compact injection-molded structure reduces the risk of loose internal areas and provides more consistent load distribution. With a target compression set of ≤12%, the component is designed to retain its functional geometry during extended compression cycles.

Stable Performance Over Repeated Cycles

For vehicles used on rough roads or under high-frequency suspension movement, fatigue resistance becomes an important purchasing consideration. XIAYI validates applicable specifications through repeated compression testing, with a reference fatigue target of ≥1,000,000 cycles.

The objective is not simply to increase theoretical service life, but to maintain a predictable buffering response throughout repeated vehicle operation.

A Better Choice for High-Volume Replacement Programs

Reducing Variation Between Replacement Parts

Aftermarket distributors often purchase the same suspension component repeatedly over an extended period. If different production batches have noticeably different dimensions or hardness, workshops may experience inconsistent installation and vehicle performance.

XIAYI applies standardized material and molding parameters to reduce batch-to-batch variation. This provides distributors with a more consistent replacement component and helps simplify quality control across recurring orders.

Supporting Multi-Model Applications

One suspension buffer specification may need to serve a particular vehicle platform across different markets, while another project may require a completely different geometry. XIAYI can develop dimensions and material characteristics according to OE references, customer drawings and actual installation requirements.

This allows buyers to establish dedicated specifications rather than relying on a generic component that may only approximately match the original suspension system.

Lowering After-Sales Risk

For automotive parts distributors, the cost of an unsuitable suspension component goes beyond the product itself. Returns, workshop reinstallation, customer complaints and replacement logistics can quickly increase the total cost of ownership.

By focusing on dimensional repeatability and mechanical consistency, XIAYI aims to reduce these avoidable problems before products reach the vehicle.

Material Stability Across Different Climates

Low-Temperature Flexibility

Vehicles operating in northern regions can experience significant material changes during winter. A buffer stop that becomes excessively hard or brittle at low temperatures may lose its intended cushioning behavior.

XIAYI can develop low-temperature-resistant material formulations for applications requiring flexibility down to approximately -40°C, subject to the specific material specification and test conditions.

Heat and Aging Resistance

High underbody temperatures, repeated compression and long-term exposure can accelerate elastomer aging. The selected material system can be optimized for heat resistance, aging resistance and mechanical stability according to the target application.

This is particularly relevant for vehicles operating in hot climates, commercial fleets and applications involving frequent suspension movement.

Resistance to Long-Term Mechanical Stress

Rather than relying only on initial hardness measurements, XIAYI considers how the material behaves after repeated compression. The objective is to minimize permanent deformation and maintain the original dimensional relationship between the buffer stop and suspension assembly.

Real Market Application Case

North American Aftermarket Project

A North American auto parts chain supplier had been receiving complaints regarding conventional foamed bump stops. Uneven density and insufficient dimensional accuracy caused some replacement units to develop unilateral wear, local collapse and chassis noise after approximately 3--5 months of vehicle operation. The resulting returns increased after-sales workload and affected customer satisfaction.

In early 2024, the company introduced the Uniform Density Precision Injection Molded Stop from XIAYI in batches. Instead of simply replacing the existing material, the project focused on improving dimensional consistency, wear resistance and low-temperature toughness. XIAYI also implemented full-dimensional inspection and controlled injection molding to stabilize the product across production batches.

After 11 months of real-vehicle road testing and market promotion, no reported after-sales problems involving local collapse, eccentric wear or abnormal noise were recorded for the supplied products. The customer reported a 92% reduction in user complaints and a 38% reduction in after-sales maintenance costs. The consistent replacement quality also helped the customer strengthen its regional chain distribution system and increase repeat orders.

Application Across Vehicle Platforms

Passenger Cars and SUVs

The product can be developed for suspension systems used in passenger cars, SUVs and MPVs where accurate dimensions and stable compression characteristics are required. It can be matched according to specific shock absorber geometry and suspension travel requirements.

New Energy Vehicles

Electric vehicles place different requirements on chassis components because of their higher vehicle mass and different suspension calibration. XIAYI can adjust material hardness, dimensions and compression characteristics according to the requirements of new energy vehicle platforms.

Commercial and Fleet Vehicles

Commercial vehicles and fleet applications often experience higher mileage and more frequent suspension movement. Stable fatigue performance and repeatable dimensions can help reduce unnecessary replacement frequency and maintenance interruptions.

Quality Consistency for Bulk Purchasing

XIAYI controls material formulation, injection parameters and key dimensions under an IATF 16949:2016-compliant quality management system to reduce batch-to-batch variation. For distributors and OEM purchasing teams, consistent density, hardness and dimensions help simplify incoming inspection, vehicle matching and repeat ordering while reducing installation issues and aftermarket complaints.

Product FAQ

What should buyers check when selecting a precision injection molded suspension stop?

The most important factors are dimensional compatibility, material hardness, density consistency, compression set, fatigue performance and operating temperature. Buyers should also confirm the relationship between the component and the shock absorber rod, dust cover and available suspension travel.

Why is density consistency important if the overall dimensions are correct?

Two products with identical external dimensions can still behave differently if their internal density is inconsistent. Local soft or hard areas may cause uneven compression and accelerated wear. Uniform density helps provide a more predictable mechanical response throughout the component.

Can XIAYI develop a specification based on an existing OE component?

Yes. XIAYI can use OE samples, part numbers, CAD/STP drawings or dimensional data as development references. The material and geometry can then be adjusted according to the customer's target vehicle, operating environment and performance requirements.

What information should be provided for an OEM quotation?

Buyers can provide the vehicle model, OE number, annual or monthly demand, drawings or samples, installation dimensions, hardness requirements and operating temperature range. These details allow XIAYI to recommend the appropriate material and manufacturing specification more accurately.
