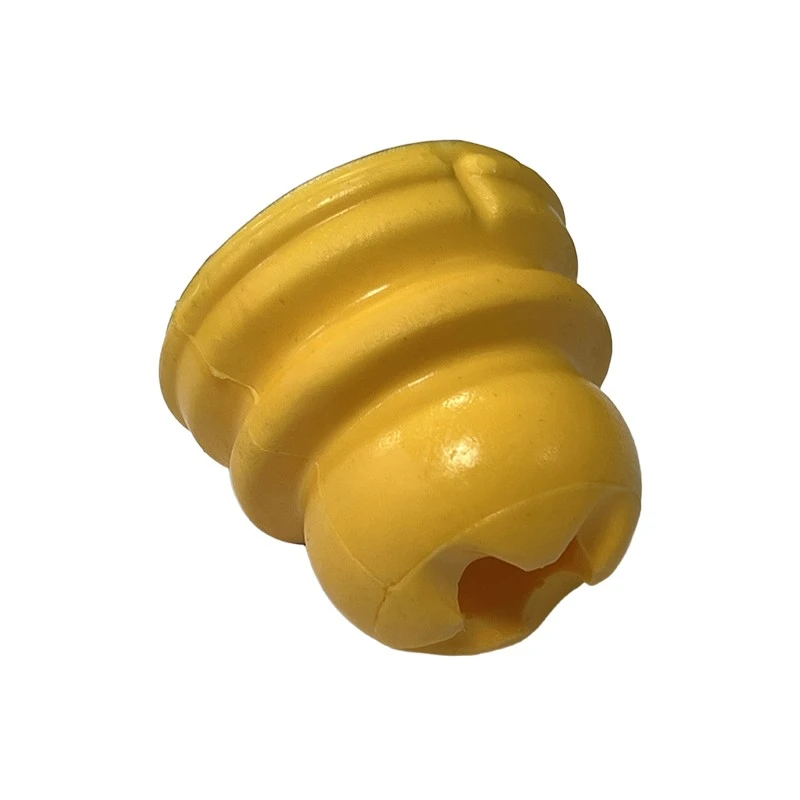

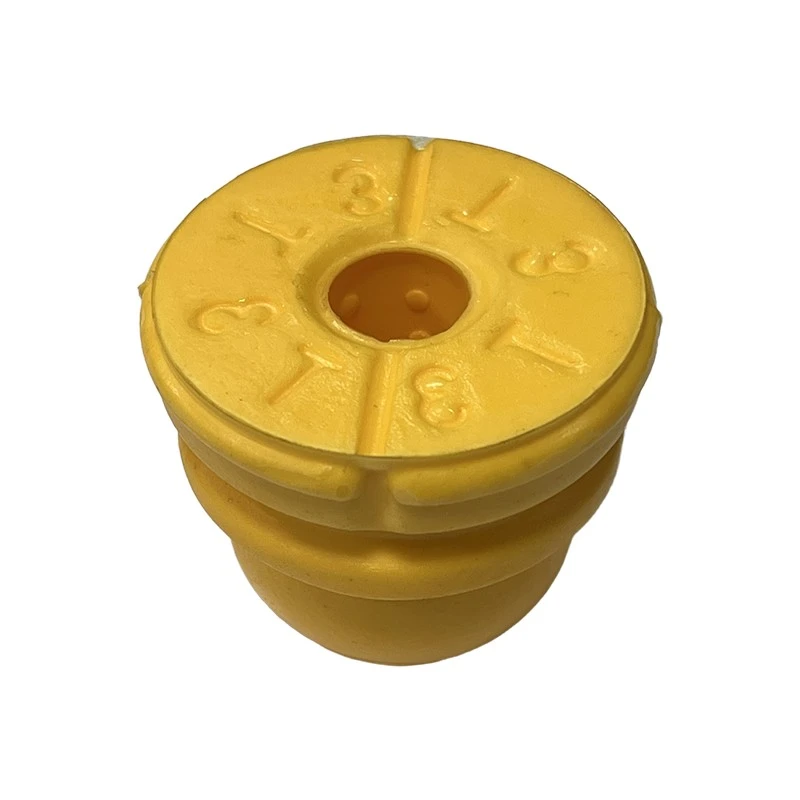

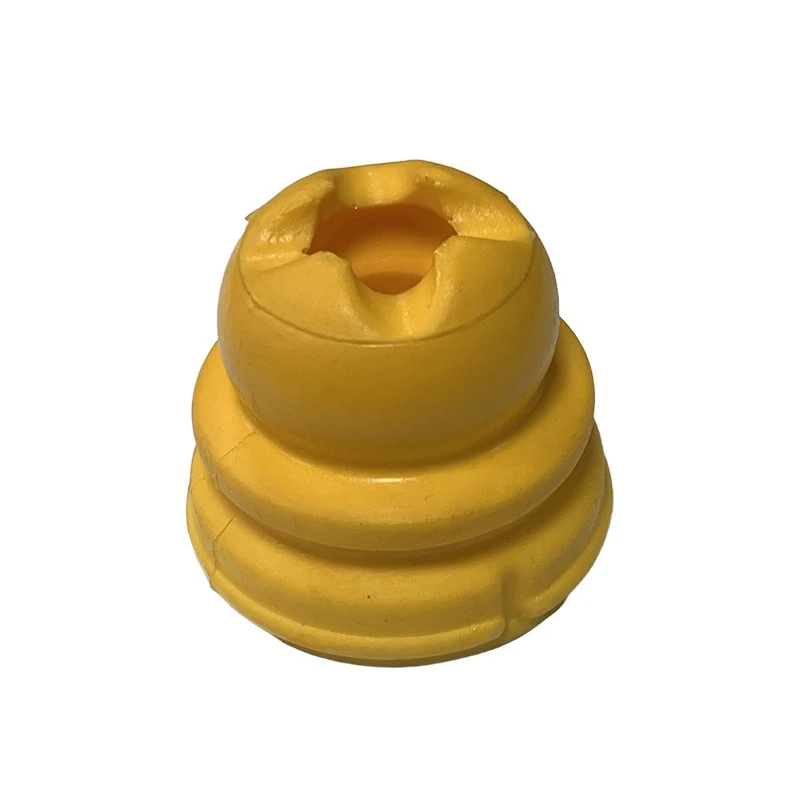

Low-Compression-Resistant Closed-Cell PU Bump Stop

XiaYi Low-Compression-Resistant Closed-Cell PU Bump Stop is developed for suspension systems requiring stable compression resistance, moisture protection and long-term dimensional stability. Using a closed-cell microcellular PU structure and low-compression molding technology, it helps prevent water absorption, permanent deformation and premature fatigue commonly found in conventional foam bump stops.

Designed Around Long-Term Suspension Protection

A bump stop does more than limit suspension travel. It absorbs excessive impact when the suspension approaches its maximum compression position, helping reduce direct impact between suspension components.

Conventional open-cell foam can gradually absorb moisture and lose its original mechanical properties in wet environments. Repeated compression may also lead to permanent deformation, reducing the available buffering distance and increasing the possibility of bottoming impact.

The Low-Compression-Resistant Closed-Cell PU Bump Stop uses a dense closed-cell structure to limit moisture penetration while maintaining a stable internal structure. Its low-compression formulation is designed to retain resilience after repeated loading, making it suitable for vehicles exposed to frequent suspension movement, rough roads and changing weather conditions.

Closed-Cell Structure and Material Performance

The material structure is one of the main differences between this product and conventional foam bump stops. XIAYI uses controlled PU formulation, foaming and curing processes to achieve a relatively uniform cellular structure and consistent mechanical behavior.

The closed-cell construction also makes the product particularly suitable for applications where rainwater, road splash, humidity and dust may accelerate deterioration of conventional porous materials.

Manufacturing Process for Consistent Results

For B2B buyers, consistent production quality is often more important than a single laboratory result. XIAYI therefore controls the main variables affecting density, compression behavior, dimensional accuracy and fatigue resistance throughout production.

This process helps reduce variation between batches and provides a more predictable component for OEM matching and aftermarket replacement programs.

Process Control and Failure Prevention

Different suspension failures often originate from small deviations during material preparation, foaming or molding. XIAYI focuses quality inspection on these critical points rather than relying only on final visual inspection.

Solving Common Bump Stop Problems

Rather than simply increasing material hardness, XIAYI focuses on the causes behind premature bump stop failure. The combination of closed-cell structure, material formulation and controlled post-curing is designed to address different operating problems.

Production Equipment and Inspection Capability

Stable performance requires suitable production equipment as well as material technology. XIAYI uses automated dosing, controlled foaming and precision inspection equipment to maintain consistency throughout the manufacturing process.

Application Case: European Aftermarket

A European auto parts retailer had experienced repeated problems with conventional open-cell bump stops. Because the local climate was rainy and humid and many vehicles operated on bumpy mountain roads, the products were prone to moisture absorption, swelling and permanent deformation after several months.

In mid-2024, the retailer adopted XIAYI's closed-cell PU solution. Based on the local operating conditions, XIAYI adjusted the closed-cell density and low-compression formulation while strengthening the waterproof and low-temperature resistance characteristics.

After nine months of vehicle road verification and market application, the supplied case data showed that water absorption deformation and compression-collapse failures were almost eliminated. The product failure rate was reduced by 95% compared with the previous products, while after-sales return and maintenance costs decreased by 35%.

Applications for Different Vehicle Systems

The Low-Compression-Resistant Closed-Cell PU Bump Stop is suitable for passenger cars, SUVs, MPVs, new energy vehicles and commercial vehicles. Its moisture-resistant structure also makes it suitable for vehicles operating in coastal, rainy and high-humidity regions.

Beyond automotive applications, the material and structure can be customized for selected construction machinery and agricultural equipment where repeated compression, environmental exposure and dimensional stability are important.

OEM & ODM Development

XIAYI supports customized development according to vehicle model, suspension geometry and operating conditions. Buyers can provide drawings, samples or vehicle parameters, and the engineering team can adjust product dimensions, PU density, formulation and compression characteristics accordingly.

For projects requiring special environmental resistance or lower compression deformation, the material and structural parameters can be evaluated before sampling. Rapid sample development can generally be completed within 7--10 working days, depending on product complexity.

FAQ

Q1: What is the main advantage of the closed-cell design?

The enclosed cellular structure reduces moisture and dust penetration while providing a more stable internal structure. It is particularly suitable for wet and demanding road environments.

Q2: Why is compression set important when selecting a bump stop?

A high compression set means the material may remain permanently compressed after repeated loading. A lower compression set helps maintain the original shape and buffering capability for longer.

Q3: Can XIAYI customize the product for specific vehicle models?

Yes. XIAYI supports OEM/ODM customization of dimensions, density, material formulation and compression characteristics according to vehicle and operating requirements.
