Graduated Buffer Multi-Stage Foam Bump Stop

Suspension systems experience different impact forces during daily driving, from minor road vibrations to heavy compression on potholes, speed bumps and rough roads. A suitable bump stop needs to provide soft initial cushioning while delivering stronger protection as suspension travel increases.

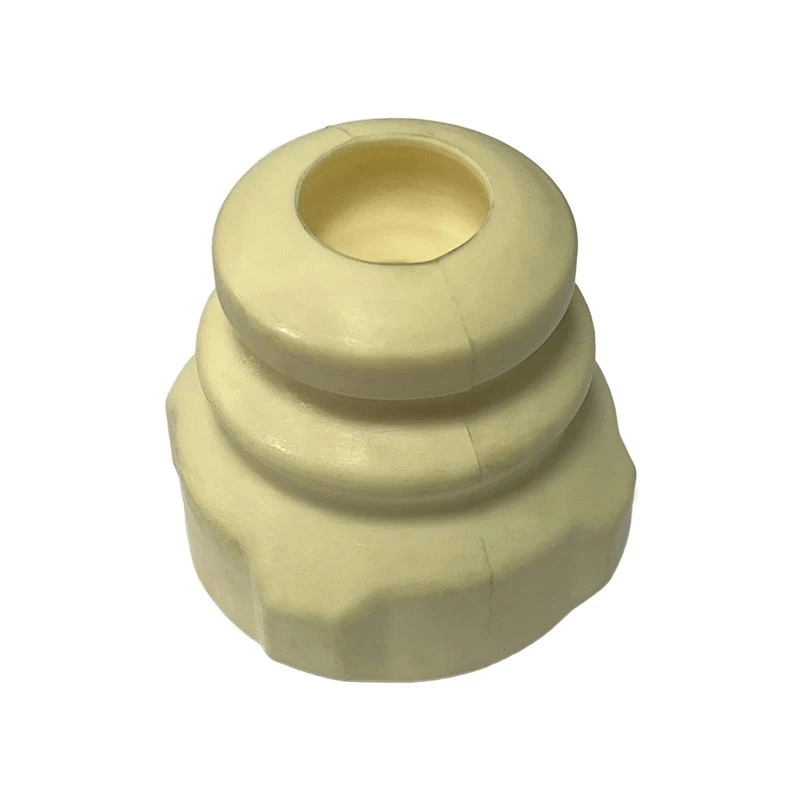

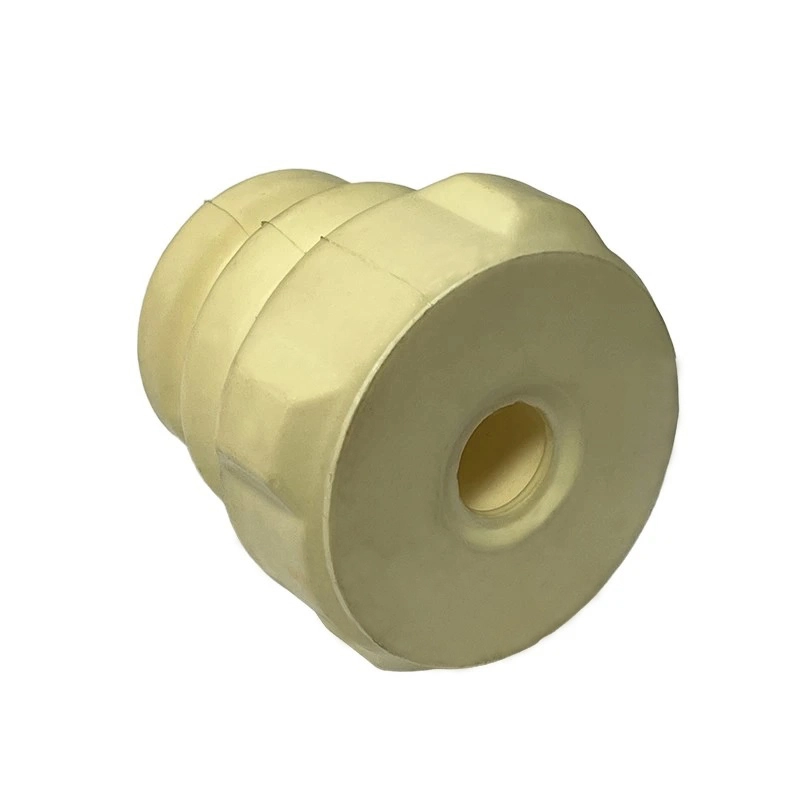

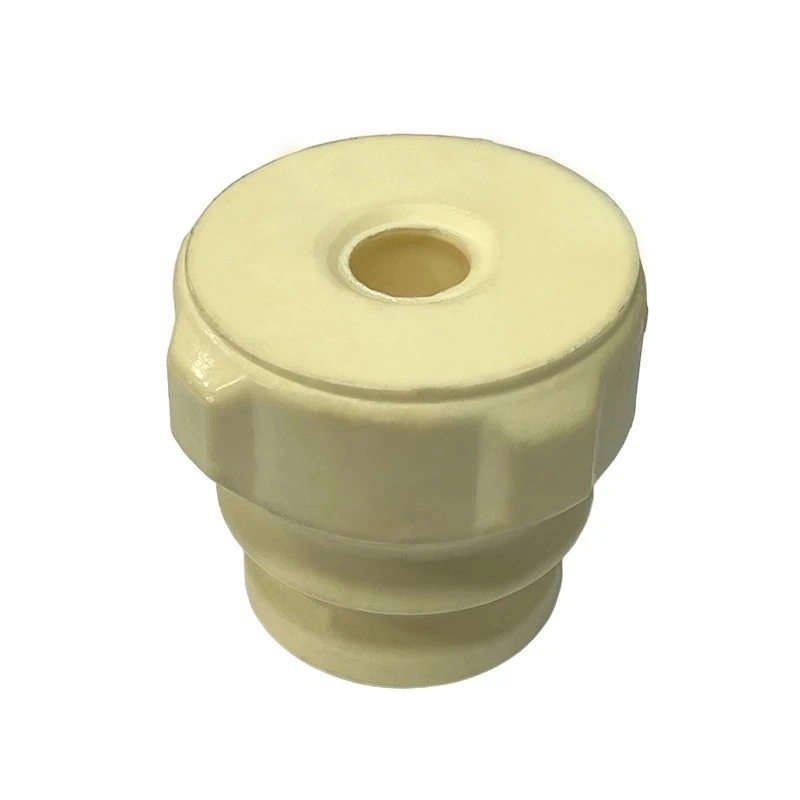

The Graduated Buffer Multi-Stage Foam Bump Stop from XIAYI uses a multi-stage ladder structure combined with high-performance microcellular PU foam. Different compression zones respond progressively as suspension travel increases, allowing impact energy to be absorbed gradually rather than producing a sudden hard stop. This helps reduce bottoming impact, control suspension compression and maintain consistent ride comfort.

Multi-Ladder Structure for Progressive Energy Absorption

Different Compression Stages, Different Buffer Responses

Unlike conventional single-density foam bump stops, the multi-ladder structure creates several progressive compression stages. The softer outer section responds first to minor suspension movement, while the middle and inner sections gradually provide greater resistance as the suspension approaches maximum travel.

This progressive response helps avoid the sudden stiffness associated with conventional bump stops and provides a more controlled compression curve when vehicles encounter potholes, uneven roads, speed bumps or heavy loads.

Reduced Bottoming Impact

When suspension travel reaches its limit, the bump stop needs to absorb significant kinetic energy within a short distance. The graduated structure distributes this impact through multiple compression stages, reducing force concentration in one area.

This helps protect shock absorbers and related suspension components while reducing harsh impact sensations and abnormal noise caused by excessive suspension compression.

Material and Compression Performance

Why Choose a Graduated Foam Design?

Better Response to Light and Heavy Loads

Vehicle suspension systems operate under constantly changing loads. A single-density structure may not provide an ideal response across the entire compression range. The Graduated Buffer Multi-Stage Foam Bump Stop allows buffer resistance to increase progressively with compression, providing softer initial cushioning and stronger support during deep suspension travel.

Improved Long-Term Compression Stability

Permanent deformation is a major concern for foam components exposed to repeated or prolonged compression. XIAYI uses controlled foaming and post-curing stabilization to reduce internal stress and help maintain the original geometry of the component.

Consistent Batch Performance

For OEM and aftermarket buyers, batch consistency is essential. XIAYI controls material proportioning, foaming temperature, curing conditions and dimensional accuracy through standardized production procedures, helping reduce density variation and dimensional deviation between production batches.

Controlled Production from Foaming to Final Inspection

Material Formulation

PU raw materials, additives and blowing components are accurately proportioned before production. Controlled formulation helps maintain consistent foam density, elasticity and compression characteristics.

Precision Foaming and Molding

Dedicated molds are used to form the multi-ladder geometry. Temperature, pressure and reaction conditions are controlled during molding to achieve a stable microcellular structure and accurate dimensions.

Post-Curing Stabilization

Controlled post-curing helps release internal stress generated during the foaming process. This improves dimensional stability and helps reduce compression set during long-term operation.

Dimensional and Compression Testing

Finished products undergo appearance, dimensional and compression-related inspections to ensure reliable fitting and consistent buffer performance before shipment.

Targeted Solutions for Common Suspension Problems

Real Application Verification

Southeast Asian Aftermarket Distributor

A Southeast Asian auto parts aftermarket distributor had experienced repeated complaints concerning conventional bump stops. Local vehicles frequently operate on uneven roads and in rainy conditions, causing traditional single-density products to develop cracking, permanent collapse and buffer failure after several months.

In early 2024, the distributor began purchasing XIAYI Graduated Buffer Multi-Stage Foam Bump Stop in batches. Based on local vehicle applications, XIAYI adjusted the microcellular foam density and low-temperature-resistant formulation while applying post-curing stress-relief treatment and standardized process control.

After 10 months of market application and road verification, no customer complaints related to collapse, cracking or abnormal noise were reported for the tested products. Product service life was more than twice that of the previous products, while the distributor's after-sales maintenance cost decreased by approximately 30%. The results helped improve customer satisfaction and repeat purchasing.

Application Across Vehicle and Equipment Types

The Graduated Buffer Multi-Stage Foam Bump Stop can be customized for different suspension travel requirements and load conditions. It is suitable for passenger cars, SUVs, MPVs, commercial vehicles and new energy vehicles, as well as selected motorcycles, agricultural machinery and construction equipment.

For urban vehicles, the progressive structure provides smoother response to frequent small impacts. For SUVs and commercial vehicles, stronger resistance at deeper compression helps protect suspension systems under heavier loads. For off-road and engineering applications, foam density and ladder geometry can be adjusted according to suspension travel and operating conditions.

OEM & ODM Development Support

XIAYI supports customized development according to vehicle model, suspension travel, installation dimensions and required compression characteristics. Buyers can provide CAD/STP drawings, samples or suspension parameters for engineering evaluation.

The R&D team can adjust foam density, ladder geometry, overall dimensions and material formulation according to the application. Rapid sample development can be arranged within approximately 7--10 working days for suitable projects, followed by performance verification and mass-production preparation.

Frequently Asked Questions

What makes this design different from a conventional foam bump stop?

The main difference is the progressive compression structure. Instead of providing approximately the same resistance throughout the compression process, the multi-ladder structure creates different levels of resistance as suspension travel increases. This provides softer initial buffering and stronger protection near full compression.

Can the foam density and ladder structure be customized?

Yes. XIAYI can adjust foam density, ladder dimensions, height, diameter and material formulation according to vehicle model and suspension requirements. OEM and ODM development is available for qualified projects.

How does XIAYI control compression set?

Compression stability is controlled through material formulation, foaming conditions, curing and post-curing stabilization. Finished products are also evaluated through dimensional and compression-related testing to reduce the risk of permanent deformation during long-term use.

XIAYI Quality & Engineering Support

XIAYI has nearly 20 years of experience in automotive damping component development and manufacturing. Its production and quality management processes follow the requirements of the IATF 16949:2016 automotive quality management system. From material preparation and molding to post-curing and final inspection, key parameters are controlled to support stable production and reliable batch consistency.

With OEM/ODM development capability and international automotive market experience, XIAYI provides application-specific foam buffer solutions according to different vehicle structures, suspension travel requirements and operating environments.
