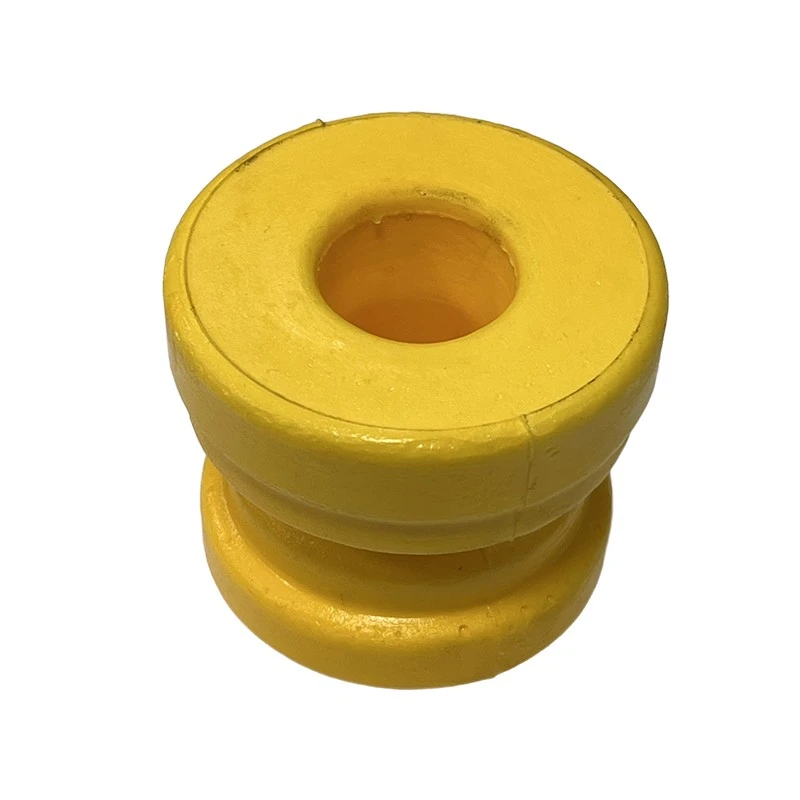

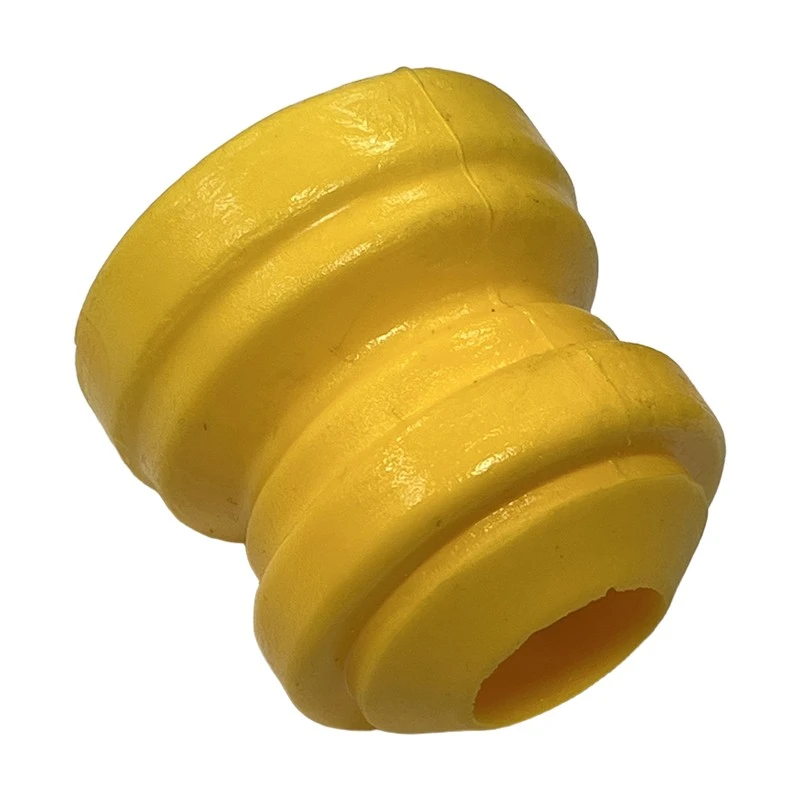

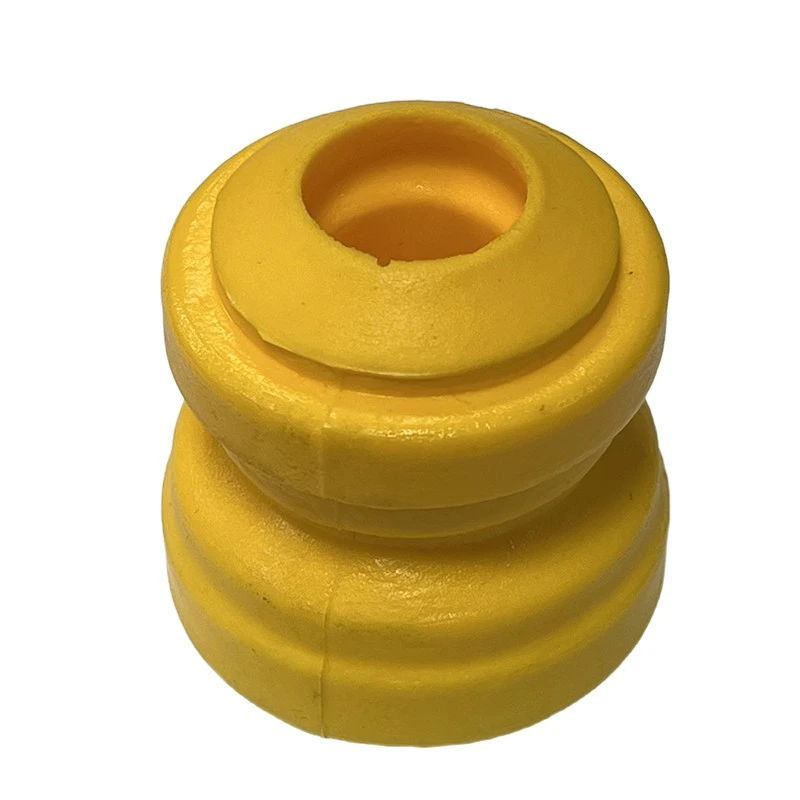

Oil-Resistant Polyurethane Bump Stop

The XIAYI Oil-Resistant Polyurethane Bump Stop is developed for suspension systems exposed to engine oil, lubricating grease, hydraulic fluid and other common automotive contaminants. Produced by an experienced automotive parts factory in China, it uses a modified polyurethane formulation to improve resistance to swelling, softening, cracking and aging after prolonged oil contact.

Unlike conventional bump stops that may lose elasticity when contaminated by oil, XIAYI focuses on material stability and long-term mechanical performance. Supported by an IATF 16949:2016 quality management system, controlled production processes and application testing, the product provides a dependable option for passenger cars, SUVs, commercial vehicles, new energy vehicles and engineering machinery.

Designed for Oil-Contaminated Suspension Conditions

Bump stops operate close to shock absorbers, chassis components and other areas where oil and grease contamination can occur. When ordinary rubber or foam materials repeatedly contact these substances, the material may swell, soften or develop surface cracks. Once the original shape and elasticity are lost, the bump stop can no longer provide consistent stroke limitation and impact absorption.

XIAYI addresses this problem from the material level. The Oil-Resistant Polyurethane Bump Stop uses a modified PU formulation designed to maintain structural integrity when exposed to engine oil, lubricating grease and hydraulic oil. Its stable molecular structure helps reduce oil-induced swelling and softening, while the controlled molding and curing process supports consistent compression recovery.

This approach makes the component particularly suitable for vehicles and machinery where preventing premature material degradation is more important than simply achieving initial cushioning performance.

Material Stability and Process Control

XIAYI controls the manufacturing process from raw material preparation through molding, curing, finishing and inspection. The material ratio is precisely managed to maintain consistent hardness and resilience, while temperature and pressure parameters are monitored during molding to reduce variations between production batches.

Post-curing treatment is used to stabilize the polyurethane structure and reduce internal stress. Finished parts are then checked for dimensions, hardness and compression characteristics before delivery. This combination of material selection and process control helps the Oil-Resistant Polyurethane Bump Stop maintain its intended geometry and buffering performance during repeated suspension movement.

PFMEA-Based Risk Prevention

XIAYI applies PFMEA principles to identify potential failure points before they become customer problems. Key risks include material-ratio deviation, uneven molding, insufficient curing, dimensional variation and excessive compression set.

Performance Requirements for Commercial and Industrial Use

For commercial vehicles and machinery, the operating environment can be considerably harsher than normal passenger-car applications. Oil contamination, repeated suspension movement, heavy loads and irregular road surfaces can occur simultaneously. In these conditions, a bump stop needs to retain its shape and resilience rather than simply provide short-term impact absorption.

The Oil-Resistant Polyurethane Bump Stop is therefore designed around long-term material stability. Its polyurethane structure provides a balance between elastic recovery and load-bearing support, while the oil-resistant formulation helps protect against contamination-related deterioration.

Solving Common Oil-Related Failure Problems

Oil contamination does not always cause immediate failure. More commonly, it gradually changes the material's physical properties, making the bump stop softer, swollen or less resilient before visible cracking appears. This gradual degradation can make suspension performance increasingly inconsistent.

XIAYI uses material modification and process stabilization to address these failure mechanisms at their source. The result is a component designed to retain its original geometry and mechanical behavior for longer periods in contaminated environments.

Quality Consistency for OEM and Aftermarket Supply

For purchasing managers, material performance is only one consideration. Batch consistency, dimensional repeatability and production capacity directly affect assembly efficiency and warranty risk. XIAYI has established an IATF 16949:2016 quality management system and uses standardized production procedures to control key manufacturing variables.

As an experienced automotive parts manufacturer and supplier, XIAYI can maintain consistent product specifications across repeated orders. Dimensional requirements, hardness, material formulation and application conditions can be evaluated before production, helping customers reduce the risks associated with inconsistent replacement parts.

Real Market Application Case

A European commercial vehicle aftermarket service enterprise had experienced repeated failures of conventional bump stops. Local vehicles frequently operated in maintenance and oil-contaminated environments, where traditional products developed swelling, softening and surface cracking after 2--4 months. The resulting suspension noise and reduced buffering performance increased replacement frequency and after-sales costs.

In the second half of 2024, the enterprise introduced the Oil-Resistant Polyurethane Bump Stop from XIAYI in batches. Based on the customer's operating conditions, XIAYI optimized the oil-resistant PU formulation and strengthened anti-swelling performance. PFMEA-based process controls and oil-immersion fatigue testing were also incorporated into the production verification process.

After eight months of real-vehicle market verification, no swelling, deformation or cracking failures were reported under the tested oil-contaminated working conditions. According to the supplied case data, product service life increased by more than 220%, the after-sales failure rate decreased by 94%, and parts replacement and maintenance costs decreased by 32%.

Applications for Vehicles and Machinery

The Oil-Resistant Polyurethane Bump Stop is suitable for applications where suspension components may encounter oil, grease or hydraulic-fluid contamination. Typical applications include passenger cars, SUVs, MPVs, new energy vehicles, commercial trucks, engineering machinery and agricultural machinery.

For OEM programs, XIAYI can evaluate installation dimensions, hardness, compression requirements and environmental conditions before production. For aftermarket applications, the focus can be placed on replacement compatibility, durability and stable performance under demanding service conditions.

FAQ

Why should I choose polyurethane for an oil-contaminated application?

Polyurethane can be formulated for improved resistance to oils and lubricants while maintaining useful elasticity and mechanical strength. XIAYI uses a modified PU formulation specifically intended to reduce swelling, softening and material degradation caused by oil exposure.

How is oil resistance verified?

XIAYI combines material control with oil-immersion and compression-fatigue testing. These tests are used to evaluate dimensional stability, compression recovery and structural condition after exposure to representative oil-contaminated working conditions.

Can XIAYI customize the component for specific vehicles?

Yes. XIAYI supports OEM and ODM development according to vehicle model, installation dimensions, hardness, compression requirements and environmental conditions. The R&D team can adjust the material formulation and structural dimensions, with sample development available according to project requirements.
