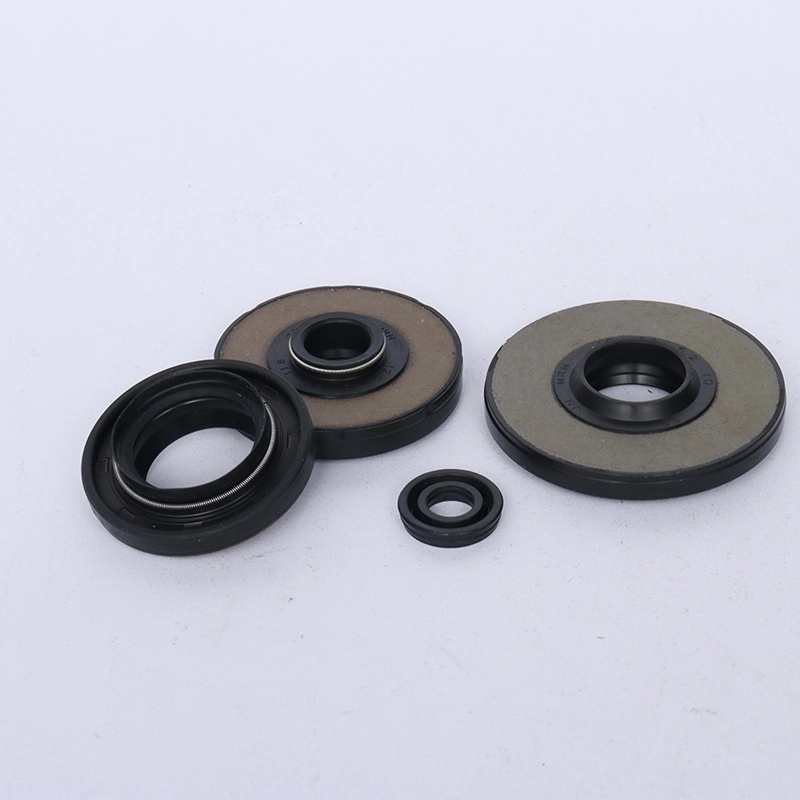

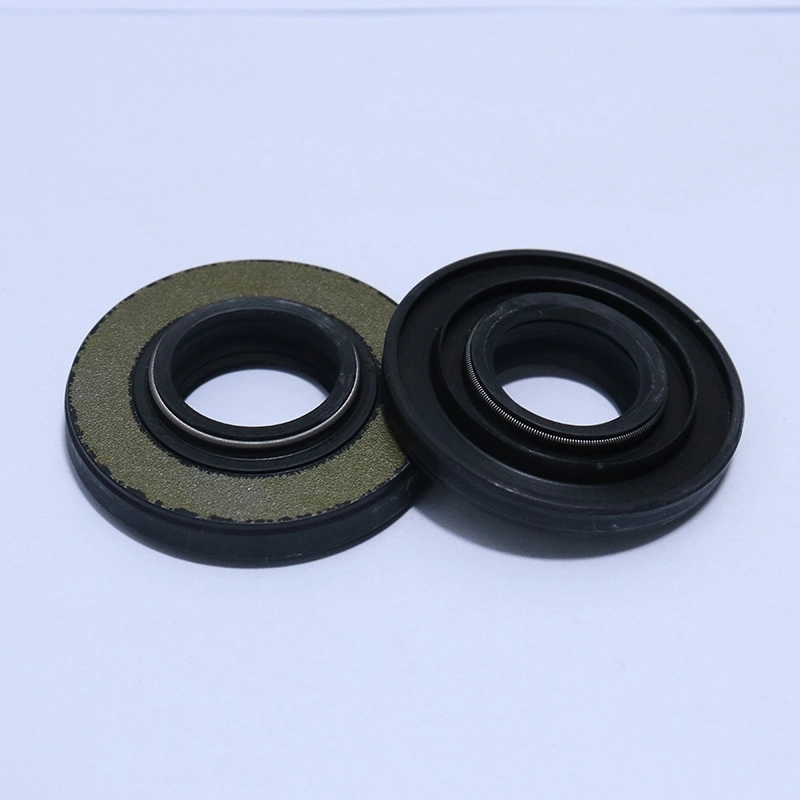

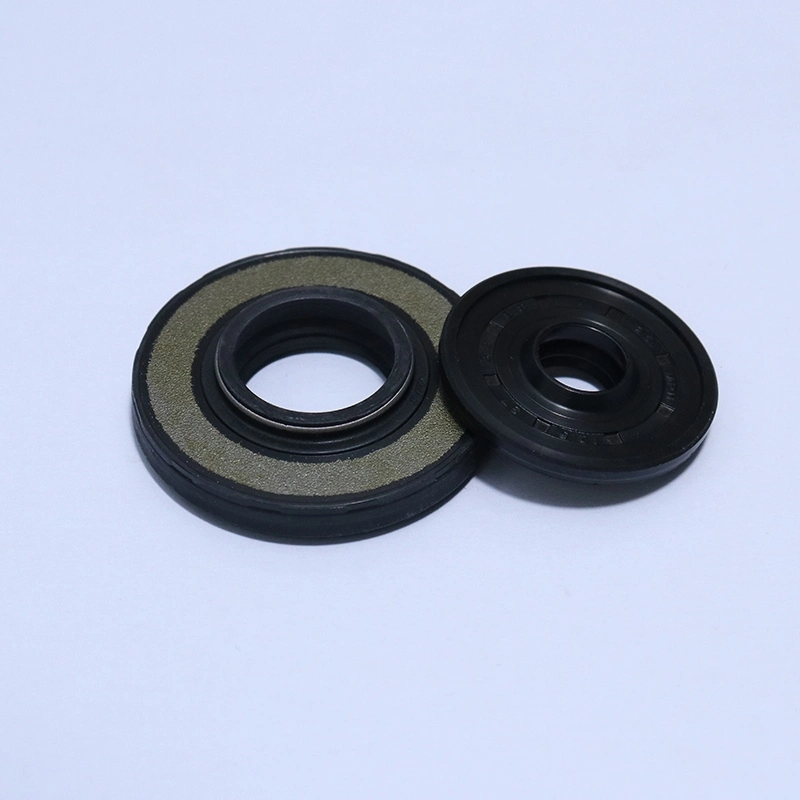

Spring-Loaded NBR Oil Seal

The Precision Lip Profile Spring-Loaded NBR Oil Seal is formed to create a controlled contact zone around the shaft, while the internal spring provides additional radial force as the seal operates. This structure helps compensate for normal lip wear, minor dimensional changes and operating fluctuations. A secondary dust lip provides an additional barrier against dust, moisture and road contaminants, making the seal particularly suitable for shock absorbers and other exposed moving assemblies.

Lip Structure and Sealing Mechanism

Controlled Lip Geometry

The sealing lip is designed around the actual movement characteristics of the mating shaft. Its contact profile controls the width and distribution of the sealing zone, helping maintain stable contact without creating unnecessary friction.

Compared with a simple flat sealing edge, the optimized profile provides more predictable contact during reciprocating movement. This is especially important for shock absorber applications, where the shaft repeatedly moves through the seal under changing loads and speeds.

The lip surface is precision molded and finished to minimize irregularities around the contact area. This supports smoother shaft movement while reducing localized wear.

Spring-Loaded Contact

A built-in sealing spring provides continuous radial force around the lip. When normal operating wear or small dimensional changes occur, the spring helps maintain contact between the sealing edge and shaft.

This mechanism is particularly useful for applications with long operating cycles. Instead of depending entirely on rubber elasticity to maintain sealing pressure, the spring contributes additional mechanical compensation throughout the service period.

The spring-loaded design also helps stabilize sealing performance when the shaft experiences repeated reciprocating movement, vibration or moderate dimensional variation.

Dual Barrier Protection

The main lip primarily retains lubricating oil inside the working chamber, while the secondary dust lip helps restrict the entry of external particles and moisture.

This two-stage arrangement is useful in automotive and motorcycle shock absorbers, where the exposed shaft may encounter road dust, mud and water. Keeping contaminants away from the internal sealing area helps reduce abrasive wear and protects other internal components.

Material and Manufacturing Control

NBR Material Selection

XIAYI uses nitrile rubber as the standard material because of its established compatibility with many petroleum-based oils, lubricants and hydraulic media.

The material provides a balance of elasticity, wear resistance and oil resistance for general automotive and industrial applications. For projects involving more demanding media or temperatures, alternative elastomer options can also be evaluated according to the customer's operating conditions.

Precision Molding

The lip geometry depends heavily on molding accuracy. XIAYI therefore controls mold dimensions, vulcanization conditions and material distribution during production to keep the sealing profile consistent between batches.

This is important because even small variations around the lip can change shaft contact pressure and friction characteristics. Controlled molding helps maintain predictable sealing behavior during assembly and operation.

Spring Assembly

The spring is positioned inside the sealing structure according to the specified groove and lip dimensions. Assembly control ensures that the spring provides consistent radial support without interfering with shaft movement.

Each production stage is managed under the company's IATF 16949:2016 quality management system, supporting stable dimensional and functional performance for OEM and aftermarket applications.

Technical Parameters

Standard Specifications

Performance Characteristics

Dynamic Sealing Performance

Reciprocating Shaft Operation

Unlike static sealing applications, shock absorber seals experience continuous shaft movement. The sealing edge must repeatedly follow the shaft while maintaining sufficient contact pressure.

The optimized lip profile of the Precision Lip Profile Spring-Loaded NBR Oil Seal creates a controlled sealing interface that supports stable movement and oil retention during repeated reciprocating cycles.

This structure helps reduce excessive friction caused by overly aggressive lip contact while maintaining sufficient sealing force.

Wear Compensation

As an oil seal operates, the sealing edge gradually experiences normal mechanical wear. The integrated spring provides additional radial support to compensate for small changes at the lip-shaft interface.

This helps maintain functional contact over an extended operating period and reduces the risk of sealing performance declining rapidly after initial installation.

Friction and Operating Noise

A properly controlled lip profile can help distribute contact pressure more evenly around the shaft. This reduces unnecessary localized friction during movement.

For automotive shock absorbers, controlled friction is particularly valuable because excessive resistance at the sealing interface can contribute to stick-slip behavior, operating noise and inconsistent shaft movement.

Testing and Quality Verification

Leakage Testing

Finished seals are evaluated for oil retention under specified operating conditions. The test focuses on the relationship between lip contact, shaft movement and oil leakage.

This helps identify potential sealing problems before products are released for shipment.

Spring Force Testing

The spring-loaded structure is checked to ensure that the installed spring provides the required radial support.

Consistent spring performance is important because excessive force may increase friction, while insufficient force may reduce sealing contact.

Dimensional Inspection

Critical dimensions including outer diameter, width, height and sealing profile are inspected using precision measuring equipment.

Dimensional consistency helps ensure that the seal can be properly installed into the specified housing and matched with the corresponding shaft.

Environmental Testing

Products can be evaluated under temperature variation, oil exposure, reciprocating movement and contamination conditions according to application requirements.

These tests help customers verify whether the selected material and sealing structure are suitable for their actual operating environment.

Application Solutions

Automotive Shock Absorbers

The Precision Lip Profile Spring-Loaded NBR Oil Seal is suitable for passenger car and SUV shock absorber assemblies where the piston rod moves repeatedly through the sealing interface.

The dual-lip structure helps retain damping oil while reducing the entry of dust and moisture from the external environment. The spring-loaded design provides continuous radial support during long-term vehicle operation.

Motorcycle Suspension

Motorcycle suspension systems are exposed to road dust, water, vibration and frequent shaft movement. The combination of main sealing lip and dust lip provides a practical barrier for these conditions.

The compact structure also makes the seal suitable for suspension components where installation space is limited.

Industrial Damping Equipment

The product can also be used in industrial damping mechanisms, reciprocating mechanical assemblies and other equipment where oil retention and contamination protection are required.

For automated machinery operating for extended periods, the controlled lip structure helps maintain consistent shaft movement while reducing the frequency of seal-related maintenance.

Customer Case Studies

Automotive Aftermarket

A large domestic automotive maintenance chain previously used conventional oil seals for passenger car shock absorber replacement. After approximately 3--6 months of vehicle operation, some vehicles experienced oil leakage and abnormal noise, increasing repeat maintenance requirements.

The customer subsequently introduced XIAYI's Precision Lip Profile Spring-Loaded NBR Oil Seal for replacement applications. During one year of follow-up operation, the installed vehicles showed no reported oil leakage or abnormal noise related to the replacement seals. The customer satisfaction rate increased by 35%, and the maintenance chain established long-term bulk procurement cooperation with XIAYI.

Motorcycle Suspension

A European motorcycle parts brand selected XIAYI NBR oil seals for mid-range motorcycle suspension systems. The application involved alternating temperatures, road dust and extended vibration.

After a 10,000-kilometer road test, the tested shock absorbers showed no reported dust ingress or oil leakage, while operating noise was significantly reduced. The customer reported a 28% reduction in after-sales warranty costs associated with the sealing component.

Industrial Damping System

A German industrial machinery company applied XIAYI oil seals to automated mechanical damping systems operating continuously in dusty and humid factory conditions.

Conventional oil seals required replacement approximately every three months. The XIAYI spring-loaded NBR seals operated for more than eight months under the same application conditions, reducing equipment downtime and maintenance frequency.

Customization and Supply

OEM Dimensions

XIAYI supports customized dimensions according to shaft diameter, housing dimensions, installation depth and available sealing space.

Customers can provide drawings, samples or dimensional specifications for evaluation before production.

Material Options

NBR is the standard material for general oil-contact applications. For higher temperature, chemical or medium-resistance requirements, alternative elastomers such as FKM can be evaluated.

Material selection is based on actual operating temperature, medium, pressure, shaft speed and service conditions rather than using one material for every application.

Production Support

XIAYI provides OEM/ODM support for customized oil seals, including size adjustment, lip profile optimization, material selection and spring configuration.

Sample production can generally be arranged within 7--10 working days, subject to product complexity and tooling requirements.

Frequently Asked Questions

How does the spring improve sealing performance?

The spring applies continuous radial force to the sealing lip. This helps maintain contact with the shaft when normal wear or small dimensional changes occur during service.

Is NBR suitable for shock absorber applications?

NBR is widely used for applications involving petroleum-based oils and lubricants. Its suitability depends on the specific oil type, temperature, shaft speed and operating conditions. XIAYI can recommend the appropriate material based on the customer's actual application.

Can the lip profile be customized?

Yes. XIAYI can customize the sealing profile according to shaft dimensions, housing geometry, movement type and required sealing performance. Custom designs can be developed for OEM applications.

What information is needed for an oil seal quotation?

Customers can provide shaft diameter, housing diameter, seal width, operating temperature, oil type, shaft movement, working speed and application environment. Drawings or existing samples are also helpful for accurate product matching.

How does the dust lip work?

The secondary dust lip forms an additional barrier outside the main oil-sealing lip. It helps reduce the entry of dust, moisture and other external contaminants into the sealing area, particularly in exposed automotive and motorcycle applications.

Why Choose XIAYI

XIAYI combines precision rubber molding, controlled lip geometry and spring-assisted sealing technology to provide oil seals designed around actual mechanical movement rather than relying only on conventional sealing profiles.

With manufacturing in China and an IATF 16949:2016 quality management system, XIAYI supports consistent production, dimensional control and application-specific customization for automotive, motorcycle and industrial customers. The company can provide OEM/ODM sealing solutions based on drawings, samples and detailed working conditions, helping buyers select a suitable sealing structure before mass production.
