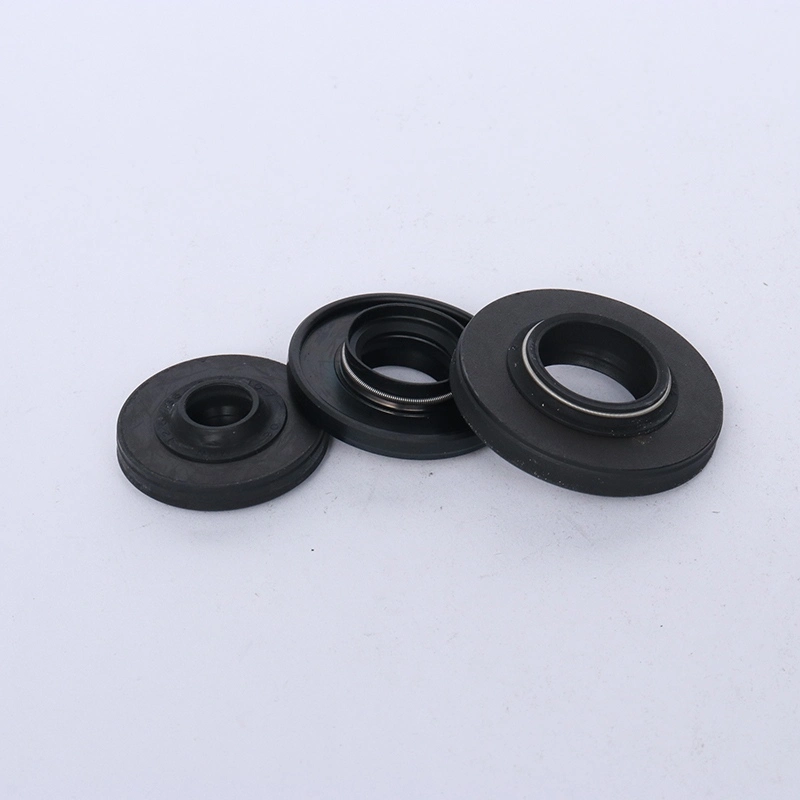

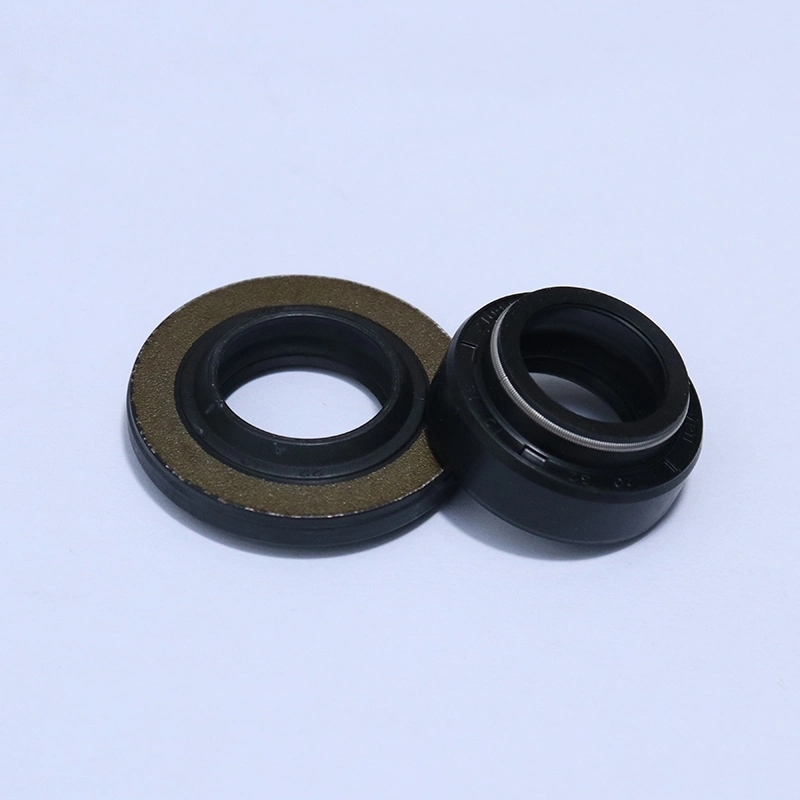

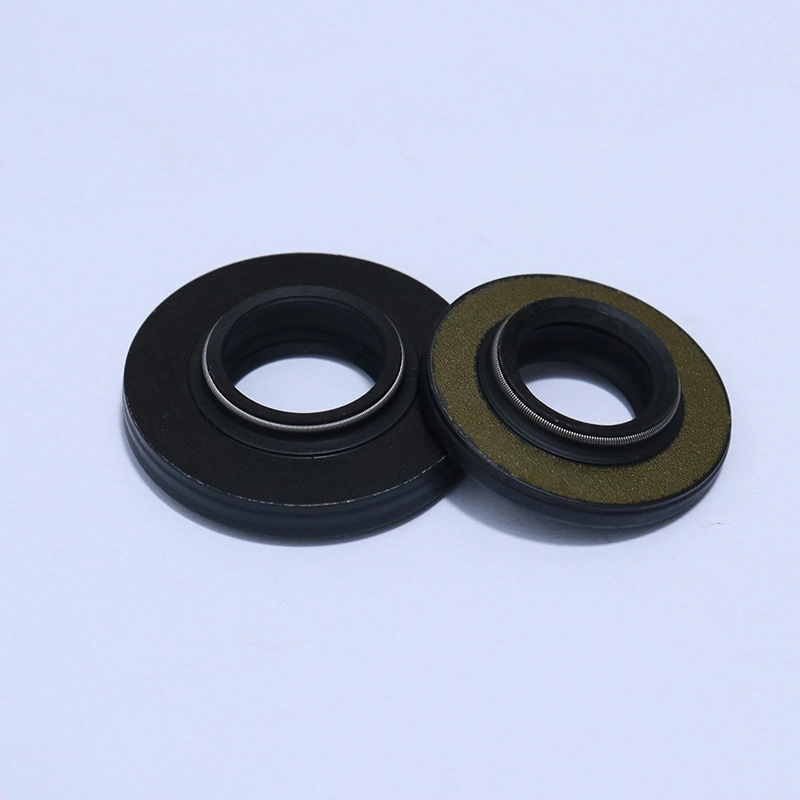

Anti-Extrusion Back-Up Ring Oil Seal

When an oil seal works under heavy impact, the main risk is not simply oil leakage. High pressure can push the rubber sealing lip into the clearance between the shaft and housing, causing extrusion, deformation and permanent damage. This is especially common in engineering machinery, heavy vehicles and off-road equipment that experience repeated shock loads.

The Anti-Extrusion Back-Up Ring Oil Seal from XIAYI is developed around this specific failure mechanism. A rigid back-up ring supports the NBR sealing body from the pressure side, limiting rubber deformation while maintaining contact with the piston rod. This structural approach allows the seal to maintain its shape during repeated pressure fluctuations instead of relying only on rubber elasticity.

Designed Around Pressure-Induced Failure

Preventing Rubber Extrusion at the Sealing Gap

Under high hydraulic pressure, conventional rubber seals can be forced into small assembly clearances. Repeated pressure cycles gradually enlarge the deformation, eventually leading to lip damage and leakage. The integrated back-up ring acts as a mechanical support layer, restricting excessive rubber movement and improving structural stability during pressure peaks.

Maintaining Sealing Geometry During Impact

Heavy-duty shock absorbers do not operate under constant pressure. Rapid compression, rebound and vibration create repeated changes in sealing load. The reinforced structure helps maintain the original lip profile during these cycles, allowing the sealing contact to remain consistent even when the equipment is subjected to sudden impact.

Material Selection for Harsh Operating Conditions

NBR Sealing Body

The NBR compound provides the required balance of oil resistance, elasticity, wear resistance and low-temperature flexibility. With a hardness of 80±3 Shore A, tensile strength of ≥10 MPa and elongation of ≥150%, the material is designed for demanding dynamic sealing applications.

Reinforcement and Spring Components

A 40Mn steel framework provides structural support, while a 65Mn spring maintains radial sealing force around the piston rod. The back-up ring uses a high-rigidity wear-resistant composite material to provide additional protection against pressure-induced extrusion.

Performance Under Heavy-Duty Conditions

What the Reinforced Structure Changes in Operation

Better Resistance to Pressure Peaks

The Anti-Extrusion Back-Up Ring Oil Seal reduces the possibility of rubber being squeezed into the sealing clearance when pressure rises sharply. This makes the design particularly suitable for equipment experiencing frequent hydraulic impact rather than stable low-pressure operation.

Longer Protection Against Deformation

By limiting excessive movement of the sealing body, the reinforced construction helps reduce permanent deformation and premature lip damage. This can extend maintenance intervals in equipment where seal replacement requires significant downtime.

Suitable for Heavy Equipment

The Anti-Extrusion Back-Up Ring Oil Seal is intended for applications where vibration, impact, contamination and temperature variation occur simultaneously. Typical applications include engineering machinery shock absorbers, heavy-duty vehicle damping systems, off-road equipment and industrial hydraulic damping assemblies.

Manufacturing and Quality Control

XIAYI applies precision molding technology to control the geometry of the sealing body and back-up ring assembly. Finished parts are checked for dimensional accuracy, hardness, surface condition and sealing performance before shipment.

The production process follows the company's IATF 16949:2016 quality management system, providing consistent manufacturing control for OEM and aftermarket applications.

Application Cases

Engineering Machinery High-Pressure Damping Case

A domestic engineering machinery manufacturer uses XIAYI seals in loader shock absorber assemblies operating under frequent impact and vibration. Conventional seals showed extrusion deformation after approximately 2--3 months. After replacement, the reinforced structure maintained sealing integrity during 12 months of field operation, while the equipment failure rate was reduced by 90%.

Northern Heavy-Duty Vehicle Low-Temperature Case

A northern China commercial vehicle parts enterprise uses XIAYI products in heavy-duty truck shock absorbers exposed to temperatures as low as -40°C. After two years of road testing, the sealing system maintained stable performance without the hardening and pressure-related leakage previously experienced with conventional seals.

European Off-Road Equipment Matching Case

A European off-road equipment brand selected the product for a damping system exposed to mountain roads, gravel and repeated impact loads. After implementation, the seal demonstrated improved resistance to extrusion and deformation, with a service life reported at more than three times that of the customer's previous products.

Frequently Asked Questions

What problem does the back-up ring mainly solve?

It primarily prevents the rubber sealing body from being pushed into the assembly clearance under high pressure. This helps reduce extrusion, deformation and subsequent leakage.

What pressure and temperature conditions can it handle?

The supplied specification indicates an operating temperature range of -40°C to +100°C, with an anti-extrusion working environment of 0--35 MPa. Actual suitability should be confirmed according to shaft speed, clearance, medium and application conditions.

Can XIAYI customize the structure?

Yes. XIAYI supports OEM/ODM customization of dimensions, rubber formulation, back-up ring configuration and sealing structure. Samples can generally be developed within 7--10 working days, depending on the specification and testing requirements.
