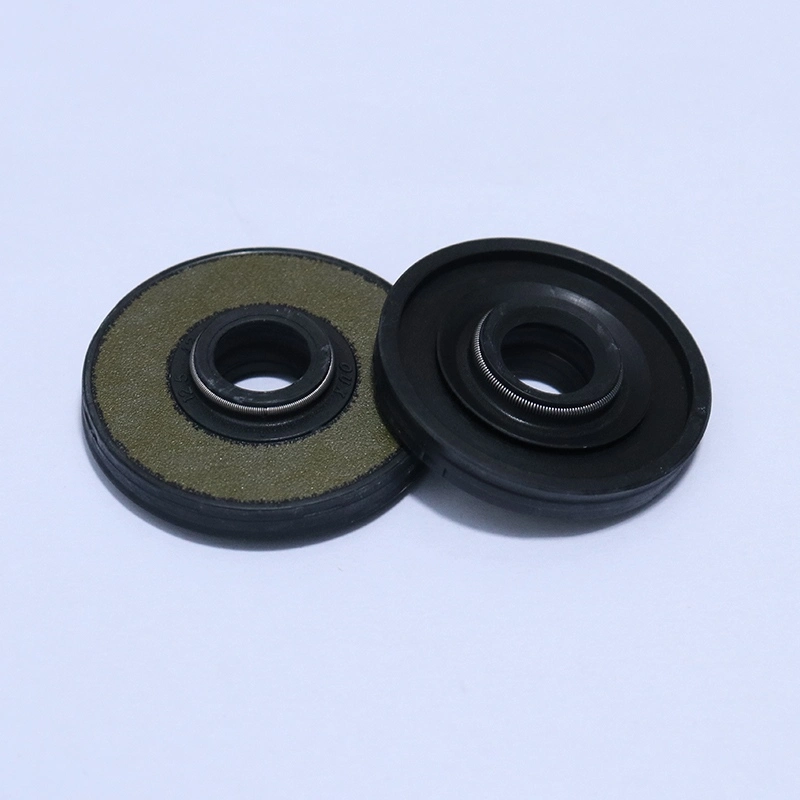

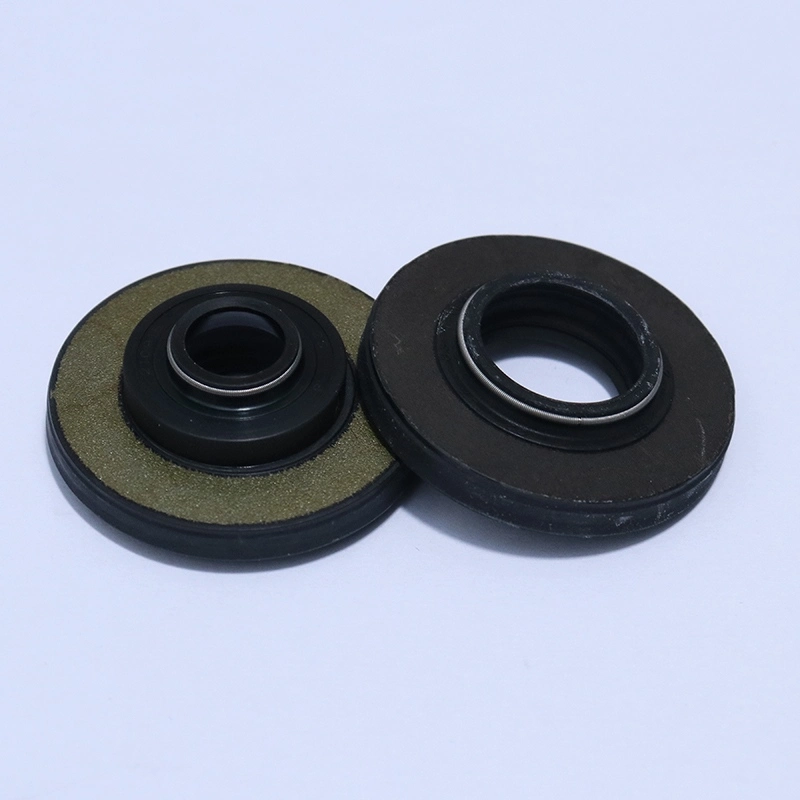

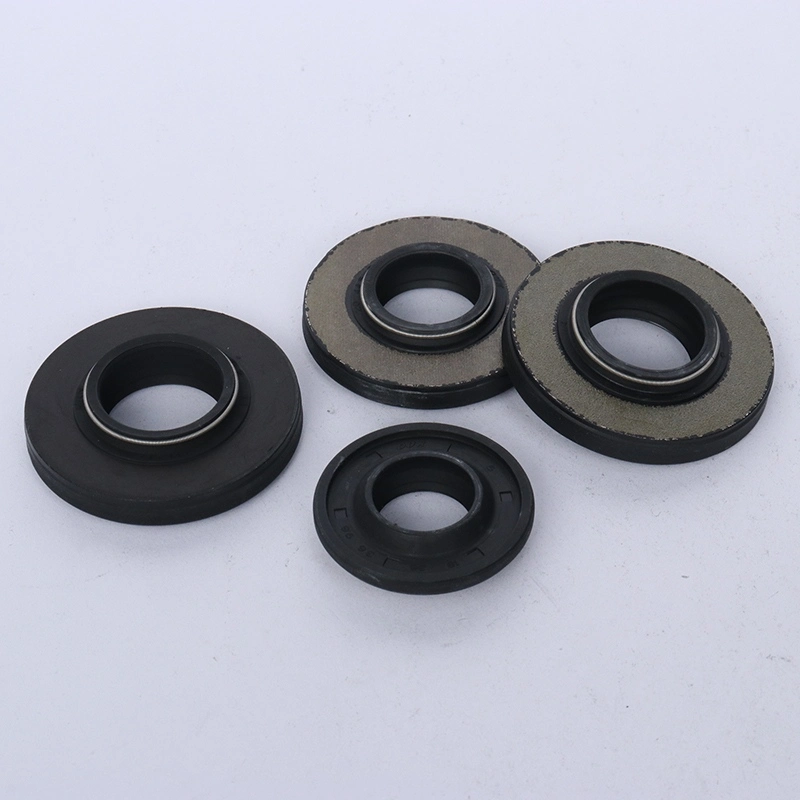

Dual-Lip-Design Oil Seal

The inner sealing lip works against the moving shaft to retain hydraulic or damping oil, while the outer lip helps prevent dust, sand, mud and moisture from reaching the internal sealing area. This Blocks Oil and Dust Dual-Lip-Design Oil Seal functional separation makes the design particularly suitable for shock absorbers, motorcycle suspension systems and industrial damping equipment operating in outdoor or contaminated environments.

XIAYI manufactures these sealing components in China under an IATF 16949:2016-compliant quality management system. Production focuses on material consistency, lip geometry, dimensional control and sealing reliability, allowing customers to obtain stable components for both original equipment assembly and replacement applications.

Dual Barrier Structure

Oil Retention

The primary sealing lip is responsible for retaining hydraulic oil or damping fluid inside the equipment. Its contact area is designed to maintain stable sealing pressure against the moving shaft while allowing normal reciprocating movement.

This helps reduce lubricant loss that could otherwise affect damping characteristics, lubrication conditions and the operating stability of the equipment.

Dust Exclusion

The secondary lip is positioned toward the external environment and works as an additional contamination barrier. It helps keep dust, sand particles, moisture and other foreign matter away from the primary sealing area.

This is particularly valuable for vehicles and machinery working on unpaved roads, construction sites, outdoor facilities and dusty production floors.

Independent Functions

The two lips perform different sealing tasks instead of relying on one edge to handle both oil and contamination. This separation allows the seal to maintain a more stable working interface when environmental conditions become complicated.

For equipment exposed to both internal lubricant and external contaminants, this structure provides a practical way to reduce contamination-related sealing problems.

Material & Manufacturing

NBR Material

XIAYI uses nitrile butadiene rubber as the standard material for this product. NBR provides a useful combination of oil resistance, elasticity, abrasion resistance and cost efficiency for many automotive and industrial sealing applications.

The standard material specification includes approximately 70±3 Shore A hardness, tensile strength of ≥15 MPa, elongation of ≥220%, and a compression set of ≤25% at 100°C × 70h.

Vulcanization Control

Controlled vulcanization is used to establish the required rubber properties and dimensional stability. Temperature, pressure and curing time are managed according to the production specification to reduce variations between batches.

The molding process also controls the relationship between the two lips, helping maintain the intended oil-blocking and dust-blocking functions after installation.

Frame & Spring

The sealing assembly can incorporate a high-precision steel or iron framework together with 65Mn high-carbon steel spring components, depending on the required design.

The metal structure provides mechanical support, while the spring helps maintain radial contact between the main lip and shaft during operation.

Working Performance

Oil Sealing

The primary sealing edge is designed to retain lubricant during continuous shaft movement. Proper contact pressure helps limit oil migration through the sealing interface.

This is important for shock absorbers and hydraulic components where loss of working fluid can gradually affect system performance.

Contamination Control

The outer lip forms a protective barrier against environmental contaminants. Dust and abrasive particles are prevented from directly reaching the primary lip and shaft interface.

Reducing contamination entry can help lower abrasive wear and extend the operating period between seal replacements.

Temperature Stability

The standard NBR formulation is suitable for approximately -40°C to +120°C, depending on the actual compound, medium and application conditions.

This range allows the seal to accommodate seasonal temperature changes and the temperature variations commonly encountered during vehicle or machinery operation.

Installation Requirements

Shaft Condition

The shaft surface should be clean, smooth and free from sharp edges or scratches. For typical applications, a surface roughness of approximately Ra 0.2--0.8 μm can provide a suitable contact condition for the sealing lip.

A damaged shaft can accelerate lip wear regardless of the quality of the oil seal.

Lubrication

Before installation, a compatible shock absorber oil or lubricant should be applied to the sealing lip. Pre-lubrication reduces dry friction during initial operation and helps protect the sealing edge.

The selected lubricant should be compatible with the NBR compound.

Press-Fit

Professional installation tools should be used to apply even pressure around the seal. Tilting, hammering directly on the sealing lip or forcing an incorrectly sized seal into the housing can damage the sealing structure.

The shaft diameter, housing bore and seal dimensions should always be checked before assembly.

Quality Control

Dimensional Inspection

XIAYI controls key dimensions including outside diameter, width, lip geometry and overall assembly dimensions. Dimensional consistency is important because an incorrect fit can cause excessive compression or insufficient contact pressure.

Inspection equipment is used to verify production dimensions before shipment.

Material Testing

Rubber hardness, tensile properties, elongation and compression characteristics are monitored according to the applicable product specification.

These checks help maintain consistent material behavior between production batches.

Sealing Verification

Finished products can be evaluated through leakage, temperature, reciprocating movement and environmental simulation tests according to customer requirements.

The testing process focuses on whether the sealing structure can maintain its intended oil-retention and contamination-blocking functions during service.

Application Areas

Vehicle Suspension

The Blocks Oil and Dust Dual-Lip-Design Oil Seal is suitable for passenger vehicle front and rear shock absorbers, motorcycle forks and rear suspension assemblies.

Its separated oil-retaining and dust-blocking functions are especially useful for vehicles frequently exposed to road dust, rainwater and changing outdoor conditions.

Electric Vehicles

Electric vehicle suspension components also require protection from external contamination and lubricant loss. The dual-barrier structure can be incorporated into suspension sealing systems where space and installation dimensions are defined by the equipment manufacturer.

Industrial Equipment

The Blocks Oil and Dust Dual-Lip-Design Oil Seal can also be used in industrial damping and reciprocating mechanical systems where shafts move while the equipment is exposed to dust or moisture.

Typical applications include automated machinery, engineering equipment and industrial vibration-control systems.

Customer Problems

Oil Loss

Oil leakage is one of the most common reasons for replacing a damaged suspension or hydraulic seal. When the primary lip can no longer maintain effective shaft contact, lubricant may gradually escape from the system.

The dedicated oil-sealing lip helps maintain lubricant retention during repeated shaft movement.

Dust Ingress

A seal exposed directly to the external environment can suffer from abrasive particles entering the sealing interface. Once contaminants reach the shaft and lip contact area, wear may accelerate.

The external dust lip provides an additional protective layer before contaminants reach the primary sealing area.

Environmental Exposure

Outdoor vehicles and industrial machines may experience combinations of dust, humidity, temperature changes and vibration rather than a single isolated condition.

The dual-lip arrangement is therefore designed around environmental separation, allowing each lip to perform a specific protective function.

Real Application Cases

Electric Vehicle Application

A domestic new energy electric vehicle parts manufacturer adopted XIAYI dual-lip oil seals for rear shock absorber assemblies.

Previously, the single-lip seals used in the application were susceptible to dust entry and minor oil leakage after 3--5 months of operation on mixed urban and rural roads. After changing to the dual-barrier design, the shock absorbers showed significantly improved protection against road dust and humid air.

After 12 months of market verification, the reported leakage and sealing-related failure rate decreased by 92%, supporting continued mass-production cooperation between the two companies.

Off-Road Motorcycle

A European off-road motorcycle brand selected the Blocks Oil and Dust Dual-Lip-Design Oil Seal for its suspension systems.

The motorcycles operate in sandy and dusty environments with frequent vibration, impact and temperature changes. During road testing, the dual-lip configuration maintained oil retention and external contamination protection, with a service life reported at more than twice that of the previous competing products.

Industrial Damping

A Southeast Asian industrial equipment company uses XIAYI dual-lip seals in automated damping equipment operating continuously in a dusty and humid workshop.

Traditional seals required replacement approximately every 2--3 months because of contamination and leakage problems. After the replacement program, the equipment operated for more than 7 months without reported sealing failure, reducing maintenance interruptions and replacement frequency.

Why Choose XIAYI

Consistent Production

XIAYI operates under an IATF 16949:2016-compliant quality management system, with controlled procedures covering material preparation, molding, finishing and inspection.

This provides customers with greater consistency when the seals are purchased for repeated OEM production.

OEM Support

The product can be customized according to shaft diameter, housing dimensions, lip arrangement, rubber hardness and application requirements.

XIAYI supports OEM/ODM development for automotive, motorcycle and industrial customers, including non-standard sizes and application-specific material adjustments.

Stable Supply

As a China-based sealing component manufacturer, XIAYI supports prototype development, sample confirmation and batch production.

For customized projects, sample development can typically be arranged within 7--10 working days, subject to product complexity and testing requirements.

Product FAQ

What does the second lip do?

The second lip primarily works as an external contamination barrier. It helps reduce the entry of dust, sand and moisture into the main sealing area.

This is different from the primary lip, whose main task is retaining internal oil or damping fluid.

Is this seal suitable for dusty environments?

Yes. Its dual-barrier structure is particularly useful where equipment is exposed to dust, sand, moisture or other external contaminants.

However, the final suitability should also be evaluated according to shaft speed, temperature, lubricant type, pressure and installation dimensions.

Can XIAYI customize the size?

Yes. XIAYI supports OEM and ODM customization for different shaft diameters, housing dimensions, rubber hardness and sealing configurations.

Customers can provide drawings, samples or key installation dimensions for engineering evaluation and sample development.
