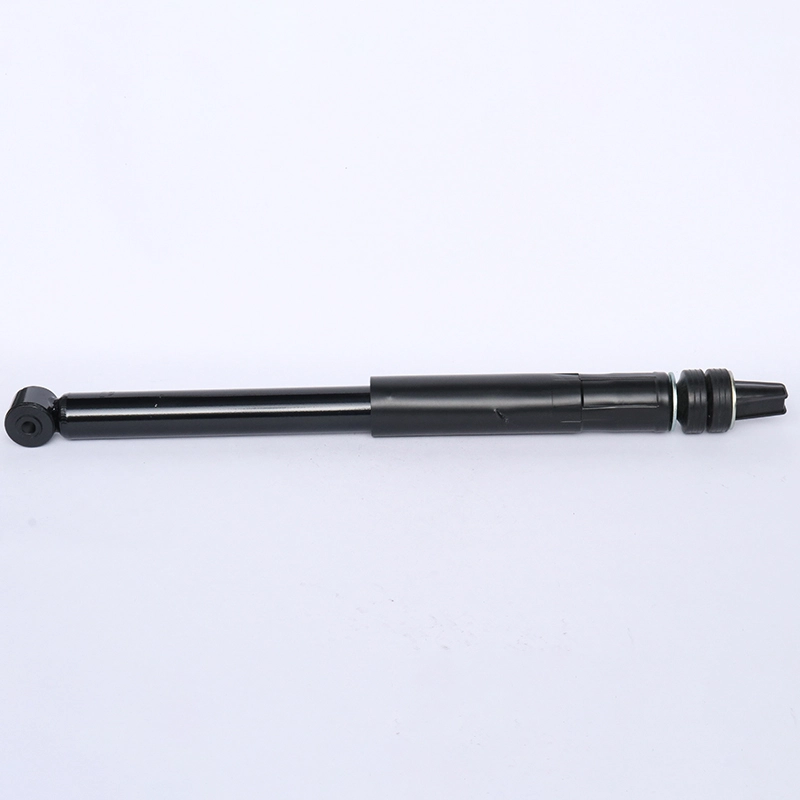

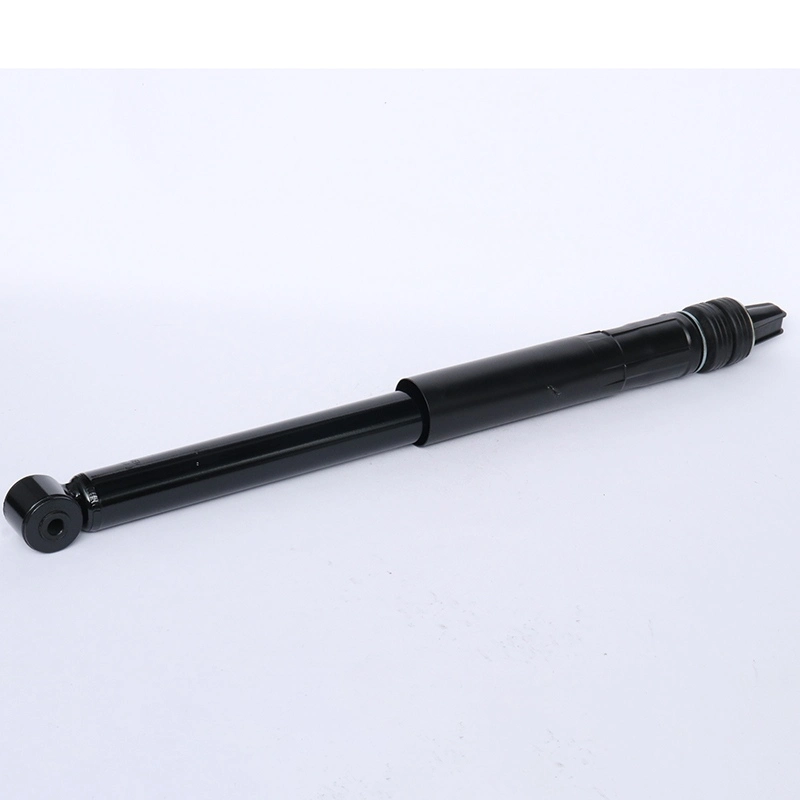

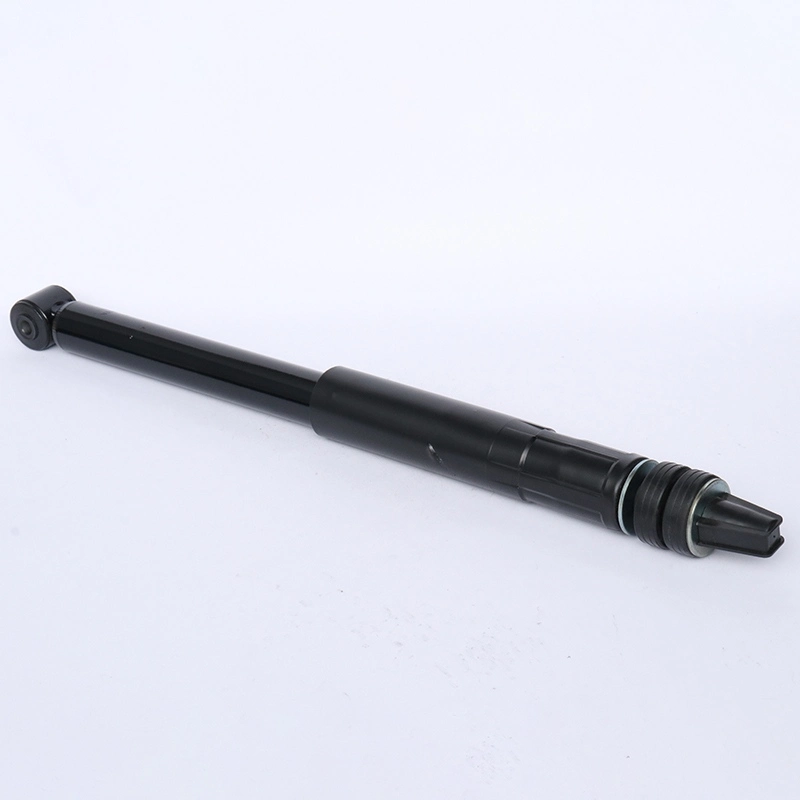

Segmented-Cylinder Stable-Damping Rear Damper

The Segmented-Cylinder Stable-Damping Rear Damper is manufactured through automated machining, vacuum oil filling and airtight crimping processes, with dimensional inspection and durability testing throughout production. As a professional automotive suspension factory in China, XIAYI operates a quality management system established according to IATF 16949:2016 and provides traceable rear suspension components for global aftermarket replacement and batch matching.

Product Design

Segmented Cylinder Structure

The segmented cylinder structure separates pressure-bearing and damping areas to improve the consistency of hydraulic movement during compression and rebound. Compared with conventional single-structure rear dampers, the design helps reduce damping fluctuations caused by repeated impacts and supports more predictable rear suspension response.

The assembly uses a seamless cold-drawn honed cylinder tube, 0.1 mm hard chrome piston rod, multi-stage valve shims and a high-toughness rubber eye bushing. An integrated telescopic dust boot protects the piston rod and oil seal from gravel, mud and road salt.

Rear Suspension Matching

The Segmented-Cylinder Stable-Damping Rear Damper is designed for rear suspension applications on passenger sedans and compact SUVs. Key dimensions, mounting-hole positions and working stroke are controlled against OE specifications to support direct replacement without drilling or grinding modification.

Material Configuration

Performance Data

Damping Force Range

The actual damping force is configured according to the vehicle application and OE calibration rather than using one fixed value for every model. The following values can be used as a representative reference for a passenger-car rear damper configuration.

These figures are reference ranges rather than universal specifications. Final damping force, velocity characteristics and compression/rebound ratio should be confirmed against the target vehicle OE calibration before mass production.

Performance Comparison

Product Comparison

Manufacturing Control

Precision Processing

XIAYI uses seamless tube honing, CNC piston rod machining, hard chrome plating, rubber vulcanization, automatic valve assembly and vacuum oil filling. Critical dimensions such as piston rod diameter, cylinder inner diameter, mounting-hole position and assembly length are inspected during production.

Testing Standards

Finished dampers undergo airtightness, dimensional, damping, fatigue and environmental testing. The durability program includes million-cycle compression and rebound simulation, while the damping test evaluates performance between -40°C and 120°C. The outer cylinder coating is tested through a 500-hour neutral salt spray test, and each unit receives an airtightness inspection before shipment.

Dimensional Control

OE Matching

The piston rod outer diameter is controlled within ±0.01 mm with concentricity ≤0.03 mm. Cylinder inner diameter tolerance is ±0.02 mm, overall assembly length tolerance is ±1 mm, and the rear lug inner-hole tolerance is ±0.06 mm. Compression and rebound stroke are configured according to the corresponding OE application.

Application Conditions

The Segmented-Cylinder Stable-Damping Rear Damper is intended for rear suspension replacement on passenger sedans and compact city SUVs operating on urban roads, highways, rural roads and wet or salt-treated roads. The tested operating temperature range is -40°C to 120°C. Heavy off-road modifications, long-term overload operation and racing applications require separate engineering validation.

Installation Guide

Before installation, the rear spring, rebound stopper and dust boot should be checked for aging or damage. Mounting bolts should be tightened according to the vehicle manufacturer's specified torque, and wheel alignment should be completed after suspension assembly. The damper should be kept vertical for approximately six minutes before installation to allow hydraulic oil to stabilize. During assembly, the piston rod and cylinder should not be struck directly, as surface damage can lead to premature seal failure.

Real Applications

Urban SUV Replacement

A large chain auto repair enterprise experienced rear sway, pothole noise and dust boot failures with conventional dampers. After adopting the XIAYI solution, the repair project reported a failure rate below 1.2% after 20 months of market verification, while after-sales maintenance costs were reduced by approximately 38%.

Fleet Operation

A local online car-hailing fleet operating on highways and rural roads experienced damping fade and rear vibration during extended summer driving. After installing XIAYI rear dampers, the fleet reported no observed oil leakage, significant damping attenuation or abnormal tire wear during one year of full-load operation.

Coastal And Salt-Road Use

A vehicle maintenance project in coastal humid and winter salt-road regions required improved corrosion and dust protection. After more than two years of field use, the dampers maintained structural integrity and stable damping performance, providing a suitable replacement option for vehicles exposed to humid and corrosive environments.

FAQ

What is the purpose of the segmented cylinder design?

The segmented structure is designed to improve hydraulic pressure management and damping consistency during repeated compression and rebound cycles. It works with the multi-stage valve system to provide a progressive damping response for different road inputs.

What damping force can be customized?

Damping force can be configured according to the target vehicle, OE shock absorber characteristics and application requirements. XIAYI can adjust compression and rebound characteristics and provide damping-force testing data or curves for confirmed vehicle applications.

Is it a direct replacement?

For confirmed vehicle applications, the dimensions, mounting points and suspension stroke are controlled according to OE specifications. Vehicle model, year, suspension configuration and OE part number should be provided before batch matching to confirm compatibility.
