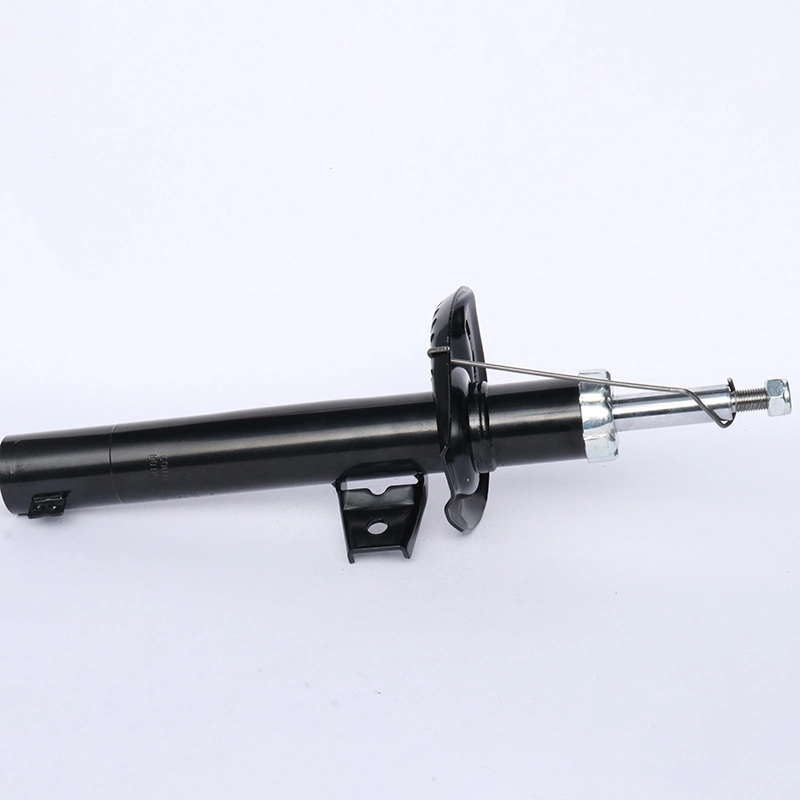

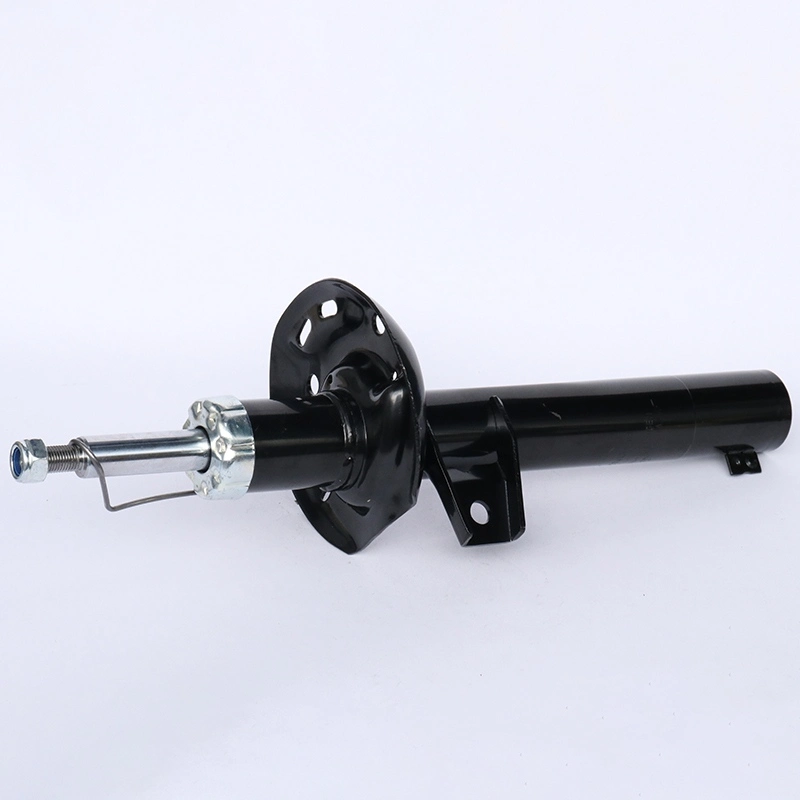

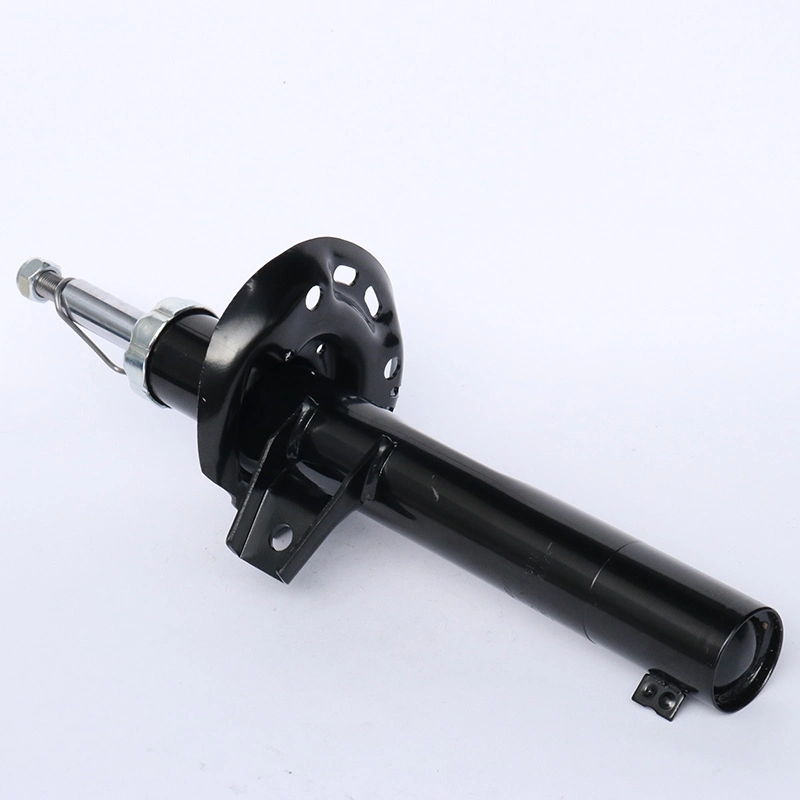

Chrome-Plated Front Strut Hydraulic Damper

The front strut carries both damping and structural loads, so its performance depends on the coordination of the piston rod, spring support, mounting bracket and internal valve system. XiaYi Chrome-Plated Front Strut Hydraulic Damper uses an integrated structure designed around OE mounting dimensions and suspension geometry.

The piston rod is made from heat-treated 45# alloy steel with a 0.08 mm hard chrome layer and mirror polishing. The spring flange uses thickened SPHC steel with multiple load-distribution holes, while the mounting bracket is laser welded and stress relieved. Combined with matched compression and rebound valve settings, the assembly provides stable suspension control while reducing common problems such as oil leakage, front suspension noise, excessive body roll and bracket deformation.

Material Selection

XiaYi selects materials according to the function and loading condition of each component. The focus is on long-term sealing, structural strength, corrosion resistance and consistent damping rather than simply increasing material thickness.

Piston Rod

The hard chrome-plated piston rod provides a smooth and wear-resistant surface for repeated movement through the oil seal. The mirror finish reduces contact damage to the sealing lip and helps maintain sealing performance during long-term compression and rebound cycles.

Spring Flange

The multi-hole spring flange distributes the coil spring load across the support surface and reduces local stress concentration. The thickened steel structure helps maintain spring positioning when the suspension is exposed to repeated loading.

Mounting Bracket

The laser-welded mounting bracket is designed to maintain the connection between the strut and steering knuckle. Stress-relief treatment after welding helps reduce residual welding stress and the possibility of deformation during repeated steering and road impacts.

Damping Performance

Damping force is determined by vehicle weight, spring rate, piston velocity, oil temperature and valve calibration. Therefore, the following values are reference test ranges for product development rather than universal specifications for every vehicle application.

Compression and Rebound

Compression damping controls the upward movement of the wheel when passing bumps, while rebound damping controls the return movement of the suspension. XiaYi uses a multi-stage valve configuration to provide progressive resistance, helping balance ride comfort with body control during braking, cornering and uneven-road driving.

Temperature Stability

Hydraulic oil viscosity changes with temperature and can affect damping force. Full synthetic shock oil with anti-oxidation and anti-foam additives is used to reduce excessive viscosity changes and air entrainment. The damping system can be evaluated across the specified temperature range according to the customer's OE application.

Production and Testing

XiaYi applies process control from material preparation to finished-product inspection. Key operations include precision forming, laser welding, heat treatment, chrome plating, valve assembly, vacuum oil filling and final sealing.

Process Control

The piston rod is inspected for chrome thickness, surface condition and straightness. The spring flange and mounting bracket are checked for dimensional accuracy and structural defects. During assembly, valve components are installed according to controlled clearances and torque requirements, while vacuum oil filling helps remove trapped air before sealing.

Quality Testing

Finished Chrome-Plated Front Strut Hydraulic Dampers are evaluated through dimensional inspection, air-tightness testing, fatigue testing and damping performance verification. Selected batches can also undergo high-low temperature and salt spray testing according to the intended vehicle application.

Product Type Comparison

Different suspension designs serve different installation positions and operating conditions. Correct product selection should be based on OE number, vehicle model, mounting dimensions and damping requirements.

The integrated front strut is specifically intended for suspension systems where the damper is connected directly to the spring and steering knuckle assembly. It should not be selected solely by external dimensions because damping calibration and mounting geometry may differ between vehicle versions.

Dimensional Matching

XiaYi controls key dimensions according to OE drawings and application requirements. The piston rod outer diameter can be controlled to approximately ±0.01 mm with concentricity ≤0.03 mm, while cylinder inner diameter tolerance is approximately ±0.02 mm. Spring flange mounting holes, knuckle bracket holes and overall assembly length are controlled according to the corresponding vehicle application.

The Chrome-Plated Front Strut Hydraulic Damper is designed for direct replacement after compatibility has been confirmed. Vehicle model, production year, engine configuration and OE reference number should be provided when ordering to ensure correct front suspension matching.

Installation Guidance

Before installation, the coil spring, upper mount, stopper, dust protection components and fastening hardware should be inspected for wear. The spring must sit correctly on the flange, and the mounting bracket should align naturally with the steering knuckle without forcing the assembly into position.

Fasteners should be tightened according to the vehicle manufacturer's specified torque. After installation, wheel alignment should be checked where required, and the suspension should be inspected for abnormal noise, steering deviation or uneven movement. The piston rod and welded bracket should not be struck with heavy tools because surface or structural damage can lead to premature failure.

Customer Applications

XiaYi Chrome-Plated Front Strut Hydraulic Damper is designed for compact and midsize passenger cars and urban SUVs operating on paved roads, highways, uneven rural roads and seasonal winter roads. The integrated structure is particularly suitable for aftermarket repair businesses that require OE-oriented dimensions, stable damping characteristics and simplified replacement.

The product is not intended for heavy off-road modification, long-term overload operation or racing applications unless the damping and structural specifications have been separately validated.

Real Application Cases

Midsize Sedan High-Speed Commuting

A regional chain auto repair shop serving family sedan users reported recurring complaints about body roll, loose steering and front suspension noise. After replacing ordinary aftermarket struts with XiaYi products, the chrome-plated piston rod improved sealing durability and the multi-hole spring flange provided more uniform spring support. After 18 months of market verification, the referenced batch showed no structural deformation or damping failure, while the shop reported a 45% reduction in front suspension maintenance rework.

Urban SUV Complex Roads

An SUV maintenance team previously used ordinary welded front struts on vehicles operating between urban roads and mountain curves. Bracket deformation and wheel alignment deviation appeared after extended use. After switching to XiaYi front struts, the laser-welded bracket improved structural stability and the gradient valve system provided controlled damping on uneven roads. After one year of verification, no steering deviation, abnormal suspension noise or oil leakage was reported in the referenced application.

Frequently Asked Questions

What is the benefit of the chrome-plated piston rod?

The hard chrome layer provides a smooth, wear-resistant surface that helps protect the oil seal during repeated piston movement. It also improves resistance to surface corrosion and minor gravel impact compared with untreated or lightly finished rods.

Can the damping force be customized?

Yes. Damping force can be developed according to OE samples, vehicle weight, spring rate, suspension stroke and customer requirements. Compression and rebound curves can be tested during sample development before mass production.

Does it directly replace the original front strut?

When the correct OE application is confirmed, the assembly is designed around the original mounting dimensions and does not normally require drilling or grinding. Customers should provide the vehicle model, year or OE number for compatibility verification.

What quality system does XiaYi use?

XiaYi has established a quality management system according to IATF 16949:2016 and applies process control and traceability throughout material inspection, machining, welding, plating, assembly and finished-product testing.
