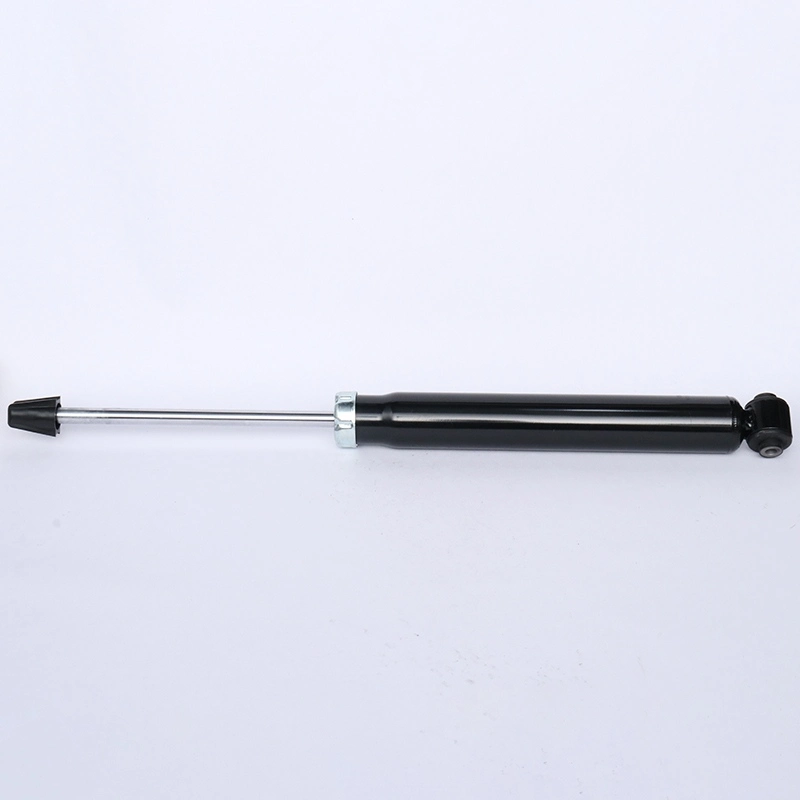

Corrosion-Resistant Hydraulic Rear Shock Absorber

Unlike standard aftermarket rear shocks that mainly focus on basic damping, this Corrosion-Resistant Hydraulic Rear Shock Absorber places greater emphasis on corrosion resistance, damping consistency, bushing durability and long-term suspension stability. It is suitable for urban roads, highways, rural gravel roads and humid or salt-exposed environments.

Rear Suspension Design

Straight-Tube Hydraulic Structure

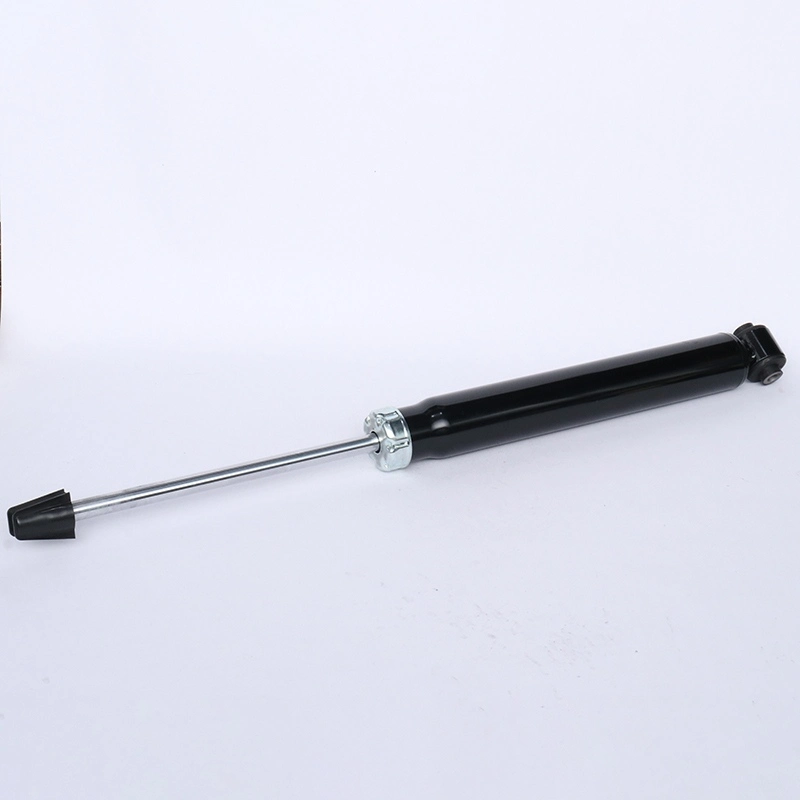

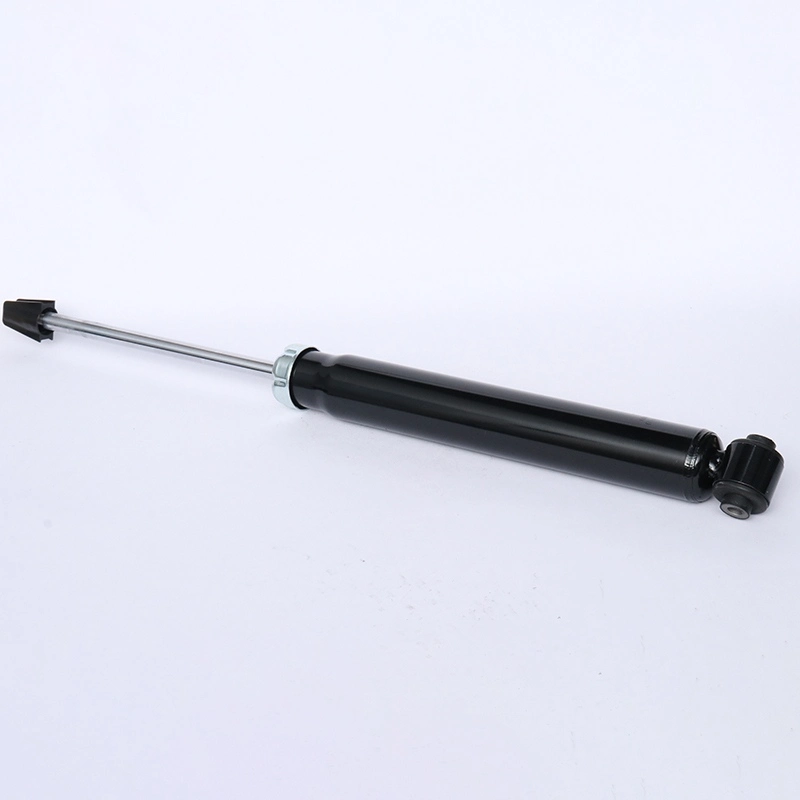

XiaYi Corrosion Resistant Hydraulic Rear Shock Absorber uses a straight-tube hydraulic structure with rubber bushings at both ends. The cylinder uses a precision cold-drawn seamless tube with a CNC-honed inner surface, while the piston rod uses quenched and tempered 45# steel with a 0.1 mm hard chrome layer. The damping valve is calibrated for progressive compression and rebound control, while the rubber bushings absorb small lateral movements and reduce vibration transferred to the chassis.

Component Configuration

Damping Performance

Reference Damping Data

Damping force directly affects vehicle ride comfort, rear body movement and handling stability. Excessively low damping can cause repeated rear-end bouncing, while excessive damping may transmit road impact into the vehicle body. XiaYi develops the damping characteristics according to vehicle weight, spring rate, suspension geometry and OE requirements.

The above values represent a reference calibration range for a typical passenger-car rear shock absorber rather than a universal specification. Actual damping force is matched to the target vehicle and can be adjusted according to OE part number, vehicle weight, spring stiffness and customer requirements. XiaYi can provide force-velocity damping curves and test reports for specific projects.

Progressive Damping Response

The damping curve is designed to increase progressively with piston velocity. At lower piston speeds, controlled damping helps absorb small road irregularities without creating excessive impact. As piston velocity increases, the damping force rises to control rear body movement during braking, acceleration and lane changes. This balance helps improve everyday ride comfort while maintaining better rear suspension support at higher speeds.

Corrosion Protection

Cylinder Surface Protection

The Corrosion-Resistant Hydraulic Rear Shock Absorber operates close to the vehicle underbody and is regularly exposed to water, mud, gravel and road salt. Corrosion around the cylinder can damage the external surface and eventually increase the risk of leakage. XiaYi uses electrostatic powder coating on the cylinder housing, with the coating system tested for 480 hours of neutral salt spray resistance.

Piston Rod Protection

The piston rod uses a 0.1 mm hard chrome layer with mirror polishing to protect the reciprocating surface from moisture and gravel impact. The smoother surface reduces contact damage to the oil seal during repeated movement, helping maintain sealing performance over extended service periods.

Temperature Stability

Wide-Temperature Hydraulic Oil

Hydraulic oil viscosity changes with temperature and can directly affect shock absorber damping. XiaYi uses synthetic wide-temperature shock absorber oil with anti-oxidation and anti-foaming additives to reduce damping changes during temperature fluctuations.

Under controlled laboratory evaluation, the damping-force fluctuation can be controlled within approximately ±8% across the specified testing range. This supports more consistent suspension response during cold-weather starts, long-distance highway driving and high-temperature operation.

Durability Testing

Fatigue and Damping Tests

Finished products can undergo reciprocating fatigue testing of up to one million compression and rebound cycles to evaluate structural durability and damping stability. Damping-force measurements are performed at different piston velocities and temperatures to verify that the actual force-velocity characteristics remain within the specified calibration range.

Corrosion and Leakage Tests

The cylinder coating is evaluated through neutral salt spray testing, while finished shock absorbers undergo airtightness inspection to identify potential sealing defects. Key dimensional characteristics such as piston rod diameter, cylinder dimensions, overall length and mounting-hole position are also checked against the corresponding OE requirements.

Performance Comparison

Key Performance Data

Product Comparison

Application Differences

The correct shock absorber should be selected according to vehicle specifications rather than simply choosing the product with the highest damping force. XiaYi can develop different damping characteristics for specific OE applications and road conditions.

Installation Requirements

OE Matching

XiaYi matches the overall assembly length, piston rod dimensions, mounting-hole position and damping stroke with the target OE specification. For compatible applications, the replacement can be installed without drilling, grinding or structural modification, helping repair shops reduce installation time and unnecessary adjustment work.

Installation and Running-In

Before installation, the coil spring, dust cover, rebound stopper and mounting bushings should be checked for aging or damage. Mounting bolts should be tightened according to the vehicle manufacturer's specified torque, while the rubber bushings should not be twisted during installation. After assembly, suspension alignment should be checked where required by the vehicle design. A controlled running-in period is recommended before sustained heavy-load or aggressive driving.

Application Areas

Passenger Cars and City SUVs

The Corrosion-Resistant Hydraulic Rear Shock Absorber is mainly designed for rear suspension replacement applications on compact and midsize passenger cars and city SUVs. It is suitable for urban commuting, highway driving, conventional rural roads and humid or salt-exposed environments.

Automotive Aftermarket Supply

XiaYi supports aftermarket distributors, repair chains, vehicle fleets and automotive component manufacturers with OE-matched dimensions, application-specific damping calibration and batch quality traceability. Products can be developed according to vehicle model, OE part number, mounting dimensions and required damping characteristics.

Real Application Cases

Urban SUV Replacement

A national automotive repair chain experienced a monthly rear-shock rework rate above 28% because of corrosion, rear body floating and bump noise. After switching to XiaYi products, the 480-hour salt spray-resistant coating and progressive damping design reduced the verified product failure rate to below 1.5% after 18 months.

Long-Distance Fleet

A regional ride-hailing fleet operating on highways and rural gravel roads experienced damping fade and uneven rear tire wear during summer operation. XiaYi supplied customized rear shocks using wide-temperature hydraulic oil and low-deformation bushings. After one year of full-load operation, no significant damping attenuation, oil leakage or abnormal tire wear was reported, while annual replacement costs decreased by more than 40%.

Quality Management

IATF 16949:2016 System

XiaYi has established a quality management system in accordance with IATF 16949:2016 for automotive component production. Quality control covers incoming materials, component machining, valve assembly, hydraulic oil filling, sealing, dimensional inspection, damping testing and finished-product evaluation.

Batch Traceability

Production and inspection information can be recorded by batch to support customer quality audits and aftermarket traceability requirements. For customized projects, XiaYi can provide relevant material documentation, dimensional inspection records, damping-force curves, salt spray test results, airtightness records and durability test data.

FAQ

What vehicles are these rear shocks designed for?

They are mainly developed for sedans and city SUVs using OE-type rear shock absorber configurations. Exact compatibility should be confirmed according to the vehicle model, production year, OE part number and suspension dimensions.

Can the damping force be customized?

Yes. XiaYi can develop compression and rebound damping characteristics according to vehicle weight, spring rate, suspension geometry and customer requirements. Force-velocity curves and corresponding test data can be provided during product development.

How does the coating improve durability?

The external powder coating helps protect the cylinder from moisture, road salt and surface impact, while the 0.1 mm hard chrome piston rod protects the reciprocating surface from corrosion and wear. Together with the sealed hydraulic structure, these measures help reduce corrosion- and wear-related failures.

What testing documents are available?

Depending on the project, XiaYi can provide dimensional inspection records, material documentation, damping-force curves, salt spray test results, airtightness records and durability test data.
