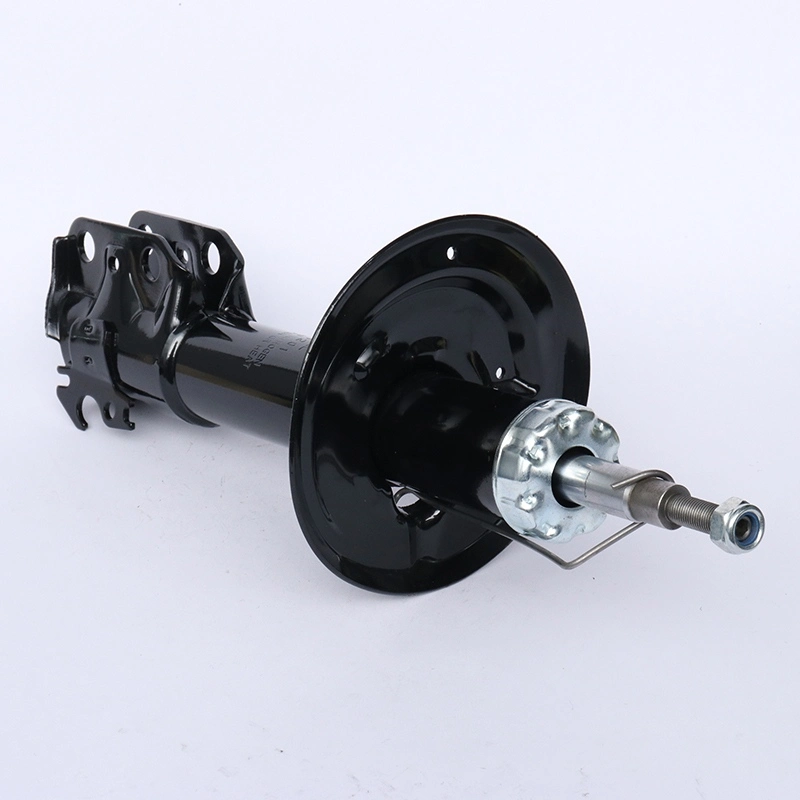

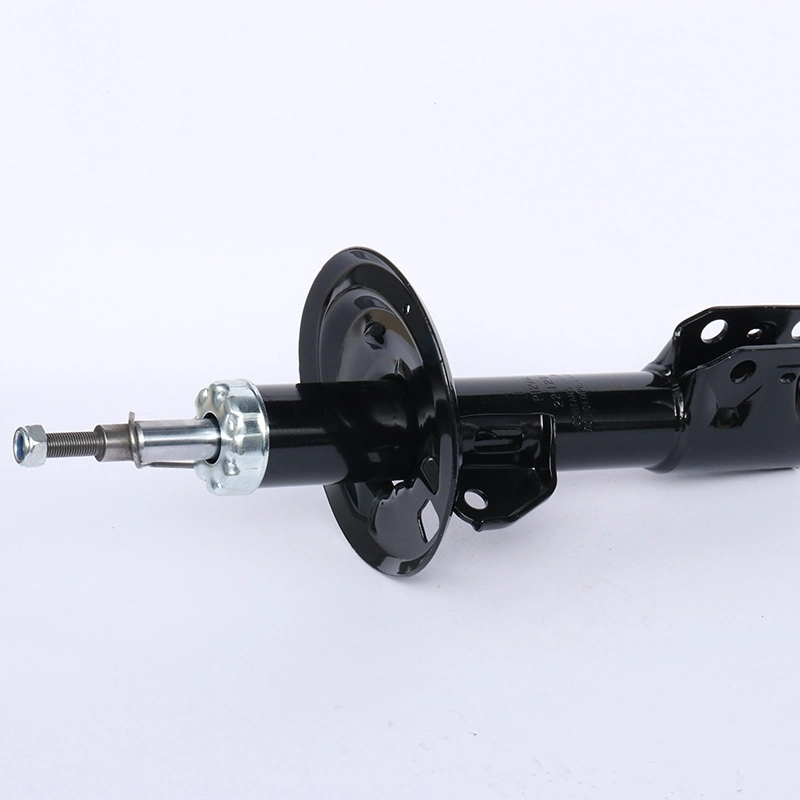

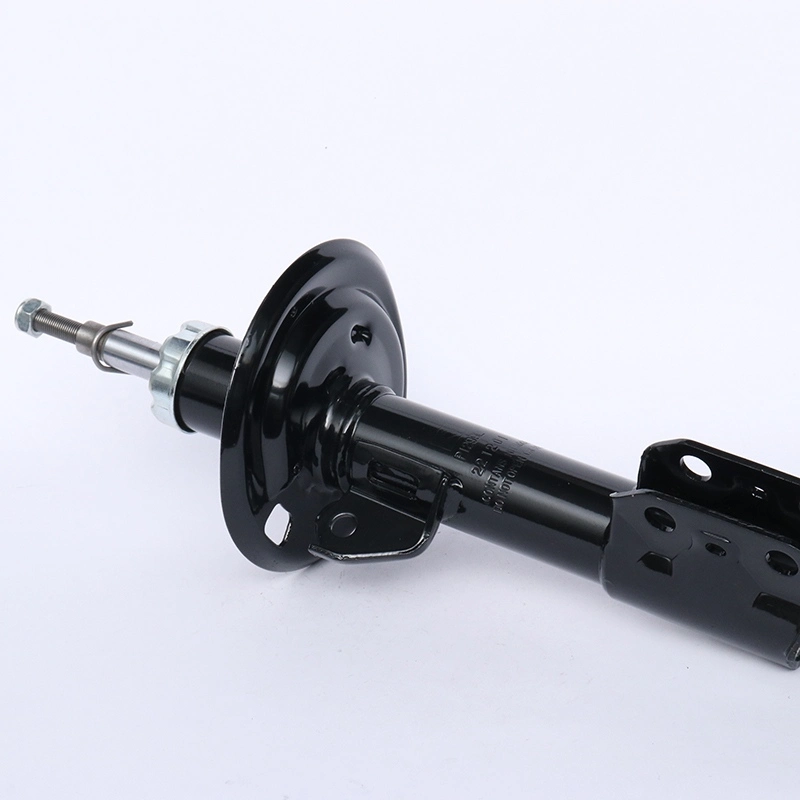

Durable-Coated Integrated Hydraulic Shock Absorber

The Durable-Coated Integrated Hydraulic Shock Absorber is mainly intended for urban roads, highways, rural roads and conventional wet or salted-road conditions. It is not designed for long-term overload or extreme off-road applications.

Structural Configuration

Cylinder and Piston Rod

The cylinder uses a precision welded steel tube with controlled wall thickness and a honed inner surface of Ra≤0.2μm. The piston rod uses 45# steel with a 0.08 mm hard chrome layer, mirror polishing and straightness controlled to ≤0.05 mm/m. This combination reduces friction between the rod, seal and guide components while improving resistance to surface wear.

Valve and Seal System

The damping assembly uses multi-layer spring steel shims, a multi-orifice base valve, nylon guide components and an EPDM double-lip oil seal. The valve configuration can be calibrated according to vehicle weight, suspension stroke and OE damping requirements, providing different compression and rebound characteristics for comfort and handling.

Protective Coating

The external structural components use electrophoretic anti-corrosion coating. The coating system reaches 520 hours of neutral salt spray testing, helping protect the cylinder and mounting components against moisture, road salt and general underbody corrosion.

Damping Performance

For a representative compact/midsize passenger-car application, the following values can be used as a reference calibration range. Actual damping force depends on vehicle model, piston speed, oil specification, valve stack and suspension tuning.

These values represent a typical calibration reference rather than a universal specification. XIAYI can adjust the damping curve according to the customer's OE sample, vehicle mass, spring rate and required ride characteristics.

Performance Comparison

Product Comparison

The XIAYI configuration focuses on passenger-car replacement rather than universal heavy-duty use. Buyers should select the damping specification according to vehicle weight, spring rate, suspension geometry and intended road conditions.

Manufacturing and Testing

Production Control

The manufacturing process covers cylinder machining, piston rod treatment, valve component preparation, housing coating, automatic assembly, vacuum oil filling and sealing. Key parameters such as dimensional tolerance, coating thickness, assembly torque and oil filling conditions are controlled before final inspection.

Finished Product Testing

Each Durable-Coated Integrated Hydraulic Shock Absorber is subject to dimensional, leakage and damping-related inspection. Performance validation can include reciprocating fatigue testing, high-low temperature damping testing, salt spray testing and airtightness testing. XIAYI operates its quality management system in accordance with IATF 16949:2016 requirements to improve process consistency and traceability.

Main Specifications

Installation Requirements

Before Installation

Check the coil spring, strut mount, dust cover and rebound stopper before installation. Damaged or aged supporting components should be replaced to prevent uneven loading and premature wear.

After Installation

Follow the vehicle manufacturer's tightening torque requirements and complete four-wheel alignment after installation. The piston rod should not be struck or clamped directly during assembly, as damage to the chrome surface can lead to seal wear and leakage.

Application Areas

Passenger Cars

The Durable-Coated Integrated Hydraulic Shock Absorber is suitable for compact and midsize passenger-car suspension replacement, including daily urban driving, highway travel and conventional rural roads. OE-based dimensions allow compatible models to be replaced without structural modification.

Aftermarket Repair

For repair chains and automotive parts distributors, the product provides a complete suspension assembly rather than separate cylinder and valve components, helping simplify installation and reduce assembly labor.

Fleet Vehicles

For passenger fleets operating on mixed paved and rural roads, the combination of corrosion protection, controlled damping and wear-resistant piston rods helps reduce premature replacement caused by road vibration and environmental exposure.

Real Application Cases

Compact Family Car Repair

A regional auto repair chain in central China experienced frequent oil leakage and chassis noise with conventional replacement shock absorbers. After switching to XIAYI coated integrated hydraulic shock absorbers, the product failure rate fell to 1.2% after two years of follow-up, reducing repeated maintenance.

Mid-Size Passenger Car Matching

A Chinese auto parts trading company required more consistent damping and OE-level mounting dimensions. XIAYI supplied calibrated shock absorbers with direct-installation dimensions, increasing assembly efficiency by 40%. The products have been supplied continuously for 18 months without reported batch-quality issues.

Rural Fleet Operation

A passenger-vehicle fleet operating on gravel and wet roads in southern China adopted the coated assemblies for improved corrosion and vibration resistance. After one year of full-load operation, no oil leakage, rust deformation or significant damping attenuation was reported.

FAQ

Can the Durable-Coated Integrated Hydraulic Shock Absorber be customized?

Yes. XIAYI supports customization of damping force, stroke, mounting dimensions, piston rod specifications and packaging according to vehicle models, OE samples or technical drawings. Actual damping curves can also be tested against specified piston speeds.

Can you provide damping force test data?

Yes. XIAYI can provide force-velocity test data for specified models. Buyers can define test conditions such as piston speed, compression/rebound direction and temperature to verify the damping characteristics before mass production.

What documents are available for bulk orders?

Depending on the project, XIAYI can provide dimensional inspection records, material certificates, damping test data, leakage test records, salt spray test results and batch traceability information. Customized inspection plans can also be agreed before production.

What vehicles is this product designed for?

The standard configuration is intended for compact and midsize passenger cars. Heavy-duty trucks, long-term overloaded vehicles and extreme off-road applications require separate damping, structural and mounting validation.

Why Choose XIAYI

XIAYI combines OE-based dimensional matching with controlled damping calibration, corrosion protection and finished-product testing. The IATF 16949:2016-based quality management system supports process traceability and batch consistency, while actual application projects provide reference for aftermarket procurement.

For distributors, repair chains and automotive component manufacturers, the product can be supplied according to vehicle model, OE sample or drawing, with technical parameters and inspection requirements confirmed before bulk production.
