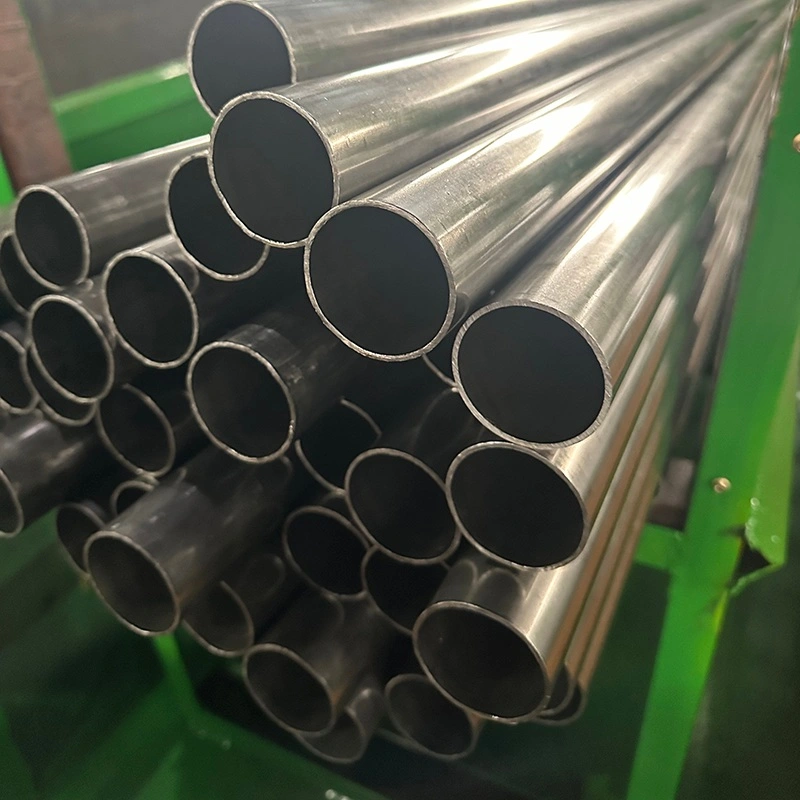

Seamless Precision Steel Tube

Unlike conventional welded tubes, the Seamless Precision Steel Tube has no longitudinal weld seam that may become a potential weak point during repeated pressure, vibration or machining. Its controlled dimensions and honed inner surface make it suitable for automotive shock absorber cylinders, hydraulic cylinders, pneumatic components and precision mechanical sleeves.

Seamless Structure

The absence of a welded joint is one of the main reasons for selecting this type of tube for pressure-bearing and reciprocating applications. XiaYi produces the tube through seamless forming followed by controlled cold drawing, reducing structural variation around the circumference and providing a more consistent base for machining and assembly.

For shock absorber and hydraulic applications, this structure helps reduce concerns associated with weld seam cracking, local deformation and leakage. It is particularly suitable when the finished component must repeatedly withstand pressure, vibration and piston movement.

Inner Bore Quality

For hydraulic cylinders and shock absorber bodies, inner bore quality directly affects seal wear, friction and operating stability. XiaYi uses CNC honing after precision forming to improve the internal surface and remove machining irregularities.

The honed bore can achieve a roughness of Ra≤0.2μm, while the inner diameter tolerance can reach ±0.015mm. This provides a controlled mating surface for piston rods, seals and bushings, reducing unnecessary friction and helping downstream manufacturers maintain consistent assembly quality.

Material Options

Different applications require different combinations of strength, toughness and processing performance. XiaYi provides several material options so customers can select the tube according to load, component design and production requirements.

The material selection can also be adjusted according to customer drawings, working loads and subsequent machining requirements.

Size Matching

XiaYi supplies different tube dimensions for lightweight suspension components, standard shock absorbers and heavy-duty hydraulic applications.

Non-standard outside diameter, wall thickness and fixed-length dimensions can be developed according to customer drawings.

Dimensional Control

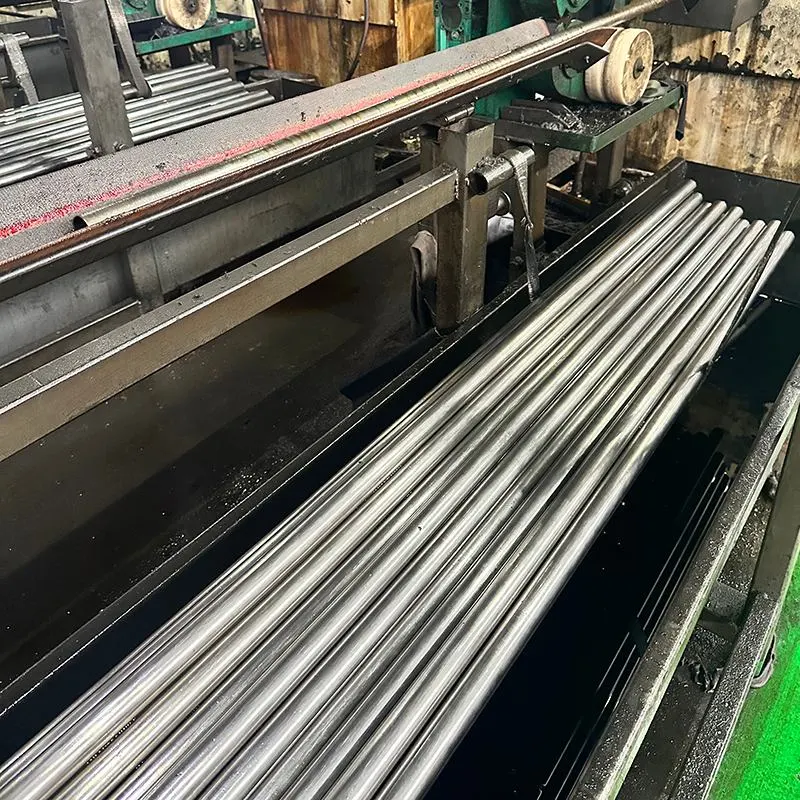

Precision dimensions are controlled throughout cold drawing, straightening, honing and final inspection. Typical specifications include an outer diameter tolerance of ±0.02mm, inner diameter tolerance of ±0.015mm, wall thickness variation within 0.01mm and straightness of ≤0.05mm/m.

These tolerances reduce the amount of secondary machining required by customers and help maintain consistent clearance between the tube, piston rod, seal and other internal components.

Surface Protection

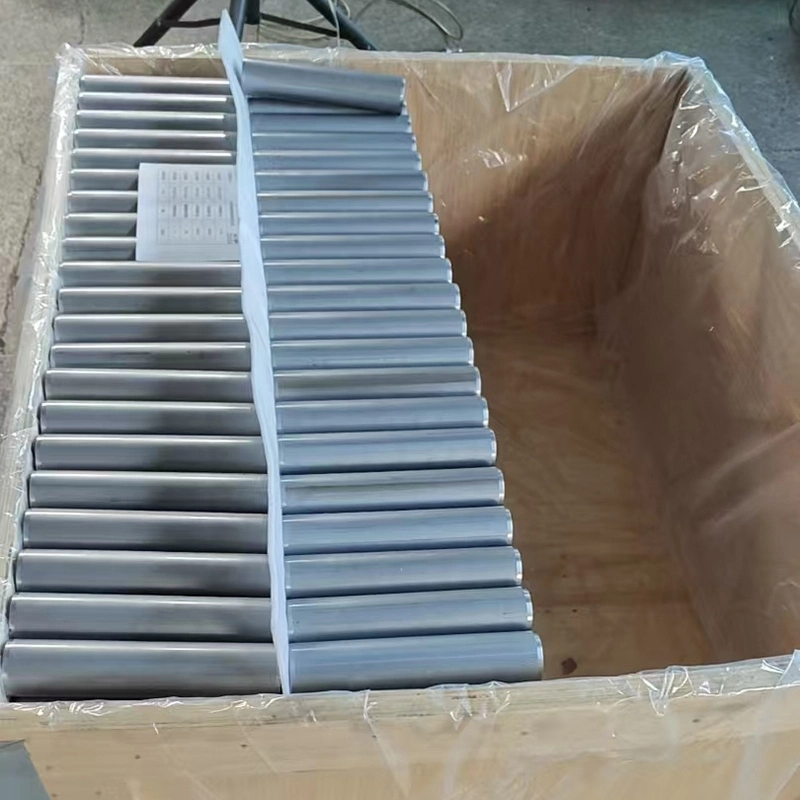

Tube surfaces must remain protected during storage, machining and transportation, particularly when the material will later be used in hydraulic or automotive components. XIAYI applies anti-rust treatment and protective packaging to reduce oxidation, scratches and contamination before the tubes reach the customer's production line.

For different application environments, surface protection requirements can be discussed according to storage duration, transportation conditions and subsequent coating or painting processes.

Processing Guide

Before machining, customers should confirm material grade, tube dimensions and surface condition against the production drawing. Honed inner surfaces should be protected from metal particles and mechanical impact, while tubes of different grades should be stored separately to prevent material mixing.

During cutting and finishing, suitable fixtures should be used to maintain straightness. After machining, the inner bore should be cleaned before assembly so that residual particles do not damage seals or affect hydraulic components.

Quality Inspection

XIAYI combines dimensional inspection, material verification and non-destructive testing to identify potential defects before shipment. Raw materials undergo chemical composition verification, while finished tubes are checked for dimensions, straightness and internal or external defects.

The inspection system includes laser dimensional measurement, eddy current testing, ultrasonic inspection, hardness testing, surface roughness measurement and inner-bore inspection. Inspection records can be provided for applicable batches to support customer quality management and traceability.

Applications

Seamless precision steel tubes are mainly used where a continuous tube structure and controlled internal surface are required. Typical applications include automotive shock absorber cylinders, hydraulic cylinders, pneumatic components, precision sleeves, suspension components and machinery parts.

For automotive applications, the tubes can be supplied for passenger cars, SUVs, light trucks, modified vehicles and new energy vehicles. For industrial applications, material and dimensions can be selected according to cylinder pressure, piston movement, machining method and service environment.

Real-World Cases

Off-Road Shock Absorbers

A professional vehicle modification enterprise focuses on off-road and racing shock absorber customization. Its original ordinary 45# steel tubes were prone to barrel dents, deformation and damping failure under severe impact and gravel conditions.

After adopting XiaYi ST52 high-strength Seamless Precision Steel Tubes, the components showed improved compression and impact resistance. Following one million high-frequency fatigue cycles and extreme off-road testing, no deformation or honing-layer peeling was observed. The service life of the modified shock absorbers increased by 55%.

New Energy Micro Vehicles

A new energy vehicle manufacturer develops micro low-speed electric vehicles and required lightweight, accurate tubes for rear shock absorber assemblies. Traditional hot-rolled tubes had excessive dimensional variation and poor straightness, causing assembly interference and chassis vibration.

After adopting XiaYi ultra-thin seamless precision steel tubes, the tubes matched the limited suspension space more accurately. Assembly efficiency increased by 38%, while the chassis vibration problem was resolved, supporting stable mass production.

Manufacturing Capability

XIAYI operates an automotive-oriented production system covering seamless forming, cold drawing, stress-relief treatment, precision honing, straightening and final inspection. The company has established a quality management system meeting IATF 16949:2016 requirements.

Production and inspection records are maintained for applicable batches, allowing customers to verify material, dimensions and testing information during procurement and quality review. Customized tube dimensions and processing requirements can also be evaluated according to customer drawings.

Frequently Asked Questions

What is the advantage of a seamless tube?

A seamless structure eliminates the longitudinal weld seam found in welded tubes, providing a more uniform tube body for pressure, vibration and machining applications.

How smooth can the inner bore be?

The CNC honing process can achieve an inner surface roughness of Ra≤0.2μm, suitable for applications involving piston rods, seals and bushings.

Can XIAYI supply custom sizes?

Yes. XIAYI can customize outside diameter, wall thickness, length, material and inner-bore requirements according to customer drawings and application conditions.
