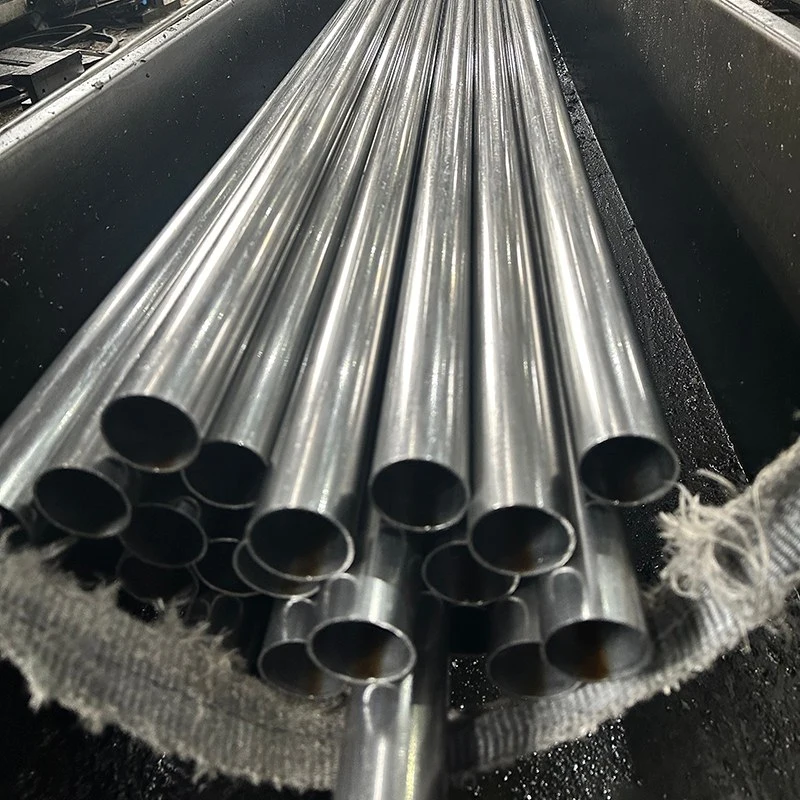

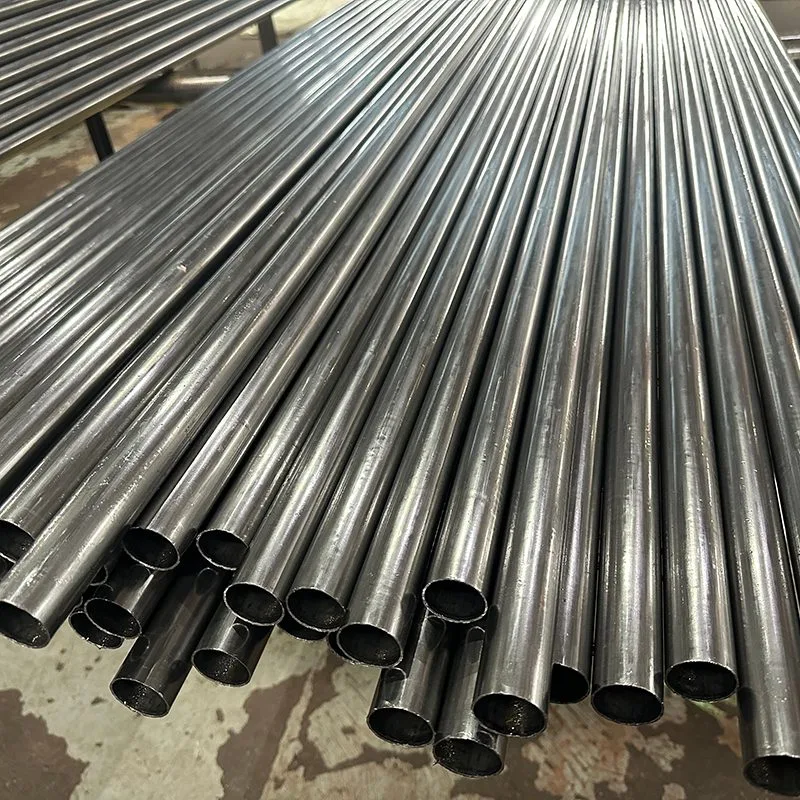

Cold Drawn Precision Steel Tube

The Cold Drawn Precision Steel Tube is manufactured from carefully selected 20# precision carbon steel and processed through multi-pass cold drawing, controlled annealing, straightening, inner-hole finishing, non-destructive testing, and full dimensional inspection. The controlled manufacturing process helps reduce wall thickness variation, residual stress, inner-hole roughness, bending, and dimensional instability.

Material Selection

Material quality directly affects the machinability, pressure resistance, fatigue behavior, and dimensional stability of precision steel tubes. XIAYI uses screened 20# precision carbon steel with controlled chemical composition and low non-metallic inclusion levels.

The +LC soft annealed delivery condition helps reduce internal stress before subsequent machining. This is particularly important for customers performing turning, boring, honing, or other precision processing after receiving the tubes.

Production Process

XIAYI controls the manufacturing route from billet inspection through final packaging. Each stage is designed to control a specific risk that may affect dimensional accuracy or subsequent processing.

The combination of cold drawing and controlled annealing provides a more stable dimensional condition for later machining. Finished tubes are also inspected for surface defects, internal discontinuities, straightness, and dimensional deviations before shipment.

Dimensional Accuracy

Dimensional consistency is one of the main purchasing considerations for precision tubular materials. Excessive variation in outer diameter, wall thickness, or straightness can increase machining allowance, create assembly interference, or affect the clearance of mating components.

Outer Diameter

The outer diameter tolerance is controlled to approximately ±0.05 mm, helping customers maintain consistent machining and assembly dimensions. Stable OD control can also reduce the amount of secondary machining required for precision sleeves and cylinder components.

Wall Thickness

Wall thickness is controlled within approximately ±0.05 mm. Uniform wall thickness provides more consistent load distribution and reduces local weak areas when the tube is used in hydraulic or structural applications.

Straightness

Finished straightness is controlled to ≤0.3 mm/m. This helps reduce eccentricity and positioning problems during turning, boring, honing, welding, and automated assembly.

Inner Surface

The inner hole is polished and cleaned to achieve a surface roughness of approximately Ra≤2.0 μm. A cleaner and smoother inner surface helps reduce friction and contamination risks when the tube is matched with pistons, seals, rods, or other moving components.

Quality Verification

XIAYI uses multiple inspection methods to evaluate both visible and hidden quality characteristics. Dimensional inspection is combined with non-destructive testing and mechanical verification so that quality control does not depend only on final appearance.

The inspection records can be linked with production batches to support quality traceability for OEM and industrial customers.

Processing Benefits

For buyers, the value of precision tubing is not limited to the delivered dimensions. The material should also remain stable during cutting, machining, forming, welding, and assembly.

Machining Stability

Controlled annealing reduces residual stress inside the material. This helps minimize dimensional springback and deformation during subsequent machining, improving consistency between processed components.

Sealing Interface

The finished inner surface is controlled for roughness and cleanliness, making the tube suitable for applications where the internal surface interfaces with seals, pistons, or hydraulic components. Reduced surface irregularities can help lower unnecessary wear on mating components.

Pressure Performance

The combination of controlled material composition, uniform wall thickness, and stable mechanical properties provides a consistent base material for hydraulic and structural components. This is particularly useful where the tube is exposed to repeated internal pressure or impact loads.

Application Areas

The Cold Drawn Precision Steel Tube is designed for precision tubular components used across automotive, hydraulic, pneumatic, and mechanical industries. Typical applications include shock absorber cylinders, hydraulic cylinders, pneumatic cylinders, precision sleeves, automotive structural components, and machinery parts requiring controlled dimensions.

The final specification should be selected according to the customer's working pressure, machining process, required dimensions, sealing system, and applicable technical standard.

Customer Problem Solving

Precision tube buyers often face high scrap rates not because of one major defect, but because several small variations accumulate during processing. XIAYI addresses these risks through material screening, controlled annealing, precision cold drawing, surface finishing, NDT, and online dimensional inspection.

This approach allows customers to evaluate the material not only by its basic specification, but also by its expected behavior during subsequent processing and assembly.

Real Application Cases

Passenger Car Shock Absorber Cylinder

A domestic auto parts enterprise specializing in SUV and sedan shock absorber cylinders previously used ordinary precision steel tubes with unstable wall thickness and rough inner holes. The customer experienced an 8% assembly jamming rate together with oil seal wear and leakage during vehicle operation.

After adopting XIAYI Cold Drawn Precision Steel Tube with ±0.05 mm wall thickness control and an inner surface roughness of Ra≤2.0 μm, the reported assembly qualification rate increased to 100%, while oil leakage-related failures were eliminated during the reported application period. The product has been supplied to the customer's OEM production line for two consecutive years.

Engineering Machinery Hydraulic Cylinder

A construction machinery manufacturer uses precision steel tubes for medium and small hydraulic cylinders used in loaders and excavators. Its previous material had relatively high internal stress and was prone to deformation during finishing operations.

After switching to XIAYI soft-annealed material, the customer reported improved dimensional stability during machining. Following 100,000 high-pressure cycle tests, no deformation or cracking was reported, and the hydraulic cylinder service life increased by approximately 40%.

Frequently Asked Questions

What is the difference between cold drawn precision tubes and ordinary steel tubes?

Cold drawing provides tighter dimensional control and a more consistent surface compared with conventional steel tube production. This makes the material more suitable for precision machining, sealing, and close-tolerance assembly.

Can the tubes be supplied with customized dimensions?

Yes. XIAYI supports customized outer diameter, wall thickness, length, surface condition, and delivery condition according to customer drawings and application requirements.

Are inspection reports available?

Yes. XIAYI can provide material, dimensional, mechanical, NDT, and surface inspection records according to the customer's quality requirements and order specifications.

What applications are suitable for these tubes?

Typical applications include automotive shock absorber cylinders, hydraulic and pneumatic cylinders, precision sleeves, structural components, and other mechanical parts requiring controlled dimensions and surface quality.

XIAYI Manufacturing Capability

XIAYI is a China-based manufacturer and supplier of precision tubular components for automotive and industrial applications. The factory integrates material inspection, cold drawing, heat treatment, finishing, NDT, dimensional inspection, and protective packaging under a quality management system compliant with IATF 16949:2016.

XIAYI supports standard and customized orders with batch traceability, technical documentation, and inspection records for customers requiring consistent precision steel tube quality.
