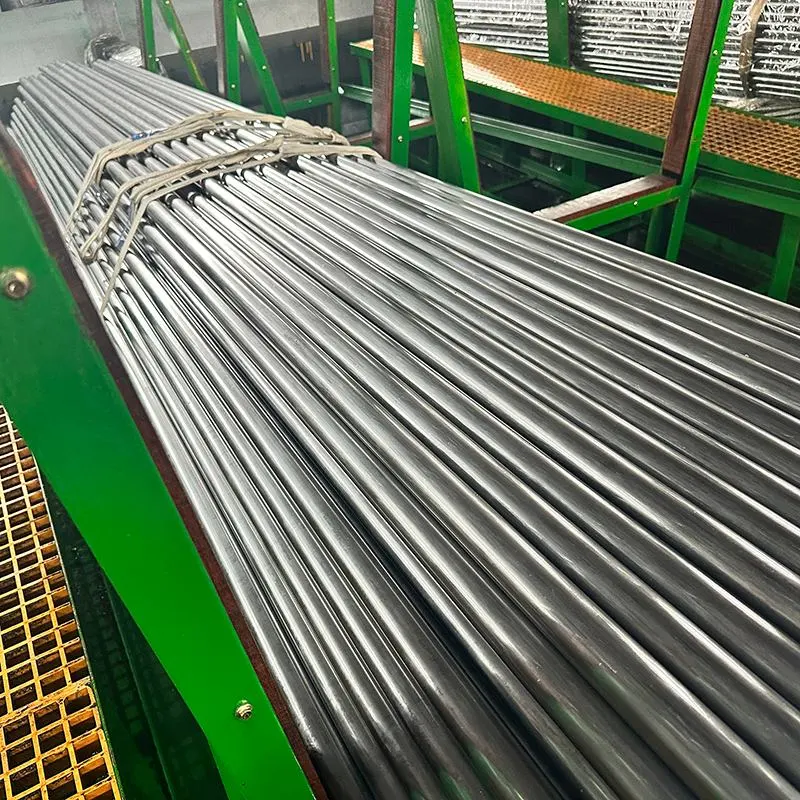

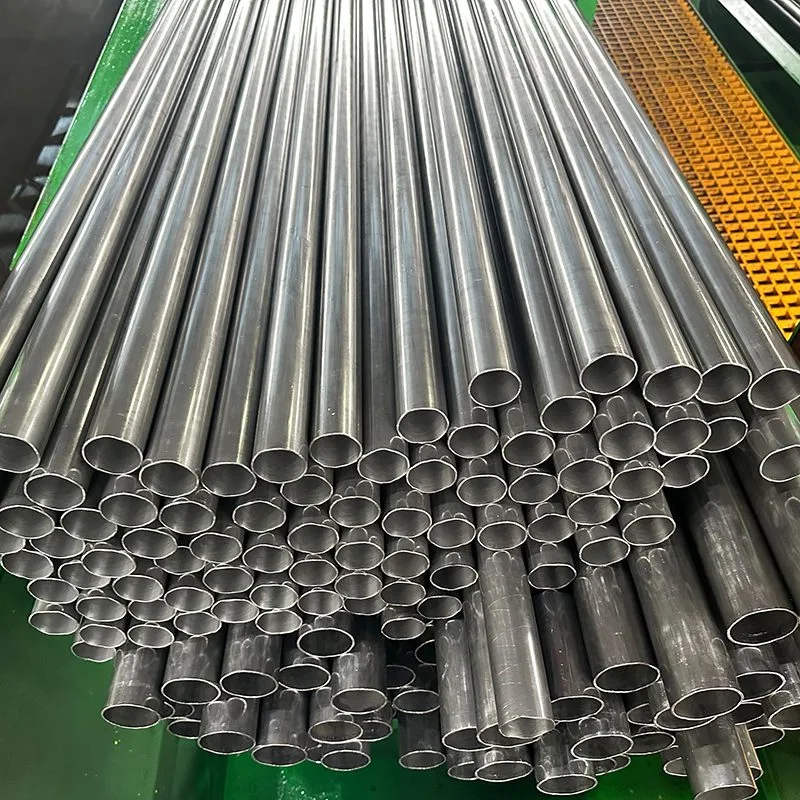

High Strength Precision Steel Tube

Unlike conventional precision tubes that mainly focus on dimensional accuracy, this High Strength Precision Steel Tube places greater emphasis on load-bearing reliability and failure prevention. XiaYi uses PFMEA throughout material inspection, forming, heat treatment, straightening, finishing and final inspection to identify potential failure risks before they affect production.

With tensile strength of 545--590MPa, elongation of ≥19%, outer diameter and wall thickness tolerances of ±0.05mm, and straightness of ≤0.3mm/m, it is suitable for automotive shock absorber cylinders, hydraulic cylinders, chassis components and other precision tubular parts.

Material & Strength Control

The reliability of a high-strength tube begins with its steel composition and internal structure. XiaYi selects 20# precision carbon structural steel and controls chemical composition, inclusions and delivery condition before production. This helps maintain consistent strength during machining and reduce the possibility of cracking or deformation under pressure and cyclic loading.

PFMEA Process Control

XiaYi applies PFMEA to identify potential failure modes before mass production. Material composition, cold rolling parameters, heat treatment, straightness, inner bore quality and non-destructive testing are connected into one quality-control chain.

Strength & Dimensional Data

The key performance values are designed around the requirements of precision components that operate under pressure, vibration and repeated loading.

Internal Defect Prevention

For hydraulic and automotive tubular components, defects that cannot be seen from the outside may become the main source of failure. XiaYi therefore combines raw-material screening with eddy current and ultrasonic inspection to control laminations, internal cracks and other structural defects.

The inner bore is also finished to Ra≤2.0μm to reduce contamination and friction in applications using seals, pistons or moving components. This combination of internal integrity and surface quality helps customers reduce machining rework and improve the reliability of finished components.

Processing Stability

High-strength materials must still remain suitable for subsequent machining. Excessive residual stress can cause dimensional changes, springback or deformation after cutting and turning.

XiaYi uses controlled-atmosphere annealing to reduce internal stress before precision processing. Combined with straightness control of ≤0.3mm/m and dimensional inspection, the tubes maintain more stable geometry during machining. This is particularly useful for customers producing cylinders, sleeves and structural components in large batches.

Product Applications

XiaYi High Strength Precision Steel Tube is suitable for automotive and industrial components requiring a combination of strength, dimensional stability and reliable internal structure. Typical applications include shock absorber cylinders, hydraulic cylinders, pneumatic components, precision sleeves, automotive chassis parts and machinery structural tubes.

For hydraulic equipment, the material provides a stable tubular base for pressure-bearing components. In automotive applications, its dimensional consistency and controlled inner surface can support accurate cylinder and sleeve production. For precision machinery, the combination of strength and machinability helps reduce downstream processing variation.

Real-World Application Cases

Passenger Car Shock Absorber Cylinder

A domestic professional auto parts manufacturer focuses on SUV and sedan shock absorber cylinders. Its previous steel tubes showed unstable strength and uneven wall thickness, resulting in micro-cracks under long-term road vibration and high pressure. The assembly failure rate reached 8%, accompanied by recurring oil leakage complaints.

After adopting XiaYi High Strength Precision Steel Tube, the improved wall thickness consistency and structural strength solved the high-pressure cracking and sealing problems. Assembly qualification increased to 100%, while the after-sales failure rate dropped to zero. The product has remained in stable OEM supply for two consecutive years.

Engineering Machinery Hydraulic Cylinder

A construction machinery enterprise produces hydraulic cylinders for loaders and excavators. Its previous tubes had excessive residual stress and insufficient structural strength, leading to deformation and cracking after 50,000 high-pressure cycles.

After switching to XiaYi tubes with protective-atmosphere annealing, the customer achieved improved dimensional stability and pressure resistance. After 100,000 high-pressure impact cycles, no deformation or cracking occurred, and hydraulic cylinder service life increased by 40%.

Quality & Traceability

XiaYi has established a quality management system in accordance with IATF 16949:2016, covering material verification, process control, inspection and delivery. Each production batch can be connected with its corresponding material and process records.

The factory uses laser dimensional measurement, hardness testing, tensile testing, spectrometers, roughness measurement and non-destructive testing equipment to verify key characteristics. This enables customers to receive consistent material quality and supporting inspection records for automotive and industrial production.

Frequently Asked Questions

What makes this product different from standard precision steel tubes?

XiaYi focuses not only on dimensional accuracy but also on structural strength, fatigue resistance and internal defect prevention. PFMEA, controlled heat treatment and dual NDT inspection provide additional control for high-load applications.

Can it be used for hydraulic cylinders?

Yes. Its 545--590MPa tensile strength, controlled wall thickness and Ra≤2.0μm inner bore make it suitable for hydraulic cylinder production when the selected specification matches the customer's pressure and design requirements.

Can XIAYI customize the tube size?

Yes. XiaYi can customize outer diameter, wall thickness, length, inner bore requirements and surface treatment according to customer drawings and application conditions. Batch inspection records can also be provided for customized orders.
