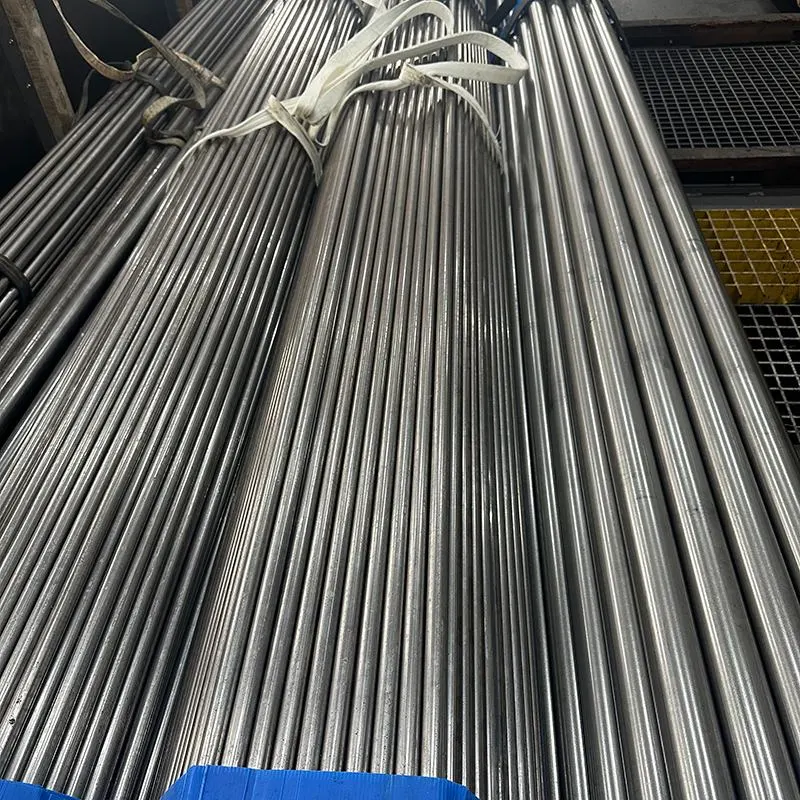

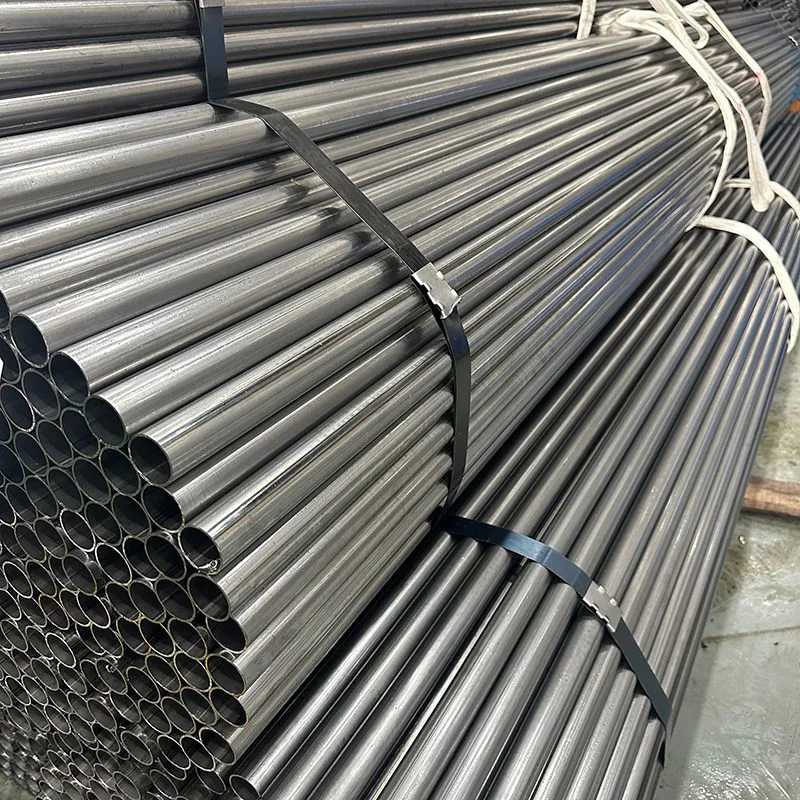

High Strength Precision Welded Steel Tube

The High Strength Precision Welded Steel Tube focuses on welding stability, weld finishing, residual stress control and dimensional consistency rather than simply increasing material strength. This makes the tube suitable for automotive shock absorber housings, hydraulic sleeves, construction machinery bushings and other precision tubular components that require cutting, machining, flaring or forming after tube production.

Weld Quality

The welded joint is one of the most important areas for precision welded tubes. XIAYI uses automatic high-frequency resistance welding with controlled welding current, squeeze pressure, line speed and cooling conditions to maintain consistent weld formation throughout continuous production.

Welding Control

Before welding, the strip is leveled, cleaned and edge-trimmed to provide stable alignment. During high-frequency welding, the main process parameters are controlled to maintain consistent heat input and weld pressure. This helps reduce common problems such as cold joints, slag inclusion and unstable weld penetration.

Weld Inspection

After welding and finishing, the tube undergoes full-length eddy current inspection to identify potential cracks and discontinuities. Weld appearance and dimensional conditions are also checked before shipment, helping prevent hidden weld defects from entering the customer's production line.

Forming Performance

Precision welded tubes may require flaring, flattening, bending or other forming operations after delivery. Q235B offers good ductility, allowing the tube to maintain structural integrity during common secondary forming processes.

Flaring and Flattening

With elongation of ≥30%, the tube is suitable for applications requiring controlled flaring and flattening performance. Customers can specify their forming requirements in advance, allowing XIAYI to arrange corresponding material and production verification.

Post-Processing

The tube can be supplied for subsequent turning, cutting, bending, coating and assembly. Stress relief treatment after welding helps reduce residual stress that could otherwise contribute to deformation during machining or storage.

Dimensional Stability

Stable dimensions are important when welded tubes are used as housings, sleeves or precision bushings. XIAYI monitors strip thickness, tube diameter, wall thickness and straightness throughout production to maintain consistent geometry.

Size Control

Online dimensional monitoring can be used to check outside diameter and wall thickness during tube production. For customized orders, wall thickness tolerance can be controlled to ±0.03mm according to the customer's application and machining requirements.

Length Control

Precision cutting provides a typical fixed-length tolerance of ±0.5mm. Tube ends are deburred and finished to reduce interference during subsequent machining and component assembly.

Weld Finishing

The weld area is processed after high-frequency welding to obtain a controlled and usable surface profile. CNC milling helps remove excessive weld reinforcement while limiting unnecessary material removal.

Surface Finishing

External weld height is typically controlled within 0.1--0.3mm before finishing. The finished weld area is checked for excessive grinding, surface pits and other conditions that could affect downstream machining or coating.

Machining Compatibility

A controlled weld profile provides a more stable surface for turning, coating and other secondary operations. For components containing seals or moving parts, XIAYI can adjust the weld finishing requirements according to the customer's machining allowance and assembly design.

Production Control

The production line combines strip preparation, high-frequency welding, weld finishing, stress relief, precision cutting and final inspection. Each stage has defined process requirements to maintain consistent tube quality.

Production Stages

The basic production sequence includes strip leveling and trimming, high-frequency welding, weld milling, stress relief treatment, fixed-length cutting, deburring, non-destructive testing and protective packaging.

Process Monitoring

Key welding and forming parameters are monitored during production rather than relying only on final inspection. This allows process deviations to be identified earlier and helps maintain consistent performance between production batches.

Inspection Methods

XIAYI uses material, dimensional, mechanical and non-destructive inspection methods to verify finished tubes. The inspection plan can be adjusted according to the customer's quality requirements.

Material Testing

Incoming Q235B strip can be checked for chemical composition, surface condition and mechanical properties. Optical emission spectroscopy helps verify material composition and reduce the risk of mixed or unsuitable raw materials.

Tube Inspection

Finished tubes can undergo laser dimensional measurement, eddy current testing, tensile testing, flattening and flaring tests. These methods verify both the physical properties and processing performance required for downstream applications.

Processing Compatibility

The High Strength Precision Welded Steel Tube is designed to integrate with common customer manufacturing processes rather than being used only as a finished tube.

Cutting and Turning

The tube can be supplied in fixed lengths for CNC cutting and turning operations. Controlled dimensions and finished tube ends help reduce additional correction work during machining.

Bending and Assembly

For components requiring bending or forming, tube specifications can be matched to the customer's tooling and forming process. Dimensional consistency also helps reduce assembly interference in sleeves, housings and structural components.

Applications

The High Strength Precision Welded Steel Tube is intended for precision mechanical and automotive applications where controlled weld quality and forming performance are required.

Automotive Components

Typical applications include shock absorber housings, suspension components and other tubular parts used in passenger vehicles, light trucks and modified vehicles. The controlled weld structure supports repeated vibration and downstream machining.

Industrial Components

The High Strength Precision Welded Steel Tube can also be used for hydraulic cylinder sleeves, construction machinery bushings, pneumatic component housings and precision mechanical tubular parts where welded construction is appropriate.

Material and Size Options

XIAYI primarily uses Q235B hot rolled strip for applications requiring a balance between strength, ductility and processing performance.

Material Range

Size Customization

Outside diameter, wall thickness and fixed length can be customized according to customer drawings. Weld finishing, tube-end processing and anti-rust treatment can also be adjusted for different downstream production requirements.

Customer Solutions

For buyers, the main concern is usually whether a welded tube can maintain stable performance during mass production and subsequent machining. XIAYI addresses this through controlled strip selection, automatic welding, weld finishing, stress relief and final inspection.

Weld Defects

Potential problems such as incomplete welding, hidden cracks and excessive weld reinforcement are controlled through automatic welding parameters, weld finishing and full-length eddy current inspection.

Assembly Problems

Dimensional variation, excessive weld height and tube deformation can create difficulties during machining and assembly. Controlled wall thickness, fixed-length cutting and stress relief treatment help reduce these problems before the tubes reach the customer's production line.

Real-World Cases

Shock Absorber Housing

A well-known domestic auto parts enterprise previously used ordinary welded tubes for shock absorber housings. Hidden weld cracks frequently appeared after prolonged road vibration, contributing to a monthly rework loss of more than RMB 120,000.

After switching to XiaYi welded tubes, fixed Q235B material control and full-length eddy current inspection improved weld consistency. Stress relief treatment also reduced deformation during turning. The annual assembly reject rate decreased from 8.7% to 0.4%, saving more than RMB 1.3 million in annual after-sales maintenance costs.

Hydraulic Cylinder Sleeve

A construction machinery manufacturer experienced inconsistent sealing during hydraulic cylinder assembly because of variations in tube wall thickness. XIAYI introduced matched strip thickness screening together with online laser wall thickness monitoring.

The wall thickness tolerance was stabilized within ±0.03mm, assembly matching efficiency increased by 35%, and the finished hydraulic cylinder pass rate reached 99.6%.

Precision Bushing

A construction machinery OEM used XIAYI tubes for load-bearing bushings. The required components needed good elongation for forming and stable performance under alternating loads.

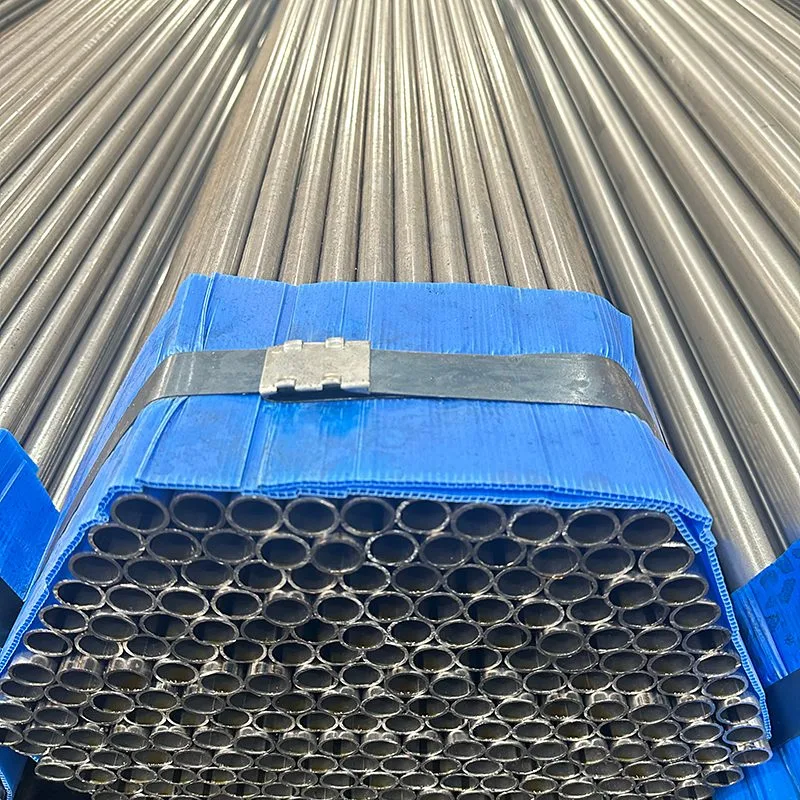

With controlled Q235B material and production inspection, the tubes achieved elongation of ≥30% and passed the customer's forming requirements. Independent anti-rust packaging also reduced surface rust and collision damage during long-distance transportation, and the products passed three years of continuous field operation without reported quality failure.

Manufacturing Capability

XIAYI's production line integrates strip preparation, high-frequency welding, weld milling, stress relief treatment, precision cutting and inspection. The company has established a quality management system in accordance with IATF 16949:2016.

Production Equipment

The production system includes automatic high-frequency welding equipment, CNC weld milling machines, protective-atmosphere annealing equipment, laser cutting machines and strip leveling equipment.

Quality Management

Material records, production parameters and inspection information are maintained for applicable batches. Customers can request relevant quality documents and customized inspection requirements according to their purchasing specifications.

Frequently Asked Questions

Can it be used for hydraulic components?

Yes. The controlled weld quality, dimensional consistency and full-length eddy current inspection make it suitable for selected medium-pressure hydraulic sleeves and related tubular components.

Can the tube be flared or flattened?

Yes. Q235B provides good ductility, and flattening or flaring tests can be performed according to the customer's forming requirements before mass production.

Can XIAYI customize the dimensions?

Yes. Outside diameter, wall thickness, length, end processing and weld finishing can be customized according to technical drawings and downstream machining requirements.
