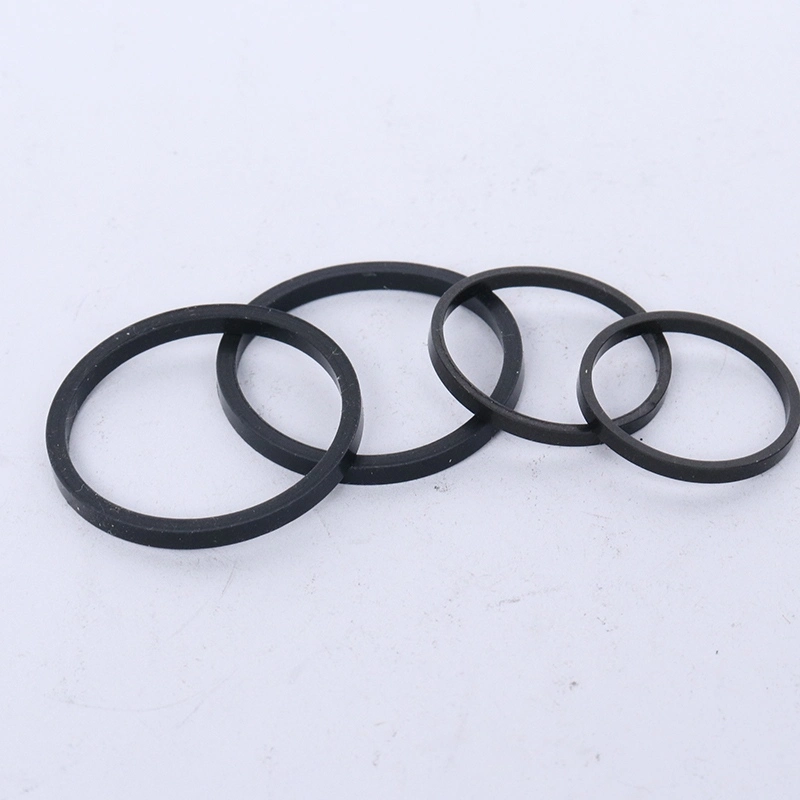

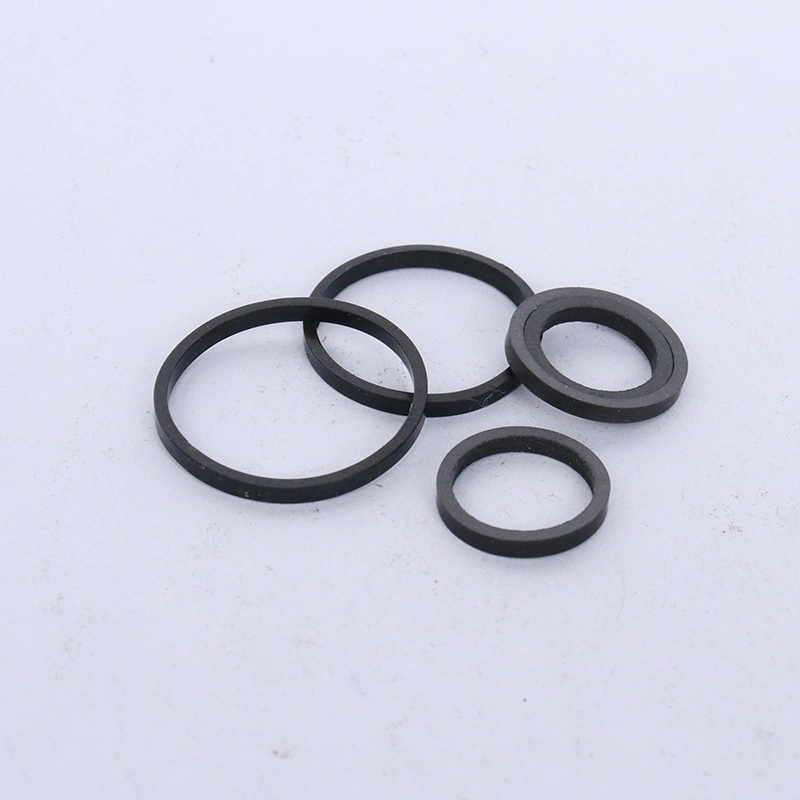

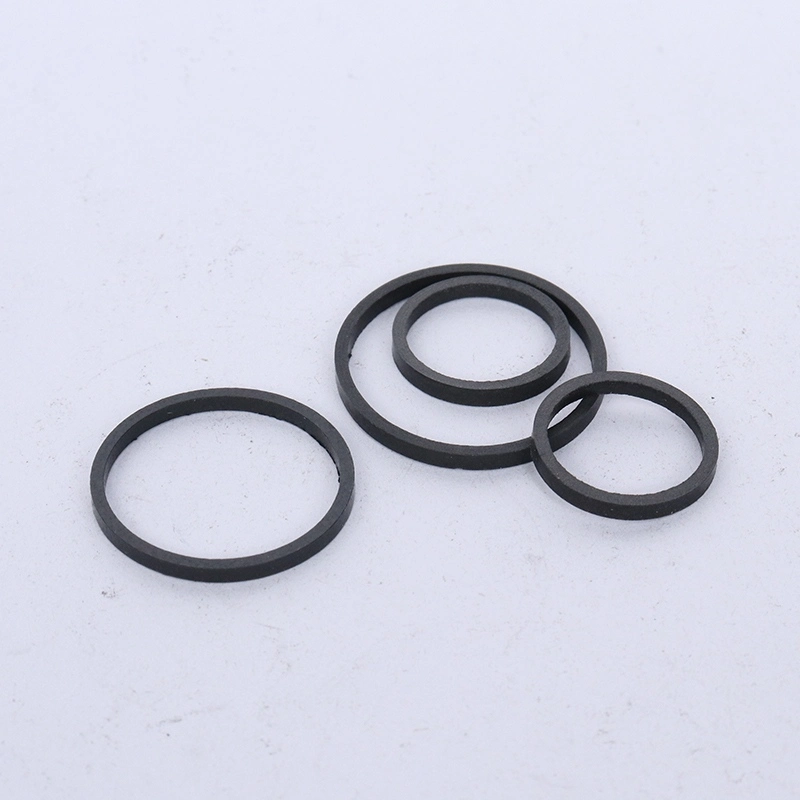

Wear-Resistant PTFE Guide Ring

XIAYI Wear-Resistant PTFE Guide Ring is designed for shock absorber guide assemblies where stable rod guidance, controlled friction and long-term dimensional retention are essential. Manufactured from high-performance modified PTFE, it combines low friction, wear resistance and reliable dimensional stability to support smooth reciprocating movement under demanding automotive and machinery conditions.

With a standard size of 27.87mm ID × 1.25mm wall thickness × 2mm height, XIAYI provides precision machining, full-size inspection and application-specific customization for passenger vehicles, EVs, commercial vehicles, off-road equipment and construction machinery. Backed by a quality management system established according to IATF 16949:2016, XIAYI supports consistent OEM and aftermarket supply with traceable quality control.

Why Guide Stability Matters

A guide ring does more than separate moving metal surfaces inside a shock absorber. Its primary role is to keep the piston rod properly positioned while it moves repeatedly through the guide assembly. If the guiding surface wears unevenly, the piston rod may develop radial movement, increasing friction, vibration and the possibility of seal damage.

XIAYI Wear-Resistant PTFE Guide Ring is developed around this guiding function. Its PTFE construction provides a low-friction sliding interface while maintaining sufficient structural strength for repeated reciprocating movement. The result is more stable piston rod guidance, reduced contact irregularities and better protection for surrounding sealing components.

For vehicle manufacturers and shock absorber suppliers, this means the component can contribute to more consistent suspension performance without introducing unnecessary friction into the assembly.

Standard Size

The standard configuration is manufactured for a specific shock absorber guide assembly requirement, with an inner diameter of 27.87±0.01mm, wall thickness of 1.25±0.01mm and height of 2±0.01mm. These dimensions are controlled during machining and verified during final inspection.

Sliding Interface Performance

The contact between the guide ring and piston rod is a critical friction interface. Excessive friction can increase operating resistance, while an uneven or rough contact surface may accelerate wear on the chrome-plated rod.

The PTFE material used by XIAYI provides inherent low-friction characteristics, while precision finishing produces a smooth contact surface. This combination allows the ring to follow the reciprocating movement of the piston rod with controlled resistance.

Instead of relying only on increased material hardness, the design focuses on maintaining a balanced relationship between friction, wear resistance and dimensional stability. This is particularly important in shock absorbers that experience thousands of repeated movements during normal vehicle operation.

Surface Protection

A smooth guide surface helps reduce the risk of abrasive contact with the piston rod. XIAYI controls the finished surface to Ra≤0.2μm and removes machining burrs and sharp edges before final inspection. This reduces the possibility of localized scratching and helps maintain the integrity of the piston rod surface during long-term operation.

Dimensional Fit

A guide ring that is too tight may increase sliding resistance and assembly difficulty, while excessive clearance can allow unwanted movement of the piston rod. For this reason, dimensional consistency is a major purchasing consideration for OEM customers.

XIAYI controls the main dimensions throughout molding, sintering and CNC finishing. The standard 27.87mm inner diameter is maintained within ±0.01mm, while wall thickness and height are also controlled within ±0.01mm.

Assembly Accuracy

Consistent geometry helps the guide ring maintain a stable position inside the guide assembly. It also reduces the possibility of eccentric contact caused by uneven wall thickness or dimensional deviation.

For mass production, this consistency is particularly valuable because hundreds or thousands of shock absorber assemblies may require the same component specification. Stable dimensions help reduce assembly adjustment, rejected components and batch-to-batch performance variation.

Built for Repeated Movement

Shock absorber components operate under continuous reciprocating motion rather than a single static load. The guide ring therefore needs to maintain its geometry after repeated sliding, compression and temperature changes.

XIAYI Wear-Resistant PTFE Guide Ring is manufactured using modified PTFE designed for repeated sliding applications. Its wear resistance helps maintain the guiding surface over extended operating periods, while its dimensional stability helps prevent excessive clearance from developing as the component ages.

The product has been evaluated through million-cycle reciprocating durability testing, providing a reference for customers assessing long-term wear performance.

Temperature Adaptability

Automotive shock absorbers may experience substantial temperature changes depending on climate, vehicle load and operating intensity. The modified PTFE formulation supports an operating range of approximately -40℃ to 260℃, helping maintain stable mechanical and sliding characteristics in both cold and high-temperature conditions.

This temperature adaptability is useful for vehicles operating in northern winter environments, high-temperature regions and equipment exposed to prolonged mechanical operation.

Quality Control

For precision PTFE components, material quality alone cannot guarantee final performance. Molding consistency, sintering conditions, machining accuracy and surface finishing all influence the final geometry.

XIAYI has established a quality management system according to IATF 16949:2016 and applies process control throughout production. Key dimensions are inspected before shipment, while surface condition, roundness and appearance are also checked to identify potential defects.

Batch Consistency

For OEM and aftermarket buyers, stable batch-to-batch performance is often more important than the specification of a single sample. XIAYI therefore emphasizes repeatable manufacturing conditions and final dimensional verification.

Production records and inspection data can support quality traceability for bulk orders, helping customers maintain consistent assembly performance across different production batches.

Where It Fits

The component is suitable for shock absorber guide assemblies used in passenger cars, SUVs, new energy vehicles, commercial vehicles, off-road vehicles and selected construction machinery. It can be supplied as an OEM component, replacement part or customized PTFE solution according to the customer's drawing and installation requirements.

Automotive Applications

In passenger vehicles and EVs, the guide ring supports piston rod movement within the shock absorber assembly. Its low-friction surface and wear-resistant structure are suitable for suspension systems requiring smooth operation and long-term dimensional stability.

Heavy-Duty Equipment

For commercial vehicles, off-road equipment and construction machinery, the component may face higher loads, vibration and more demanding environmental conditions. Modified PTFE and wear-focused structural control provide a suitable option for applications where ordinary plastic guide components may experience accelerated wear.

Application Case

A mainstream new energy vehicle OEM once experienced widespread after-sales complaints. Shock absorbers equipped with conventional PTFE guide rings developed oil leakage and abnormal chassis noise after 3--6 months of road use. Some piston rods also showed visible scratches, resulting in increased maintenance frequency.

After analysis, the customer identified loose dimensional tolerance, rough surface finish and insufficient wear resistance as the primary causes. The OEM then worked with XIAYI to replace the original component with a customized 27.87mm specification Wear-Resistant PTFE Guide Ring.

Following installation and a 100,000km road durability test, the vehicles showed no reported oil leakage or abnormal noise, and the piston rod chrome plating remained free from noticeable scratching. The shock absorber service life increased by 2.5 times, while after-sales chassis component repair costs were reduced by more than 60%. The OEM subsequently adopted the XIAYI PTFE guide ring as a standard OE-matching component for its new energy SUV models.

Custom Supply

Standard dimensions are available for established shock absorber platforms, while XIAYI also supports customized PTFE guide ring development. Customers can provide drawings, samples, piston rod dimensions or installation requirements for engineering evaluation.

Customization can cover inner diameter, outer diameter, wall thickness, height, material formulation and surface requirements. This allows the component to be adapted to different guide assemblies without forcing customers to modify their existing shock absorber structure.

OEM Support

For OEM projects, XIAYI can support prototype development, sample verification and subsequent mass production. The production process is organized around repeatable dimensions and inspection requirements, making the product suitable for customers seeking a long-term precision component supplier rather than a one-time replacement source.

Product Advantages

XIAYI combines modified PTFE material, precision machining and controlled quality inspection to provide a guide component focused on long-term sliding stability. Its low-friction surface helps reduce piston rod resistance, while wear-resistant material supports extended reciprocating operation. The 27.87±0.01mm standard inner diameter and other controlled dimensions provide consistent assembly performance, and the -40℃ to 260℃ temperature range supports use across diverse vehicle environments.

The quality management system established according to IATF 16949:2016 further supports XIAYI's ability to provide stable production and traceable quality for automotive customers.

Frequently Asked Questions

Can the guide ring be made according to our drawing?

Yes. XIAYI supports customized inner diameter, outer diameter, wall thickness, height and material formulations according to customer drawings, samples and shock absorber assembly requirements. Prototype production can be arranged before mass production.

How does PTFE reduce guide ring friction?

PTFE has naturally low-friction characteristics. When properly formulated and finished, it provides a smooth sliding interface between the guide ring and piston rod, helping reduce resistance and surface wear during repeated reciprocating movement.

Is it suitable for electric vehicle shock absorbers?

Yes. The component can be used in shock absorber guide assemblies for EVs, including passenger vehicles and SUVs. Its low-friction behavior, dimensional stability and wear resistance make it suitable for suspension systems requiring consistent long-term operation.

What information is needed for customization?

Customers can provide a technical drawing, existing guide ring sample, piston rod dimensions or installation groove measurements. XIAYI's engineering team can use these details to evaluate dimensions, material selection and surface requirements before sample production.
