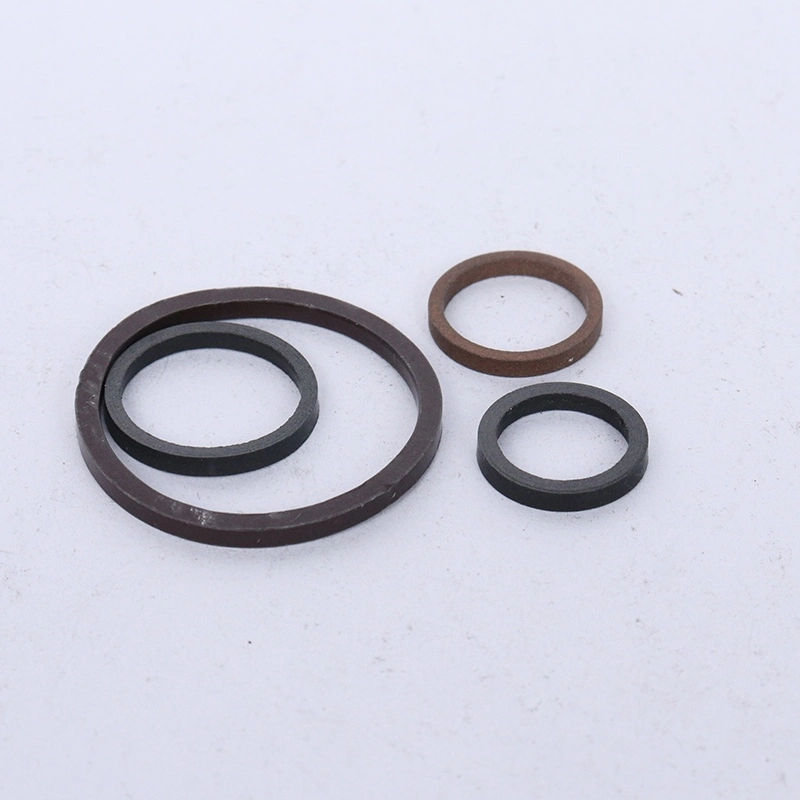

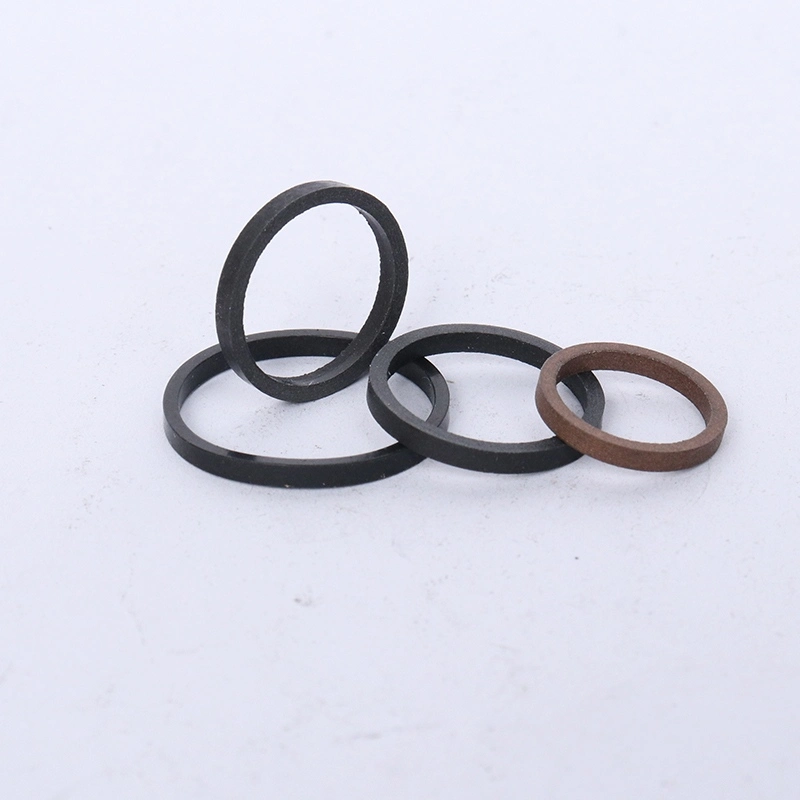

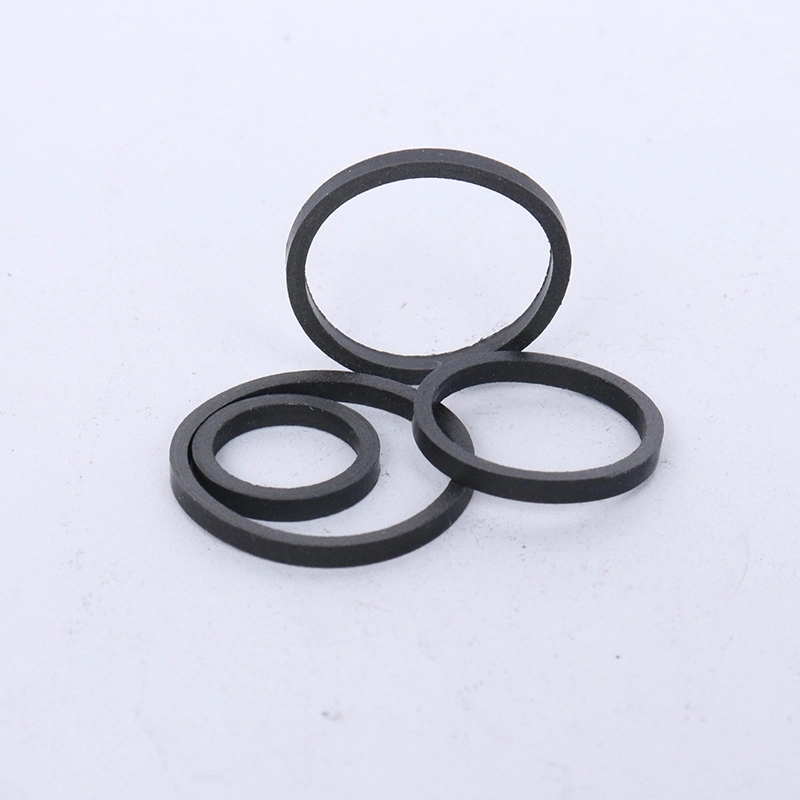

Self-Lubricating PTFE Wiper Ring

With a standard size of 27.87 mm inner diameter, 1.25 mm wall thickness and 2 mm height, XIAYI Self-Lubricating PTFE Wiper Ring supports both standard supply and customized production according to customer drawings and application requirements. Backed by an IATF 16949:2016 compliant quality management system, XIAYI provides consistent PTFE components for passenger vehicles, electric vehicles, commercial vehicles and demanding suspension applications.

Designed for Stable Rod Movement

The main function of the Self-Lubricating PTFE Wiper Ring is to maintain a controlled contact interface between the piston rod and shock absorber guide assembly. During repeated compression and rebound movements, the ring helps wipe residual oil from the rod surface while limiting the entry of dust and other contaminants.

PTFE is naturally suitable for this application because of its low friction and chemical resistance. Unlike conventional materials that may require additional lubrication to reduce sliding resistance, PTFE can provide inherent lubricating performance during operation. This helps reduce friction- related wear and supports smoother piston rod movement over extended service periods.

XIAYI designs the component around the actual working relationship between the wiper ring, piston rod and guide assembly rather than treating it as an independent plastic part. This approach helps maintain reliable contact without creating excessive resistance that could affect shock absorber operation.

PTFE Material Options

Virgin PTFE

Virgin PTFE is suitable for standard passenger vehicle shock absorber applications where low friction, chemical resistance and smooth movement are the primary requirements. Its clean material structure provides stable sliding characteristics and is well suited to urban driving conditions and conventional damping systems.

Reinforced PTFE

For applications exposed to frequent vibration, higher mechanical loads or abrasive conditions, reinforced PTFE containing glass fiber or carbon fiber can provide improved mechanical strength and wear resistance. This material option is suitable for SUVs, off- road vehicles and other applications where the wiper ring experiences more demanding operating conditions.

High-Density PTFE

High- density PTFE focuses on dimensional stability and resistance to compression deformation. It is particularly useful for commercial vehicles and shock absorbers operating continuously under elevated loads or temperatures, where creep can gradually change the original fitting condition.

How Self-Lubrication Works

Reduced Sliding Resistance

During shock absorber operation, the piston rod moves repeatedly through the guide assembly. If the contact surface generates excessive friction, continuous movement can gradually produce heat, wear particles and surface damage. PTFE reduces this resistance through its naturally low- friction characteristics, helping the piston rod maintain smooth movement.

The self- lubricating structure is especially valuable in applications where the component operates for long periods without direct maintenance. It reduces dependence on additional lubrication and helps maintain stable contact performance during repeated movement.

Protection Against Contamination

A Self-Lubricating PTFE Wiper Ring also serves as a barrier between the internal shock absorber components and the external environment. Dust, sand and other particles around the piston rod can accelerate wear if they enter the guide or sealing area.

The wiping edge of XIAYI products helps remove surface contaminants while maintaining controlled contact with the piston rod. This reduces the accumulation of foreign particles around the guide assembly and supports the service life of related sealing components.

Performance Under Difficult Conditions

High-Temperature Operation

Shock absorbers used on commercial vehicles and heavy- duty equipment can experience elevated temperatures during continuous operation. Conventional polymer materials may gradually soften, deform or lose dimensional stability under prolonged thermal exposure.

PTFE offers a broad operating temperature range and strong chemical stability. Combined with high- density or reinforced formulations, XIAYI can provide material solutions designed to maintain dimensional and friction characteristics in demanding temperature environments.

Continuous Reciprocating Motion

Unlike static sealing components, a Self-Lubricating PTFE Wiper Ring is exposed to repeated movement throughout the service life of a shock absorber. Every movement creates a small amount of friction and mechanical stress, so material fatigue and surface wear must be considered during product selection.

XIAYI uses simulated reciprocating tests to evaluate wear behavior and wiping performance. The product maintains stable structural integrity after million- level cycle testing, providing a reference for customers evaluating long- term suspension component reliability.

Precision Made for Consistent Fitting

Standard Dimensions

The standard model is manufactured with an inner diameter of 27.87±0.01 mm, wall thickness of 1.25±0.01 mm and height of 2±0.01 mm. These dimensions are designed for specific shock absorber guide assembly applications.

Maintaining dimensional consistency is important because an undersized or oversized ring may create excessive friction, insufficient contact or unstable wiping performance. XIAYI controls key dimensions during machining and inspection to reduce variation between production batches.

Smooth Contact Surface

The surface finish of the component directly affects friction against the piston rod. XIAYI can achieve a surface roughness of Ra≤0.2 μm through precision finishing, creating a smoother contact interface.

A controlled surface minimizes unnecessary mechanical interaction with the metal rod and helps reduce the possibility of scratches, abnormal friction and premature wear during long- term operation.

Production Quality Control

XIAYI manages the production process from PTFE material preparation through molding, sintering, precision machining, finishing and final inspection. Material selection is controlled according to the required formulation, while processing parameters are monitored to reduce dimensional changes after sintering.

Finished components undergo dimensional and appearance inspection before shipment. For applications requiring higher reliability, XIAYI can also conduct simulated reciprocating tests to evaluate wear resistance and wiping performance under representative working conditions.

XIAYI has established a quality management system in accordance with IATF 16949:2016, providing a standardized quality framework for automotive component production and supporting stable batch delivery for OEM and aftermarket customers.

Application Compatibility

The product is suitable for shock absorber guide assemblies used in passenger cars, SUVs, new energy vehicles, commercial vehicles and selected off- road applications. It can be applied to different suspension platforms where low friction, oil wiping and contamination control are required.

For standard applications, XIAYI can supply the fixed 27.87×1.25×2 mm specification. For new vehicle platforms or special shock absorber structures, the inner diameter, wall thickness, height and PTFE formulation can be customized according to drawings, samples and operating conditions.

Real Application Case

Commercial Vehicle Project

A domestic commercial vehicle manufacturer had experienced recurring after- sales problems with conventional wiper rings. Under long- term high- load and high- temperature driving conditions, the original components showed lubrication deterioration, creep deformation and accelerated wear within approximately 50,000 kilometers. These issues contributed to shock absorber oil leakage and abnormal vibration, with an after- sales failure rate reaching 18%.

In 2024, the manufacturer switched to XIAYI high- density self- lubricating PTFE material for mass production. After one year of road testing and market verification, the components maintained stable lubrication and structural performance during continuous operation. The shock absorber oil leakage failure rate decreased by 93%, while the service life of the damping components increased by more than 120%.

Following the successful application, the customer established a long- term cooperation agreement with XIAYI and adopted the product as a standard component for its commercial vehicle shock absorber platforms.

Why XIAYI

Material-Based Product Development

XIAYI does not rely on a single PTFE formulation for every application. Virgin PTFE, reinforced PTFE and high- density PTFE can be selected according to vehicle type, load, temperature and movement frequency. This provides customers with a more practical material- matching solution.

Stable Batch Supply

For automotive OEM projects, dimensional consistency is as important as individual product performance. XIAYI uses standardized processing and inspection procedures to reduce batch- to- batch variation and support stable mass production.

Customized Technical Support

Customers can provide drawings, samples or basic shock absorber parameters for evaluation. XIAYI can recommend suitable PTFE material and adjust dimensions according to the installation structure, operating environment and expected service requirements.

Frequently Asked Questions

Does the product require additional lubrication?

Normally, no additional lubrication is required for the PTFE material itself. Its inherent low- friction characteristics allow it to maintain smooth contact with the piston rod during reciprocating movement. The actual lubrication condition of the complete shock absorber system still depends on the design and hydraulic medium used by the customer.

Which PTFE material should be selected?

Virgin PTFE is suitable for standard low- friction applications, reinforced PTFE is more appropriate for higher loads and abrasive environments, while high- density PTFE is recommended where creep resistance and dimensional stability are important. XIAYI can recommend a suitable material based on the actual operating conditions.

Can the standard size be customized?

Yes. In addition to the standard 27.87 × 1.25 × 2 mm specification, XIAYI supports customized inner diameter, wall thickness, height and material formulations. Customers can provide technical drawings, samples or application requirements for product development.

XIAYI Supply Capability

XIAYI is a professional China manufacturer and supplier of PTFE precision components for automotive shock absorber systems. With an IATF 16949:2016 compliant quality management system, precision processing capability and performance testing resources, the XIAYI factory supports prototype development, customized specifications and stable mass production.

From material selection to finished- product inspection, XIAYI focuses on maintaining reliable friction characteristics, dimensional stability and long- term service performance, providing automotive component manufacturers with dependable PTFE wiper solutions.
