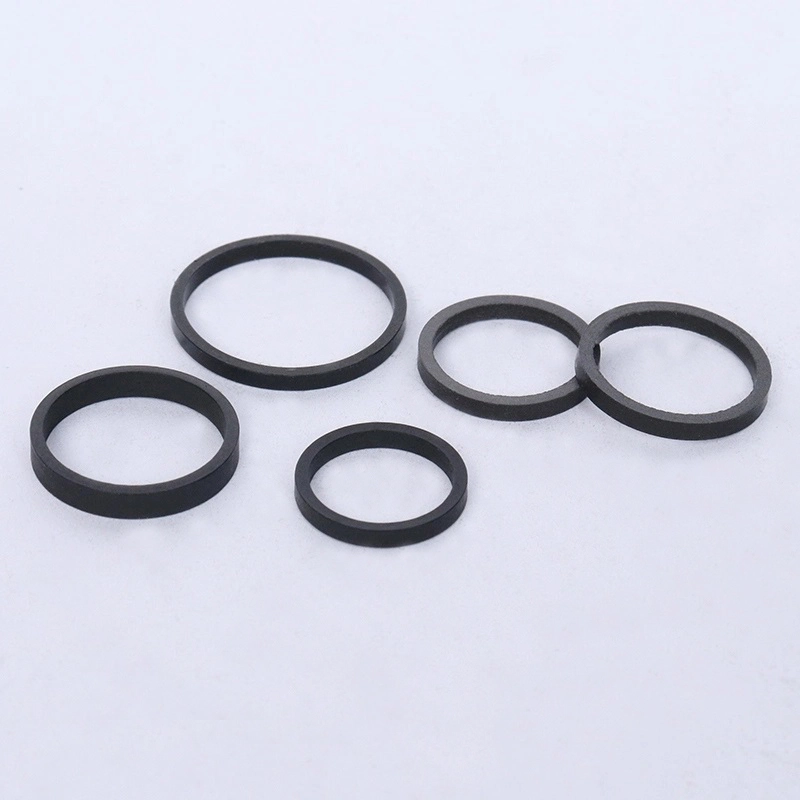

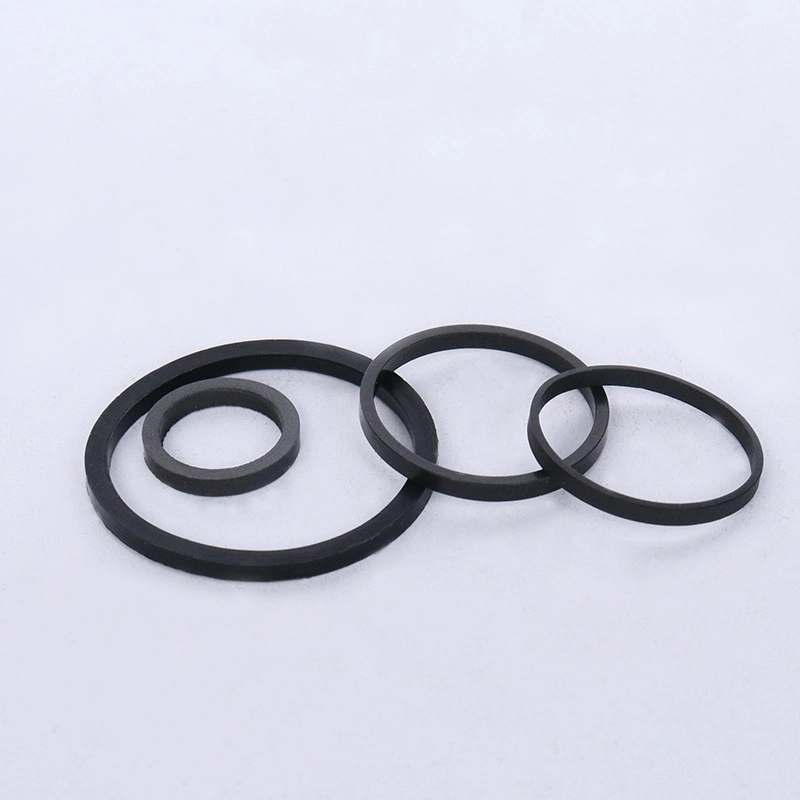

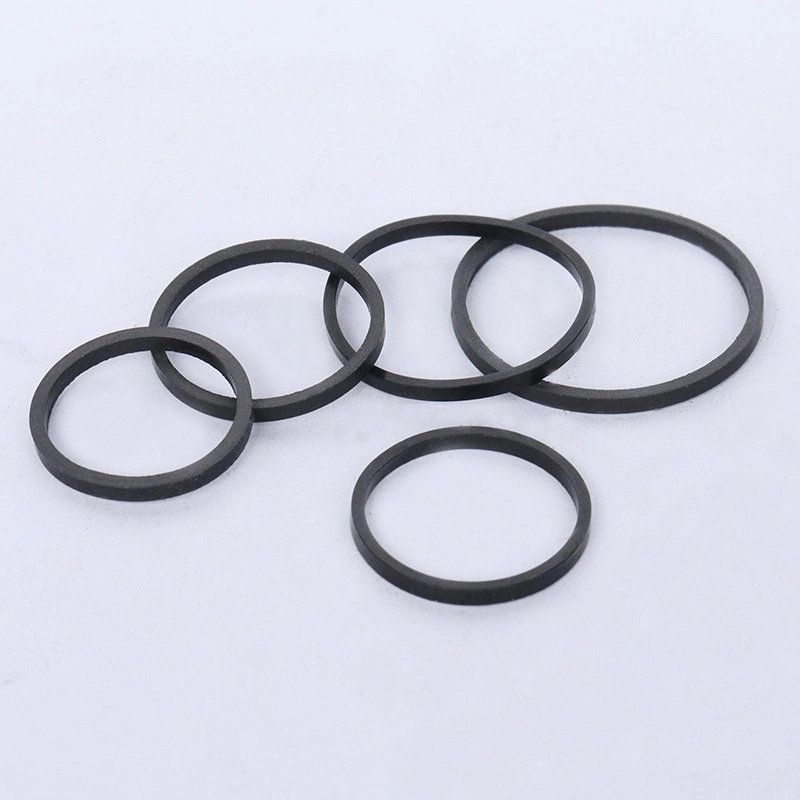

Low-Friction PTFE Wear Ring

Designed for automotive shock absorber guide assemblies, Low-Friction PTFE Wear Ring is a precision component used to control friction, stabilize piston rod movement and protect hydraulic sealing systems. XIAYI uses virgin PTFE and reinforced PTFE materials combined with precision CNC machining and mirror polishing technology to provide low-friction, wear-resistant and dimensionally stable performance. With a quality management system compliant with IATF 16949:2016, XIAYI provides reliable PTFE components for automotive shock absorber manufacturers and aftermarket suppliers worldwide.

Friction Control

The Low-Friction PTFE Wear Ring creates a smooth sliding interface between the piston rod and guide assembly. PTFE naturally provides excellent self-lubricating properties, reducing sliding resistance during repeated movement. This helps lower friction heat, minimize vibration transmission and maintain smoother shock absorber operation over extended service periods.

Material Stability

XIAYI uses virgin PTFE and reinforced PTFE formulas according to different application requirements. The material offers low friction, chemical resistance, low moisture absorption and stable performance under temperature changes. Compared with conventional plastic materials, PTFE is better suited to continuous reciprocating movement and can reduce problems such as sticking, deformation and accelerated surface wear.

Precision Manufacturing

Machining Control

The manufacturing process has a direct influence on the guiding and sealing performance of the component. XIAYI applies controlled molding, vacuum sintering, CNC machining, precision finishing and inspection processes to maintain dimensional stability. The standard model has an inner diameter of 27.87±0.01mm, wall thickness of 1.25±0.01mm and height of 2±0.01mm, providing consistent fitting performance for compatible shock absorber assemblies.

Surface Finish

The contact surface directly affects friction and piston rod protection. XIAYI applies mirror polishing technology to achieve a surface roughness of Ra≤0.2μm. The smooth surface reduces sliding resistance and helps prevent scratches or excessive wear on the piston rod during continuous reciprocating movement.

Working Performance

Guide Stability

During vehicle operation, the piston rod moves repeatedly under changing loads and road conditions. The Low-Friction PTFE Wear Ring maintains stable contact with the guide assembly, helping control radial movement and reducing uneven contact. This supports consistent shock absorber operation and contributes to smoother suspension performance.

Wear Resistance

Long-term reciprocating friction can cause premature wear when conventional guide materials are used. XIAYI PTFE formulations are designed for stable wear performance and have been verified through simulated working-condition testing. The product maintained stable structural performance after 1 million reciprocating cycles, supporting long-term use in shock absorber assemblies.

Seal Protection

Excessive wear can generate particles that affect nearby oil seals and increase the risk of hydraulic oil leakage. By reducing friction and controlling wear at the sliding interface, the Low-Friction PTFE Wear Ring helps minimize particle generation and protects the surrounding sealing components.

Failure Prevention

Friction Problems

High friction between the guide component and piston rod can lead to increased resistance, vibration and abnormal noise. XIAYI addresses this issue through low-friction PTFE material and precision surface finishing, creating a smoother contact condition for repeated piston rod movement.

Assembly Problems

Dimensional inconsistency can result in excessive clearance or overly tight fitting, affecting movement and service stability. XIAYI controls the inner diameter, wall thickness and height through CNC finishing and full dimensional inspection, helping maintain consistent assembly performance between production batches.

Leakage Risks

A damaged piston rod surface or excessive wear debris can accelerate oil seal deterioration. The smooth PTFE contact surface and controlled dimensional accuracy help reduce these risks, providing additional protection for the shock absorber sealing system.

Application Areas

Automotive Suspension

The Low-Friction PTFE Wear Ring is designed for shock absorber guide assemblies used in passenger cars, SUVs, MPVs, new energy vehicles and light commercial vehicles. It is suitable for front MacPherson struts and rear hydraulic shock absorber systems where low friction and stable guiding performance are required.

OEM Projects

XIAYI supports customized PTFE components according to customer drawings, samples and application requirements. Different inner diameters, wall thicknesses, heights and reinforced PTFE formulas can be developed for specific shock absorber platforms, supporting both prototype verification and mass production.

Real Application Case

New Energy Vehicle Project

A domestic new energy vehicle OEM previously experienced abnormal shock absorber noise and piston rod scratching after using conventional wear rings. Some vehicles developed sealing problems after approximately 30,000 km, increasing maintenance pressure and customer complaints.
After adopting XIAYI Low-Friction PTFE Wear Ring in its 2024 mass production project, the mirror-polished surface reduced friction noise, while the PTFE material improved wear stability. Full dimensional inspection also helped resolve inconsistent assembly clearance. After 12 months of road tracking, the failure rate of shock absorber guide sealing components decreased by 91%, and the customer established long-term cooperation with XIAYI for its new energy vehicle suspension projects.

XIAYI Advantage

Automotive Quality

XIAYI has established a quality management system compliant with IATF 16949:2016 requirements. Raw materials, molding, machining, surface finishing and finished products are controlled through standardized procedures to maintain stable product quality for automotive applications.

Precision Capability

XIAYI integrates PTFE material development, molding, CNC machining, polishing and performance testing. This production capability allows the factory to control both material characteristics and finished-part precision, supporting stable batch production for global automotive customers.

Custom Support

XIAYI provides customized PTFE wear ring solutions based on drawings, samples and actual working conditions. The service covers dimensions, material selection, special performance requirements and prototype development, helping customers obtain components matched to their shock absorber designs.

FAQ

Can the Size Be Customized?

Yes. XIAYI supports customized inner diameter, wall thickness, height and other dimensional requirements according to customer drawings or samples. Prototype development and mass production can be arranged for OEM applications.

What Is the Service Life?

The product has passed simulated reciprocating friction testing with stable performance after 1 million cycles. Actual service life depends on factors such as shock absorber structure, vehicle load, operating temperature and road conditions.

Does It Protect the Piston Rod?

Yes. XIAYI uses low-friction PTFE material together with mirror polishing technology, with surface roughness controlled at Ra≤0.2μm. This reduces sliding resistance and helps minimize scratching and excessive wear on the piston rod during long-term operation.
