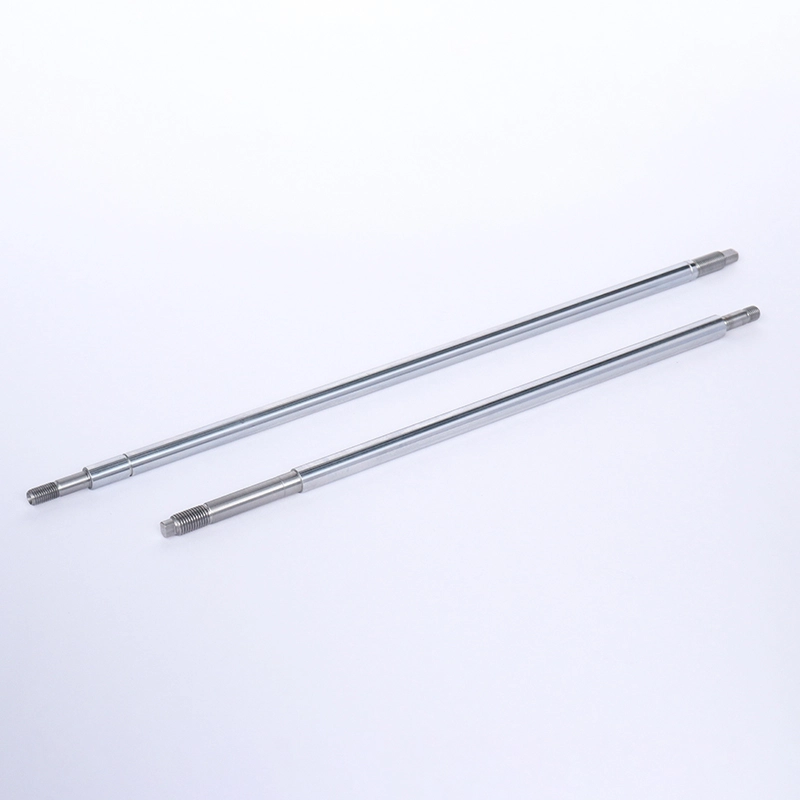

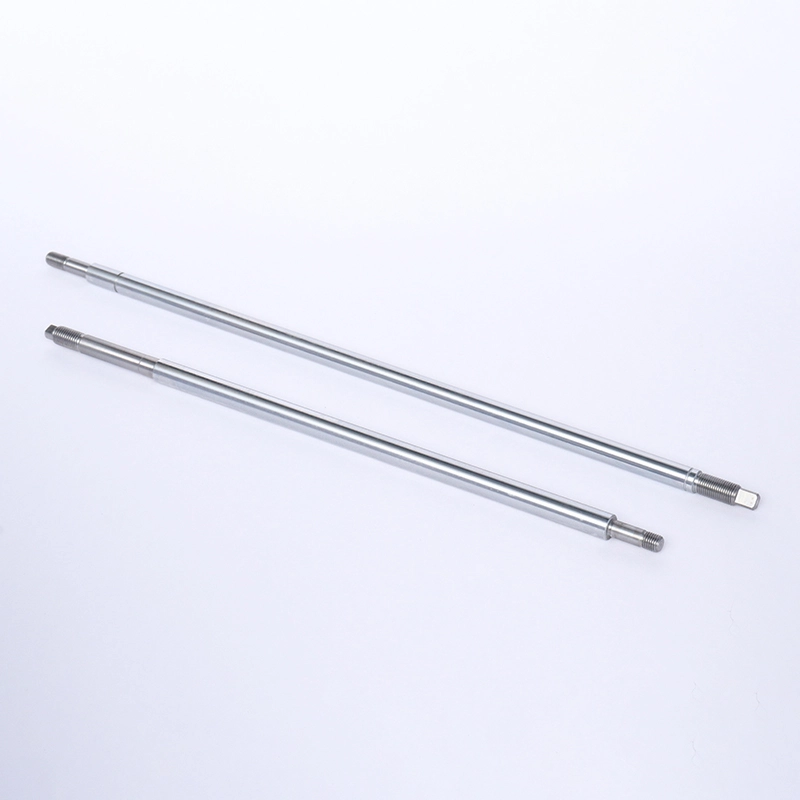

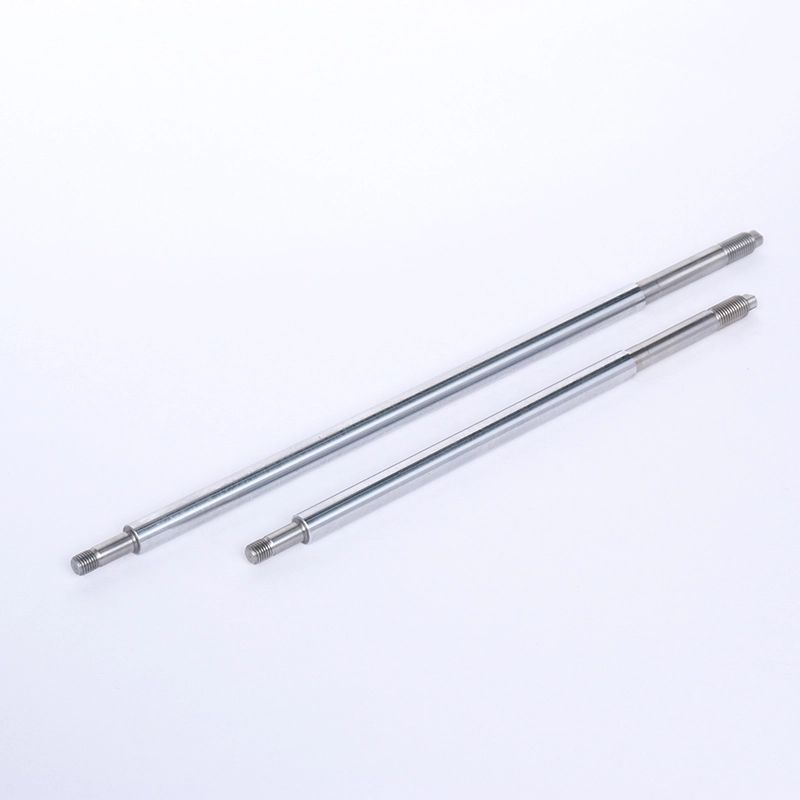

Wear-Resistant Hardened Piston Rod

Designed for repeated reciprocating movement inside shock absorbers, the Wear-Resistant Hardened Piston Rod focuses on dimensional accuracy, surface hardness, straightness, and surface finish. These factors directly affect the contact condition between the piston rod and oil seal, as well as the long-term stability of the shock absorber. XIAYI controls production from raw material inspection through finished-product testing to maintain batch consistency for OEM and aftermarket customers.

Manufacturing Process

Alloy Steel Preparation

XIAYI selects high-quality alloy steel according to the required mechanical and dimensional specifications. Incoming materials are inspected before machining to control material consistency and reduce variations between production batches.

Precision Machining

Multi-stage CNC machining is used to control critical dimensions, threaded sections, grooves, and connection areas. Centerless grinding is subsequently applied to improve diameter consistency, straightness, and surface finish.

Hardening and Chrome Plating

Controlled heat treatment improves the surface hardness and wear resistance of the piston rod. Hard chrome plating creates a smooth working surface while providing additional protection against friction and corrosion during repeated reciprocating movement.

Final Inspection

Finished components are inspected for dimensional tolerance, concentricity, straightness, surface roughness, hardness, and chrome-plating condition. Inspection data is recorded according to production batches to support quality traceability.

Performance Data

Actual requirements may vary according to shock absorber design, vehicle model, material specification, operating conditions, and customer drawings.

Surface & Dimensional Control

Dimensional Stability

Tight dimensional control helps maintain consistent cooperation between the rod and oil seal. This is particularly important for shock absorbers exposed to continuous reciprocating movement, vibration, and repeated compression and extension cycles.

Surface Roughness

The precision-ground and chrome-plated surface provides a controlled working finish. A smoother surface can help reduce unnecessary friction at the sealing interface and limit premature wear of the oil seal when the component is correctly matched to the shock absorber design.

Straightness Control

Straightness is controlled during machining and grinding to reduce uneven movement and abnormal contact inside the shock absorber. The specified straightness of ≤0.02 mm/m provides a controlled geometric reference for applications requiring stable piston rod movement.

Quality Inspection

Incoming Material Inspection

Raw materials are checked for chemical composition and mechanical properties according to the specified material requirements before entering production. This provides the basis for subsequent heat treatment and machining consistency.

Machining Inspection

Critical dimensions, concentricity, and geometry are monitored during CNC processing. Early inspection helps identify dimensional deviations before the components proceed to grinding and surface treatment.

Grinding Inspection

After precision grinding, the surface roughness and straightness are checked to ensure the working surface meets the specified requirements. This stage is important for maintaining stable contact with the shock absorber sealing system.

Heat Treatment & Plating Inspection

Surface hardness, chrome adhesion, coating condition, and dimensional changes after heat treatment and plating are monitored. These inspections help maintain the required combination of wear resistance and dimensional stability.

Finished Product Inspection

Finished components undergo dimensional and surface inspections before shipment. Relevant test records can be provided for qualified batches according to customer requirements and purchasing specifications.

Core Parameters

Practical Application Case

Southeast Asian Shock Absorber Aftermarket

A Southeast Asian auto parts trading company had experienced repeated customer complaints caused by premature surface wear and oil leakage from ordinary piston rods.

In early 2024, the company replaced the supporting components with XIAYI Wear-Resistant Hardened Piston Rods for market verification. After six months of road-use evaluation and a standardized 500 km wear test, no obvious surface wear, oil leakage, or abnormal noise was reported.

The customer's after-sales failure rate decreased by more than 70%. Consistent batch quality and complete inspection records also supported continued repeat orders from the customer.

Application Areas

Passenger Vehicles

The Wear-Resistant Hardened Piston Rod is suitable for shock absorbers used in sedans and urban SUVs, where stable reciprocating movement, controlled surface finish, and reliable sealing contact are required during daily driving.

Light Commercial Vehicles

It can be applied to shock absorbers for light trucks and other commercial vehicles exposed to frequent vibration, road impacts, variable loads, and extended operating cycles.

OEM Production

The component is suitable for shock absorber manufacturers requiring controlled dimensions, stable surface properties, consistent production batches, and customized processing according to technical drawings.

Aftermarket Replacement

The product can be manufactured for aftermarket replacement and shock absorber rebuilding applications when the rod dimensions, connection structure, surface treatment, and technical requirements match the original component.

Product Comparison

For OEM applications, final selection should be based on the shock absorber design, rod diameter, material grade, heat-treatment requirements, chrome specification, operating conditions, and customer drawings.

OEM Customization & Supply

Drawing-Based Production

XIAYI supports OEM production based on customer drawings, samples, dimensional specifications, and technical requirements. Customization can cover rod diameter, overall length, threaded sections, grooves, end configurations, surface treatment, and hardness requirements.

Batch Production

For volume orders, production can be organized according to approved samples and technical specifications. Process parameters are controlled across production batches to maintain dimensional and surface consistency.

Quality Documentation

Inspection documentation can be supplied according to customer requirements, including dimensional inspection, hardness, surface roughness, and coating-related records. These documents can support incoming inspection, supplier evaluation, and OEM quality control.

Quality Management

IATF 16949:2016 Quality System

XIAYI has established a quality management system in accordance with IATF 16949:2016 requirements. The system covers material purchasing, machining, heat treatment, surface treatment, inspection, and shipment, providing a structured framework for automotive component production.

Production Traceability

Production and inspection information is recorded by batch to help identify material, processing, inspection, and shipment information. This approach supports quality analysis and follow-up management for OEM and aftermarket orders.

FAQ

Q1: What makes this component suitable for shock absorbers?

The combination of controlled dimensions, straightness, surface hardness, low roughness, and hard chrome plating is designed for the repeated reciprocating movement and sealing conditions found in automotive shock absorbers. Correct matching with the shock absorber design is essential for achieving the expected service performance.

Q2: Can XIAYI manufacture according to customer drawings?

Yes. XIAYI supports OEM production based on drawings, samples, dimensional specifications, material requirements, and surface-treatment specifications. Customers can provide their existing technical drawings for production evaluation.

Q3: What inspection documents can be provided?

Depending on the order requirements, XIAYI can provide dimensional inspection, hardness, surface roughness, coating, and other relevant quality records. Documentation can be prepared according to customer quality-control requirements.

Q4: Is the product suitable for aftermarket replacement?

Yes. It can be produced for aftermarket replacement and shock absorber rebuilding applications when the dimensions and technical requirements correspond to the original component or the customer's approved specification.

Q5: How does hard chrome plating affect service performance?

Hard chrome plating provides a smooth and wear-resistant working surface for repeated reciprocating movement and helps protect the rod against friction and surface damage. Actual service life depends on the shock absorber design, sealing system, road conditions, lubrication, and maintenance.
