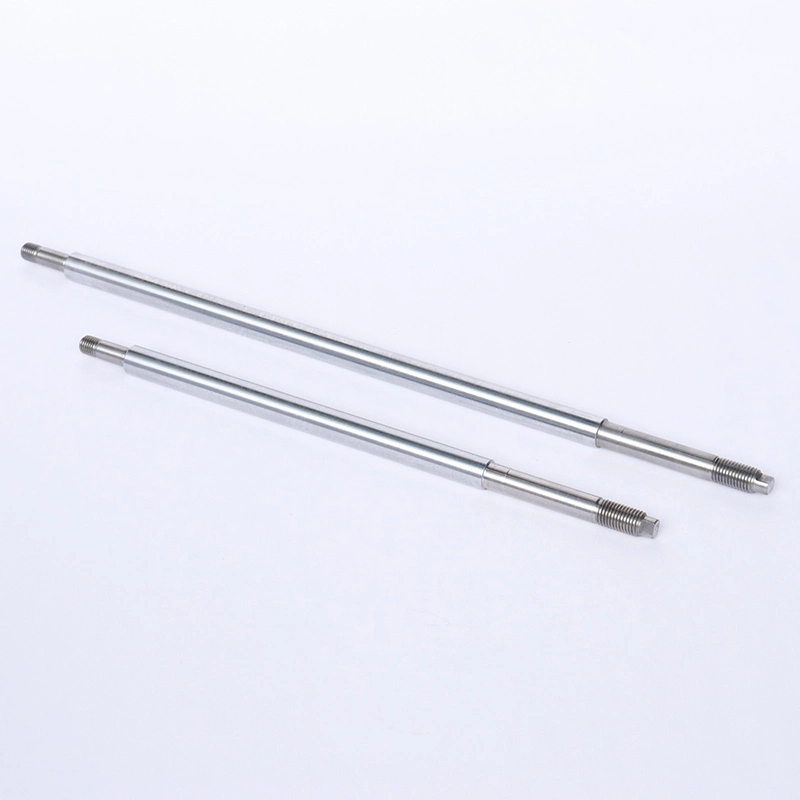

High Strength Steel Piston Rod

The High Strength Steel Piston Rod for Automotive Shock Absorber uses high-strength materials such as 42CrMo, 40Cr and 304 stainless steel, combined with CNC machining, vacuum heat treatment, precision grinding and hard chrome plating. It is designed for sedans, SUVs, new energy vehicles, light trucks and modified vehicles operating under repeated impact and heavy suspension loads.

High-Strength Materials Matched to Vehicle Requirements

42CrMo for Heavy-Duty Suspension

42CrMo is recommended for light trucks, off-road vehicles and modified SUVs exposed to higher lateral and impact loads. After quenching and tempering, the material can achieve tensile strength of ≥980 MPa and hardness of HRC 32--38, providing strong resistance to bending and fatigue.

40Cr for Passenger Vehicles

For family sedans and urban SUVs, 40Cr provides a balanced combination of mechanical strength, machinability and production consistency. The specified tensile strength can reach ≥940 MPa, with hardness controlled around HRC 30--36.

304 Stainless Steel for Corrosive Conditions

For coastal and high-humidity markets, 304 stainless steel offers improved corrosion resistance. It is suitable for applications where salt spray, moisture and road chemicals may accelerate corrosion of conventional steel rods.

What Buyers Should Check Before Ordering

Material and Heat Treatment

The steel grade alone does not determine the final performance. XIAYI verifies material composition and applies controlled quenching and tempering to establish stable mechanical properties. Material spectrum reports and heat treatment records can be supplied for qualified batches.

Dimensions and Surface Condition

Rod diameter, straightness, concentricity, thread dimensions and chrome thickness are controlled according to customer drawings. Applicable specifications can achieve concentricity of ≤0.02--0.03 mm and surface roughness of Ra ≤0.02 μm.

The hard chrome layer is typically controlled at 0.08--0.12 mm, helping provide a durable working surface for repeated contact with shock absorber seals.

Durability Verification

Applicable products can undergo up to 1 million reciprocating cycles, together with hardness, roughness, eddy-current and dimensional inspections. These tests help identify material, surface and structural problems before shipment.

Matching Different Suspension Configurations

Compact EV and Passenger Cars

Φ12 and Φ16 configurations can be used for compact EVs, sedans and urban SUVs. Controlled dimensions help maintain correct installation clearance and stable seal contact.

Light Trucks and Modified Vehicles

Φ20 and other heavy-duty configurations are suitable for light trucks, lifted SUVs and modified suspension assemblies. Higher-strength steel helps reduce deformation risks under repeated lateral impact.

OEM Replacement Applications

XIAYI supports drawing- and sample-based production. Rod diameter, total length, thread structure, stepped sections and plating specifications can be customized to match existing shock absorber assemblies.

Assembly Considerations for Better Service Life

Correct installation is important even when the rod itself meets strict quality requirements. Before assembly, the chrome surface should be checked for scratches or peeling, and the oil seal should be properly lubricated with compatible shock absorber oil.

The High Strength Steel Piston Rod for Automotive Shock Absorber should enter the cylinder vertically and smoothly without hammering or tilting. Matching the guide bush and oil seal to the specified rod dimensions can also reduce uneven friction and premature seal wear.

For aftermarket buyers, sealed moisture-resistant packaging is recommended during storage and transportation to prevent corrosion or surface damage before installation.

Application Case

A professional European shock absorber manufacturer had experienced repeated failures with low-strength 45# steel piston rods used on urban SUVs and light off-road vehicles. After prolonged operation on rugged mountain roads, the rods were prone to bending and chrome peeling, resulting in oil leakage and high after-sales costs.

In 2024, the company cooperated with XIAYI and replaced the previous rods with 42CrMo high-strength quenched and tempered piston rods. After more than six months of road testing, the reported shock absorber oil leakage failure rate decreased from 35% to less than 7%. No rod deformation or chrome peeling was reported in the tested batch vehicles, while after-sales maintenance costs were reduced by approximately 60%.

XIAYI Supply & Customization Support

Drawing-Based Production

XIAYI can manufacture according to OEM drawings or samples, covering diameter, length, threads, stepped sections, material grade and chrome thickness.

Batch Quality Control

As a professional automotive component manufacturer and supplier in China, XIAYI provides traceable inspection documents including material, heat treatment, roughness, salt-spray and durability records according to order requirements.

Stable Automotive Supply

With integrated machining, heat treatment, grinding and plating capabilities, XIAYI supports both customized samples and recurring bulk orders for shock absorber manufacturers and aftermarket distributors.

Frequently Asked Questions

What makes this product suitable for heavy-duty applications?

The High Strength Steel Piston Rod for Automotive Shock Absorber use of quenched and tempered high-strength steel, particularly 42CrMo, provides higher tensile strength and better resistance to bending and repeated impact than ordinary untreated carbon steel.

Which material should I choose?

40Cr is suitable for many passenger vehicles, 42CrMo is recommended for higher-load and modified suspension applications, while 304 stainless steel is preferable for coastal and high-humidity environments.

Can XIAYI produce non-standard piston rods?

Yes. XIAYI supports customized production based on drawings or samples, including rod diameter, overall length, thread, stepped structure and surface treatment.

What quality system does XIAYI follow?

XIAYI has established a quality management system compliant with IATF 16949:2016, with production and inspection processes designed for automotive component applications.
