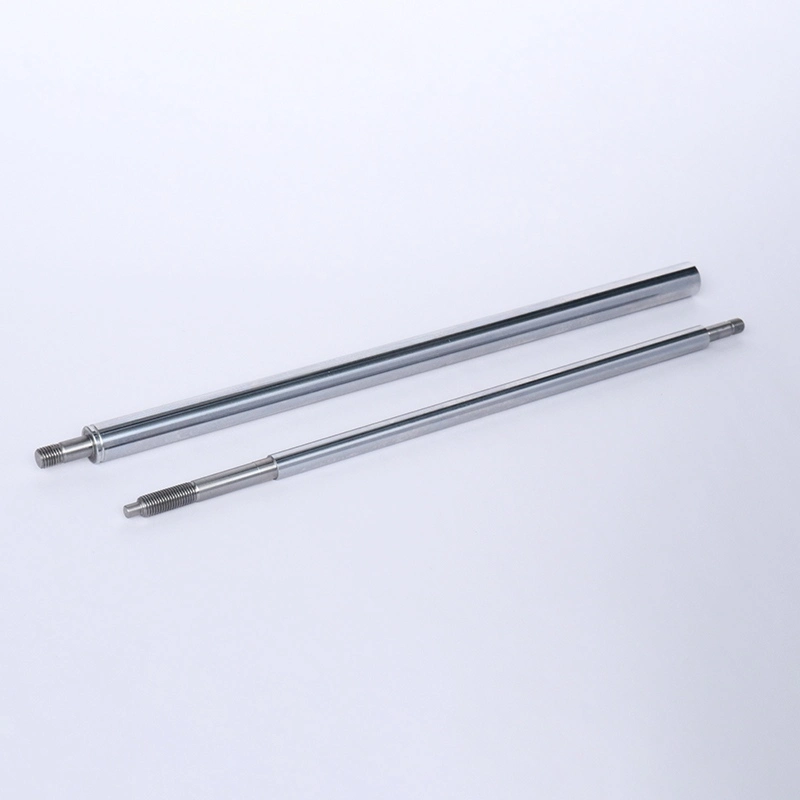

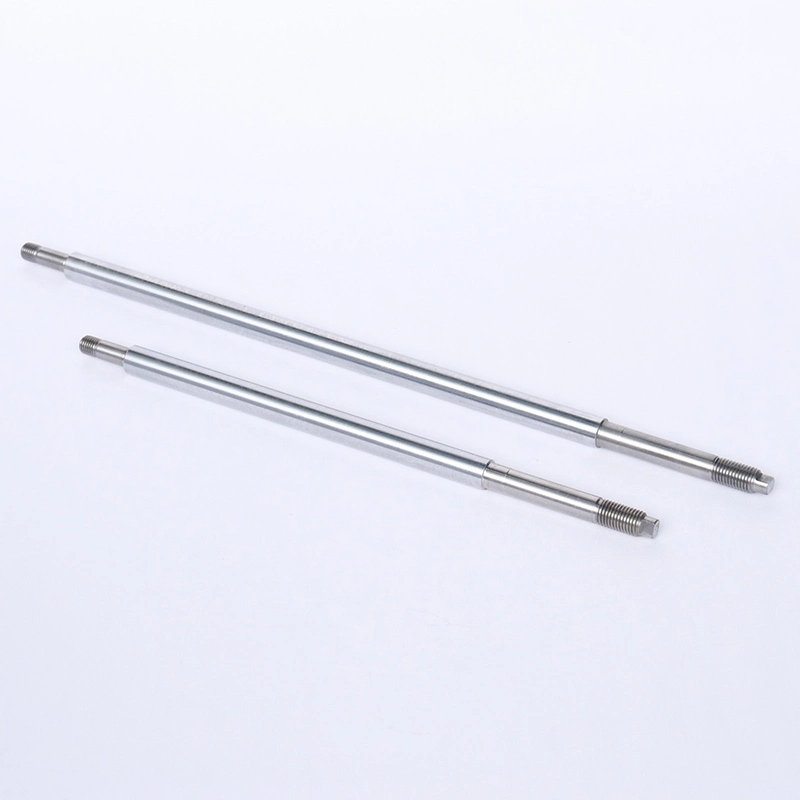

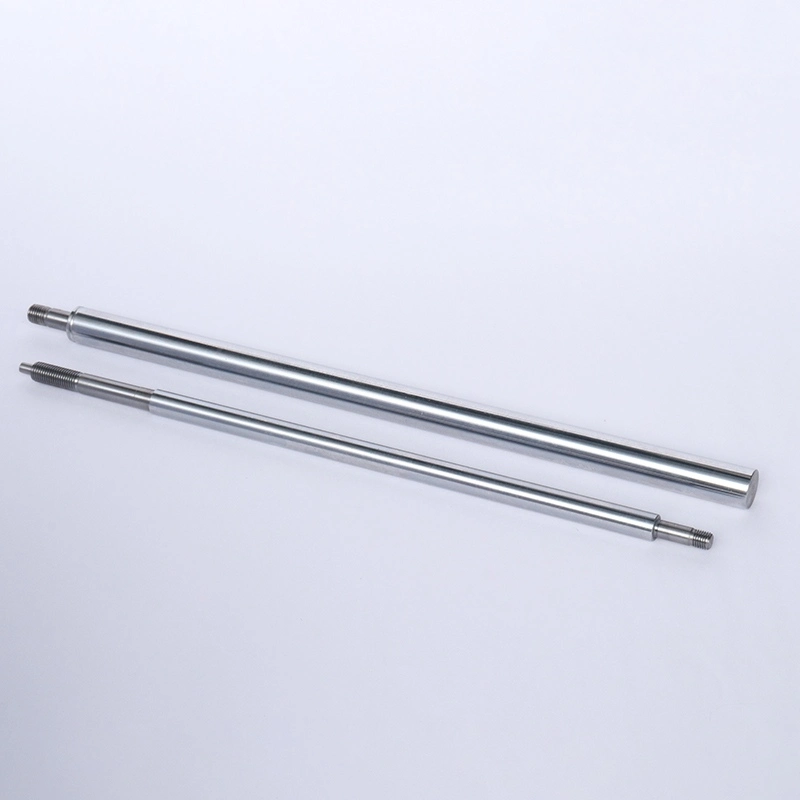

Chrome-Plated Shock Piston Rod

The Precision Hard Chrome-Plated Shock Piston Rods are produced from 42CrMo, 40Cr or 304 stainless steel according to vehicle requirements. CNC machining, heat treatment, precision grinding and hard chrome plating are integrated into the manufacturing process to control dimensional accuracy and surface quality. The products are suitable for passenger cars, SUVs, new energy vehicles, light trucks and modified suspension systems.

Surface Performance for Repeated Suspension Movement

Hard Chrome Plating

During shock absorber operation, the piston rod repeatedly moves through the oil seal. Poor surface quality can accelerate seal wear and eventually cause oil leakage. XIAYI uses multi-stage surface preparation and hard chrome electroplating to create a durable working surface.

Chrome thickness can typically be controlled between 0.08--0.12 mm, while mirror finishing can achieve surface roughness of Ra ≤0.02 μm for applicable specifications. This helps reduce friction-related wear and surface damage during repeated reciprocating movement.

Material Options

Different vehicle applications require different mechanical and corrosion properties.

42CrMo is suitable for heavy-load, off-road and modified vehicles, with tensile strength of ≥980 MPa and hardness of HRC 32--38. 40Cr is designed for mainstream passenger vehicles, providing a balance of strength and production efficiency. 304 stainless steel is recommended for coastal and high-humidity environments where corrosion resistance is a major concern.

Dimensional Accuracy for Reliable Assembly

Controlled Rod Geometry

XIAYI supports common rod diameters including Φ12, Φ16 and Φ20, with dimensional tolerances controlled according to customer drawings and shock absorber requirements. Depending on the specification, concentricity can reach ≤0.02--0.03 mm, supporting consistent interaction between the rod, guide and oil seal.

Total length, thread structure, stepped sections, end configuration and chrome thickness can also be customized. This allows OEM and aftermarket buyers to replace existing piston rods without redesigning the complete shock absorber assembly.

Inspection Before Shipment

Quality control covers the complete manufacturing process, including raw material composition inspection, CNC machining, vacuum heat treatment, centerless grinding, chrome plating and final dimensional inspection.

Laser measurement, eddy-current testing and surface inspection can be used to check straightness, concentricity and potential surface defects. Batch inspection documents such as material reports, heat treatment records, roughness reports and durability test results are available according to order requirements.

Application Matching

Passenger Cars and EVs

Φ12 and Φ16 configurations can be used for compact EVs, family sedans and urban SUVs. Tight dimensional control supports stable installation and consistent seal contact in daily driving conditions.

Light Trucks and Modified Vehicles

Φ20 and higher-strength configurations are designed for light trucks, lifted SUVs and modified shock absorber systems where the Precision Hard Chrome-Plated Shock Piston Rod is exposed to greater impact and lateral loads.

Coastal and High-Humidity Markets

304 stainless steel configurations provide an option for vehicles operating in coastal regions, high-humidity climates and environments with increased salt exposure.

Key Buying Considerations

Consistent Quality Between Batches

For automotive component buyers, stable quality across repeated orders is essential for maintaining assembly efficiency and reducing warranty claims. XIAYI controls key parameters such as rod diameter, straightness, concentricity, surface roughness and chrome thickness throughout production to minimize batch-to-batch variation.

Reduced Risk of Seal-Related Failures

The rod surface directly contacts the oil seal during suspension movement. Controlled grinding and hard chrome finishing help create a smooth and uniform surface, reducing unnecessary friction and abrasive damage to sealing components. This is particularly important for shock absorber manufacturers supplying high-mileage vehicles.

Traceable Automotive Production

XIAYI's quality management system complies with IATF 16949:2016. Production and inspection information can be traced by batch, allowing OEM and aftermarket buyers to obtain supporting quality records when required.

Installation & Service Performance

Designed for Existing Shock Assemblies

The Precision Hard Chrome-Plated Shock Piston Rod can be manufactured according to existing shock absorber drawings or samples. Dimensions such as rod diameter, overall length, thread configuration and stepped sections can be matched to the original assembly, helping customers avoid unnecessary changes to their production equipment.

Suitable for Different Driving Conditions

The product can be configured according to the actual operating environment. Passenger vehicles mainly require dimensional stability and smooth reciprocating movement, while modified SUVs and light trucks require higher mechanical strength. For coastal markets, 304 stainless steel provides additional protection against corrosion.

Supporting Long-Term Replacement Programs

For aftermarket distributors, maintaining the same specifications over multiple purchasing cycles is important for replacement compatibility. XIAYI supports repeat orders based on approved drawings and specifications, helping distributors maintain consistent replacement parts for the same vehicle platforms.

Application Case

A Southeast Asian auto modification wholesaler had experienced repeated customer complaints caused by piston rod rust, chrome peeling and shock absorber oil leakage in coastal areas.

In 2023, the wholesaler cooperated with XIAYI and replaced its previous products with 304 stainless steel coastal-grade rods and 42CrMo hard chrome plated piston rods according to different vehicle applications.

After one year of market verification, the reported shock absorber oil leakage failure rate decreased from 38% to below 8%, with no reported pitting rust or fatigue cracking in the tested coastal applications. XIAYI also provided customized dimensions, batch inspection documents and stable bulk supply to support the customer's aftermarket business.

XIAYI Custom Supply Service

OEM and Aftermarket Customization

XIAYI manufactures the Precision Hard Chrome-Plated Shock Piston Rod according to customer drawings or samples. Custom options include material grade, rod diameter, overall length, thread, stepped sections and chrome thickness.

Stable Automotive Component Supply

With integrated CNC machining, grinding, heat treatment and plating capabilities, XIAYI supports repeat production and bulk orders for overseas wholesalers, shock absorber manufacturers and OEM customers.

Frequently Asked Questions

What materials are available?

XIAYI offers 42CrMo, 40Cr and 304 stainless steel options according to vehicle load, application environment and corrosion requirements.

What chrome thickness can be provided?

Typical chrome thickness is 0.08--0.12 mm, with the final specification adjustable according to the shock absorber design.

Can the rod be customized according to our drawing?

Yes. XIAYI supports drawing- and sample-based customization of diameter, length, threads, stepped sections, material and surface treatment.

How is product durability verified?

Applicable products can undergo up to one million reciprocating durability cycles. Test requirements can be adjusted according to the customer's application and shock absorber design.

For OEM and aftermarket buyers requiring controlled dimensions, durable surface treatment and application-specific material selection, XIAYI provides a practical piston rod solution backed by automotive-focused manufacturing and quality control.
