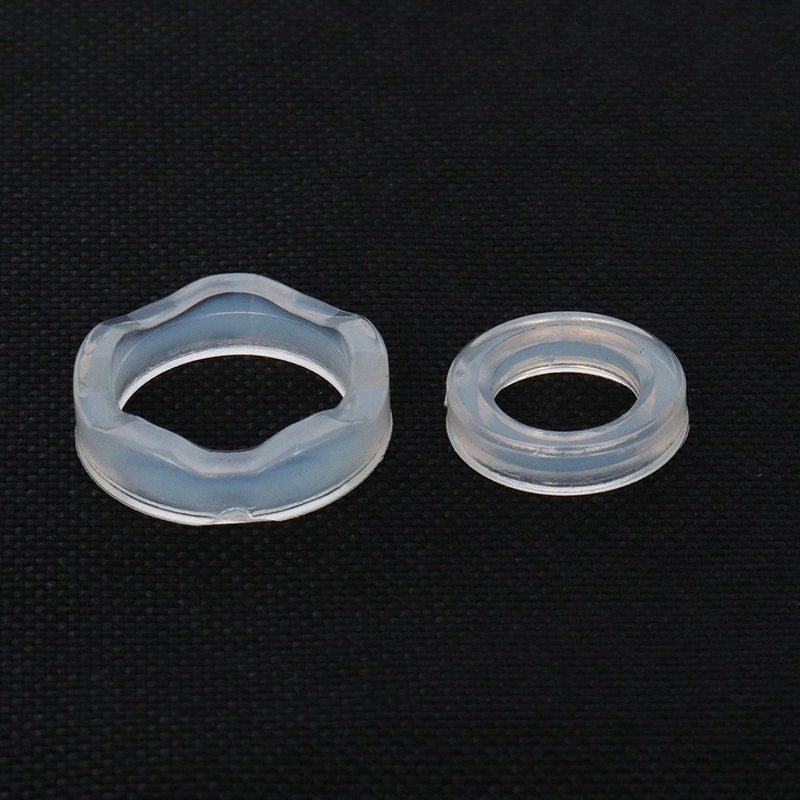

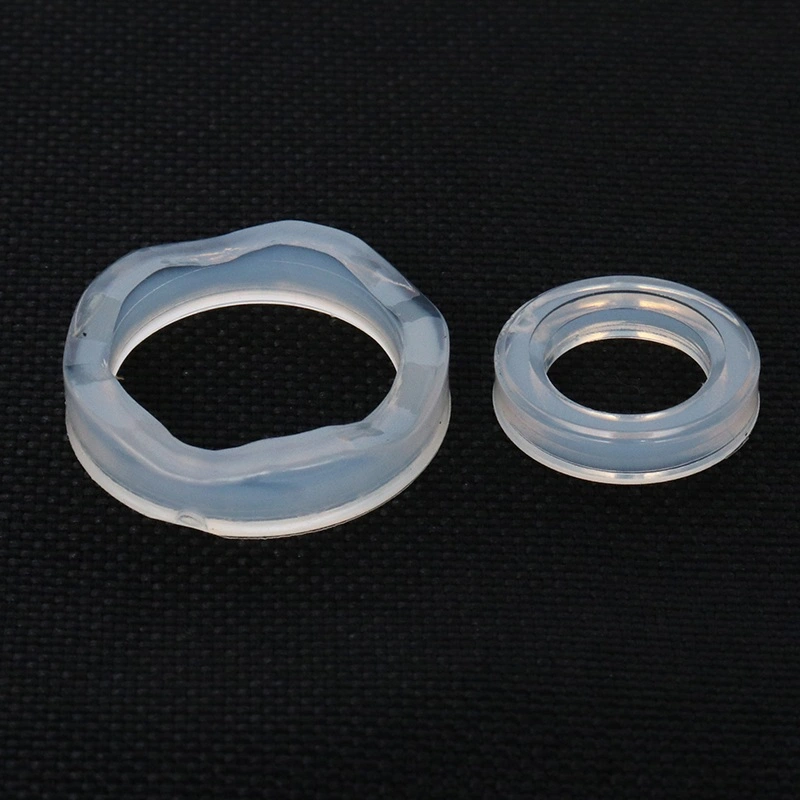

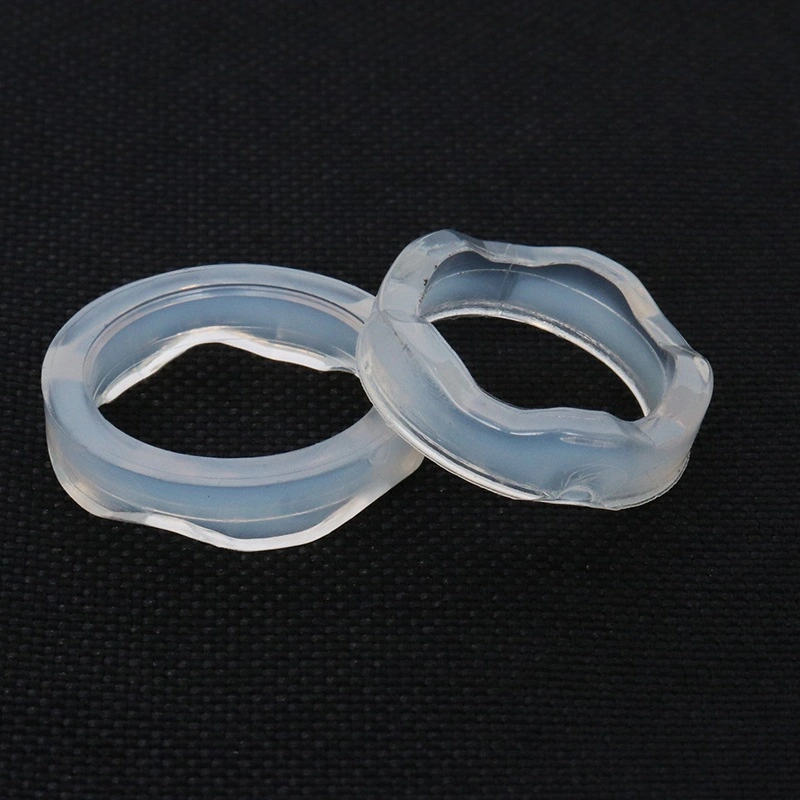

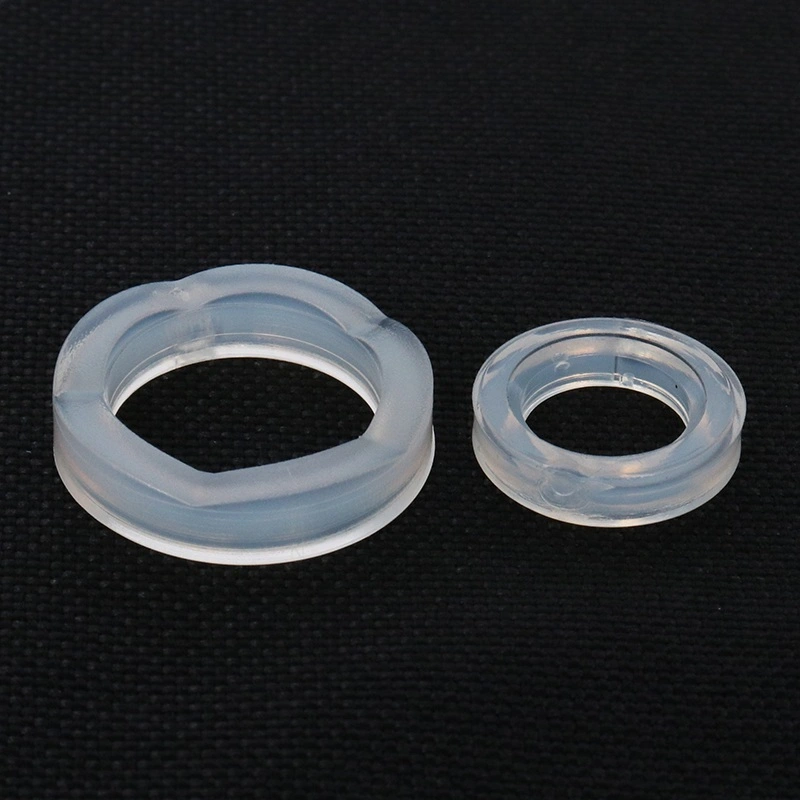

Polyurethane Shock Absorber Buffer Ring

Unlike conventional rubber buffer parts, XIAYI uses modified polyurethane with adjustable hardness and rebound characteristics. The Polyurethane Shock Absorber Buffer Ring can be developed according to vehicle weight, suspension travel and load requirements, providing stable cushioning for passenger vehicles, commercial vehicles, new energy vehicles and construction machinery.

With a quality management system compliant with IATF 16949:2016, XIAYI controls material preparation, molding, dimensional inspection and performance verification throughout production.

How the Buffer Ring Works During Suspension Movement

The Polyurethane Shock Absorber Buffer Ring does not continuously carry the suspension load during normal driving. It becomes progressively engaged as the suspension approaches its maximum compression position, providing additional resistance and reducing excessive travel.

This working principle allows the suspension to maintain normal movement while providing additional protection during potholes, heavy loads, emergency braking and other high-compression conditions.

Progressive Compression Response

A suitable compression response allows the component to gradually increase resistance rather than producing a sudden hard impact. XIAYI adjusts polyurethane hardness and component geometry according to the required suspension characteristics.

Energy Absorption at Maximum Stroke

When the suspension reaches a high compression position, the buffer absorbs part of the impact energy and helps prevent direct mechanical contact. This can reduce repeated impact loads on the shock absorber and related suspension components.

Rebound Recovery After Compression

After the compression force is released, the material needs to recover its original shape. Stable rebound performance helps maintain the intended suspension clearance and prevents permanent collapse during repeated operation.

Load Matching for Different Vehicles

Buffer ring selection should consider more than installation dimensions. Vehicle weight, axle load, suspension travel and operating conditions all influence the required cushioning characteristics. XIAYI develops different material and geometry combinations according to the customer's application.

Material and Geometry Selection

Polyurethane allows its hardness, elasticity and compression characteristics to be adjusted for different applications. XIAYI selects the appropriate material grade according to the required load and working environment.

Component geometry is also important. Inner diameter, outer diameter, height and working profile determine how the buffer engages with the suspension during compression. XIAYI evaluates these parameters together to achieve proper installation and controlled cushioning.

Hardness Selection

Different suspension systems require different hardness levels. Softer materials can provide a more gradual initial response, while harder grades can provide stronger support near maximum compression. XIAYI can adjust hardness according to vehicle and load requirements.

Compression Set Control

Permanent deformation can change the working position of the component over time. XIAYI controls material formulation and molding conditions to maintain stable compression performance, with a reference compression set of ≤15%.

Environmental Resistance

The selected polyurethane formulation is designed to maintain functional elasticity across approximately -40℃ to 120℃, helping the component withstand temperature changes encountered during vehicle operation.

Performance Verification Before Delivery

XIAYI evaluates key physical and functional characteristics before delivery to confirm that each batch meets the specified requirements.

Installation and Service Considerations

Correct installation is important for maintaining the designed cushioning effect. Before assembly, the mounting position should be checked for contamination, damage and abnormal wear, and the component should be installed according to the suspension structure.

During maintenance, visible cracking, permanent flattening, tearing, hardening or abnormal suspension noise should be checked. These signs may indicate material aging, excessive loading or the need for replacement.

Real-World Application Cases

Domestic Light Commercial Vehicle OEM Mass Matching

A major domestic light truck supplier adopted XIAYI polyurethane buffer rings in 2024 for its 1.5-ton cargo vehicle platform. The original rubber buffer could collapse and produce abnormal chassis knocking after 12 months of heavy-load transportation. After switching to XIAYI modified PU buffer rings, the rebound rate remained above 90% after 24 months of continuous loading operation, while chassis abnormal noise complaints dropped by 92%.

European Camper Van Aftermarket Retrofit Project

An overseas auto parts distributor used XIAYI Polyurethane Shock Absorber Buffer Rings for large camper vans carrying an additional 400kg static load. Under high-temperature summer conditions and mountain roads, ordinary buffer blocks softened and deformed within half a year. XIAYI products maintained stable cushioning performance after three years of continuous use, and the distributor subsequently placed four repeat orders.

Domestic Excavator Construction Machinery Matching

A construction machinery manufacturer selected XIAYI heavy-duty buffer rings for small excavator shock absorbers. The equipment operates under low winter temperatures, high summer temperatures and frequent impact conditions. After 100,000 impact fatigue cycles, the product showed no surface cracking or permanent compression deformation, while shock absorber maintenance frequency was reduced by more than 60%.

Why Choose XIAYI for Suspension Buffer Components?

XIAYI integrates polyurethane material development, mold manufacturing, precision molding and performance testing within one production system. This allows material properties and component geometry to be evaluated together for different suspension requirements.

For OEM and aftermarket projects, XIAYI can develop products according to customer drawings, samples, vehicle specifications and load requirements. Different hardness grades and structural dimensions can be evaluated before mass production to improve application compatibility.

Frequently Asked Questions

What does a polyurethane buffer ring do in a shock absorber system?

It provides additional cushioning when the suspension approaches maximum compression, helping reduce bottom-out impact and protect related suspension components.

How should the hardness be selected?

Hardness should be selected according to vehicle weight, axle load, suspension travel and required cushioning performance. XIAYI can provide different material grades for different applications.

When should the component be replaced?

Replacement should be considered when cracks, permanent flattening, tearing, severe hardening or abnormal suspension noise appears. Vehicles operating under heavy loads or poor road conditions should receive more frequent inspections.

Quality Management and Supply Capability

XIAYI has established a quality management system compliant with IATF 16949:2016 and applies standardized controls to material inspection, molding, dimensional verification and performance testing.

As a professional China-based manufacturer and supplier, XIAYI provides stable batch production, drawing-based development, sample verification and technical matching for global OEM and aftermarket suspension component customers.
