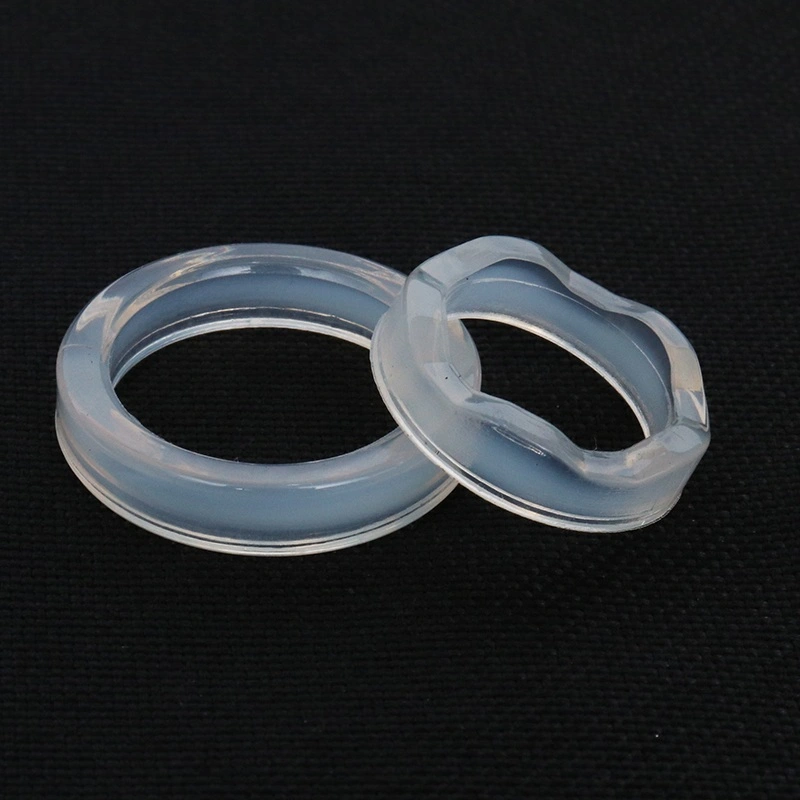

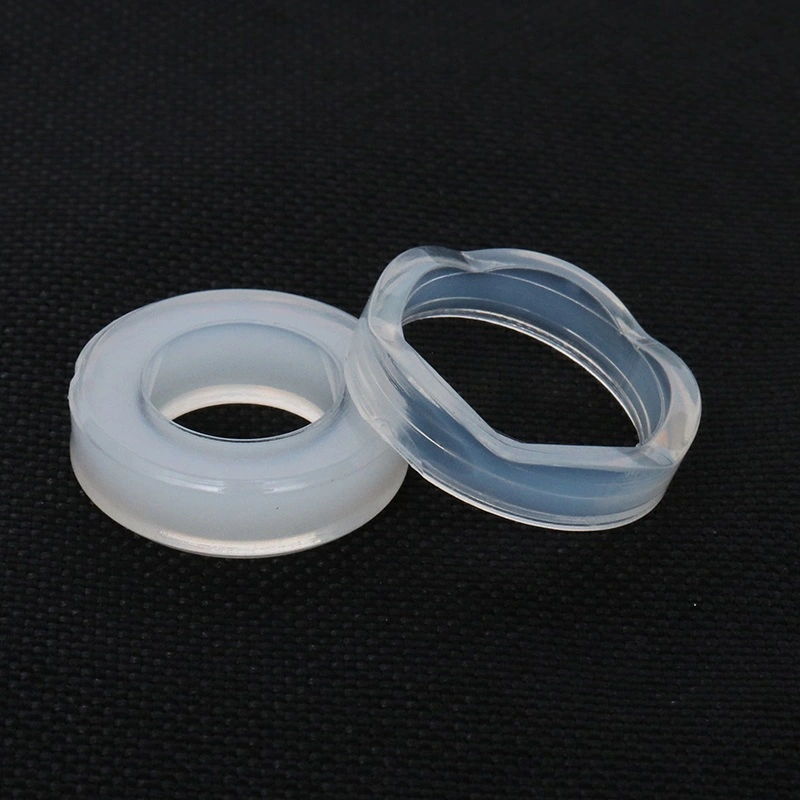

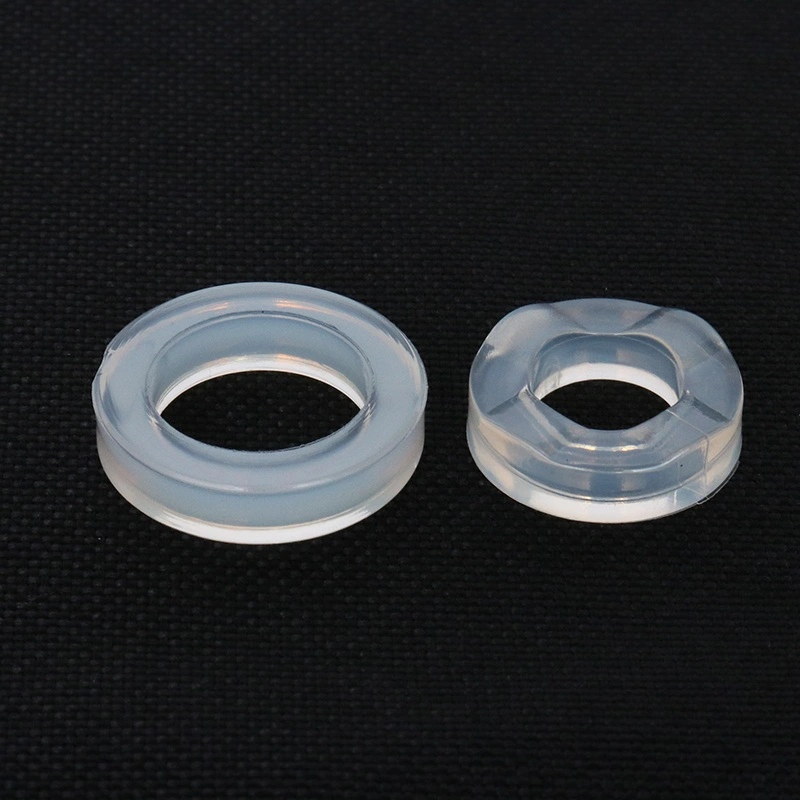

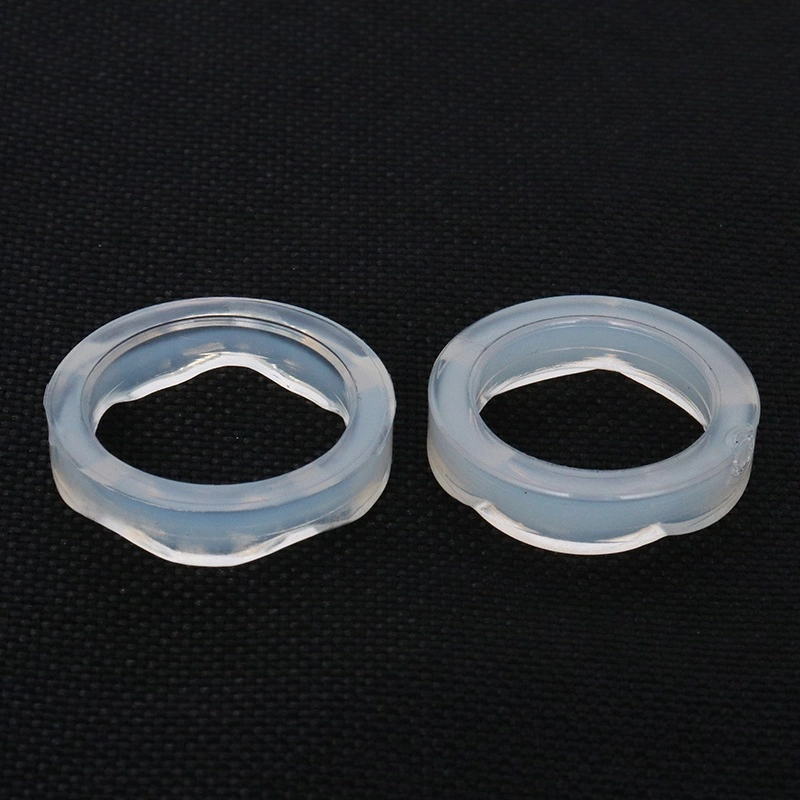

Flexible Rubber Buffer Stopper

The Flexible Rubber Buffer Stopper works as an elastic transition element between the shock absorber and suspension structure. It absorbs impact when the suspension approaches its maximum compression position while also helping control movement, reduce mechanical noise and protect related components.

Unlike conventional buffer materials designed for general applications, XiaYi selects different rubber formulations according to actual working conditions. The material balance between elasticity, compression resistance, oil resistance and temperature stability allows the component to maintain reliable performance across passenger vehicles, commercial vehicles, off-road vehicles and construction machinery.

With a professional manufacturer team, standardized factory production in China, and an automotive quality management system established in accordance with IATF 16949:2016, XiaYi provides stable and traceable elastic components for global OEM and aftermarket customers.

Core Functional Advantages

Multi-dimensional shock absorption: The elastic structure absorbs impact energy during suspension compression, reducing direct mechanical contact and improving ride comfort.

Stroke limitation: The stopper provides progressive resistance near the end of the shock absorber stroke, helping prevent excessive compression and protecting internal suspension components.

Noise and clearance control: Its flexible structure compensates for small installation clearances and reduces knocking noise during potholes, speed bumps and heavy-load operation.

Long-term elastic protection: Properly selected rubber formulations maintain elasticity under oil exposure, temperature variation and repeated compression, reducing premature deformation and failure.

Four Core Rubber Material Systems & Full Parameter Specifications

XiaYi provides four material options based on different operating conditions rather than applying one material to every vehicle. This allows buyers to select the appropriate balance of cost, elasticity, oil resistance, temperature resistance and durability.

Material & Performance Correlation Principle

The material determines how a buffer stopper behaves after thousands of compression and rebound cycles. Excessive compression set can cause the component to flatten, while insufficient oil resistance may result in swelling or softening. A narrow temperature range can also cause hardening in winter or deformation in high-temperature environments.

XiaYi therefore uses condition-based material selection. The objective is not simply to increase material hardness, but to match elasticity and durability with the actual load, temperature, oil exposure and movement frequency of the application.

Cross Comparison of Core Practical Performance

The four material systems provide different performance priorities, allowing customers to choose according to their actual operating environment.

This comparison helps buyers avoid selecting an unsuitable material simply because it has a higher hardness or lower purchase price.

Working Condition-Oriented Material Selection Scheme

XiaYi recommends material selection according to vehicle type, load level and environmental exposure rather than using a universal specification.

City Commuter Sedan & Compact EV

Recommended Material: General NBR Rubber

For vehicles mainly used on urban roads with moderate loads and normal temperature conditions, NBR provides balanced elasticity and oil resistance while maintaining a practical cost level.

SUV / MPV Multi-Road Vehicles

Recommended Material: High-Elastic PU

SUVs and MPVs frequently experience larger suspension movements on uneven roads. High-elastic PU provides stronger rebound and lower compression deformation, making it suitable for repeated suspension impacts.

Light Truck / Passenger Vehicle (All-Weather Open-Air Use)

Recommended Material: Modified EPDM

For vehicles operating outdoors for extended periods, EPDM offers better resistance to sunlight, moisture, ozone and temperature changes, helping reduce weather-related cracking and hardening.

Heavy Truck / Machinery / Off-Road Modified Vehicles

Recommended Material: Special HNBR

Heavy-duty equipment faces greater compression loads, elevated temperatures and potential oil exposure. HNBR provides higher strength and better resistance to heat and oil, making it suitable for demanding applications.

Industry Pain Points & XiaYi Targeted Material Solutions

XiaYi approaches buffer stopper failures from the perspective of material compatibility. By identifying the actual failure environment first, the corresponding material system can then be selected.

Core Advantages of XiaYi Flexible Rubber Material System

Full-condition material coverage: Four material systems cover urban passenger vehicles, mixed-road vehicles, outdoor commercial vehicles and heavy-duty machinery.

Condition-based material selection: XiaYi considers load, temperature, oil exposure and movement frequency before recommending a material grade.

Quantified performance parameters: Hardness, compression set and temperature range are clearly defined to help buyers evaluate specifications and compare options.

Material modification capability: Functional additives can be introduced to improve oil resistance, aging resistance, rebound or temperature stability according to application requirements.

Stable production quality: XiaYi operates under an IATF 16949:2016-based quality management system, with controlled raw materials and standardized production procedures to maintain batch consistency.

Application Scope

XiaYi Flexible Rubber Buffer Stopper is suitable for shock absorber assemblies used in sedans, electric vehicles, SUVs, MPVs, light and heavy trucks, construction machinery and off-road vehicles. The factory can adjust material grade, hardness and dimensions according to customer drawings, samples and operating conditions.

Practical Application Cases

Case 1: New Energy Compact EV Mass Matching Project

In 2025, a domestic new energy vehicle enterprise adopted XiaYi General NBR buffer stoppers for its compact EV platform. The original rubber components experienced slight oil swelling and chassis noise after extended use. Following replacement with oil-resistant modified NBR products, a 12-month urban road test showed stable elasticity without oil swelling or deformation. Abnormal noise complaints decreased by 88%, and the product entered stable batch supply.

Case 2: Outdoor Light Truck All-Weather Application Case

A regional commercial vehicle enterprise used XiaYi modified EPDM buffer stoppers for light trucks operating in a hot and humid coastal environment. Traditional components developed aging cracks after approximately 18 months of outdoor exposure. After 30 months of continuous use, the XiaYi EPDM components showed no visible cracking or hardening, reducing shock absorber maintenance requirements and supporting repeat orders.

Case 3: Construction Machinery Heavy-Duty Matching Case

A construction machinery manufacturer selected XiaYi Special HNBR buffer stoppers for small excavator shock absorbers exposed to high temperatures, repeated impact and hydraulic oil. The products passed 100,000 fatigue impact cycles with compression set controlled within 10%. Compared with conventional rubber components, service life increased by more than 2.5 times.

Frequently Asked Questions

How to choose the right XiaYi flexible rubber buffer stopper for my vehicle or equipment?

Material selection should consider load, temperature, oil exposure and road conditions. NBR is suitable for general urban vehicles, PU for frequent suspension impacts, EPDM for outdoor all-weather applications, and HNBR for heavy-duty environments involving high temperature and oil exposure.

What is the service life advantage of XiaYi modified rubber buffer stopper over ordinary rubber products?

The service life depends on the selected material and working environment. XiaYi uses modified formulations to reduce compression deformation, oil swelling and aging, allowing the appropriate grade to achieve significantly longer service life than conventional unmodified rubber components.

Does XiaYi support customized size and performance of flexible rubber buffer stoppers?

Yes. XiaYi supports customized dimensions, hardness, material formulation and performance requirements. Customers can provide drawings, samples or operating conditions, and the engineering team can develop the appropriate material and specification before mass production.
