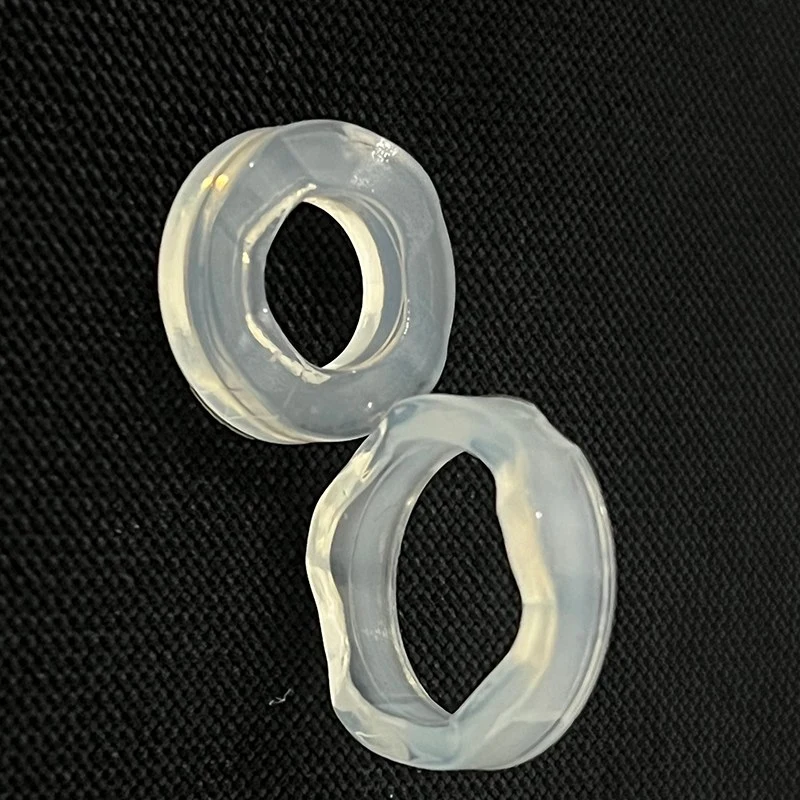

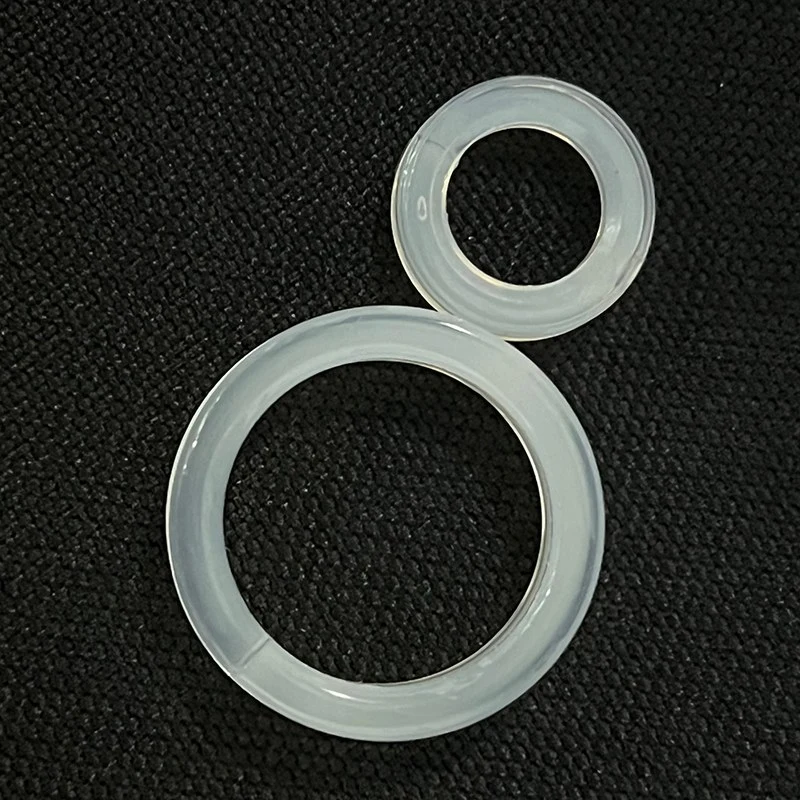

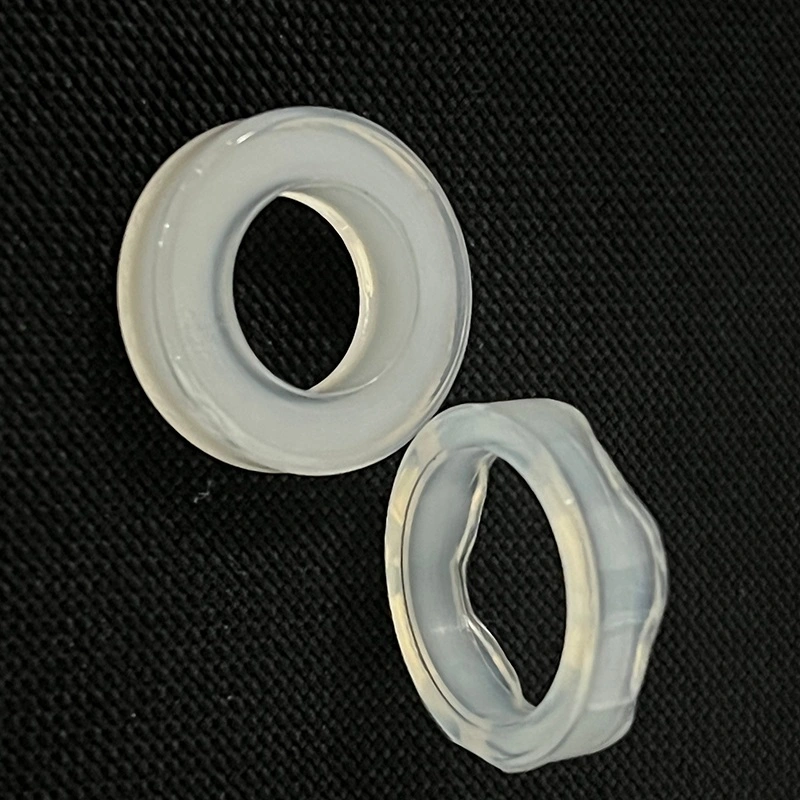

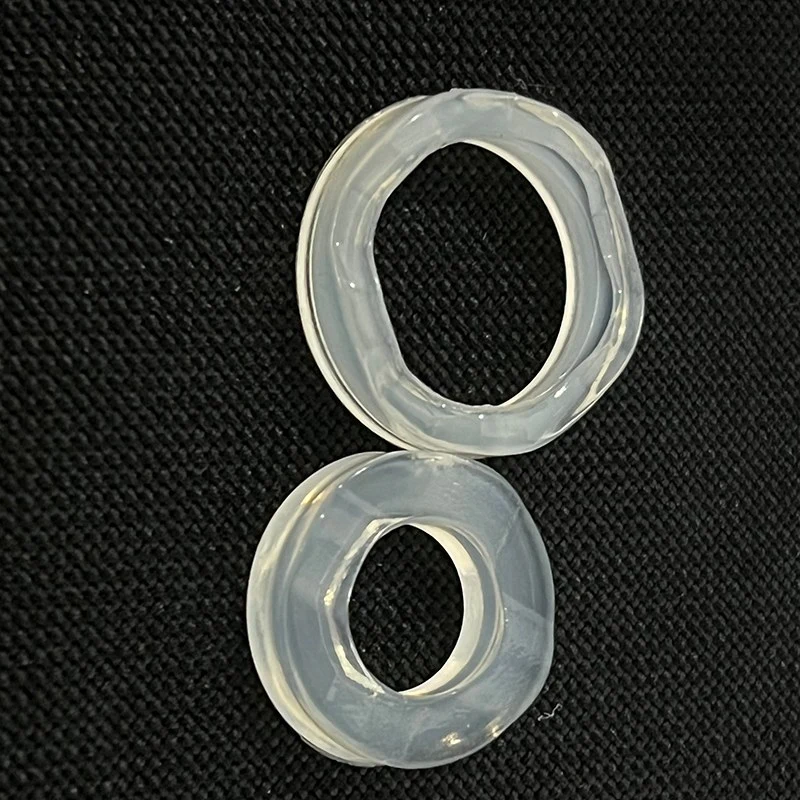

High-Elasticity Rubber Rebound Stopper

The High-Elasticity Rubber Rebound Stopper is an elastic suspension component developed to provide fast recovery, progressive cushioning and stable rebound response. Unlike conventional buffer parts that mainly focus on basic impact resistance, XIAYI focuses on elastic recovery, material flexibility and suspension comfort. XIAYI provides customized solutions for passenger cars, electric vehicles, SUVs, commercial vehicles and construction machinery.

Designed for Fast Elastic Recovery

A rebound stopper works when the shock absorber approaches the end of its rebound stroke. It temporarily deforms under compression, absorbs part of the impact energy and then returns toward its original shape.

For this application, elasticity is more than simply softness. The material needs to provide sufficient support while recovering quickly enough for the next suspension movement. XIAYI therefore develops formulations with a balanced combination of resilience, flexibility and compression resistance to maintain consistent rebound behavior during repeated road impacts.

How Elastic Response Affects Suspension Performance

The rebound characteristics of the rubber directly influence how the suspension responds to uneven roads. A material that recovers too slowly may remain partially compressed, while a material that is excessively hard can transmit a sharp impact into the suspension.

XIAYI adjusts hardness and material composition according to vehicle characteristics. The objective is to create a progressive response: softer initial deformation for impact absorption, followed by stronger resistance as the suspension approaches its rebound limit. This helps improve the transition between normal suspension travel and maximum rebound.

Material Formulation for Different Driving Conditions

Different vehicles require different elastic characteristics. A compact EV used mainly for urban commuting generally needs balanced resilience and comfort, while an SUV operating on rough roads requires stronger recovery and greater compression resistance.

XIAYI can provide standard, reinforced and heavy-duty formulations. Selected materials can also incorporate anti-aging, oil-resistant and temperature-resistant additives to maintain elastic behavior under changing environmental conditions.

Comfort-Oriented Shock Absorption

The final stage of suspension travel can create a noticeable impact if the buffer material is too rigid. For passenger vehicles, this may appear as a harsh feeling when passing speed bumps, potholes or uneven pavement.

The High-Elasticity Rubber Rebound Stopper is designed to deform progressively instead of producing an abrupt resistance increase. This helps soften the final rebound movement and reduce impact transmission to the vehicle body, contributing to a more controlled and comfortable driving experience.

Performance Under Repeated Compression

Automotive suspension components may experience thousands of compression and rebound movements during daily driving. Continuous deformation can gradually reduce the elasticity of ordinary rubber materials.

XIAYI uses modified high-resilience rubber formulations to improve fatigue resistance and shape recovery. Depending on the selected grade, the material can maintain stable performance across approximately -40℃ to +145℃ and withstand repeated suspension movement without rapid hardening or permanent collapse.

Matching the Component to Vehicle Characteristics

There is no single elasticity level suitable for every shock absorber. Vehicle weight, suspension travel, road conditions and expected load all influence the required buffer response.

XIAYI supports customized hardness, dimensions and material formulations according to customer drawings, samples and operating conditions. This allows the component to be developed around the actual suspension characteristics instead of using a universal specification.

Where It Is Used

The High-Elasticity Rubber Rebound Stopper can be applied to shock absorber rod assemblies for sedans, compact EVs, SUVs, MPVs, light and heavy commercial vehicles, construction machinery and off-road vehicles.

For urban passenger vehicles, the focus is generally on comfortable elastic response. For SUVs and commercial vehicles, stronger recovery and compression resistance can be selected. Heavy-duty formulations are available for machinery and vehicles operating under frequent impact and high loads.

Verified Application Experience

Compact New Energy Vehicle Project

A domestic new energy vehicle OEM experienced reduced elasticity and occasional suspension knocking after approximately 10,000 km of urban driving with conventional rebound stoppers. After adopting XIAYI's standard high-elasticity formulation, the vehicle completed a 30,000 km road test with stable buffer softness, while the noise complaint rate decreased from 17.5% to 1.1%.

SUV Mixed-Road Application

An auto parts supporting factory supplying mid-size SUVs reported elastic fatigue and uneven damping after prolonged driving on mixed urban and rural roads. After adopting XIAYI reinforced high-elasticity products, 120,000 sets were supplied, and after-sales wear and elastic failure feedback decreased by 88%.

Heavy-Duty Vehicle Application

A logistics fleet and off-road machinery operator experienced frequent buffer deformation under heavy loads and high-frequency vibration. After replacing conventional parts with XIAYI heavy-duty high-elasticity products, the components completed 1.3 million reciprocating cycles. The equipment maintenance cycle increased from 3 months to 12 months, reducing overall maintenance costs by more than 40%.

Why Choose XIAYI

XIAYI combines material formulation development, precision rubber molding and performance verification to produce elastic components for different suspension requirements. The main advantages include stable rebound recovery, progressive impact absorption, flexible hardness selection, wide temperature adaptability and customized material development.

The High-Elasticity Rubber Rebound Stopper can be supplied according to customer drawings, samples and application requirements, supporting both OE development and aftermarket replacement projects.

Frequently Asked Questions

What does high elasticity mean in a rebound stopper?

It means the rubber can deform under suspension impact and recover its original shape efficiently. Good elastic recovery helps maintain consistent cushioning during repeated compression and rebound cycles.

Can the hardness be adjusted for different vehicles?

Yes. XIAYI can customize hardness and material characteristics according to vehicle weight, suspension travel, load conditions and customer testing requirements.

Is it suitable for electric vehicles?

Yes. The component can be developed for compact EVs, SUVs and other electric vehicle suspension systems. Material selection can be adjusted according to the vehicle's weight and suspension configuration.

Can XIAYI provide samples before mass production?

Yes. Customers can provide drawings or physical samples, and XIAYI can conduct material selection, sample development and performance verification before mass production.

XIAYI Manufacturing & Quality Assurance

XIAYI is a professional China manufacturer specializing in automotive rubber components and elastic suspension parts. The company has established a quality management system compliant with IATF 16949:2016, covering material preparation, molding, inspection and finished-product control.

With customized formulation capability and standardized production processes, XIAYI serves global automotive and engineering machinery customers as a reliable supplier, providing application-specific rubber components for different suspension systems.
