We supply full-category shock absorber components, including pistons, stampings, rubber seals, piston rods, springs, and self-developed banding/grooving machines.

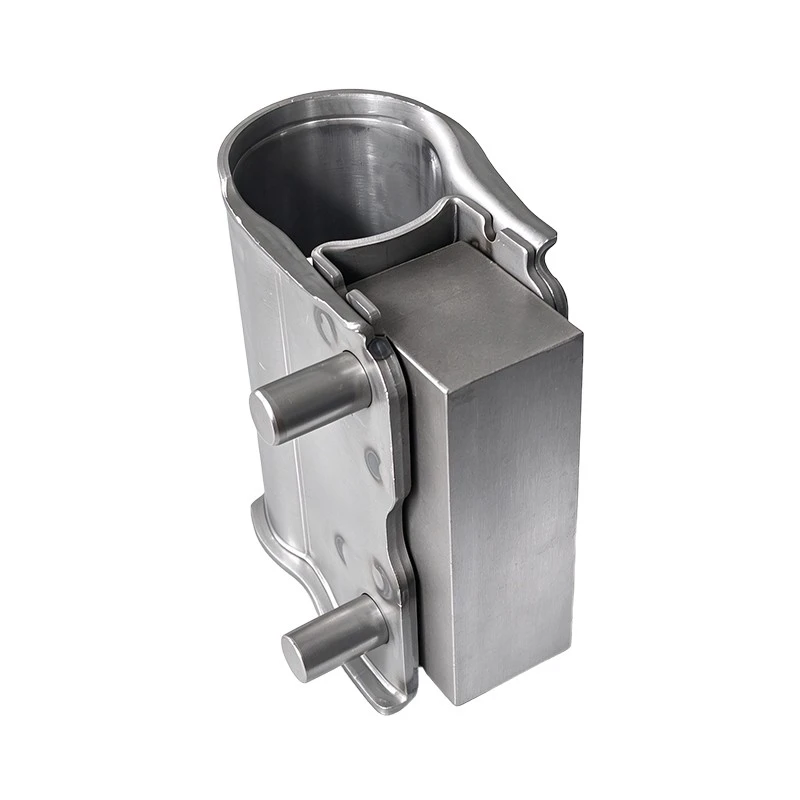

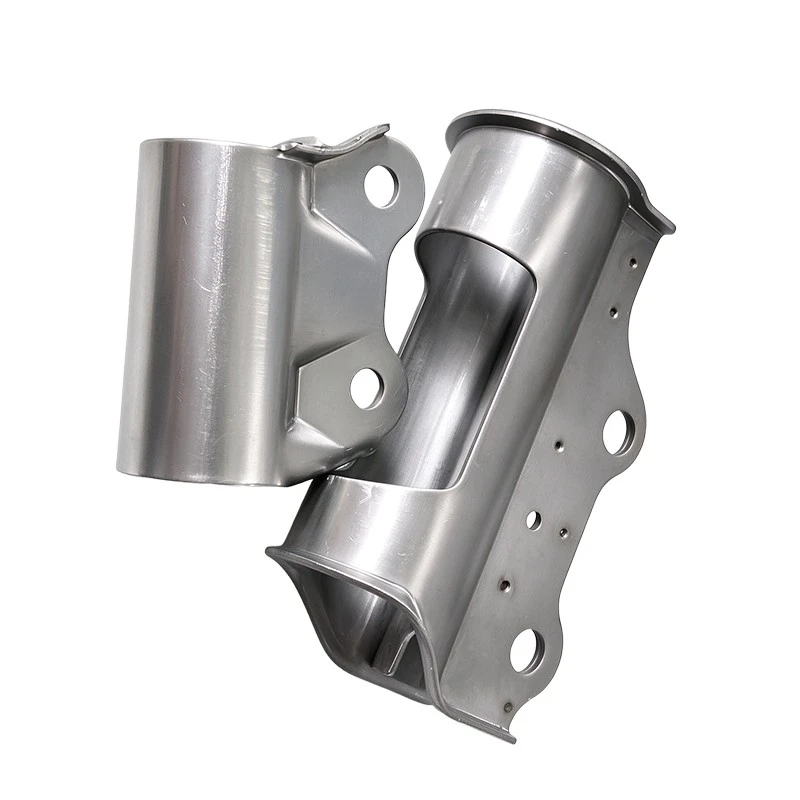

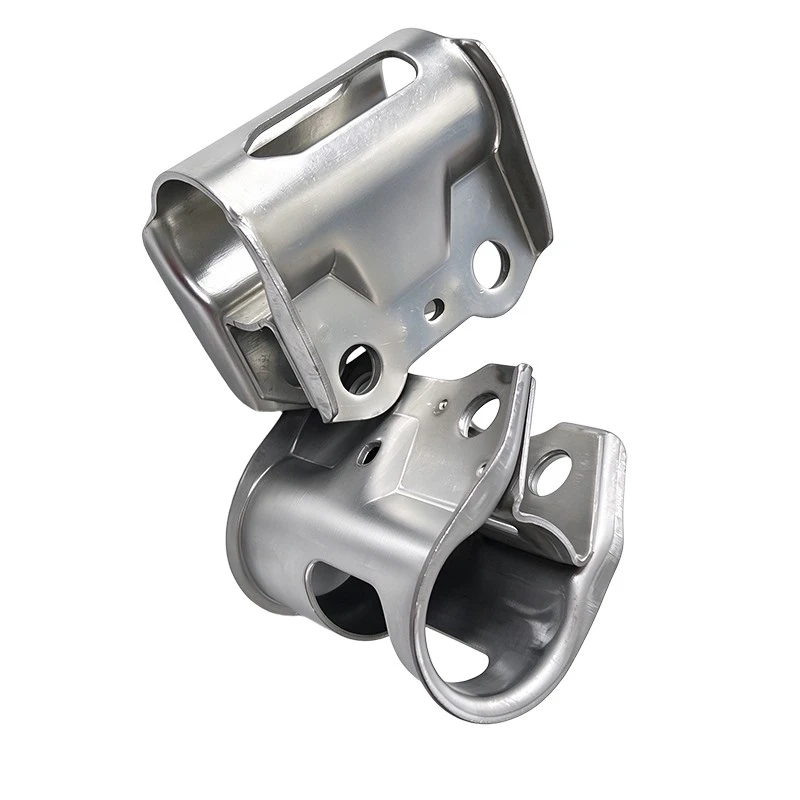

Lightweight Shock Bracket Component
Lightweight Shock Bracket Component from XIAYI cuts unsprung mass with thin-gauge HSLA steel while rib geometry keeps rigidity where the load path needs it, so heavy EV suspensions stay quiet and settlement-free. Thickness held to ±0.03mm and holes to ±0.1mm make this supplier's brackets drop straight into your assembly.
Engineered for EV and hybrid suspensions: lightweight HSLA steel trims every unnecessary gram while rib geometry keeps rigidity exactly where the load path demands it — quiet, settlement-free, and easy on range.
HSLAlightweight alloy steel
±0.03mm thickness control
≤±0.1mm hole position
EV-Readyanti-settlement design
Product Overview
Electric vehicles changed the rules for suspension brackets: the battery adds hundreds of kilograms of sprung mass, yet every added gram of unsprung steel shortens range. The Lightweight Shock Bracket Component resolves that conflict — high-strength low-alloy (HSLA) steel in optimized gauges carries the heavier body, while rib-reinforced geometry replaces raw thickness as the source of rigidity.
The result is a bracket that resists the slow settlement and ride-height drop typical of heavy EVs, without the mass penalty of an over-built steel plate. For a component mounted at the corner of the vehicle where noise is most audible, the design also targets low-noise behavior: smooth hole finishes, burr-free edges and vibration-tolerant geometry keep the chassis quiet over high-frequency EV powertrains.
Design principle: on a heavy, silent EV, a bracket cannot hide behind engine noise — and cannot afford extra grams. Rigidity is designed in through shape, not bought with thickness.
How Weight Is Removed Without Losing Rigidity
| Design Lever | How It Works | Benefit for Your Program |
|---|---|---|
| Lightweight HSLA material | Higher yield strength allows thinner gauge at equal load capacity | Less unsprung mass, more range |
| Rib-reinforced geometry | Load-path ribs replace excess plate thickness | High rigidity, anti-settlement under heavy battery mass |
| Precision thin-gauge control | Material thickness held to ±0.03mm | Predictable stiffness in every batch |
| Smooth hole & edge finish | No burrs, no deformation at mounting holes | Low noise, no eccentric wear |
| Dual e-coat + powder protection | Thin but complete protective system | Corrosion resistance without heavy coatings |
Vehicle Matching Guide
| Vehicle Type | Recommended Configuration | Key Reason |
|---|---|---|
| EV / New energy | Lightweight HSLA + e-coat + powder | Heavy battery mass, noise-sensitive cabin |
| Hybrid | Lightweight HSLA, standard package | Mixed duty cycle, weight saving still pays |
| City sedan / MPV | Light precise silent bracket | Comfort-oriented daily use |
| Taxi / fleet | Lightweight bracket, powder coating | High frequency with low maintenance |
Common Failures We Eliminate
| Customer Pain Point | Root Cause | XIAYI Lightweight Solution |
|---|---|---|
| Ride height sinks over time | Bracket settlement under heavy battery mass | Anti-settlement rib structure in HSLA steel |
| Cabin noise on rough roads | Thin bracket resonates without engine masking | Rib-damped geometry + smooth hole finish |
| Range anxiety from heavy parts | Over-built steel brackets | Thinner gauge at equal strength — weight cut at the source |
| Coating too thick to be light | Corrosion protection adding mass | Dual thin-film e-coat + powder system |
| Fit problems on thin sections | Gauge and hole drift on lightweight parts | ±0.03mm thickness and ≤±0.1mm hole position control |
Applications
- Electric vehicle front and rear suspension brackets — anti-settlement duty
- Hybrid and city car strut mounts where mass reduction pays into range
- Noise-sensitive suspension corners on premium EV platforms
- Fleet EVs needing lightweight brackets that still survive high mileage
Share your target weight and load path — we return a lightweight design proposal and quote within 24 hours.
Frequently Asked Questions
Can a lighter bracket really carry a heavy EV?
Yes — the weight saving comes from replacing plate thickness with rib geometry and higher-strength HSLA steel. The load path keeps full rigidity, so settlement under heavy battery mass is controlled.
How much weight can be saved against a standard bracket?
It depends on your current design and load case. Send the drawing and target mass — our engineering team returns a feasibility study comparing weight, rigidity and cost within 24 hours.
Does thin-gauge forming risk distortion?
Thickness is held to ±0.03mm and stress is corrected after forming, so flatness and angle stay in tolerance — that is what keeps the fit exact and the cabin quiet.
What corrosion protection suits EV brackets?
Our dual thin-film system — e-coat plus powder — protects without adding meaningful mass, matching the weight-saving intent of the design.
About XIAYI — Lightweight Engineering for New Energy Vehicles
Ningbo XiaYi Electromechanical Tech Co., Ltd., an IATF 16949:2016 certified manufacturer founded in 2006 in Ningbo, China, develops stamped suspension components for the new-energy era — balancing mass, rigidity and noise for EV and hybrid platforms alongside its conventional OE programs.
- Lightweight HSLA forming experience across EV and hybrid platforms
- Thin-gauge precision: ±0.03mm thickness, ≤±0.1mm hole position
- Dual thin-film coating system designed for weight-sensitive programs
- 20+ years export experience — 30+ countries, ~50% international output
Cut Bracket Weight Without Cutting Rigidity
Send your drawing to sales@xiayiparts.com or call +86-13586885132 — lightweight design proposal within 24 hours.
