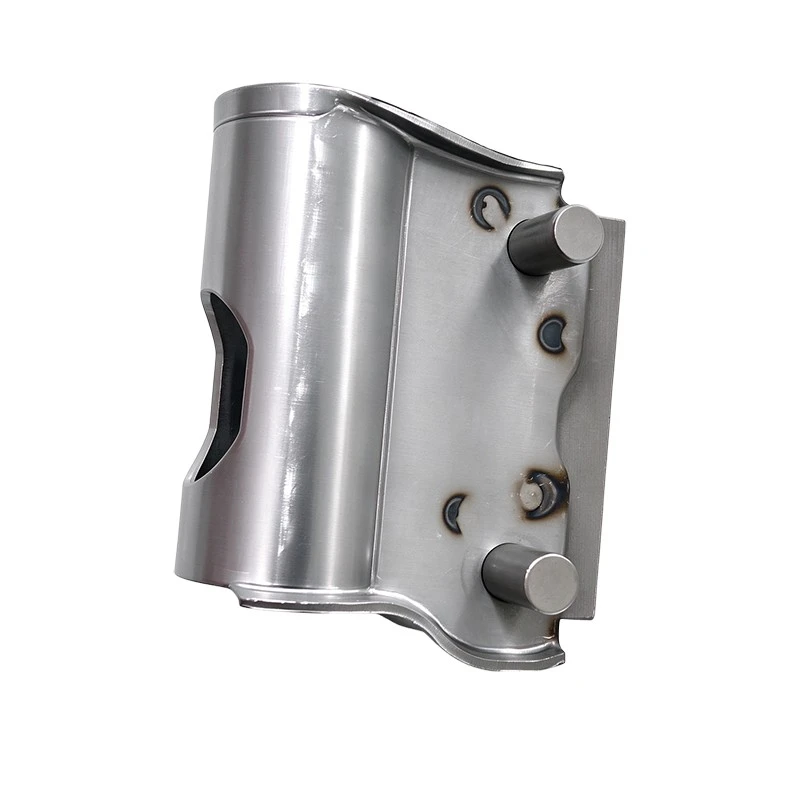

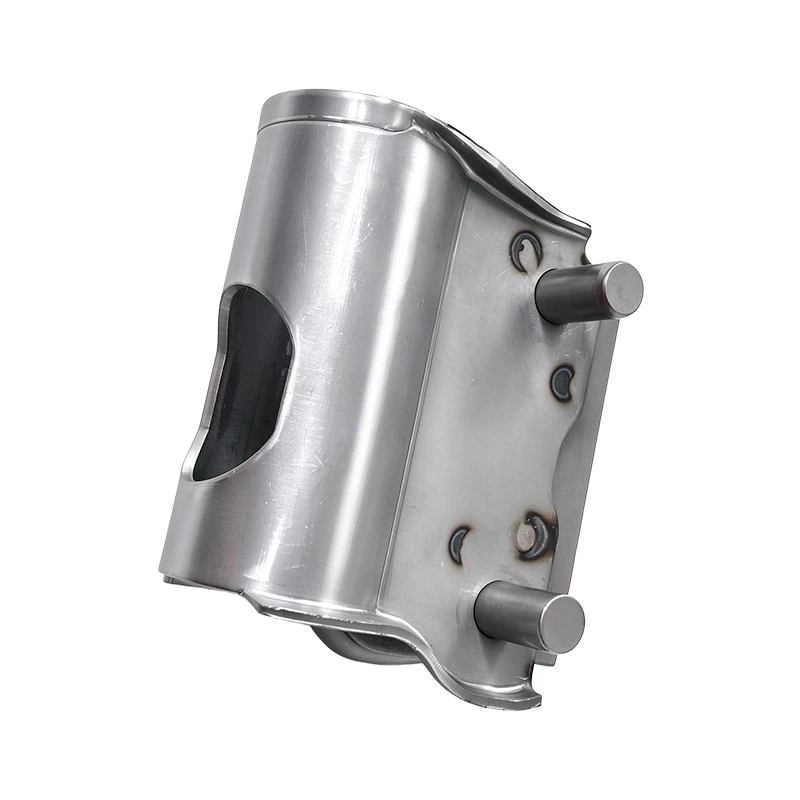

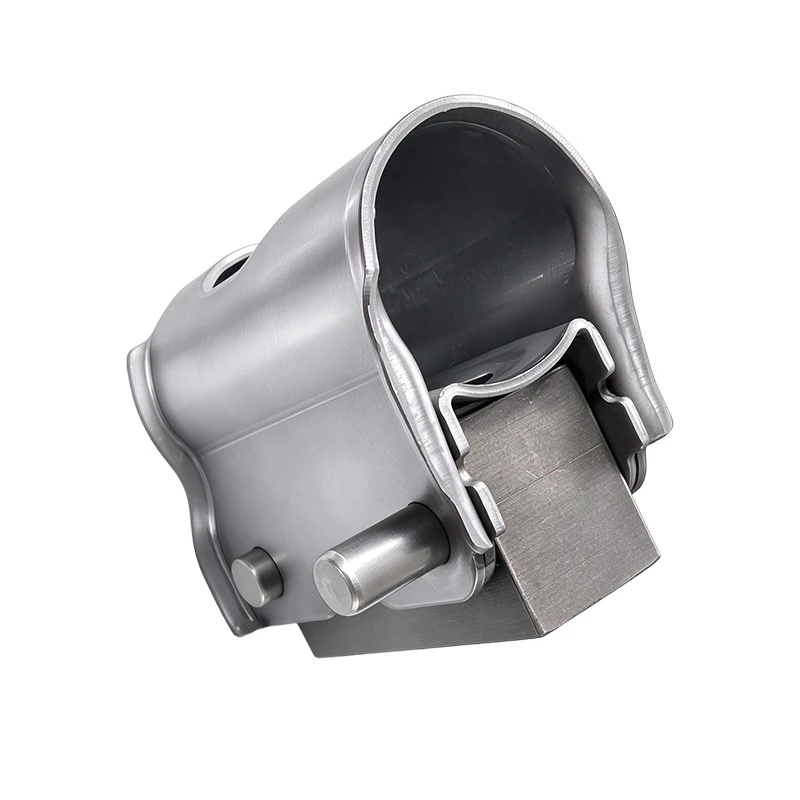

Integrated Formed Shock Absorber Bracket
Integrated Formed Shock Absorber Bracket by XIAYI is punched, bent, trimmed and calibrated in one progressive stroke, so the geometry never drifts between operations. With press parameters locked and CPK≥1.33 monitored at our Ningbo factory, every bracket leaves the line with identical holes, angles and flatness, batch after batch.
Punched, bent, trimmed and calibrated in one progressive stroke — integrated forming means the geometry never drifts between operations, and every bracket leaves the line with identical holes, angles and flatness.
1-Passintegrated forming
CPK≥1.33dimensional capability
9-Stepclosed-loop flow
100%final inspection
Product Overview
The Integrated Formed Shock Absorber Bracket is produced on a multi-station progressive press that completes punching, blanking, bending, trimming and calibration in a single pass. Because the part is never re-clamped or moved between operations, there is no cumulative positioning error — the hole pattern, squareness and flatness of the last bracket are identical to the first.
Around that forming core runs a complete production control plan: incoming steel is fully inspected, coils are leveled stress-free, joints are intelligently welded or riveted, residual stress is corrected before coating, and every bracket passes full dimensional and reliability checks before dust-proof packaging. Each step has a written control standard, a monitoring method and an error-proofing rule — so quality is engineered into the process, not screened out at the end.
Why integration matters: most bracket defects — wrong holes, twist, springback — are born when a part is re-handled between operations. Integrated forming removes those handoffs entirely.
9-Step Production Flow, Raw Material to Finished Part
| Step | Control Standard | Monitoring Method |
|---|---|---|
| 1. Incoming Quality Control | Steel grade, thickness, strength, surface | Spectrometer, micrometer |
| 2. Uncoiling, Leveling & Blanking | No wave, no twist, stress-free | Flatness fixture |
| 3. Multi-Station Progressive Stamping | Locked pressure, stroke, clearance | Servo control system |
| 4. Intelligent Welding / Riveting | No porosity, no burn-through | MF welder, tension test |
| 5. Stress Correction & Calibration | Flatness, angle, squareness in tolerance | Checking fixture, gauge |
| 6. Pre-Treatment & Coating | Degrease → phosphate → e-coat / powder / Dacromet | Thickness meter, cross-hatch |
| 7. Full Dimensional Inspection | Holes, pitch, flatness, position, angle — CPK≥1.33 | CMM, 2D vision tester |
| 8. Reliability Testing | Tensile, fatigue, hardness, salt spray | Universal tester, fatigue rig |
| 9. Final Inspection & Packaging | Zero-defect appearance, rust-proof packing | Standard light booth, FQC |
Core Production Equipment
| Process | Equipment | Capability |
|---|---|---|
| Material preparation | Automatic uncoiling & leveling machine | Flat, stress-free sheet |
| Stamping | 16T–315T progressive presses | Stable pressure & dimension |
| Welding | Medium-frequency spot welder | Stable, robust joints |
| Calibration | Hydraulic straightening machine | Accurate shape & flatness |
| Conveying | ESD dust-free belt line | Anti-scratch, clean handling |
Process Failures We Eliminate
| Customer Pain Point | Typical Process Failure | XIAYI Control Plan |
|---|---|---|
| Early crack and breakage | Poor material, bad stamping, weak welds | Full incoming check + mold + weld control |
| Deformation and collapse | Incomplete forming, residual stress | Precision stamping + stress correction |
| Poor fit, wrong holes | Mold wear and shrinkage | CMM inspection + scheduled mold maintenance |
| Burrs damage the dust cover | Flash and poor trimming | High-precision tooling, burr-free process |
| Early shock oil leakage | Eccentricity, poor flatness | Concentric control + flatness inspection |
Applications
- OEM strut mount and suspension bracket programs requiring stable mass production
- Bracket assemblies with welded or riveted sub-components
- Aftermarket distributors needing consistent, traceable batch quality
- Passenger cars, SUVs, MPVs, EVs, commercial vehicles and construction machinery
Send your 2D/3D drawing — the engineering team returns a process plan and quote within 24 hours.
Frequently Asked Questions
What does "integrated formed" actually mean?
All forming operations — punching, bending, trimming and calibration — run in one progressive stroke on a multi-station die. The part is never re-clamped, which eliminates cumulative positioning error between operations.
How do you keep quality stable across large orders?
Press parameters are locked in the servo control system, molds follow a scheduled maintenance plan, and dimensional capability is monitored at CPK≥1.33 with CMM and 2D vision inspection.
Is every bracket inspected?
Yes — full dimensional inspection plus a zero-defect final appearance check under a standard light booth before rust-proof packaging.
Can you produce to our existing bracket drawing?
Absolutely. Share your drawing or a sample; we confirm formability, tooling plan and pricing within 24 hours.
About XIAYI — Process Control You Can Audit
Ningbo XiaYi Electromechanical Tech Co., Ltd., founded in 2006 in Ningbo, China, is an IATF 16949:2016 certified manufacturer of shock absorber stamping parts and custom automated assembly equipment. The integrated bracket line runs under a written control plan from IQC to FQC — every step has a standard, a monitoring method and a traceable record.
- Written control plan covering all nine production steps, IQC to FQC
- CMM, tensile, hardness, fatigue and salt spray testing all in-house
- Scheduled mold maintenance and locked press parameters for batch stability
- Complete traceability from raw material batch to shipped carton
Need Brackets With Locked-In Consistency?
Send your drawing to sales@xiayiparts.com or call +86-13586885132 — process plan and quote within 24 hours.
