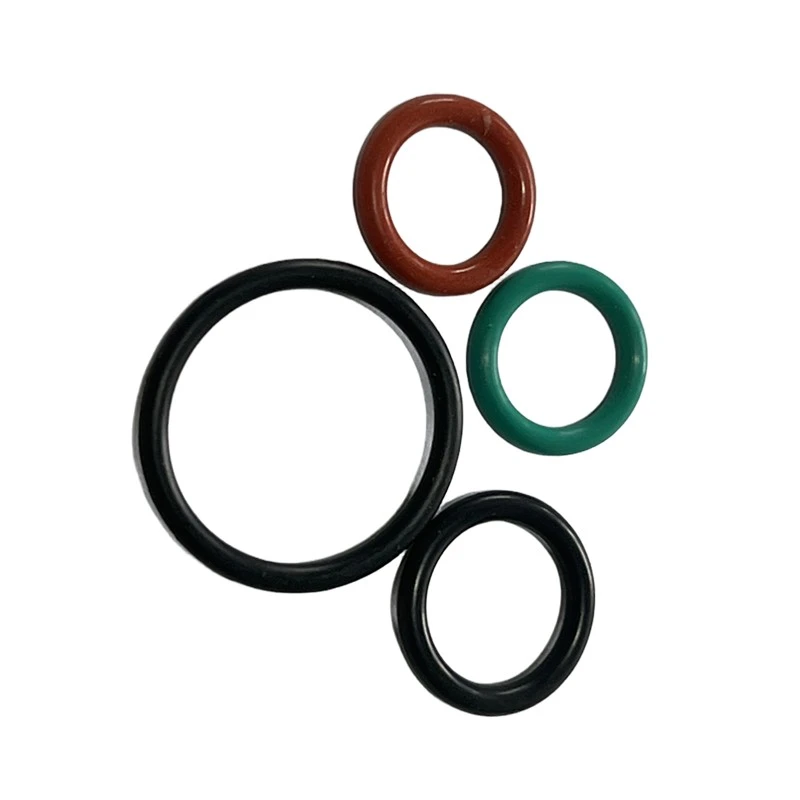

Uniform Round Deformation-Resistant Seal Ring

Manufactured in China in compliance with the IATF 16949:2016 quality management system standard, this Uniform Round Deformation-Resistant Seal Ring undergoes testing for dimensions, compression, and environmental performance across every batch. The resulting sealing solution is ideally suited for applications---such as automotive shock absorbers, damping systems, and industrial hydraulic equipment---that demand strict, long-term geometric stability.

Product Design

Uniform Ring Structure

The Uniform Round Deformation-Resistant Seal Ring is engineered around consistent circular geometry. Uneven material distribution or residual stress can cause conventional sealing rings to become oval or locally distorted after prolonged compression. XIAYI uses controlled molding and stress-relief processes to improve roundness consistency and maintain a more uniform contact profile during operation.

This design helps reduce sealing-gap variation and supports stable contact between the seal and its mating groove. It is particularly useful in hydraulic systems where even small dimensional changes can affect oil retention and damping performance.

Material Stability

The elastomer formulation is selected according to the expected temperature, pressure and oil-contact conditions. The material is designed to retain elasticity while resisting swelling, hardening and permanent deformation during long-term service.

This approach allows the ring to maintain its sealing geometry when exposed to hydraulic oil, engine oil and repeated mechanical movement, making it suitable for demanding automotive and industrial applications.

Manufacturing Process

Precision Molding

XIAYI controls extrusion, circular forming and vulcanization parameters throughout production. Constant-temperature and constant-pressure processing helps distribute material more evenly around the ring and reduces internal stress that could contribute to dimensional changes after molding.

The finished rings are subsequently trimmed to remove excess material and improve the contact surface, supporting consistent installation and reducing the possibility of assembly-related sealing problems.

Stress Relief

Residual stress can become a hidden cause of deformation after a sealing component has been installed for an extended period. XIAYI therefore incorporates controlled post-curing and stress-relief treatment to stabilize the elastomer structure before final inspection.

This process is intended to improve dimensional retention and compression recovery rather than relying solely on initial dimensional accuracy.

Quality Control

Dimensional Inspection

Every production batch is evaluated for key dimensions such as inner diameter, outer diameter and cross-sectional size. Roundness inspection is also used to identify products with excessive geometric deviation before shipment.

XIAYI targets the following internal control values:

Actual specifications can be adjusted according to material grade, equipment structure and application requirements.

Performance Testing

Dimensional inspection is combined with compression, oil-resistance, pressure and fatigue testing. These tests help verify whether the sealing ring can maintain its intended geometry after exposure to representative working conditions.

XIAYI operates under an IATF 16949:2016 quality management system, supporting traceable process control and consistent batch production for automotive and industrial customers.

Equipment Control

Forming Equipment

The production line uses controlled-temperature mixing equipment and servo-assisted circular forming equipment to maintain stable material distribution and molding conditions.

Automated trimming equipment is then used to improve edge consistency and minimize burrs that could interfere with installation or sealing contact.

Inspection Equipment

XIAYI uses vision-based dimensional inspection and dedicated compression and pressure testing equipment to evaluate finished components. Vibration fatigue testing is also available for applications involving repeated mechanical movement.

This combination of manufacturing and inspection equipment allows production parameters and finished-product performance to be evaluated together rather than relying only on visual inspection.

Customer Problems

Deformation After Compression

A sealing ring can gradually lose its original geometry when continuously compressed. If the ring becomes oval or develops local deformation, the contact pressure may become uneven and create a potential path for oil leakage.

The XIAYI design focuses on uniform geometry, controlled vulcanization and stress relief to improve long-term shape retention.

Leakage Under Vibration

Automotive shock absorbers and hydraulic systems experience repeated movement rather than static compression alone. This can accelerate deformation and fatigue when the sealing material or geometry is unstable.

The ring is therefore evaluated under pressure and cyclic loading to verify its ability to maintain a consistent sealing profile during repeated movement.

Product Advantages

Shape Retention

The Uniform Round Deformation-Resistant Seal Ring maintains a consistent circular profile through controlled molding and post-curing treatment. This helps reduce eccentric contact, uneven compression and sealing-gap variation during long-term operation.

Compression Recovery

A low compression set helps the elastomer recover after prolonged compression. This is important for applications where the sealing component must continue contacting the mating surface throughout the service cycle.

Oil Resistance

The selected material formulation provides resistance to common oil-based working environments. It is suitable for hydraulic oil and engine-oil-related applications where swelling or material softening could otherwise affect dimensional stability.

Batch Consistency

XIAYI uses standardized process parameters and inspection procedures to reduce variation between production batches. This is especially important for OEM customers that require repeatable dimensions across large-volume orders.

Real Application

Customer Background

A European professional automotive shock absorber manufacturer had experienced recurring seal deformation problems. Conventional sealing rings became distorted and locally collapsed after approximately 3--6 months of vehicle operation under high-frequency vibration and engine-oil exposure. The resulting micro-leakage, damping jitter and abnormal driving noise increased after-sales complaints and maintenance costs.

Optimization Process

In mid-2024, the customer introduced the Uniform Round Deformation-Resistant Seal Ring from XIAYI for batch replacement and matching. The solution combined uniform circular molding, stress-relief treatment and an oil-resistant anti-deformation material formulation. Full-roundness inspection, pressure testing and fatigue simulation were incorporated into the quality-control process.

Application Results

After 12 months of real-vehicle road testing and market verification, the customer's application recorded no reported roundness deformation, oil leakage or abnormal-noise failures. Compared with the previous sealing solution, service life increased by more than 280%, after-sales failure rate decreased by 93%, and maintenance costs were reduced by 35%.

Application Fields

Automotive Damping

The sealing component is suitable for passenger-car hydraulic shock absorbers, SUV damping systems, commercial-vehicle dampers and motorcycle shock absorbers. Its dimensional stability is particularly valuable in systems exposed to repeated vibration and oil contact.

Industrial Hydraulics

For industrial hydraulic equipment, the ring can be used in applications where pressure cycling, mechanical movement and oil exposure occur simultaneously. It can support sealing requirements in hydraulic mechanisms and related precision equipment.

Custom Service

Size Matching

XIAYI supports customized inner diameter, outer diameter and cross-sectional dimensions according to customer drawings or equipment groove specifications. This helps ensure appropriate interference and contact conditions during assembly.

Material Options

For different temperature, pressure and medium requirements, XIAYI can evaluate suitable elastomer formulations and hardness specifications. Sample development can generally be completed within 7--10 working days according to project complexity, followed by batch production after approval.

Product FAQ

What makes this seal ring different?

The main difference is the focus on geometric stability after installation. Instead of evaluating only initial dimensions, XIAYI considers roundness retention, compression behavior, oil exposure and cyclic loading to improve long-term sealing reliability.

Where is it commonly used?

It is mainly suitable for automotive shock absorbers, vehicle damping components and industrial hydraulic equipment. Applications involving repeated compression, vibration and oil exposure can particularly benefit from its deformation-resistant design.

Can XIAYI customize the size?

Yes. XIAYI provides OEM/ODM customization based on drawings, groove dimensions, operating temperature, pressure, medium and material hardness requirements. This allows the sealing component to be matched to specific equipment rather than relying on standard dimensions.
