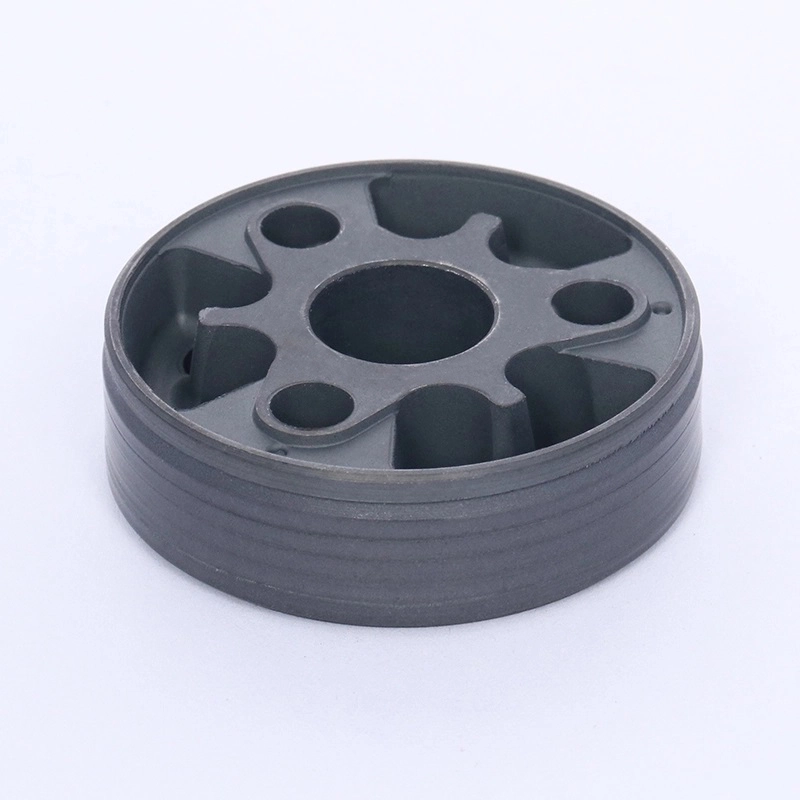

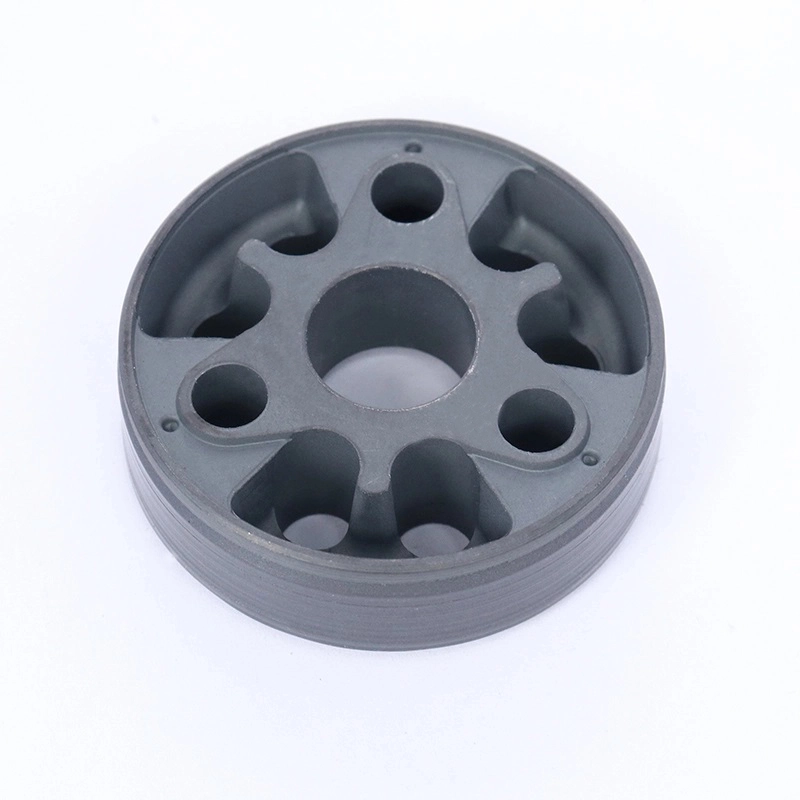

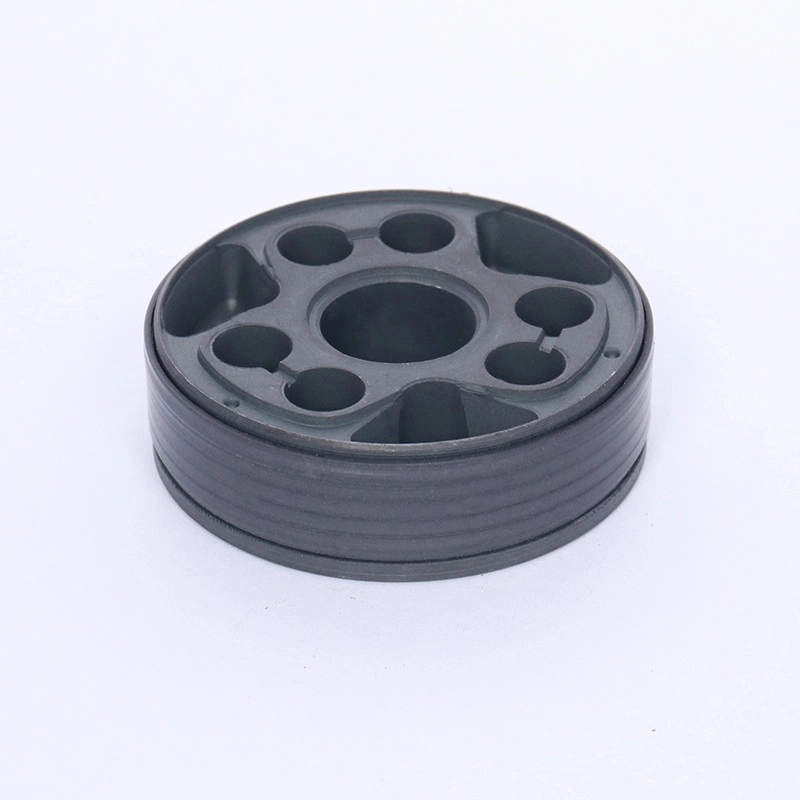

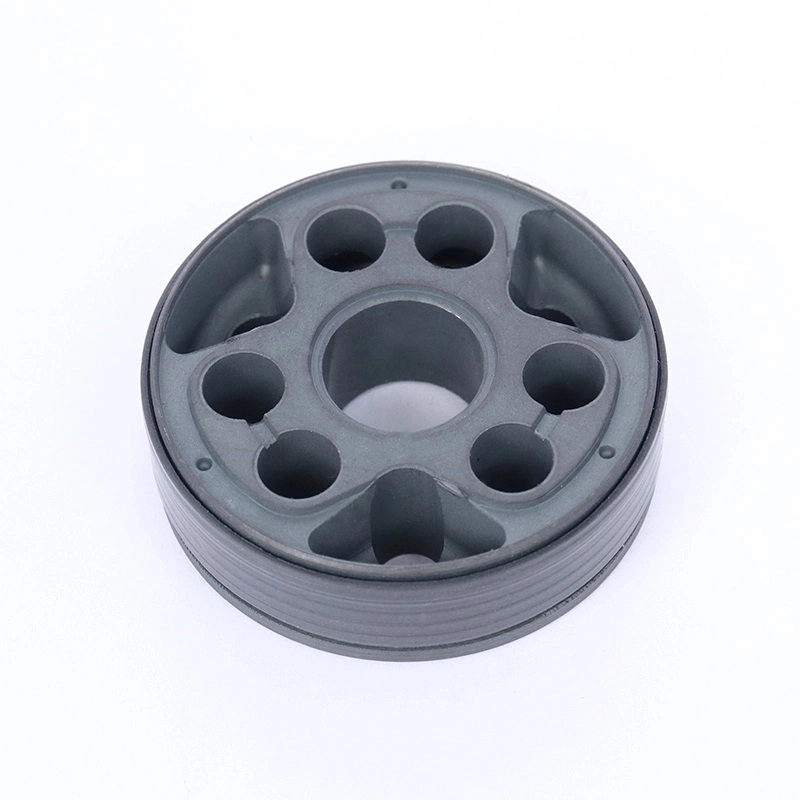

Porous Oil-Storing PTFE Banded Piston

XIAYI Porous Oil-Storing PTFE Banded Piston is a precision damping component developed for shock absorber systems requiring continuous lubrication support and stable friction performance. By combining powder metallurgy porous structure with PTFE band technology, the piston provides an internal oil storage function that helps maintain lubrication efficiency during long-term reciprocating movement.

Unlike conventional solid pistons that mainly rely on external oil circulation, this advanced piston design integrates micro oil storage channels inside the sintered substrate. The stored lubricant can gradually release during operation, improving lubrication continuity between the piston band and cylinder wall. This structure helps reduce friction fluctuation, supports consistent damping output and extends the working stability of shock absorber systems.

Oil Storage Structure Design

The main feature of this product is the integrated oil storage structure inside the powder metallurgy substrate. Through precise control of powder composition and sintering parameters, uniform micro pores are formed inside the piston body, creating a stable lubrication reserve.

During shock absorber compression and rebound cycles, lubricating oil enters the porous structure and is gradually released according to friction conditions. This dynamic oil supply method helps maintain a stable lubrication layer and reduces the risk of direct friction caused by insufficient oil distribution.

Continuous Lubrication Support

The porous structure provides additional lubrication support when shock absorbers operate under frequent vibration, uneven road conditions or long working periods. Compared with traditional piston structures that depend only on external oil circulation, the internal oil storage design improves lubrication continuity during repeated movement.

This feature is especially valuable for vehicles operating in environments with high suspension frequency, long-distance driving requirements or changing load conditions, helping maintain smoother damping response and more consistent operating performance.

Balanced Material Structure

XIAYI combines high-density powder metallurgy materials with reinforced PTFE band technology to achieve a balanced structure between strength and lubrication performance. The piston substrate provides mechanical support, while the PTFE band delivers a stable contact surface with low friction characteristics.

The combination avoids the limitations of single-function piston designs and provides a comprehensive solution for shock absorber manufacturers requiring durability, lubrication stability and precise matching performance.

Precision Manufacturing Control

The manufacturing process includes powder material inspection, forming control, sintering parameter monitoring, precision machining and finished product verification. Key dimensions are controlled according to customer requirements to ensure accurate matching with different shock absorber assemblies.

XIAYI supports customized development based on piston diameter, band specification, material requirements and operating conditions. This enables customers to obtain optimized solutions for different vehicle platforms and application environments.

Technical Performance Comparison

The following comparison highlights the differences between XIAYI porous oil storage piston structures and conventional solid piston designs in lubrication management and long-term operation.

Key Technical Parameters

Application Scenarios

XIAYI Porous Oil-Storing PTFE Banded Piston is developed for shock absorber systems that require stable lubrication performance, accurate damping control and long service durability. The product is suitable for different vehicle platforms and mechanical applications where piston movement frequency, operating time and environmental conditions create higher requirements for lubrication reliability.

Passenger Vehicle Suspension

In passenger vehicles, shock absorbers need to provide consistent damping performance during daily driving, acceleration, braking and uneven road conditions. The internal oil storage structure helps maintain lubrication continuity between the piston band and cylinder wall, supporting smoother suspension response and reducing performance variation caused by insufficient lubrication.

Heavy-Duty Vehicle Suspension

Commercial vehicles often experience longer operating hours and higher vibration loads compared with passenger vehicles. The porous structure provides additional lubrication capacity during extended operation, helping maintain stable piston movement and improving the durability of shock absorber assemblies used in transportation and logistics applications.

Motorcycle & Electric Vehicle Systems

Motorcycles and electric vehicles require compact, efficient and reliable damping components. XIAYI optimizes piston structure according to different application requirements, providing solutions for high-frequency movement, lightweight suspension systems and silent operation demands.

Customer Application Case

High-Frequency Motorcycle Shock Absorber Improvement Project

Customer Background: A motorcycle shock absorber manufacturer in Southeast Asia supplied products for urban transportation and long-distance riding applications. During extended road testing, conventional piston structures showed unstable lubrication conditions after continuous high-frequency movement, resulting in increased friction noise and inconsistent damping feedback.

XIAYI Solution: The customer introduced XIAYI Porous Oil-Storing PTFE Banded Piston to improve lubrication stability inside the shock absorber system. Through the combination of porous oil storage substrate and PTFE band technology, the piston provided continuous lubrication support during repeated compression and rebound cycles.

Application Result: After durability testing and market verification, the upgraded piston maintained stable movement performance under continuous vibration conditions. The improved shock absorber system achieved smoother operation characteristics and reduced maintenance frequency caused by lubrication-related performance changes. The customer gradually expanded the product application to additional motorcycle suspension models.

Manufacturing Capability

XIAYI focuses on the research, development and production of precision damping components, including powder metallurgy pistons and customized suspension system parts. The company integrates material development, precision forming, sintering processing, machining and performance testing capabilities to support customers from prototype development to mass production.

With an established quality management system compliant with IATF 16949:2016 standards, XIAYI controls every important production stage including raw material inspection, process parameter monitoring, dimensional verification and finished product performance evaluation.

Traceable Production Management

Each batch of products is managed through documented production records and inspection data. Key parameters such as material composition, pore structure consistency, dimensional accuracy and friction performance are monitored to maintain stable product quality during large-volume production.

OEM Custom Development Service

XIAYI provides customized development services according to customer drawings, technical requirements and operating conditions. The engineering team can optimize piston dimensions, PTFE band specifications, material selection and lubrication structure design for different shock absorber applications.

From initial design communication and sample verification to final mass production, XIAYI supports customers with flexible manufacturing solutions for automotive and mechanical component projects.

FAQ

Q1: What makes the oil storage structure different from a conventional piston design?

The main difference is the internal lubrication support function. Traditional solid pistons mainly depend on external oil circulation, while XIAYI Porous Oil-Storing PTFE Banded Piston uses a porous substrate structure to store and gradually release lubricating oil during operation. This design helps maintain a more stable lubrication condition during repeated movement and reduces the influence of temporary oil distribution changes.

Q2: Does the porous structure affect the strength of the piston?

No. XIAYI controls pore distribution through precision powder metallurgy technology to balance oil storage capability and mechanical strength. The optimized sintering process maintains the required structural stability, dimensional accuracy and impact resistance for shock absorber applications.

Q3: What operating environments are suitable for this piston?

The product is suitable for applications requiring long-term reciprocating movement, frequent vibration and stable lubrication performance. It can operate within a temperature range of -40℃ to 120℃ and is suitable for passenger vehicles, commercial vehicles, motorcycles, electric vehicles and other shock absorber systems.

Q4: Can XIAYI provide customized piston solutions?

Yes. XIAYI supports OEM and ODM customization according to customer requirements. Product parameters including piston dimensions, PTFE band specifications, material composition and structural design can be adjusted based on different shock absorber systems and working conditions.

Q5: What quality standards does XIAYI follow?

XIAYI has established a quality management system that complies with IATF 16949:2016 standards. Production processes include material inspection, manufacturing process control and finished product verification to ensure reliable batch consistency and stable supply capability for global customers.
