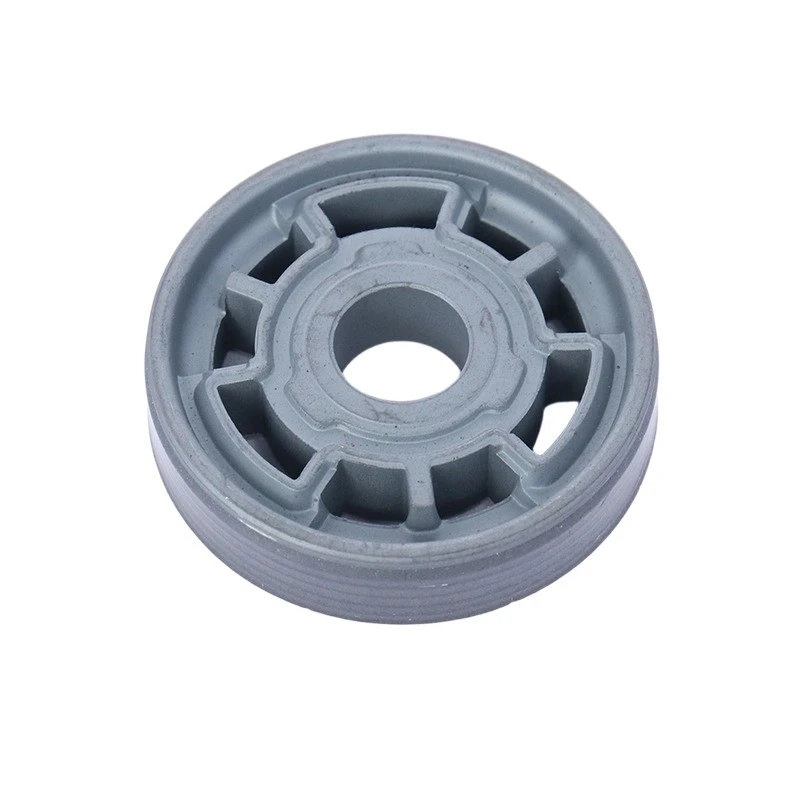

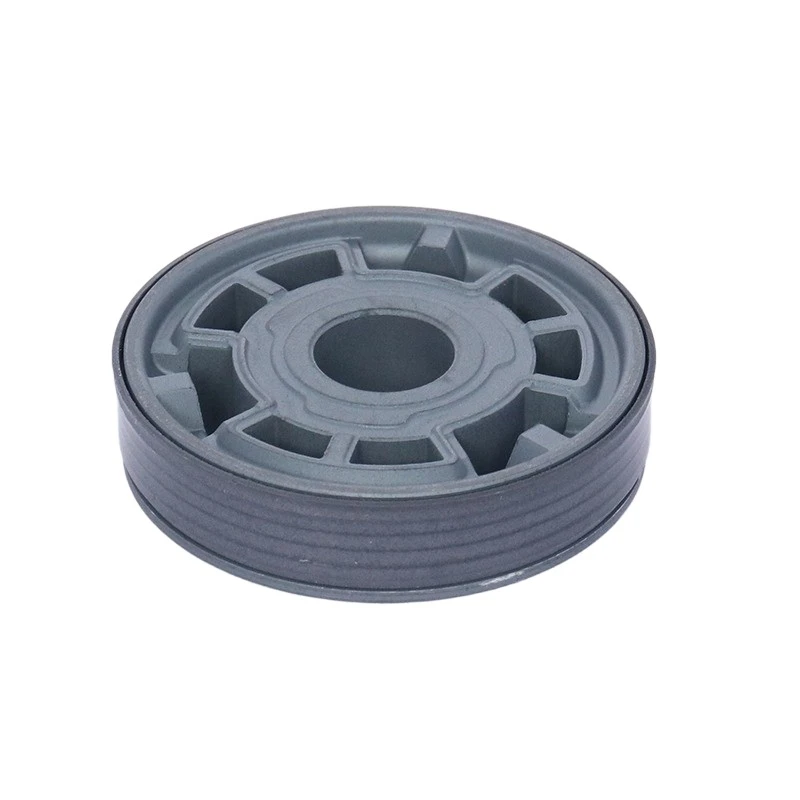

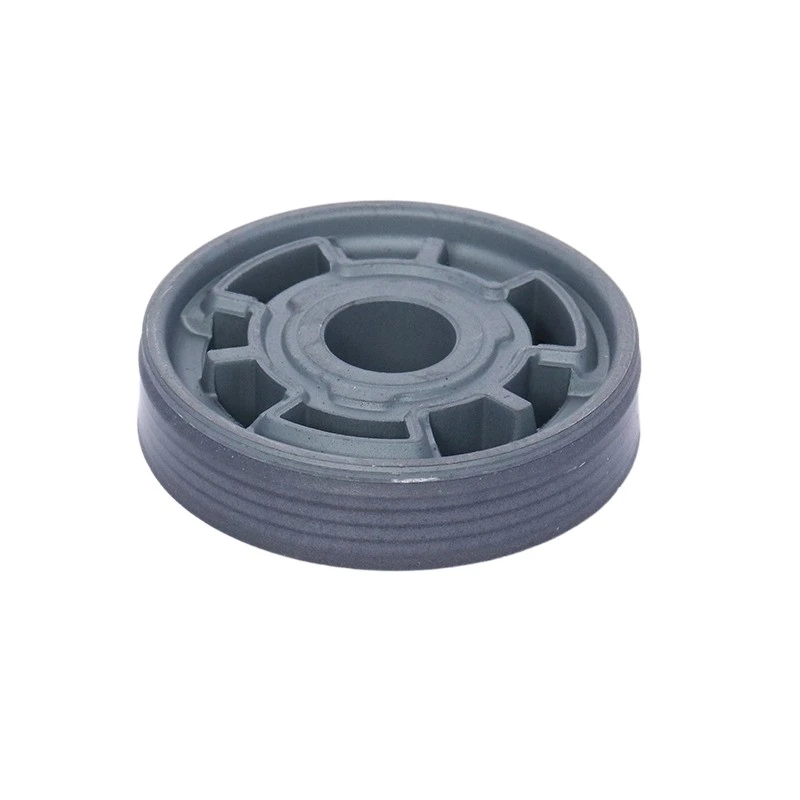

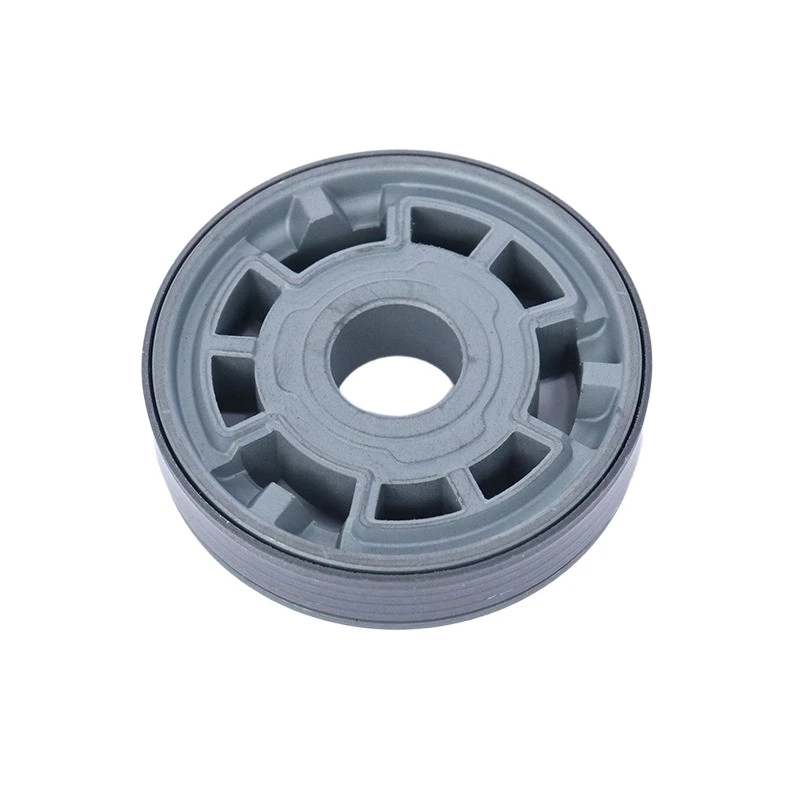

Anti-Oil-Swell PTFE Wrapped Piston
Anti-Oil-Swell PTFE Wrapped Piston is a high-performance damping component developed by XiaYi, a professional precision auto parts manufacturer in China. Featuring modified anti-swelling PTFE material and advanced wrapping technology, it provides excellent oil resistance, dimensional stability, low friction and consistent damping performance. Tested under high-temperature oil aging conditions, it ensures reliable operation for automotive, motorcycle and engineering machinery shock absorber systems.
XIAYI's Anti-Oil-Swell PTFE Wrapped Piston is specially developed to solve dimensional instability caused by PTFE oil absorption. By adopting modified FR104-grade PTFE material and precision heat-press wrapping technology, the piston maintains excellent resistance against oil penetration and swelling deformation during long-term operation.
Combined with a high-density Fe-Cu-C powder metallurgy body and strict dimensional control, the product ensures stable clearance matching, smooth reciprocating movement and consistent damping performance throughout the entire service cycle.
Unlike conventional wrapped pistons that rely on ordinary PTFE materials, XIAYI's solution focuses on long-term material compatibility with shock absorber oil. The optimized molecular structure reduces oil absorption, prevents size expansion and maintains reliable sealing performance in severe environments.
Anti-Oil-Swell PTFE FR104 grade ±0.02mm tolerance ≥1200N bond strength ≤0.2 friction coefficient IATF 16949:2016
Material Structure Optimization
The performance of PTFE wrapped pistons is highly dependent on material compatibility, structural stability and manufacturing accuracy. XIAYI improves the piston design from material selection and composite structure to achieve reliable operation in long-term hydraulic oil environments.
Modified PTFE With Low Oil Absorption
Ordinary PTFE materials may gradually absorb oil molecules during extended immersion, causing volume expansion and mechanical property changes. XIAYI uses specially modified FR104 PTFE material with optimized molecular density, reducing oil penetration and improving dimensional stability.
After high-temperature oil immersion testing at 80℃ for 24 hours, the material maintains stable geometry without obvious swelling deformation. This helps avoid piston clearance changes, excessive friction and damping fluctuation caused by material expansion.
Precision Powder Metallurgy Substrate
The piston body adopts high-density Fe-Cu-C powder metallurgy material, providing excellent mechanical strength and dimensional support for the PTFE wrapping layer. Through controlled powder formulation, sintering temperature and machining process, XIAYI maintains stable density and hardness during long-term loading conditions.
The rigid substrate ensures that the PTFE layer works within a controlled deformation range, improving sealing consistency and preventing uneven wear caused by substrate deformation.
Integrated Wrapping Manufacturing Process
Instead of traditional mechanical fixing methods, XIAYI applies an integrated heat-press wrapping process to combine PTFE material with the metal substrate. The optimized process improves bonding reliability between different materials and reduces the risk of wrapping layer movement during continuous reciprocating operation.
This structure enables stable performance under high temperature, side load and long-cycle movement conditions, making the product suitable for demanding shock absorber applications requiring consistent damping output.
Performance Verification & Quality Data
To ensure long-term reliability in real shock absorber applications, XIAYI conducts comprehensive performance verification covering material stability, dimensional retention, bonding reliability and environmental resistance. Each batch of Anti-Oil-Swell PTFE Wrapped Piston is evaluated according to strict automotive component quality requirements, ensuring stable performance consistency for mass production.
Anti-Swelling Performance Test Results
| Test Item | Test Method | XIAYI Standard | Traditional PTFE Level | Application Benefit |
|---|---|---|---|---|
| Oil Immersion Expansion | 80℃ hydraulic oil soaking 24h | No obvious swelling deformation | Material expansion risk | Stable piston clearance |
| Outer Diameter Retention | Before & after oil aging measurement | Within ±0.02mm | Large dimensional variation | Avoid piston sticking |
| PTFE Layer Bond Strength | Static pull test | ≥1200N | 300-600N | Prevent wrapping separation |
| High Temperature Side Load | 85℃ / 4.6-5.6kN lateral load | No displacement & leakage | Easy band movement | Reliable sealing performance |
| Friction Stability | Dynamic friction test | ≤0.2 | 0.35-0.5 | Smoother damping response |
| Fatigue Durability | Long-cycle simulation test | ≥5,000,000 cycles | 500,000-1,000,000 cycles | Longer service interval |
Main Technical Specifications
| Feature | Specification | Quality Verification |
|---|---|---|
| Base Material | FC-0208 Fe-Cu-C Powder Metallurgy | Material composition inspection |
| PTFE Material | Modified Anti-Swell FR104 PTFE | Oil resistance testing |
| Wrapping Method | Heat-Press Integrated Wrapping | High temperature bonding test |
| Dimensional Tolerance | ±0.02mm | Precision measurement inspection |
| Friction Coefficient | ≤0.2 | Dynamic friction analysis |
| Operating Temperature | -40℃~120℃ | Climate environment test |
| Leakage Rate | ≤0.5ml/min | Pressure bench inspection |
| Quality Management | IATF16949:2016 | Automotive quality system |
Common Problems & Solutions
In practical applications, shock absorber manufacturers mainly focus on material compatibility, product consistency and long-term reliability. XIAYI improves the piston structure according to actual failure conditions found in vehicle operation environments.
| Customer Concern | Traditional Issue | XIAYI Improvement |
|---|---|---|
| Piston size changes after oil aging | PTFE absorbs oil and expands | Anti-swelling PTFE formula maintains stable dimensions |
| Damping force inconsistency | Clearance variation caused by swelling | Controlled dimensional tolerance for stable movement |
| High temperature operation failure | Material aging and wrapping movement | Heat-press integrated structure with strong bonding |
| Vehicle noise increase | Uneven friction and piston resistance fluctuation | Stable friction characteristics during service life |
| Batch quality fluctuation | Unstable material and manual process control | IATF16949:2016 quality management and full inspection |
Application Areas & Project Experience
Typical Applications
XIAYI Anti-Oil-Swell PTFE Wrapped Piston is widely applied in passenger vehicle shock absorbers, commercial vehicle damping systems, motorcycle suspension systems, new energy vehicle shock absorbers and industrial vibration control equipment.
It is especially suitable for applications requiring long-term contact with hydraulic oil, frequent reciprocating movement and strict dimensional control, including high-temperature driving environments, heavy-load transportation and continuous vibration conditions.
International Customer Application Example
01
Case Background
A European shock absorber manufacturer previously used conventional PTFE wrapped pistons for passenger vehicle suspension systems. After long-term operation in high-temperature hydraulic oil environments, the piston diameter gradually increased due to material swelling, causing increased friction resistance, inconsistent damping response and abnormal chassis noise. The customer needed a more stable PTFE solution for long-life vehicle applications.
02
Cooperation & Application Effect
In 2024, the customer introduced XIAYI Anti-Oil-Swell PTFE Wrapped Pistons into mass production. After vehicle road testing and batch application verification, the piston maintained stable dimensions after long-term oil exposure, with no wrapping separation or leakage issues observed. The damping consistency was improved, customer complaint frequency was significantly reduced, and the product achieved stable monthly supply for global vehicle programs.
XIAYI Manufacturing Capability
XIAYI is a professional manufacturer specializing in precision damping components with nearly 20 years of industry experience. The company has established a quality management system that complies with IATF 16949:2016 standards, providing reliable quality assurance for global automotive component customers.
With a standardized production facility of more than 5000 square meters, XIAYI is equipped with automatic powder metallurgy presses, continuous mesh belt sintering furnaces, CNC precision machining equipment, automatic PTFE wrapping production lines and professional performance testing laboratories. The complete manufacturing process covers raw material inspection, powder forming, sintering, machining, PTFE wrapping, dimensional inspection and finished product testing.
For every batch of production, XIAYI follows strict process control requirements, including incoming material verification, key process parameter monitoring and final product inspection. Through traceable quality management and continuous process improvement, the company ensures stable product consistency and dependable supply capability for international OEM and aftermarket customers.
With years of global export experience, XIAYI products have been supplied to customers in multiple countries and regions, supporting customized damping solutions for automotive suspension systems, motorcycles and industrial applications.
Customized Solutions For Different Applications
Different vehicles and operating environments require different piston structures, materials and performance parameters. XIAYI provides professional OEM/ODM development services according to customer drawings, working conditions and assembly requirements.
Engineering Support From Design To Production
Customers can provide STP/CAD drawings, existing samples or technical requirements. XIAYI engineers analyze product structure, material selection, tolerance requirements and application conditions to provide optimized manufacturing suggestions before mass production.
Material And Structure Optimization
According to different working environments, XIAYI can customize PTFE material performance, wrapping thickness, piston dimensions, surface treatment and powder metallurgy parameters. This allows the product to achieve better compatibility with different shock absorber oils, loads and temperature conditions.
Rapid Sampling & Stable Mass Production
With experienced engineering teams and complete manufacturing equipment, XIAYI supports efficient prototype development and production transition. Sample preparation, performance verification and mass production are managed through standardized procedures to ensure reliable project delivery.
FAQ
Q1
Why does PTFE swelling affect shock absorber performance?
A1
PTFE materials may absorb certain amounts of hydraulic oil during long-term operation. When swelling occurs, the piston outer diameter and matching clearance may change, increasing friction resistance and affecting damping consistency. XIAYI uses modified anti-swelling PTFE material to reduce oil absorption and maintain more stable dimensions during continuous oil exposure, helping shock absorbers maintain consistent performance.
Q2
How does XIAYI improve the reliability of wrapped pistons in high-temperature oil environments?
A2
XIAYI combines modified FR104 PTFE material with an integrated heat-press wrapping process. The optimized material structure improves resistance against oil penetration, while the wrapping process enhances the connection between PTFE and the powder metallurgy substrate. After high-temperature oil aging and side-load testing, the product maintains stable structure without obvious wrapping displacement or leakage problems.
Q3
Can XIAYI customize PTFE wrapped pistons for different shock absorber models?
A3
Yes. XIAYI provides customized development services for different vehicle models and operating conditions. According to customer requirements, we can adjust PTFE material formulation, piston dimensions, wrapping specifications, tolerance control and performance parameters. Our engineering team supports the complete process from design evaluation and prototype production to stable batch manufacturing.
Q4
What quality standards does XIAYI follow for automotive piston production?
A4
XIAYI has established a quality management system compliant with IATF 16949:2016 standards. The production process includes material inspection, process monitoring, dimensional measurement, performance testing and final product verification. This systematic quality control approach ensures consistent performance and reliable delivery for automotive customers.
Get Your Anti-Oil-Swell PTFE Wrapped Piston Quotation
Contact XIAYI for customized piston solutions, OEM/ODM development and stable mass production.
Hot Tags: Anti-Oil-Swell PTFE Wrapped Piston, PTFE Wrapped Piston Manufacturer, Oil-Resistant Piston Supplier
