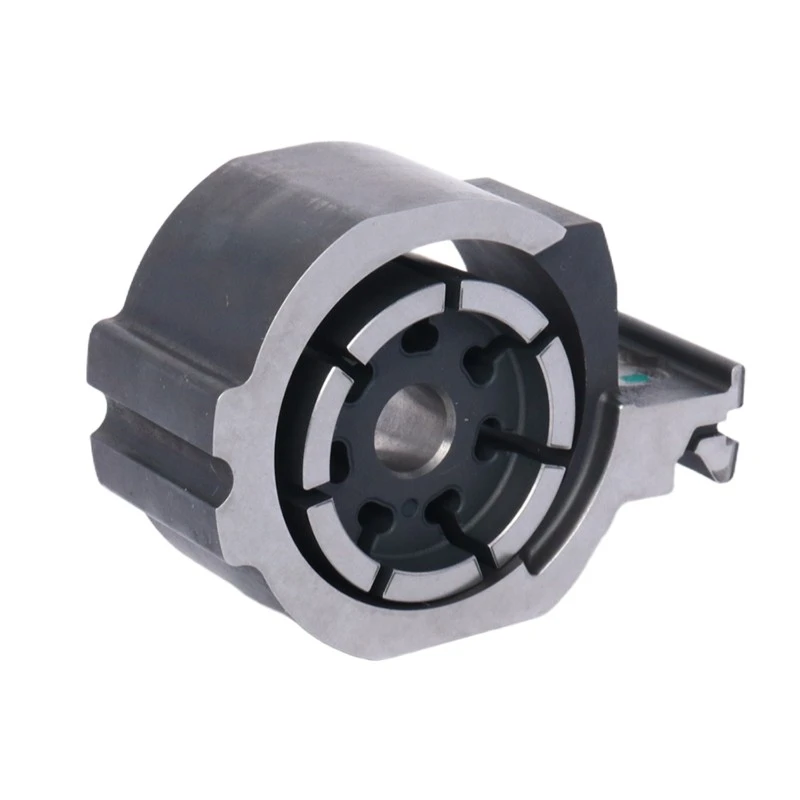

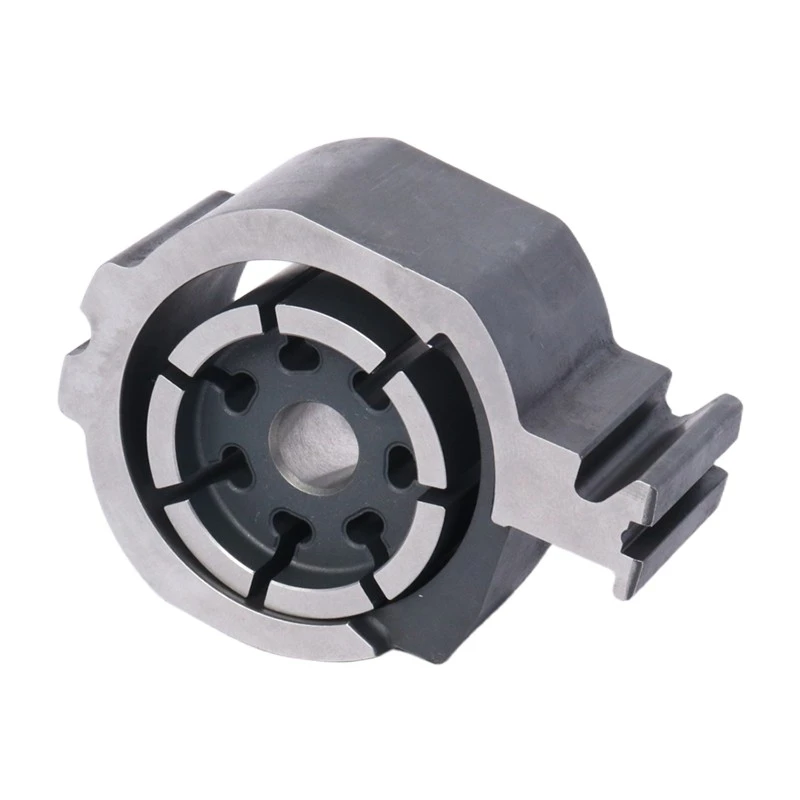

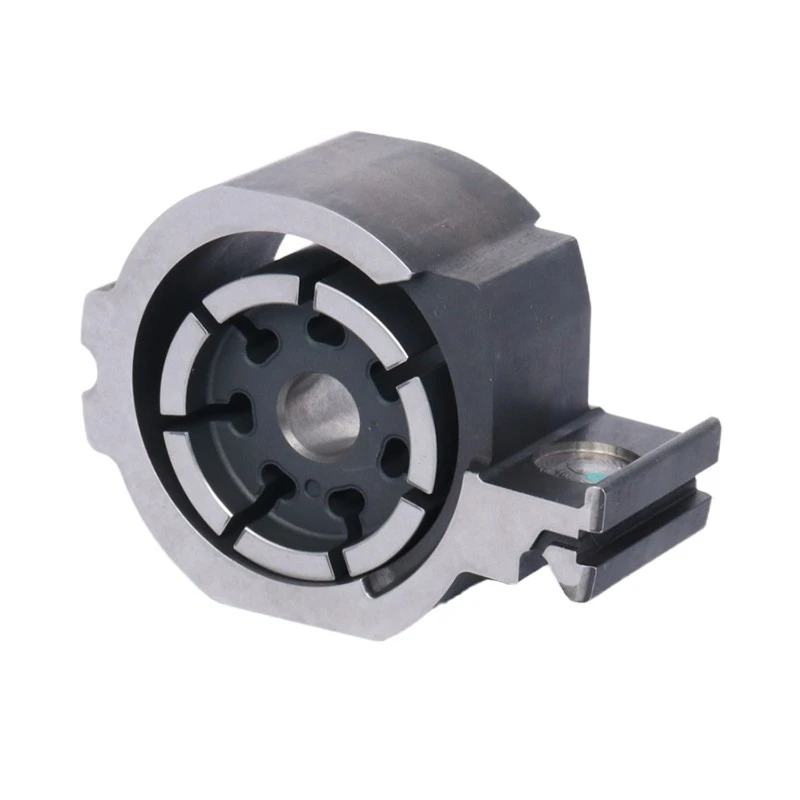

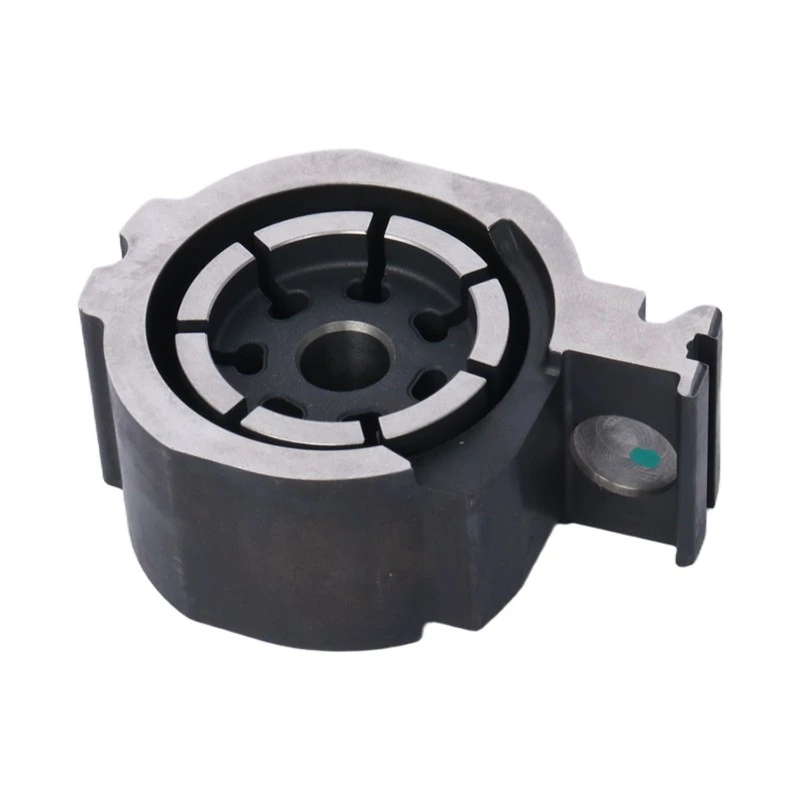

Powder Metallurgy Variable Pump Rotor Adjusting Ring

The Powder Metallurgy Variable Pump Rotor Adjusting Ring is designed for variable displacement oil pumps and hydraulic pump systems where accurate flow control and smooth adjustment performance are essential. Manufactured with high-density iron-copper powder metallurgy alloy and advanced sintering technology, this adjusting ring offers excellent wear resistance, self-lubricating capability, and strong resistance against hydraulic impact.

Compared with traditional stamped or cast pump components, this powder metallurgy solution provides better structural consistency, improved dimensional accuracy, and reliable performance under continuous high-pressure operating conditions.

Material Structure and Durability

High-Density Iron-Copper Alloy Composition

The adjusting ring is produced using high-quality iron-copper powder metallurgy alloy with scientific powder grading and uniform atomized particle distribution. Through precision mixing, compression molding, and vacuum high-temperature sintering, the material forms a compact matrix structure with controlled micro oil-storage pores.

This internal structure provides natural lubrication performance during hydraulic oil circulation while maintaining excellent mechanical strength. The dense sintered body effectively reduces internal defects, prevents lamination issues, and improves resistance against pressure impact and mechanical fatigue.

Oil Resistance and Surface Protection

For different application environments, XIAYI can provide optional surface treatments including oil impregnation, blackening, and zinc plating. These treatments enhance corrosion resistance, oil compatibility, and long-term durability in demanding hydraulic systems.

The stable material structure allows the adjusting ring to maintain reliable performance under repeated pressure changes, temperature fluctuations, and continuous pump operation.

Flow Adjustment Performance

Accurate Rotor Position Control

The adjusting ring plays an important role in variable displacement pump systems by controlling rotor movement and maintaining precise displacement adjustment. The optimized wave tooth positioning structure ensures accurate eccentricity control, allowing stable pump output under changing engine loads.

The Powder Metallurgy Variable Pump Rotor Adjusting Ring helps solve common hydraulic system problems such as unstable flow regulation, rotor vibration, internal leakage, and shortened pump service life.

Improved Pump Operation Stability

During long-term operation, the adjusting ring is exposed to repeated hydraulic pressure impact and mechanical movement. With a compressive strength of up to 420MPa, the component maintains structural stability without deformation.

The built-in self-lubricating micropores reduce direct metal contact between moving components, minimizing friction wear, abnormal noise, and adjustment failure caused by insufficient lubrication.

Manufacturing Process and Quality Inspection

Controlled Production Flow

XIAYI applies a complete powder metallurgy manufacturing process to ensure stable quality from raw material preparation to final packaging.

XIAYI follows strict automotive manufacturing standards through every production stage. The IATF 16949:2016 certified quality management system ensures effective process control, product traceability, and continuous quality improvement.

Precision Dimension Control

Key Tolerance Requirements

For variable pump applications, dimensional accuracy directly affects flow regulation efficiency and hydraulic system reliability. XIAYI controls critical dimensions through precision calibration and advanced inspection equipment.

Precise dimensional control allows the adjusting ring to achieve reliable interchangeability with original pump systems and supports efficient automated assembly.

Application Fields and Working Conditions

Automotive and Hydraulic Pump Applications

The adjusting ring is widely used in engine variable displacement oil pumps, hydraulic vane pumps, and mechanical variable pump systems. It is suitable for passenger vehicles, new energy vehicles, and engineering machinery requiring accurate flow adjustment.

The component is designed to operate reliably in demanding environments, including high-pressure hydraulic circulation, frequent load variation, and long-term continuous operation.

With excellent resistance against hydraulic oil erosion, pressure impact, and thermal cycling deformation, the product supports stable pump performance in different operating scenarios.

Installation and Usage Recommendations

Correct Assembly Method

Before installation, customers should inspect the adjusting ring for tooth damage, hole deformation, surface defects, or dimensional abnormalities. Damaged or low-quality recycled components should be avoided to prevent premature pump failure.

During assembly, the component should be installed according to the standard pump assembly sequence with vertical and uniform pressing force. Proper installation prevents tooth deformation, adjustment errors, and abnormal pump operation.

Storage and Maintenance Requirements

For conventional hydraulic systems, oil-impregnated versions are recommended to improve lubrication performance. For high-pressure or humid environments, anti-rust coated versions provide additional protection.

Finished products should be stored in sealed and moisture-proof packaging to protect the self-lubricating microporous structure. Matching standard-tolerance pump rotors and related components ensures accurate variable flow adjustment and extends the service life of the complete hydraulic system.

Product FAQ

What is the function of a variable pump rotor adjusting ring?

The adjusting ring is a precision component used in variable displacement pump systems to control rotor adjustment movement and maintain stable flow output. It helps the pump respond accurately to changing operating conditions and ensures efficient hydraulic performance.

What material is used for this adjusting ring?

The Powder Metallurgy Variable Pump Rotor Adjusting Ring is manufactured from high-density iron-copper powder metallurgy alloy. The material provides excellent strength, wear resistance, and self-lubricating performance through its controlled microporous structure.

Why choose powder metallurgy instead of stamped or cast components?

Powder metallurgy technology provides better dimensional consistency, uniform material structure, and improved resistance to fatigue and hydraulic impact. It is especially suitable for precision pump components requiring stable performance and long service life.

Can XIAYI customize the adjusting ring according to customer drawings?

Yes. XIAYI supports customized manufacturing based on customer drawings, pump designs, material requirements, dimensional specifications, and surface treatment needs. Engineering support is available for product optimization and mass production.

What dimensional accuracy can be achieved?

The adjusting ring can achieve strict tolerance control, including central hole concentricity ≤0.02mm, wave tooth symmetry ±0.012mm, ring wall uniformity ≤0.018mm, and end face flatness ≤0.015mm.

What applications use this adjusting ring?

The component is widely used in automotive variable oil pumps, hydraulic vane pumps, and mechanical variable pump systems. Typical applications include passenger vehicles, new energy vehicles, and engineering machinery.

What surface treatments are available?

XIAYI can provide oil impregnation, blackening, and zinc plating treatments according to different operating environments. These treatments improve oil resistance, corrosion protection, and service durability.

What information is required for quotation?

Customers can provide pump model information, technical drawings, required material specifications, annual demand, surface treatment requirements, and packaging requirements. XIAYI can then recommend a suitable production solution.

XIAYI combines advanced powder metallurgy technology, precision manufacturing capability, and automotive-grade quality management to deliver reliable Powder Metallurgy Variable Pump Rotor Adjusting Ring solutions for global pump manufacturers and automotive suppliers.
