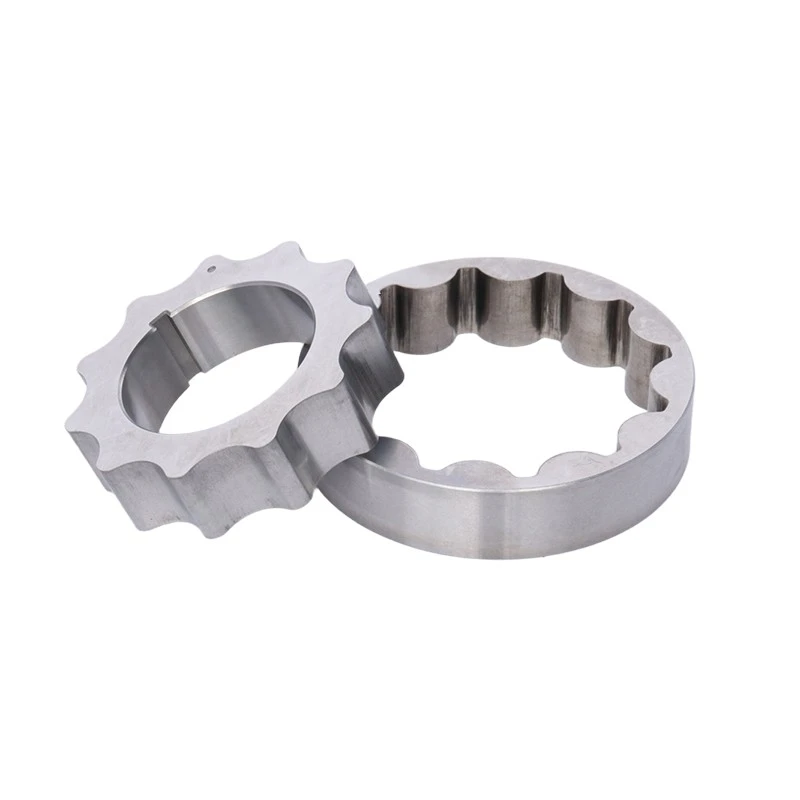

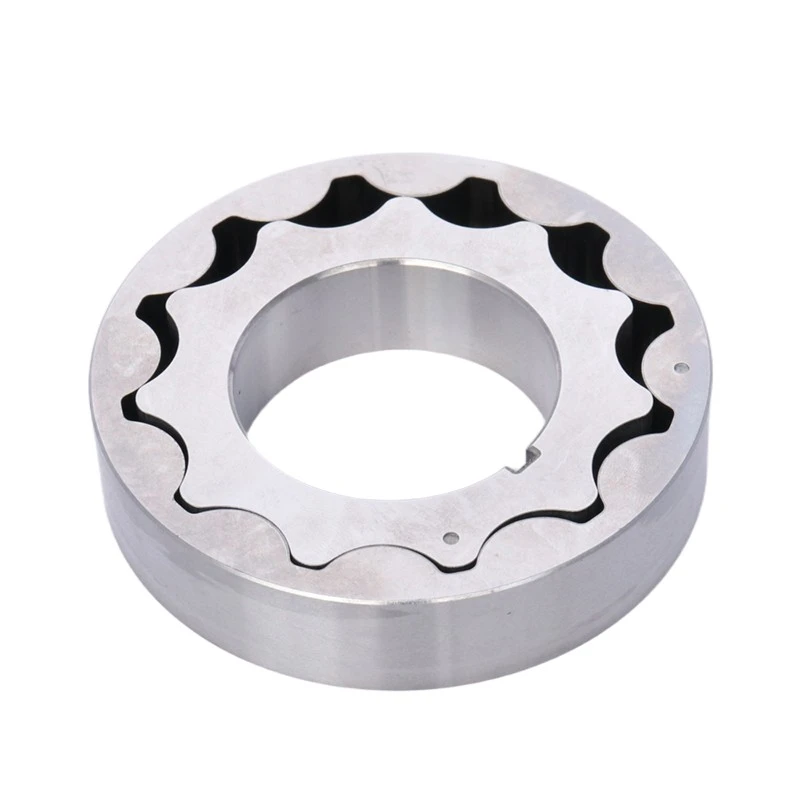

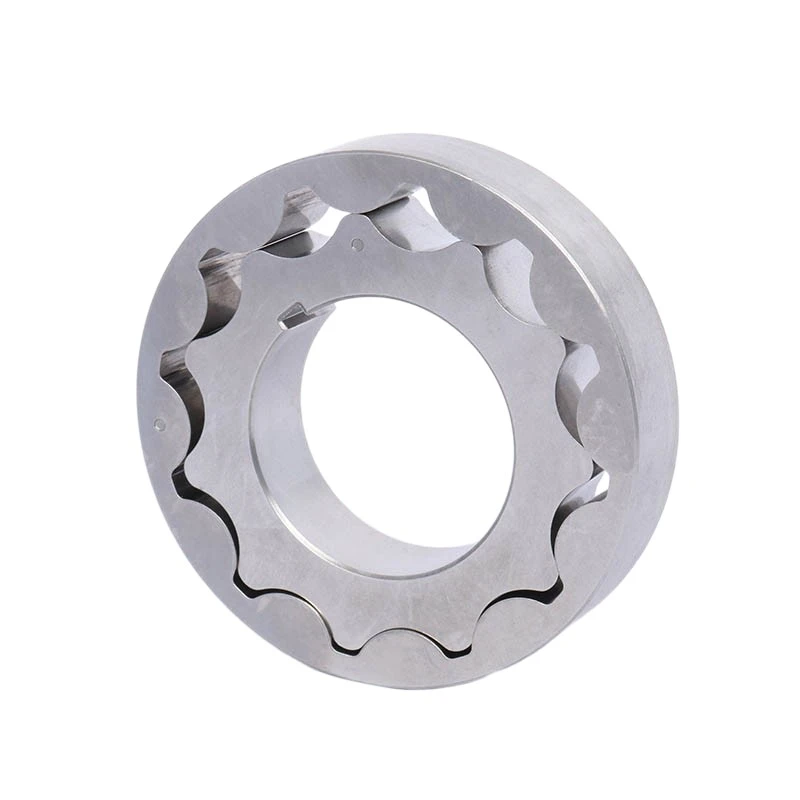

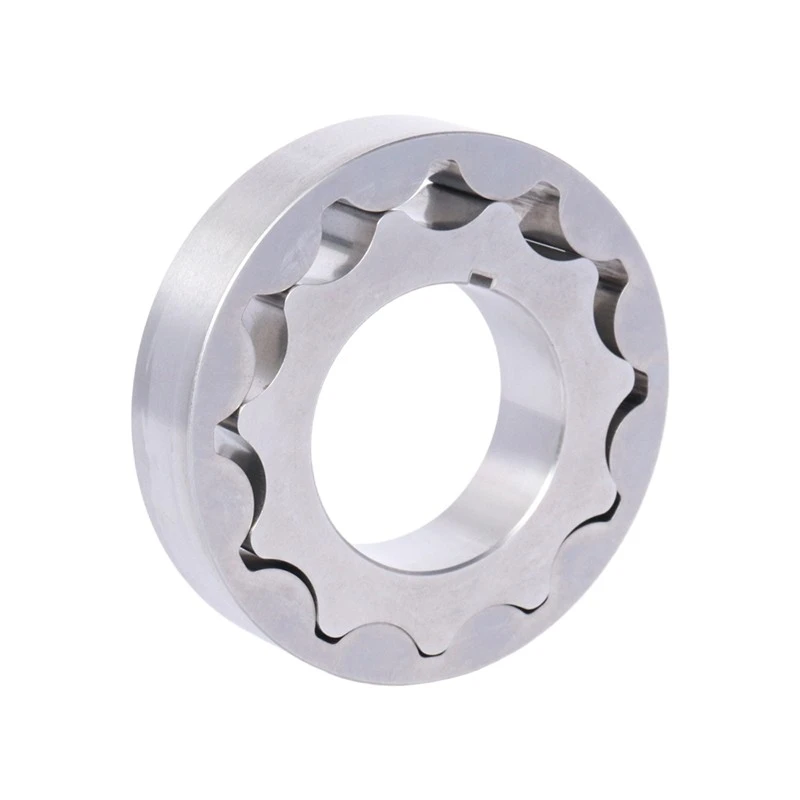

Powder Metallurgy Engine Variable Oil Pump Rotor

The Powder Metallurgy Engine Variable Oil Pump Rotor is designed for modern engines requiring accurate oil flow adjustment, low friction operation, and long service life. Compared with traditional cast and machined rotors, this powder metallurgy solution provides better material consistency, higher dimensional accuracy, and improved resistance against wear and hydraulic impact.

Product Structure and Material Advantages

High-Density Iron-Copper Alloy Material

The rotor is manufactured using high-purity iron-copper powder metallurgy alloy with optimized powder grading technology. Through precision mixing, high-pressure compression molding, and high-temperature sintering, the component forms a dense internal structure with uniform micro pores.

This controlled porous structure improves oil storage capability and enhances lubrication performance during operation. The integrated material structure provides excellent mechanical strength, fatigue resistance, and dimensional stability, allowing the rotor to withstand long-term engine operating conditions.

Unlike conventional metal processing methods, powder metallurgy technology enables complex structural designs with consistent density distribution, reducing internal defects and improving overall product reliability.

Self-Lubricating and Wear Resistant Performance

During engine operation, the rotor continuously contacts with the pump housing under high-speed rotation and hydraulic pressure. The natural oil retention characteristics of the powder metallurgy material help reduce direct friction between moving parts.

Optional oil impregnation and anti-rust surface treatments can further improve corrosion resistance and durability, allowing the component to perform reliably under high-temperature hydraulic oil environments and repeated thermal cycles.

Variable Oil Pump Performance Features

Stable Oil Pressure Control

The rotor adopts a specially developed wave-tooth structural design that enables precise eccentric movement adjustment inside the variable displacement oil pump. This allows the oil pump system to adjust oil output according to engine speed, load changes, and lubrication requirements.

The accurate adjustment capability helps solve common engine lubrication problems, including unstable oil pressure, insufficient oil flow, internal leakage, and excessive pump vibration.

Lower Friction During Operation

The Powder Metallurgy Engine Variable Oil Pump Rotor is designed to maintain smooth rotation performance under continuous engine operation. The optimized material structure and precise tooth profile reduce friction loss and minimize abrasive wear between the rotor and pump chamber.

This improves pump efficiency, reduces abnormal operating noise, and helps extend the service life of the complete oil pump assembly.

Manufacturing Process and Quality Control

Precision Powder Metallurgy Production Process

XIAYI applies a complete manufacturing process from raw material preparation to final inspection to ensure consistent product quality for automotive applications.

XIAYI has established a quality management system that complies with IATF 16949:2016 standards. Through strict process monitoring, inspection procedures, and continuous improvement management, XIAYI provides automotive customers with consistent and dependable powder metallurgy components.

Dimensional Accuracy and Technical Standards

Strict Tolerance Control

For variable oil pump applications, dimensional accuracy directly influences oil pressure adjustment performance and pump efficiency. XIAYI uses precision calibration and inspection equipment to control critical dimensions during production.

The high precision manufacturing capability ensures that the Powder Metallurgy Engine Variable Oil Pump Rotor achieves reliable interchangeability with original equipment oil pump systems and supports efficient automated assembly.

Automotive Applications and Operating Conditions

Suitable Engine Systems

The rotor is widely applied in variable displacement oil pump systems used in gasoline engines, diesel engines, passenger vehicles, new energy vehicles, and light-duty machinery.
The product is designed to operate under demanding conditions, including high-pressure oil circulation, frequent load changes, and long-term thermal cycling.

With excellent wear resistance and dimensional stability, the rotor helps maintain consistent lubrication performance during different driving conditions.

Installation and Usage Recommendations

Proper Installation Requirements

Before installation, customers should inspect the rotor surface condition, tooth profile accuracy, dimensional consistency, and possible deformation. Any component with visible damage or abnormal defects should not be installed.
During assembly, the rotor should be installed according to standard oil pump procedures with uniform pressing force. Proper assembly helps prevent tooth deformation, inaccurate pressure regulation, and premature wear.

Storage and Maintenance Guidelines

To protect the performance of the rotor, finished products should be stored in sealed and dry packaging to avoid contamination of the self-lubricating microporous structure.
Customers should select suitable surface treatment specifications according to engine operating conditions and use matched oil pump components to maintain accurate variable pressure regulation and extend the service life of the complete system.

Product FAQ

What material is used for the engine variable oil pump rotor?

The Powder Metallurgy Engine Variable Oil Pump Rotor is manufactured from high-purity iron-copper powder metallurgy alloy. Through precise powder mixing, high-pressure forming, and high-temperature sintering, the rotor achieves high density, excellent mechanical strength, and stable dimensional performance. The internal microporous structure also provides natural oil retention and self-lubricating characteristics.

What are the advantages of powder metallurgy technology for this rotor?

Powder metallurgy technology allows manufacturers to achieve complex structural designs with consistent material distribution and accurate dimensions. Compared with traditional casting or machining processes, the rotor provides improved wear resistance, lower friction, better production consistency, and reliable performance for automotive oil pump systems.

How does the rotor help maintain stable engine lubrication?

The wave-tooth structural design enables precise eccentric adjustment inside the variable oil pump. The rotor can support dynamic oil output adjustment according to engine load and speed, helping maintain stable oil pressure and reducing problems caused by insufficient lubrication or pressure fluctuation.

Can XIAYI customize the oil pump rotor according to customer requirements?

Yes. XIAYI provides customized powder metallurgy solutions according to engine models, oil pump designs, technical drawings, dimensional requirements, material specifications, and surface treatment needs. The engineering team can support product optimization and mass production development.

What dimensional accuracy can the rotor achieve?

The rotor is manufactured under strict tolerance control. Key specifications include shaft hole concentricity within ≤0.02mm, wave tooth symmetry within ±0.012mm, rotor thickness uniformity within ≤0.018mm, and end face flatness within ≤0.015mm.

What applications can use this variable oil pump rotor?

The rotor is suitable for gasoline engines, diesel engines, passenger vehicles, new energy vehicles, and light-duty machinery equipped with variable displacement oil pump systems. It is designed for applications requiring stable lubrication pressure, low friction, and long operating life.

How does XIAYI ensure consistent mass production quality?

XIAYI uses a complete production control system covering powder material inspection, precision molding, vacuum sintering, calibration processing, surface treatment, and final inspection. These procedures help ensure stable performance and reliable delivery for large-volume automotive projects.

What surface treatments are available for the rotor?

According to different engine operating conditions, XIAYI can provide optional oil impregnation and anti-rust surface treatments. These treatments improve corrosion resistance, lubrication performance, and durability in high-temperature oil environments.
