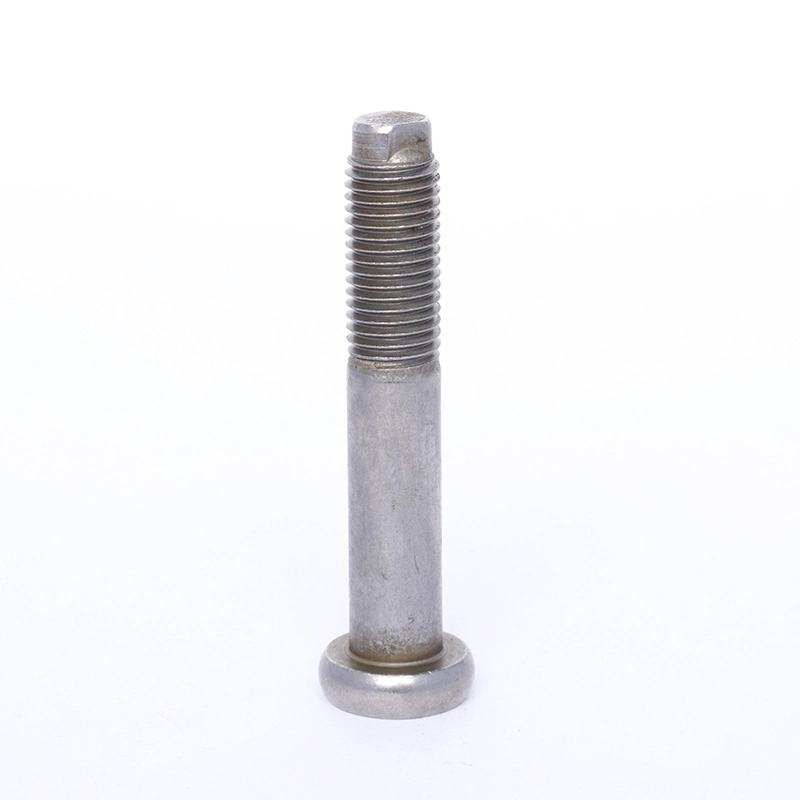

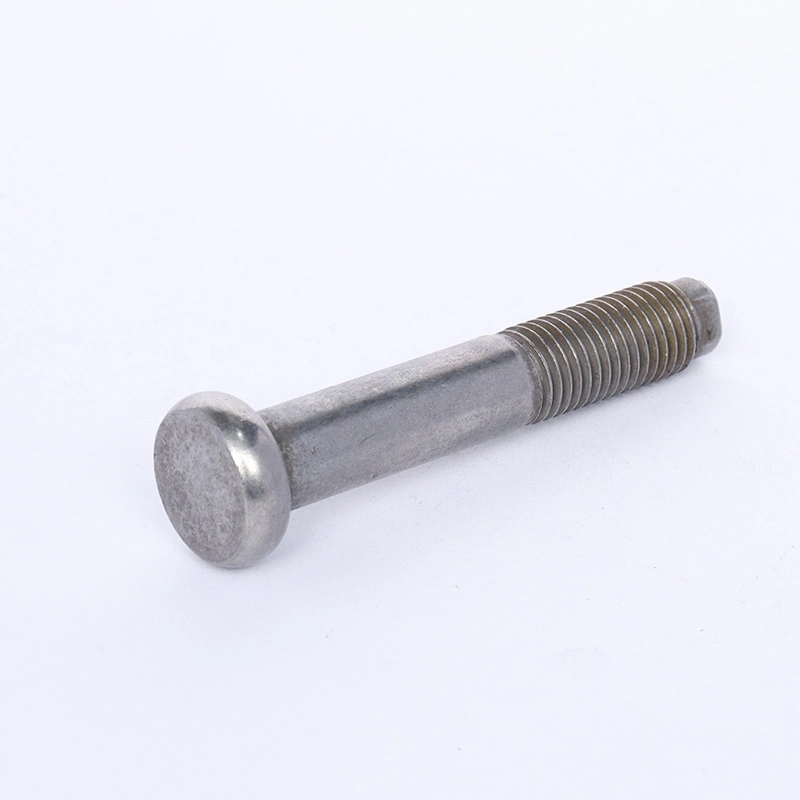

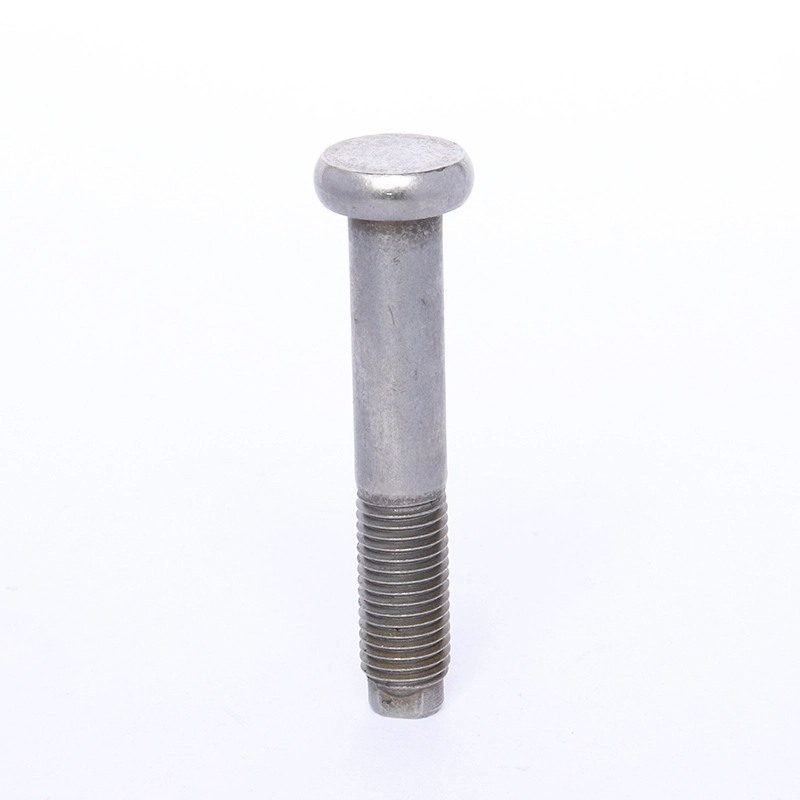

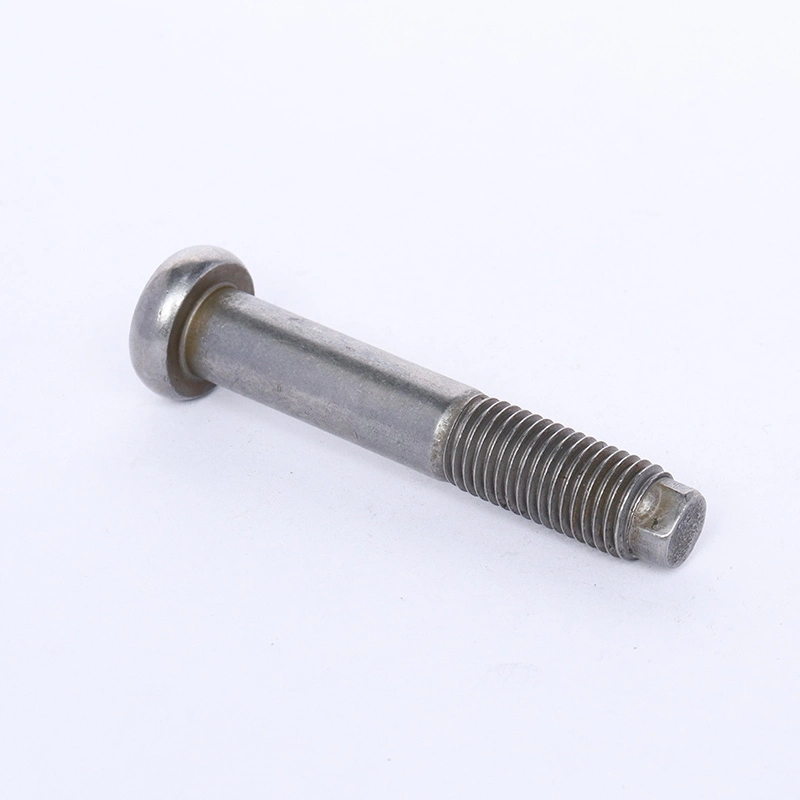

High-Tensile Steel Flange Bolt

The integrated flange distributes clamping pressure over a larger contact area than a conventional hex bolt, while the controlled thread geometry supports stable engagement with automatic tightening equipment. The High-Tensile Steel Flange Bolt is designed for MacPherson struts, shock absorber mounting points, rear control arms, modified suspension systems, passenger cars, SUVs, and light trucks.

Load and Connection Requirements

Suspension fasteners operate under conditions that are different from ordinary static connections. During braking, cornering, road impacts, and uneven-road driving, the High-Tensile Steel Flange Bolt is repeatedly exposed to tensile, shear, and alternating loads. A suitable flange bolt therefore needs consistent material properties, accurate dimensions, sufficient preload, and stable corrosion protection.

Flange Load Distribution

The flange head provides a larger bearing surface against the connected suspension component. Its controlled flatness helps distribute the clamping load more evenly and reduces localized stress around the mounting interface.

For suspension components subjected to repeated impact, flange flatness is controlled to ≤0.02 mm, while the flange diameter tolerance is maintained at ±0.04 mm.

Thread Engagement

XIAYI uses precision thread rolling with a 6g thread tolerance and controlled root geometry. The thread pitch tolerance is maintained at approximately ±0.008 mm, while effective thread length deviation is controlled within ±0.1 mm.

Accurate thread geometry helps prevent incomplete engagement, tightening interference, and preload variation during automated assembly.

Resistance to Repeated Loads

The 40Cr steel body undergoes vacuum quenching and tempering, achieving a target hardness of 32--38 HRC with a tensile strength of at least 1040 MPa and yield strength of at least 940 MPa. This mechanical profile is intended for suspension fastening points exposed to repeated vibration and impact.

Manufacturing Process Control

The production process covers material verification, cold forging, heat treatment, thread forming, surface finishing, corrosion protection, optical inspection, and torque testing. Each major process has defined dimensional or performance requirements to reduce variation between production batches.

Dimensional Control

Dimensional consistency is particularly important when bolts are installed using automatic tightening equipment. Variations in flange geometry, thread position, shaft concentricity, or overall length can lead to assembly interference or inconsistent clamping.

Thread Specification

Metric coarse and fine thread options are available according to the application. The standard 6g tolerance system provides controlled engagement, while the effective thread length is adjusted according to the mating component and available installation space.

Flange Geometry

The flange diameter is controlled within ±0.04 mm, with flange flatness maintained at ≤0.02 mm. The hexagonal head across-flat dimension is controlled within ±0.03 mm to provide stable engagement with tightening sockets.

Shaft Accuracy

Overall shaft concentricity is controlled to ≤0.03 mm, with total length tolerance of ±0.2 mm. These tolerances help maintain correct positioning between the bolt, suspension component, and mating thread.

Performance Verification

XIAYI evaluates the fastener under simulated vehicle operating conditions rather than relying solely on dimensional inspection. Testing covers vibration durability, corrosion exposure, temperature cycling, and heavy-load impact.

These tests provide engineering data for evaluating fastener behavior under repeated suspension loading and environmental exposure.

Vehicle Application Matching

Different vehicle platforms require different bolt dimensions and flange configurations. XIAYI provides several common Grade 10.9 specifications while supporting customized dimensions for OEM and modified suspension applications.

The appropriate specification should be selected according to the mounting hole, thread engagement, suspension load, available installation space, and manufacturer's specified tightening torque.

Corrosion Protection

Automotive suspension fasteners are exposed to water, mud, road salt, and temperature changes throughout their service life. XIAYI uses a three-layer galvanizing and passivation process with a total coating thickness of approximately 12--18 μm.

The finished product is tested to 500 hours of neutral salt spray exposure. This surface treatment is intended to reduce rust formation and thread seizure, particularly in northern regions using road de-icing salt and coastal areas with high humidity.

Real-World Application Cases

Compact EV Aftermarket Shock Upgrade

A European auto modification wholesaler replaced the original low-carbon steel bolts of 20,000 mini EV rear shock absorbers with XIAYI M8×30 Grade 10.9 high tensile steel bolts. Before replacement, vehicle owners frequently reported rear suspension loose noise after 10,000 km of driving on bumpy roads. After batch replacement, zero noise complaints were reported within two years, with no bolt rust observed in coastal high-humidity areas. The wholesaler reduced after-sales maintenance costs by 62% and established long-term order cooperation with XIAYI.

Domestic SUV OEM Mass Production Matching

A domestic auto OEM adopted XIAYI M10×45 flange bolts for its front MacPherson shock assembly line. Generic bolts previously caused a 3.2% assembly jamming rate on automatic tightening equipment, resulting in repeated production line interruptions. After switching to XIAYI micron-tolerance bolts, the reported assembly failure rate dropped to zero, and monthly production capacity increased by 12,000 vehicles without additional equipment modification.

Off-Road Light Truck Modification Project

An Australian off-road refitting plant used XIAYI M12×65 Grade 10.9 bolts for lifted light truck heavy-load shock fixing. After 1 million mountain-road impact cycles, no bolt deformation or fatigue crack was reported, while competing low-cost bolts fractured after 200,000 cycles. The refitting shop subsequently adopted XIAYI High-Tensile Steel Flange Bolts as standard matching components for its heavy-load modification models.

Buyer-Focused Quality Assurance

For automotive purchasing teams, batch consistency is as important as individual bolt strength. XIAYI maintains material records, process inspection data, and finished-product inspection records to support traceability from raw material to shipment.

Each production batch can be evaluated through dimensional inspection, hardness testing, thread verification, salt spray testing, and torque testing according to project requirements. Raw material samples and relevant batch records can be retained for traceability when required by the customer.

Frequently Asked Questions

Can the bolts be customized for different suspension systems?

Yes. XIAYI supports customized diameter, length, thread pitch, flange size, head dimensions, hardness, and surface treatment according to customer drawings or suspension requirements.

What Grade 10.9 means for automotive applications?

Grade 10.9 indicates a high-strength mechanical property class commonly used for demanding fastening applications. XIAYI additionally controls material composition, heat treatment, dimensional accuracy, and finished-product performance to meet the requirements of specific automotive projects.

How does the flange improve the connection?

The integrated flange provides a larger bearing surface than a conventional bolt head, helping distribute clamping pressure across the mounting area. This is useful for suspension joints exposed to repeated impact and vibration.

Can XIAYI provide inspection reports?

Yes. Depending on project requirements, XIAYI can provide dimensional, hardness, mechanical performance, salt spray, thread, and torque inspection records for production batches.

Can these bolts be reused after suspension maintenance?

Replacement requirements should follow the vehicle or component manufacturer's service instructions. For critical suspension connections, new fasteners are generally preferred when specified by the OEM or when the original bolt shows thread, coating, deformation, or other damage.

XIAYI Manufacturing Capability

XIAYI is a China-based automotive fastener manufacturer specializing in high-strength and customized fastening components. The factory integrates cold forging, vacuum heat treatment, precision thread rolling, surface treatment, optical sorting, and performance testing, with a production capacity of approximately 900,000 pieces per day.

Its quality management system complies with IATF 16949:2016, supporting controlled production and batch traceability for automotive customers. XIAYI provides OEM manufacturers, aftermarket distributors, and suspension modification companies with sample development, customized production, inspection documentation, and bulk supply services.
